Lippert Tandem Axle Suspension Kit � 3,500 lb Capacity � 2.375? Axle Tube � Tall Equalizer � 2,200 lb Leaf Springs (25-1/4? Unloaded / 26? Loaded) � Hangers & Hardware Included � Dexter | Alko | Rockwell | Quality Axles Compatible

Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity – 2.375″ Axle Tube – Tall Equalizer – 2,200 lb Leaf Springs (25-1/4″ Unloaded / 26″ Loaded) – Hangers & Hardware Included

Replace or upgrade your trailer’s suspension with this complete Lippert Tandem Axle Kit. It’s rated for 3,500 lb axles featuring a 2.375″ tube, tall equalizer, and leaf springs tested to 2,200 lb capacity each. These 1-3/4″ wide, 4-layer springs have an unloaded eye-to-eye length of 25-1/4″ and load out to 26″, giving you balanced support whether you’re hauling lightly or heavily. All hangers, hardware, and axle mounting components are included for a hassle-free installation. Compatible with Dexter, Alko, Rockwell, and Quality Axles, this kit helps improve load distribution, stability, and overall towing performance.

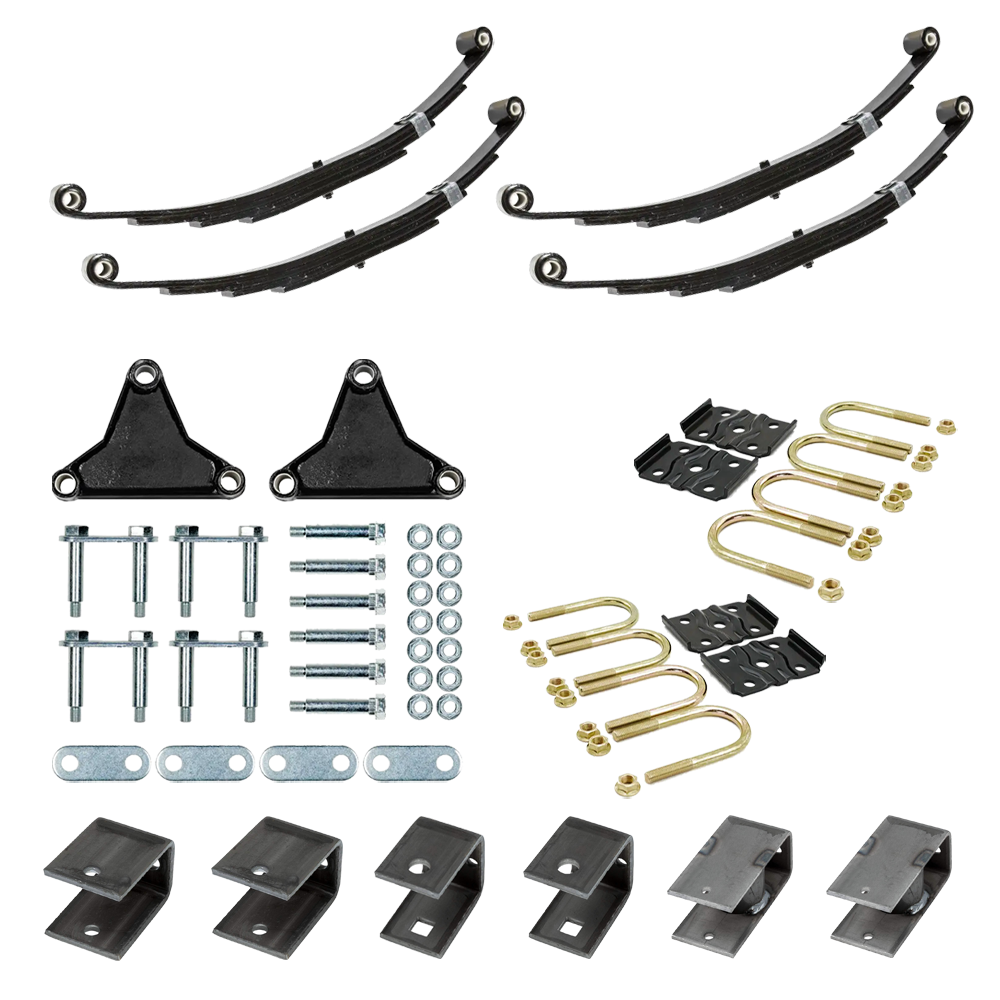

Bundle Contents:

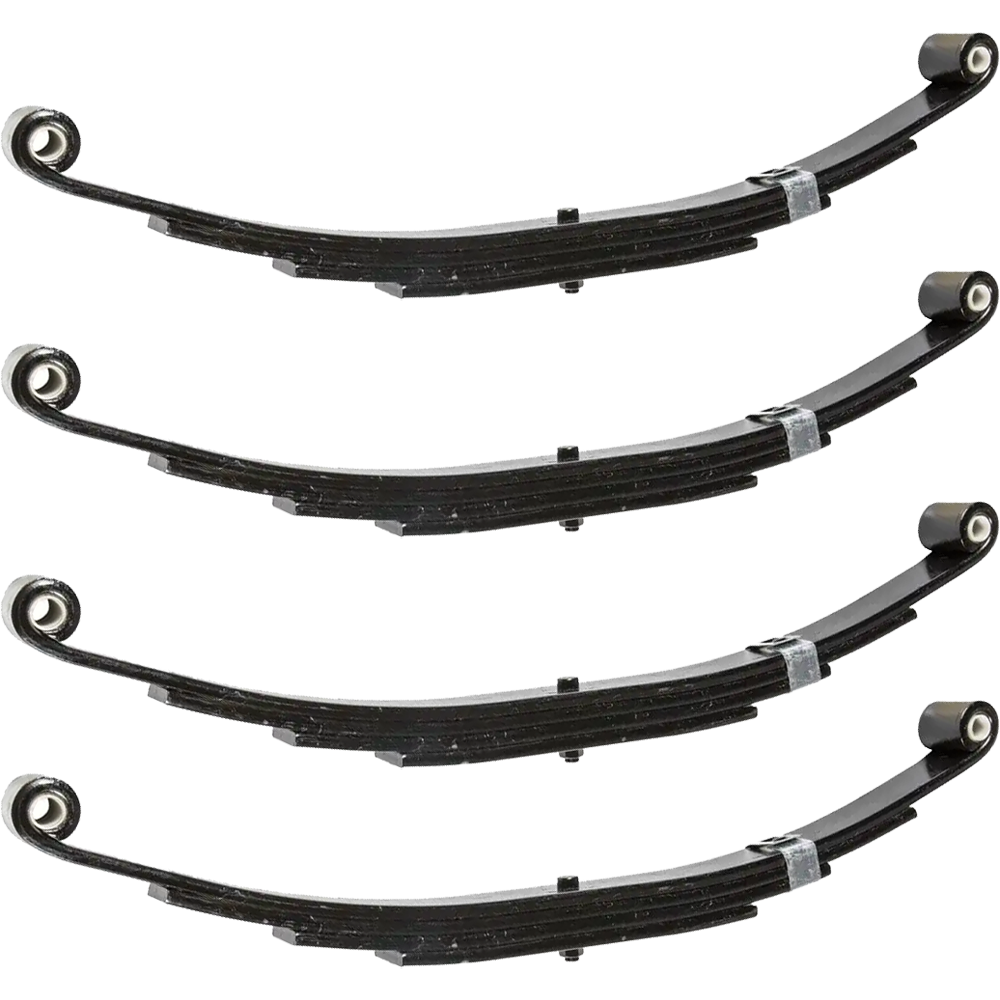

• QTY (4): Lippert Replacement Leaf Spring for RV Trailer Suspension
  • 2,200 lb capacity per spring
  • 1-3/4" wide, 4-layer double-eye design
  • 25-1/4" unloaded eye-to-eye / 26" loaded
  • 9/16" diameter spring eyes
  • Approx. 3" arch height unloaded / 2" loaded

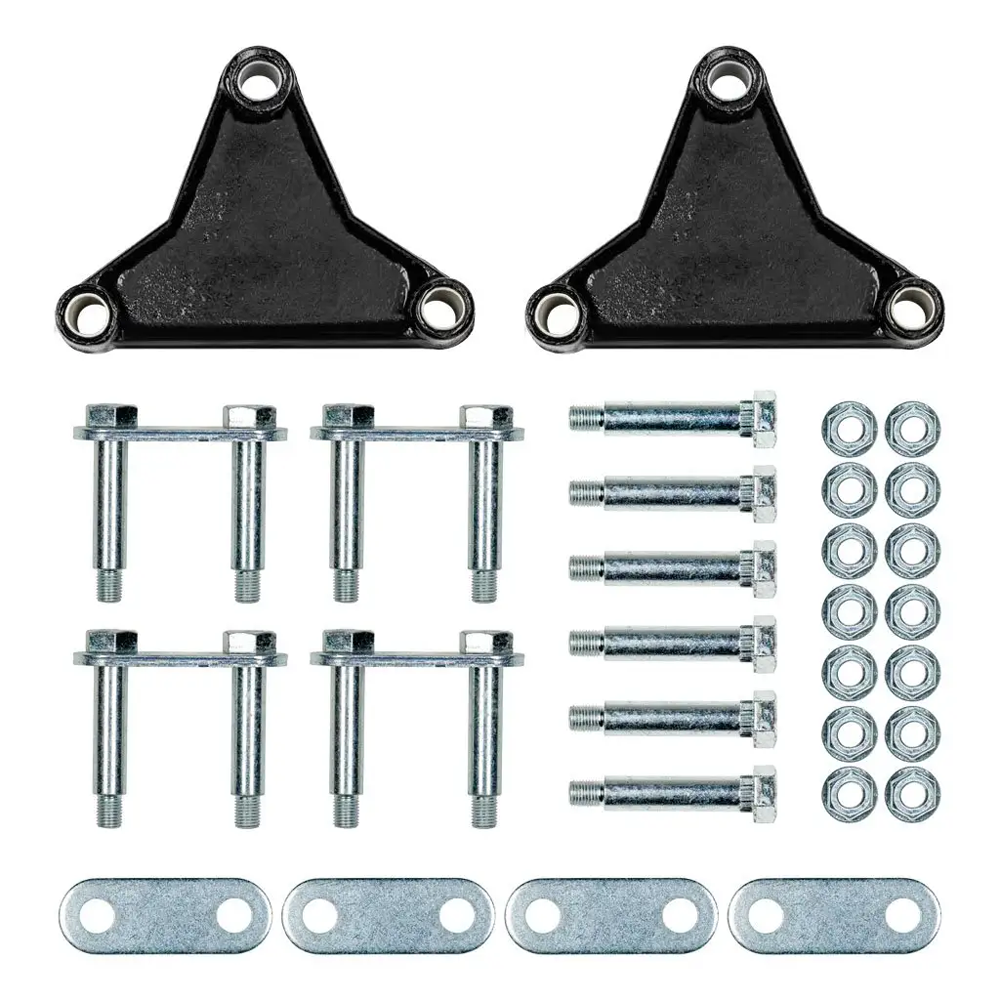

• QTY (1): Lippert Trailer Axle AP Kit for 2-7K Double-Eye Tandem Axles – Tall Equalizer
  • Equalizer Reference: EQ-310 (Tall Equalizer)
  • (3) Equalizer Bolts (2.88" length)
  • (4) Shackle Assemblies (2.25" length)
  • (4) Shackle Plates (2.25" length)
  • (6) Shackle Bolts (2.88" length)
  • (2) Equalizer Nuts (7/16"-20)
  • (14) Lock Nuts (7/16"-20)

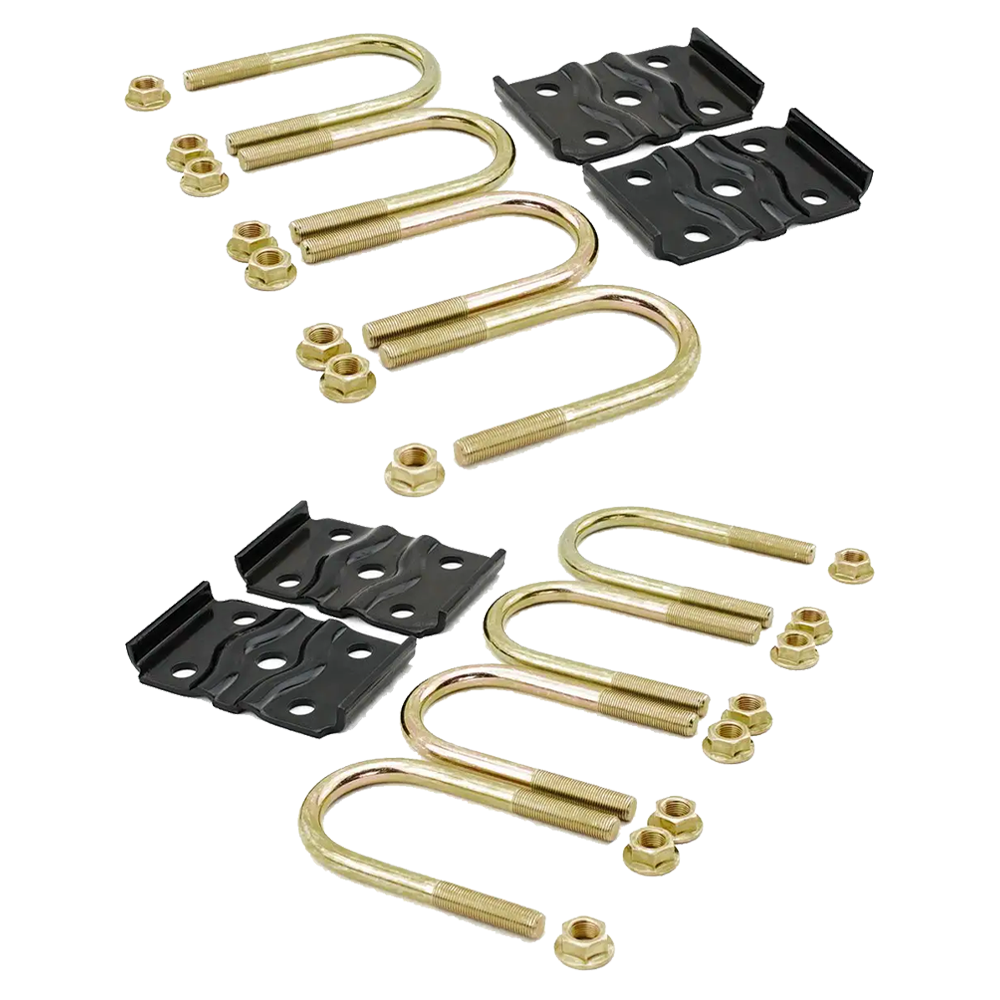

• QTY (2): Lippert Axle Mounting Kit – 2.375" Tube
  • U-bolt style replacement kit
  • Fits 2.375" axle tube diameter
  • Includes necessary nuts and washers
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Axle Rating
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Rating
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Axle Rating
  • Length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"

We recommend verifying fitment, checking your existing hardware, and performing routine maintenance for safe towing. Always reference your trailer’s original equipment labels and weight ratings.
