Lippert Tandem Axle Suspension Kit � 3,500?lb Capacity � 2.375? Axle Tube � Tall Equalizer � 24?7/8" Leaf Springs (4,000?lb) � Dexter, Alko, Rockwell, Quality Axles Compatible

Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity – 2.375″ Tube – Tall Equalizer – 24‑7/8" Leaf Springs (4,000 lb)

This complete Lippert tandem axle suspension kit is designed for 3,500 lb axles with 2.375″ axle tubes. It features four 24‑7/8" (unloaded) leaf springs rated at 4,000 lb, a tall equalizer (EQ‑310), plus front, center and rear hangers with all mounting hardware. The included components are compatible with Dexter, Alko, Rockwell, and other quality axles—giving you everything needed for a smooth and dependable towing experience.

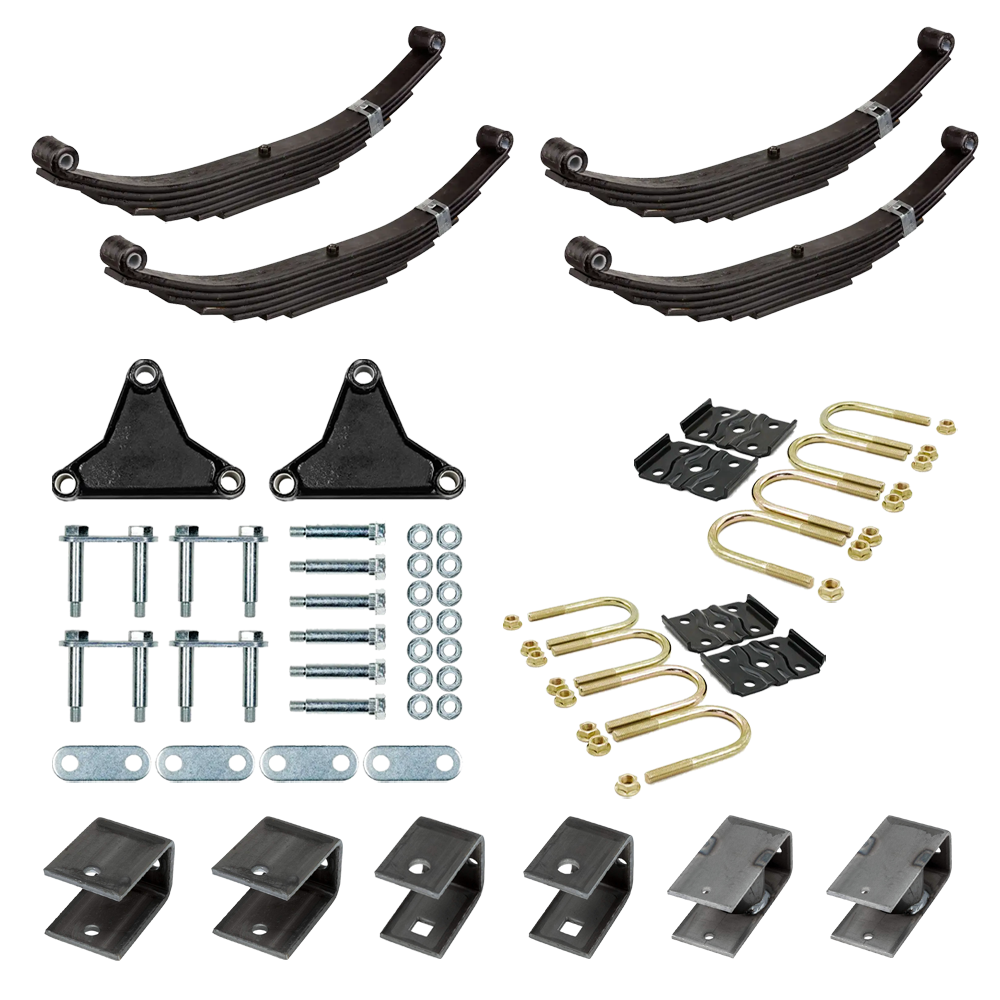

Bundle Contents:

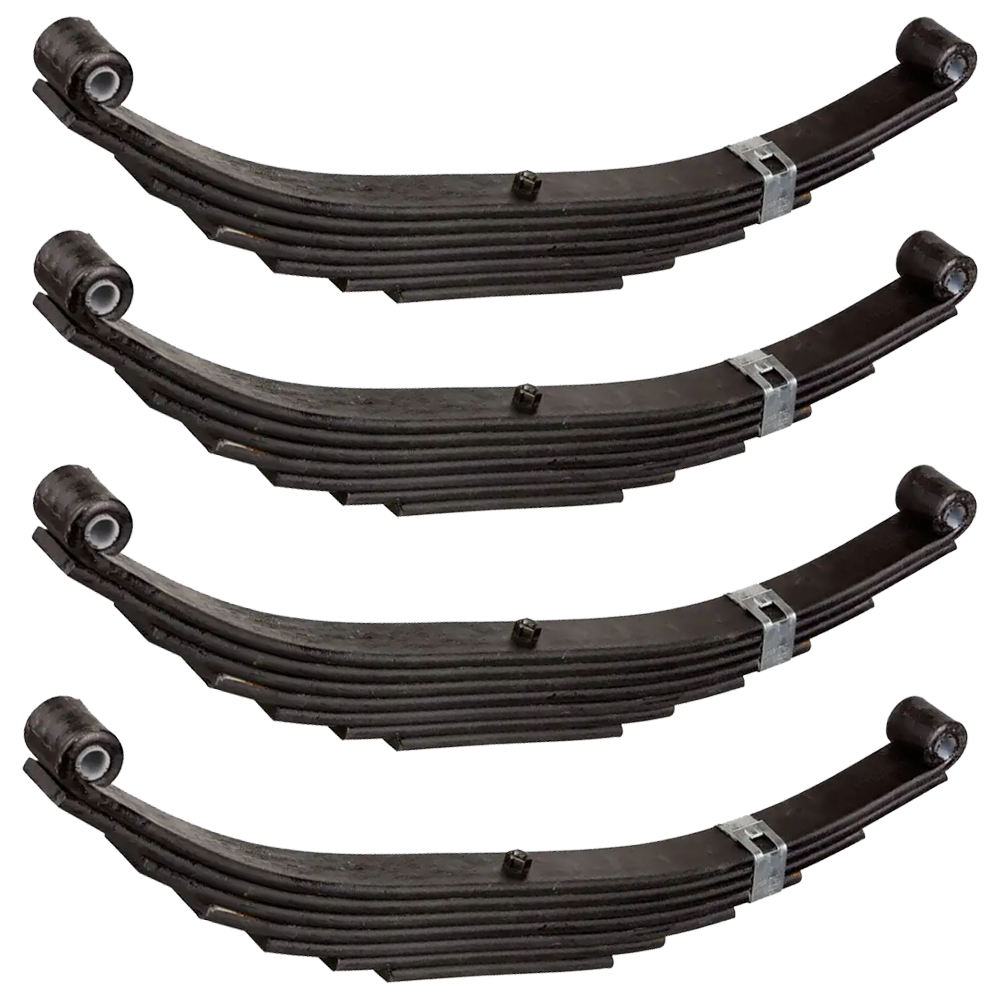

• QTY (4): 4,000 lb Leaf Spring (24‑7/8" Unloaded)
  • Rated at 4,000 lb each, 7 leaves per spring
  • 1‑3/4" spring width, 9/16" eye diameter
  • 24‑7/8" eye‑to‑eye (unloaded), 26" loaded
  • Arch height: 3‑1/4" unloaded, 1‑3/4" loaded

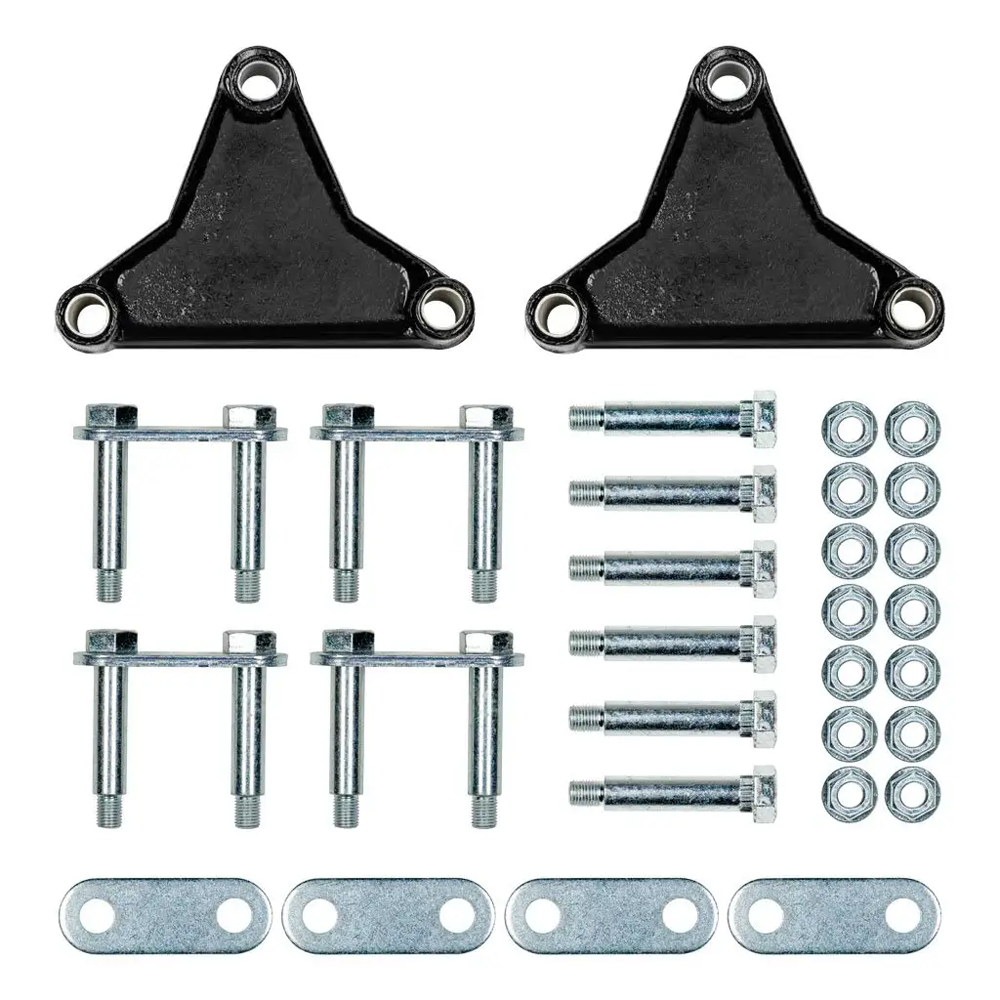

• QTY (1): Lippert Tall Equalizer Kit (EQ‑310)
  • Equalizer Reference: EQ‑310
  • Equalizer Bolt Qty: 3 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length)
  • Shackle Plate Qty: 4 (2.25" length)
  • Shackle Bolt Qty: 6 (2.88" length)
  • Equalizer Nut Qty: 2 (7/16"‑20 thread)
  • Lock Nut Qty: 14 (7/16"‑20 thread)
  • For tandem‑axle double‑eye leaf spring setups (2K–7K)

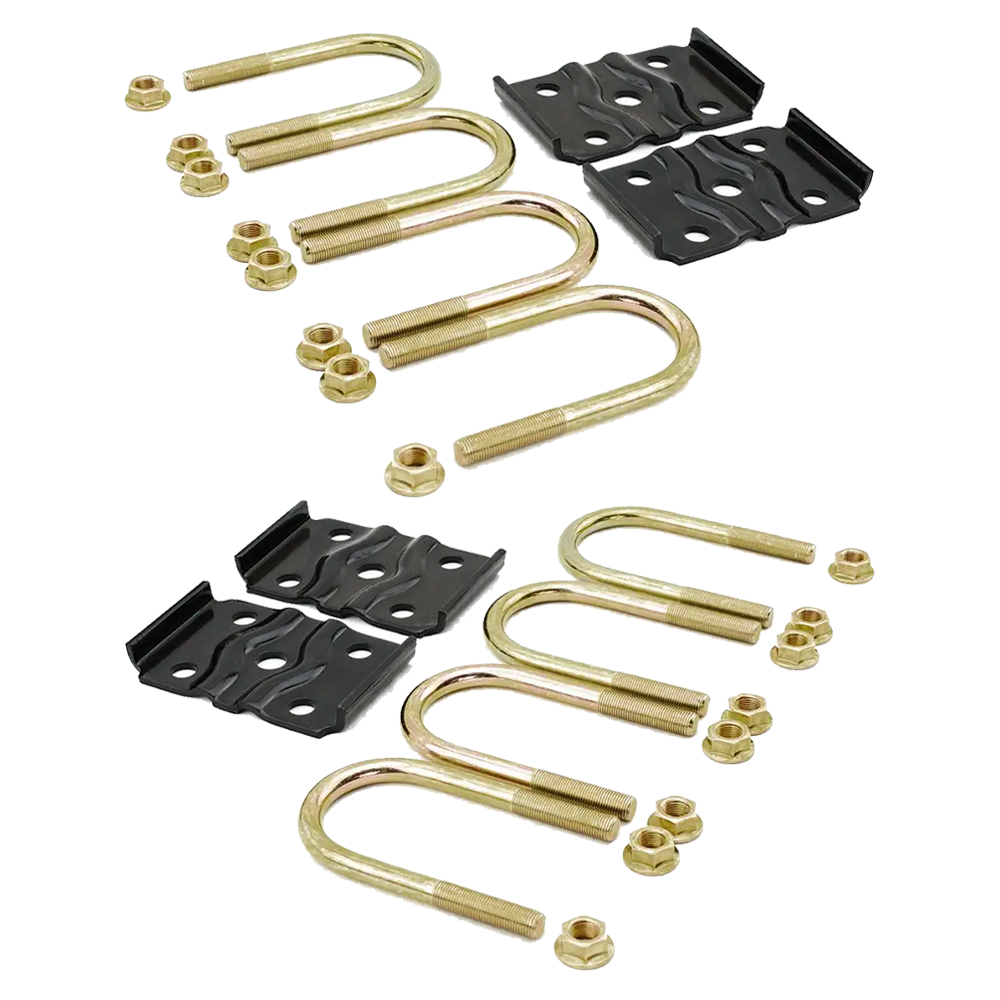

• QTY (2): Axle Mounting Kit – 2.375" Tube
  • Secure, U‑bolt style fasteners sized for 2.375" axle tubes
  • Direct replacements for your original hardware
• QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16"
  • Axle capacity: 2,200–8,000 lb
  • Distance to hole (on‑center): 3‑9/16"
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8"
  • Axle capacity: 2,200–8,000 lb
  • Distance to hole: 3‑5/16"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4"
  • Axle capacity: 2,200–8,000 lb
  • Distance to hole: 4"
  • Hole size: 5/16"

Always verify compatibility with your trailer’s original components and perform regular inspections to maintain safe, reliable operation.
