Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity – 3″ Axle Tube – 2,000 lb Leaf Springs (25‑1/4″ Unloaded / 26″ Loaded) – Tall Equalizer

This complete suspension kit from Lippert is built for tandem axles rated at 3,500 lbs, featuring 3″ axle tubes and 2,000 lb leaf springs (25‑1/4″ unloaded / 26″ loaded length). It includes hangers, hardware, and a tall equalizer setup to deliver smoother rides, stable towing, and reliable performance. Plus, it’s compatible with Dexter, Alko, Rockwell, and other quality axles.

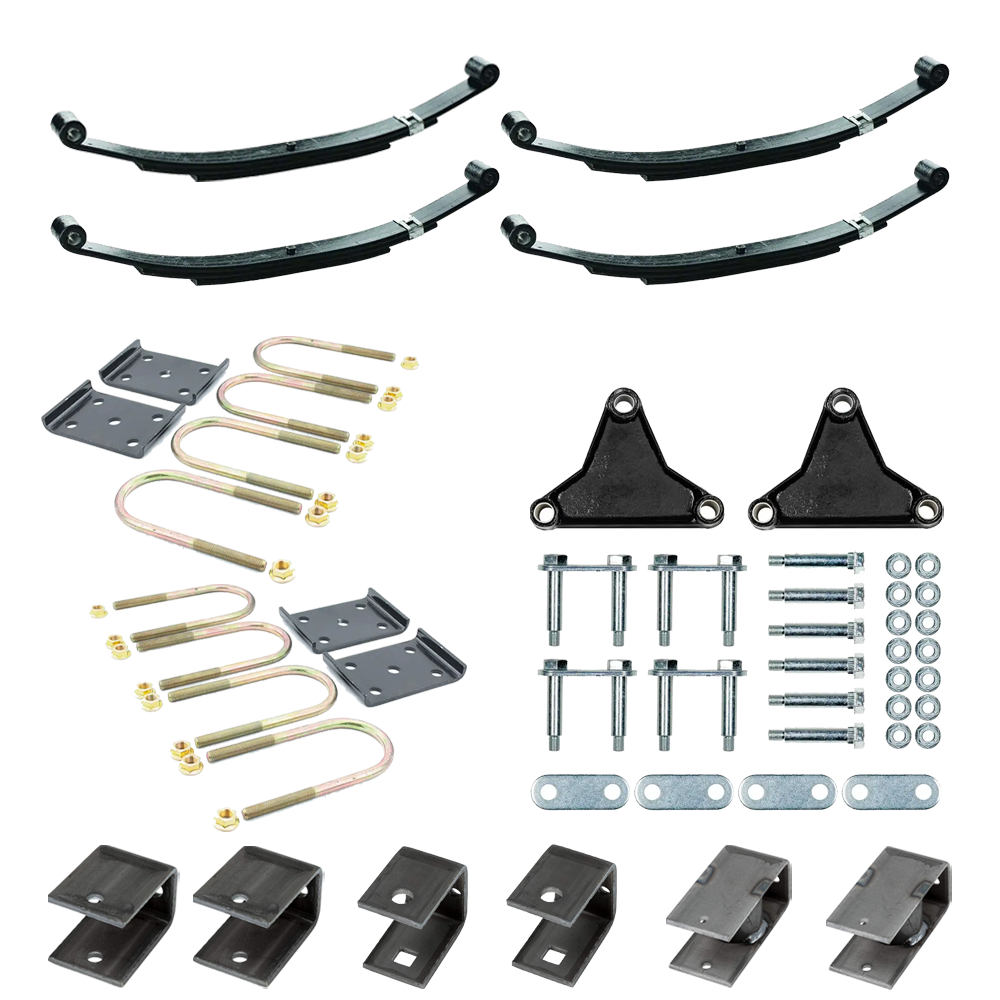

Bundle Contents:

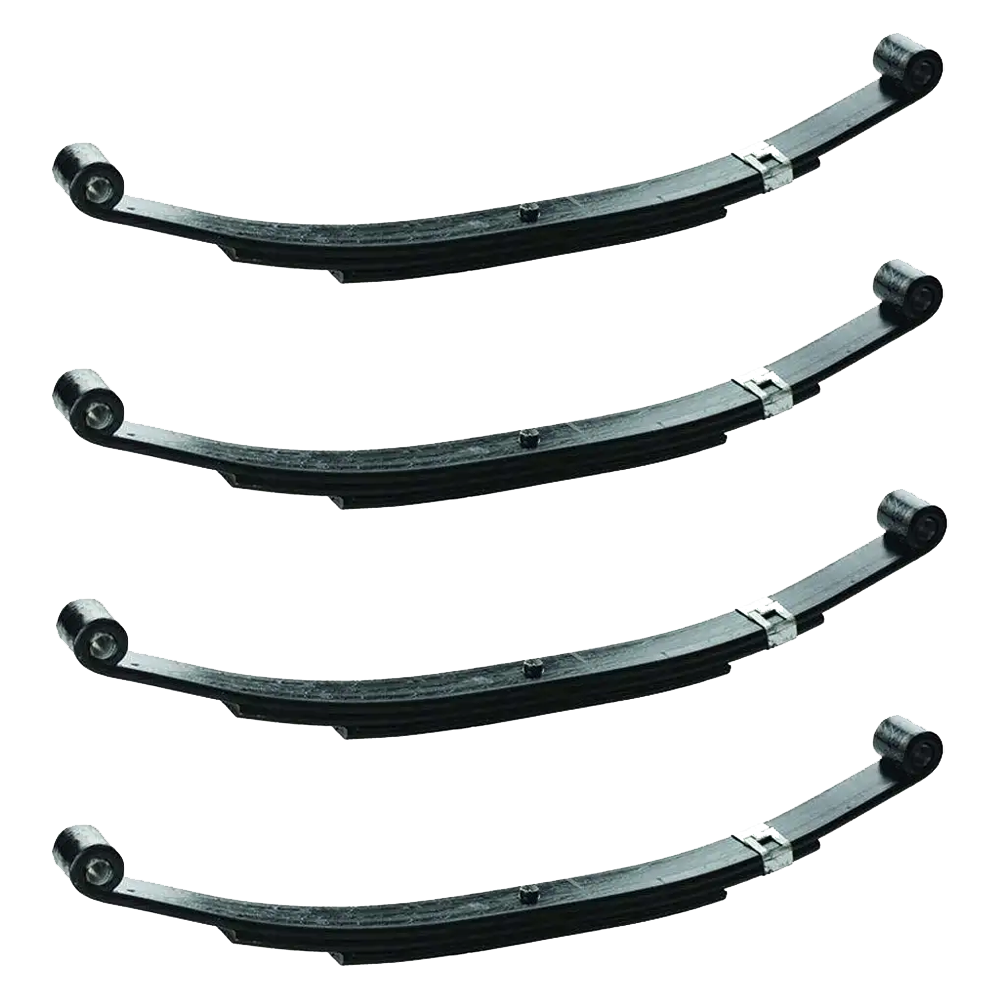

• QTY (4): Replacement Double-Eye Leaf Spring – 2,000 lb Capacity, 25‑1/4″ Unloaded / 26″ Loaded
  • 2,000 lb capacity leaf springs to restore your trailer’s suspension
  • Three leaves per spring; 1‑3/4″ wide
  • Unloaded eye‑to‑eye length: 25‑1/4″
  • Loaded eye‑to‑eye length: 26″
  • Arch height unloaded: 3″; loaded: 1.75″
  • Spring eye diameter: 9/16″

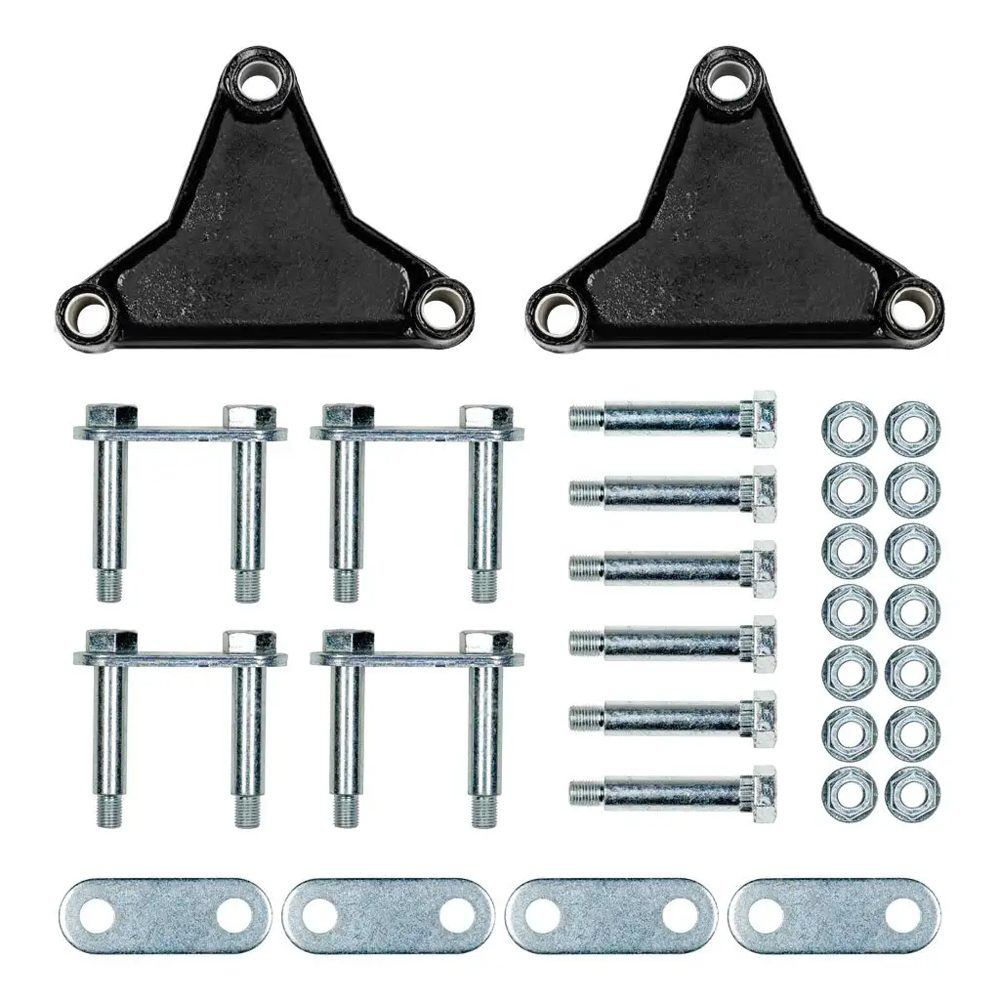

• QTY (1): Lippert Trailer Axle AP Kit for 2–7K Double-Eye Tandem Axles – Tall Equalizer
  • Equalizer Reference: EQ‑310
  • Equalizer Bolt Qty: 3 | Bolt Length: 2.88″
  • Shackle Assembly Qty: 4 | Assembly Length: 2.25″
  • Shackle Plate Qty: 4 | Plate Length: 2.25″
  • Shackle Bolt Qty: 6 | Bolt Length: 2.88″
  • Equalizer Nut Qty: 2 | Thread: 7/16″‑20
  • Lock Nut Qty: 14 | Thread: 7/16″‑20
  • All hangers and mounting hardware are included in this bundle

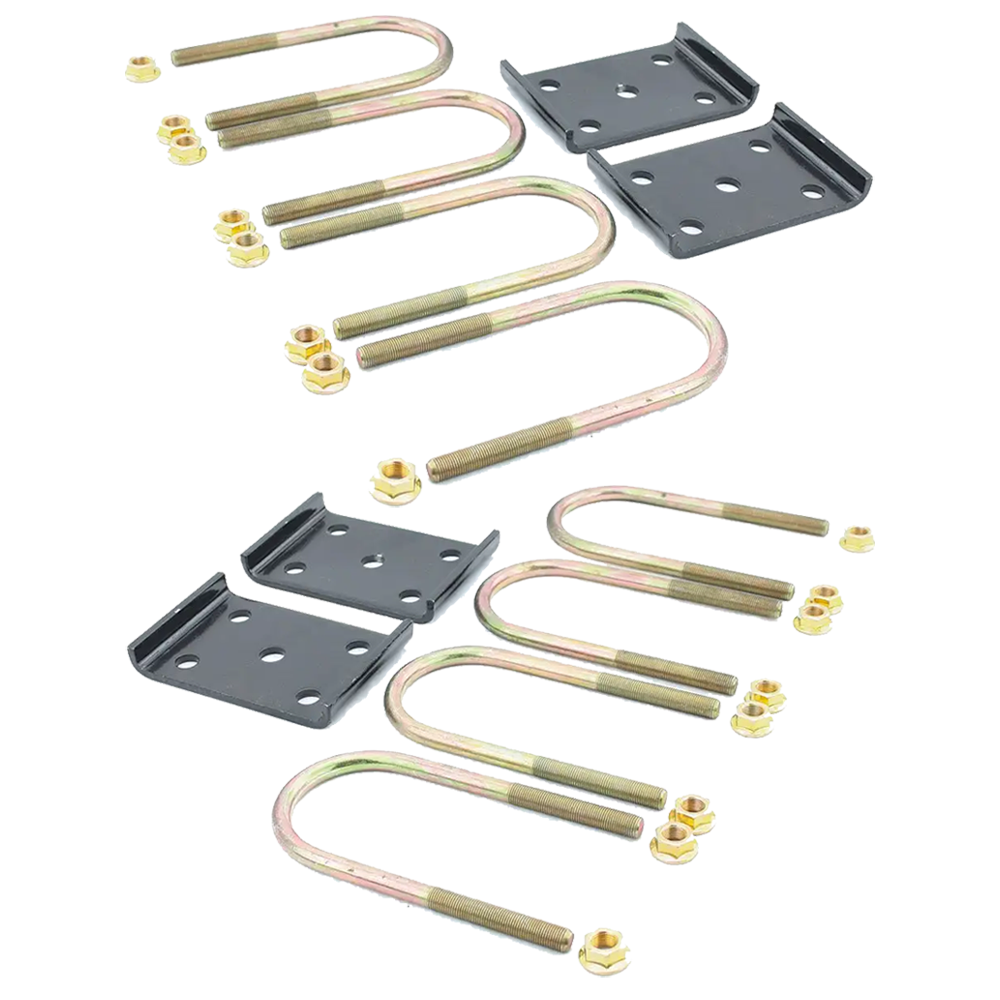

• QTY (2): Lippert Axle Mounting Kit – 3″ Tube
  • Specifically designed for a 3″ axle tube setup
  • Includes U‑bolts and tie plates for secure mounting
  • Direct replacement component – installs like original equipment
• QTY (2): Front Trailer Axle Hanger – 4‑5/16″ x 2‑3/16″, 2,200‑8,000 lb Axle Rating
  • Axle capacity: 2,200‑8,000 lbs
  • Distance to hole: 3‑9/16″ on‑center
  • Length: 4‑5/16″
  • Width: 2‑3/16″
  • Hole size: 9/16″
• QTY (2): Center Trailer Axle Hanger – 4‑1/2″ x 3‑1/8″, 2,200‑8,000 lb Axle Rating
  • Axle capacity: 2,200‑8,000 lbs
  • Distance to hole: 3‑5/16″
  • Length: 4‑1/2″
  • Width: 3‑1/8″
  • Hole size: 7/8″
• QTY (2): Rear Trailer Axle Hanger – 6″ x 2‑1/4″, 2,200‑8,000 lb Axle Rating
  • Axle capacity: 2,200‑8,000 lbs
  • Distance to hole: 4″
  • Length: 6″
  • Width: 2‑1/4″
  • Hole size: 5/16″

Always verify your trailer’s original suspension components and confirm proper sizing for safe towing. Perform routine inspection and maintenance for dependable on‑road performance.
