Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity – 3″ Axle Tube – Standard Equalizer

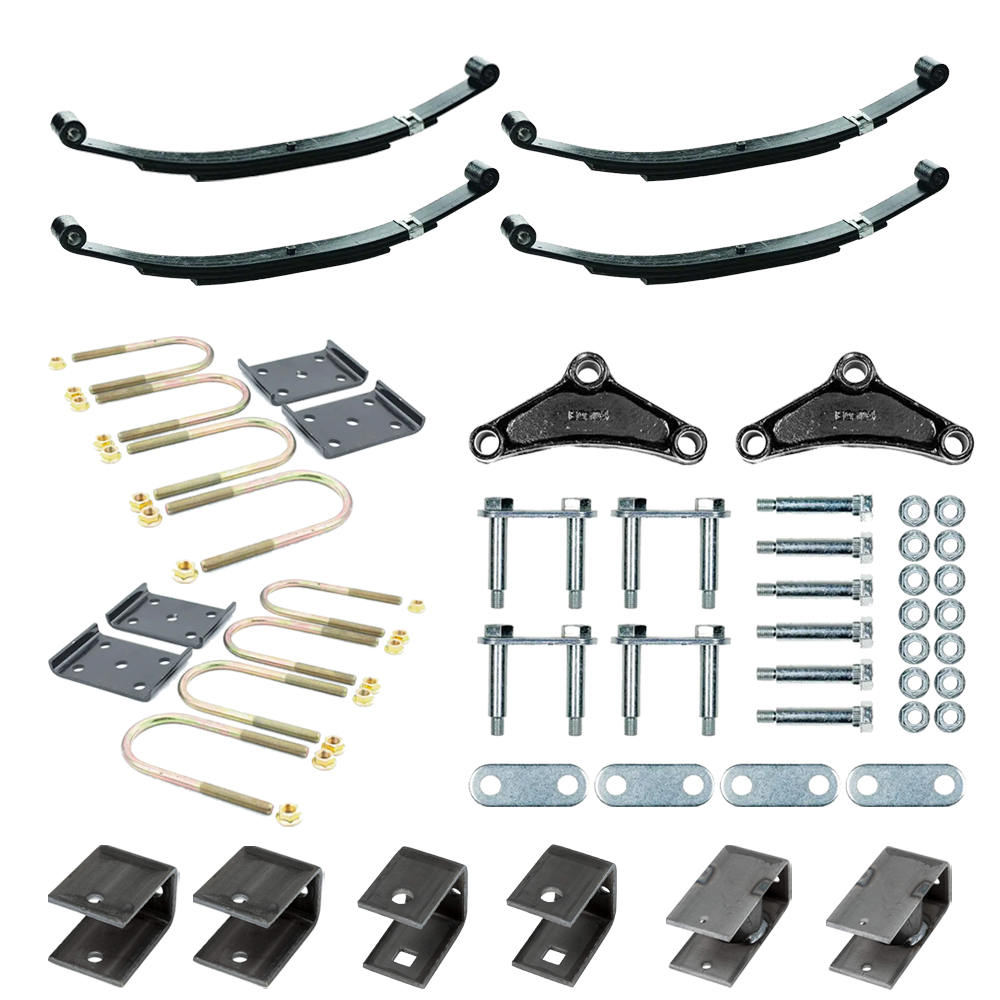

This complete suspension bundle is designed for 3,500 lb tandem axle setups and includes 2,000 lb (26" length) leaf springs, a standard equalizer, hangers and all the hardware you need for a smooth, reliable ride. Engineered by Lippert and compatible with Dexter, Alko, Rockwell and Quality Axles, this kit is an excellent upgrade or replacement for worn components.

Bundle Contents:

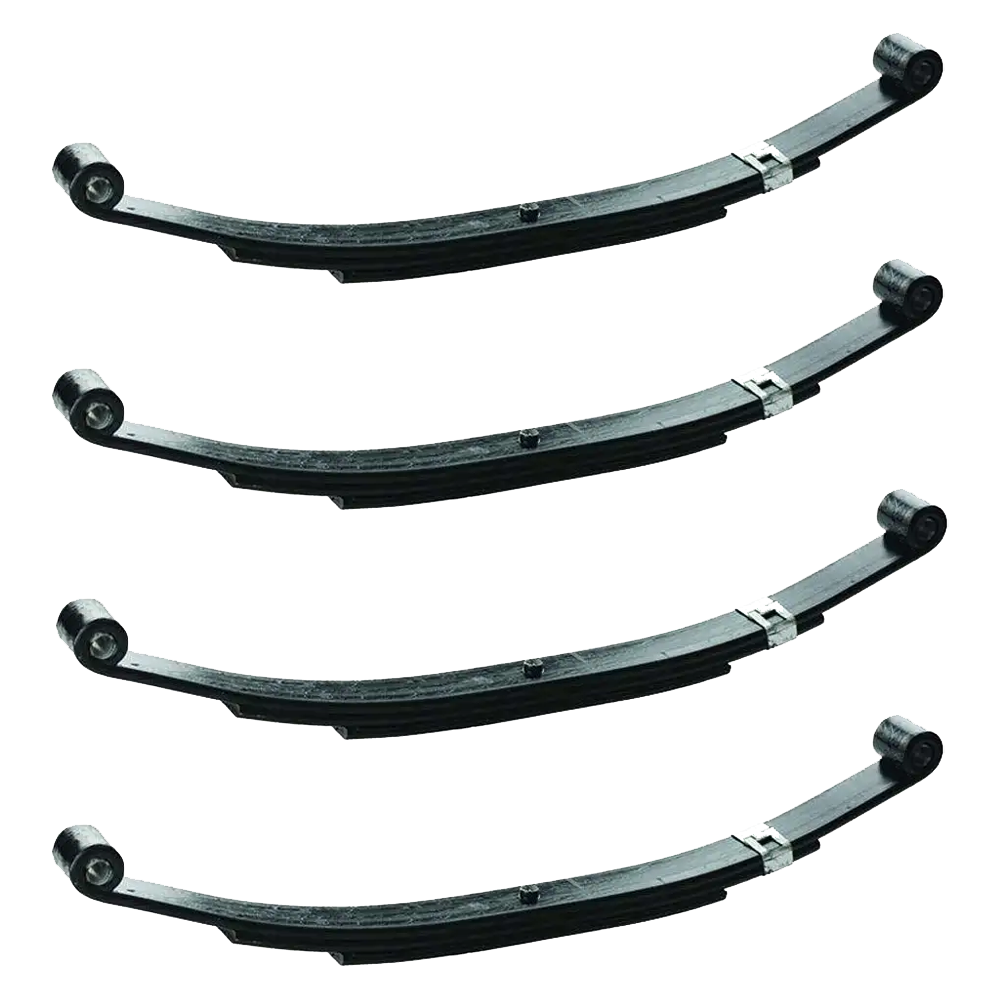

• QTY (4): Replacement Double-Eye Leaf Spring (26", 2,000-lb. capacity each)
  • 1-3/4" wide, 3-leaf design
  • 25-1/4" eye-to-eye unloaded / 26" loaded
  • Arch height: 3" unloaded / 2" loaded
  • Spring eye diameter: 9/16"

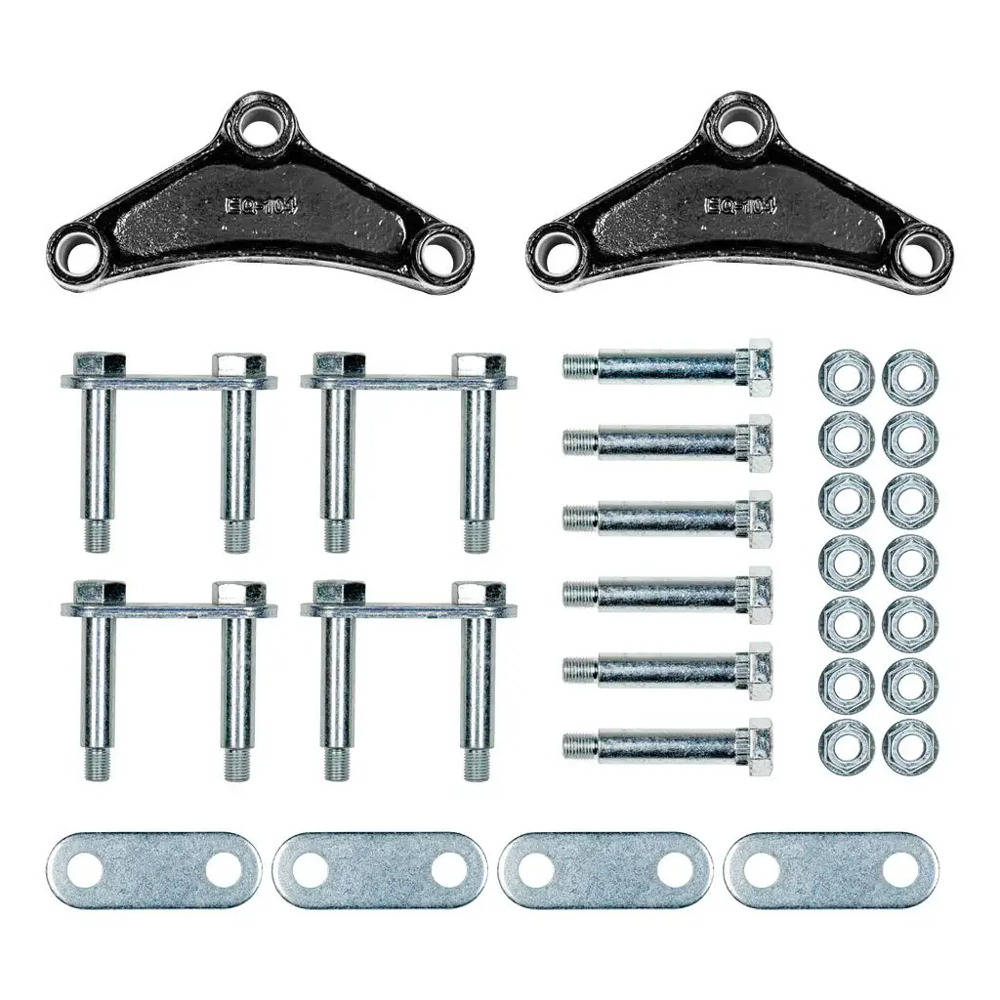

• QTY (1): Lippert Trailer Axle AP Kit for 2–7K Double-Eye Tandem Axles – Standard Equalizer
  • Standard equalizer (EQ-104) for tandem axle setups
  • Equalizer Bolt Qty: 2 (Length: 2.88")
  • Shackle Assembly Qty: 4 (Length: 2.25")
  • Shackle Plate Qty: 4 (Length: 2.25")
  • Shackle Bolt Qty: 6 (Length: 2.88")
  • Equalizer Nut Qty: 2 (Thread: 7/16"-20)
  • Lock Nut Qty: 14 (Thread: 7/16"-20)
  • Installs just like the original equipment

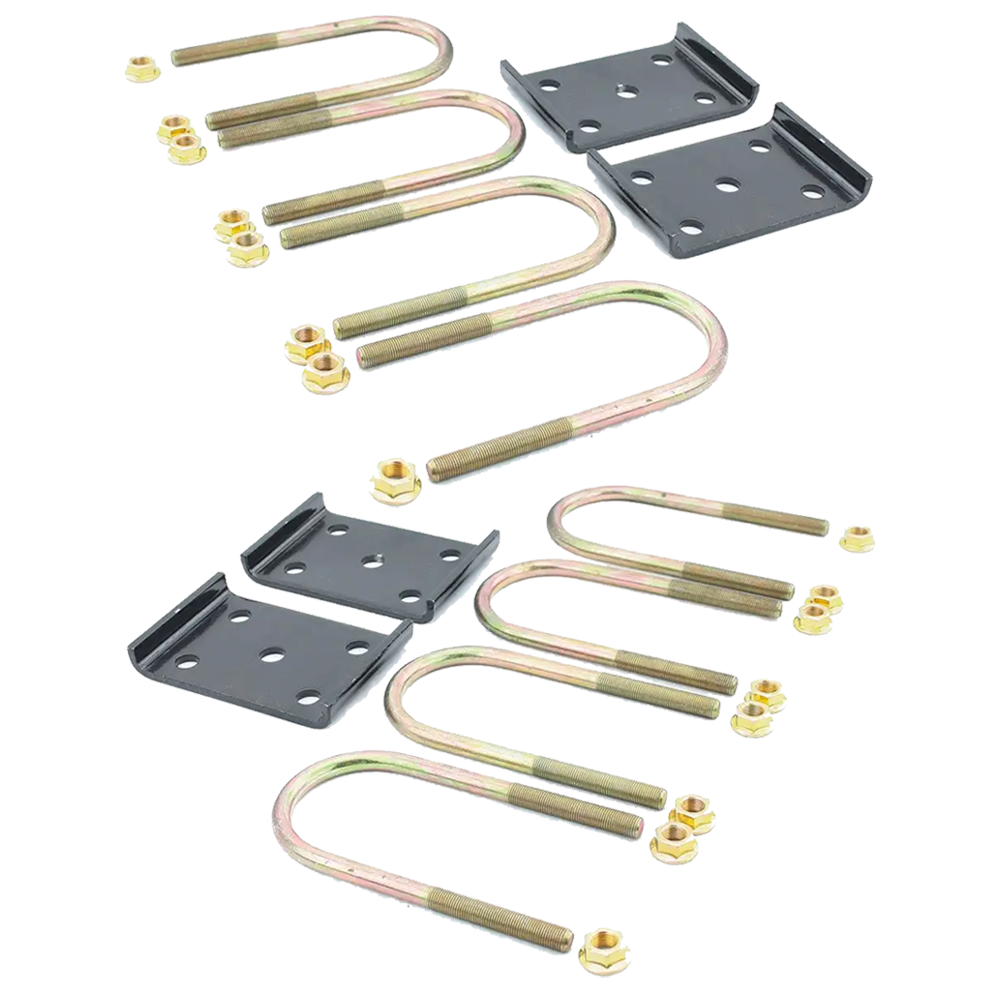

• QTY (2): Lippert Axle Mounting Kit – 3" Tube
  • Secure U-bolt design for 3" axle tubes
  • Exact-match replacements for easy installation
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle rating: 2,200–8,000 lbs.
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle rating: 2,200–8,000 lbs.
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle rating: 2,200–8,000 lbs.
  • Distance to hole: 4"
  • Hole size: 5/16"

Always verify fitment with your trailer’s specifications and maintain your suspension system according to recommended service intervals. Regular inspection and upkeep help prevent uneven tire wear and improve overall handling and longevity.
