Lippert Tandem Axle Suspension Kit � 3,500-lb Capacity, 3? Axle Tube, 24? (2,000-lb) Leaf Springs, Tall Equalizer � Includes Hangers & Hardware � Dexter, Alko, Rockwell, Quality Axles Compatible

Lippert Tandem Axle Suspension Kit – 3,500-lb Capacity, 3″ Axle Tube, 24″ Leaf Springs

Upgrade your trailer’s ride quality and durability with this complete Lippert Tandem Axle Suspension Kit. Designed for 3,500-lb axles featuring 3″ axle tubes, 24″ (2,000-lb) leaf springs, and a tall equalizer, this bundle provides enhanced road handling and better load support. The included hangers and mounting hardware mean you have everything you need for installation. Compatible with Dexter, Alko, Rockwell, and Quality Axles, trust Lippert’s proven reliability to keep you on the road longer.

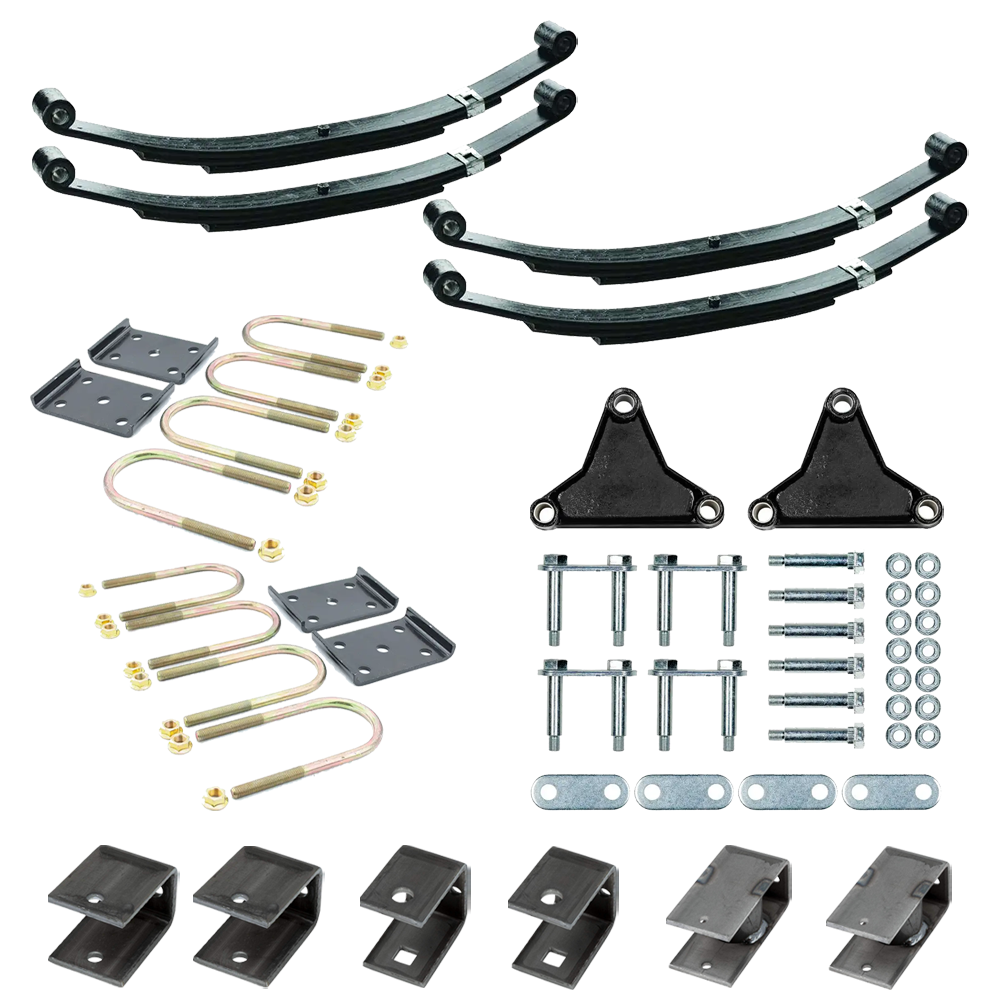

Bundle Contents:

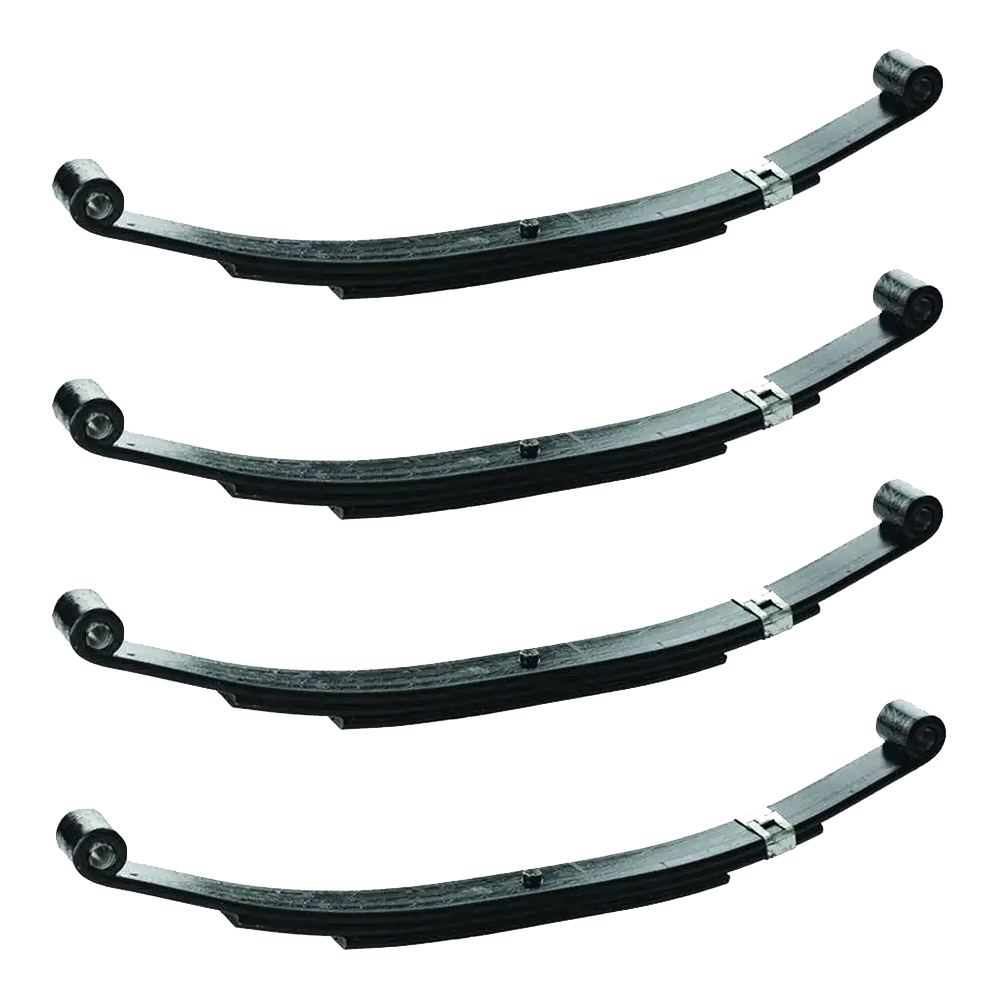

• QTY (4): Replacement Double-Eye Leaf Spring for RV Trailer Suspension System - 24", 2,000-lb Weight Capacity
  • Replacement leaf spring for RV trailer
  • Length: 24"
  • Weight capacity: 2,000 lbs.
  • Please consult your original equipment label before purchasing

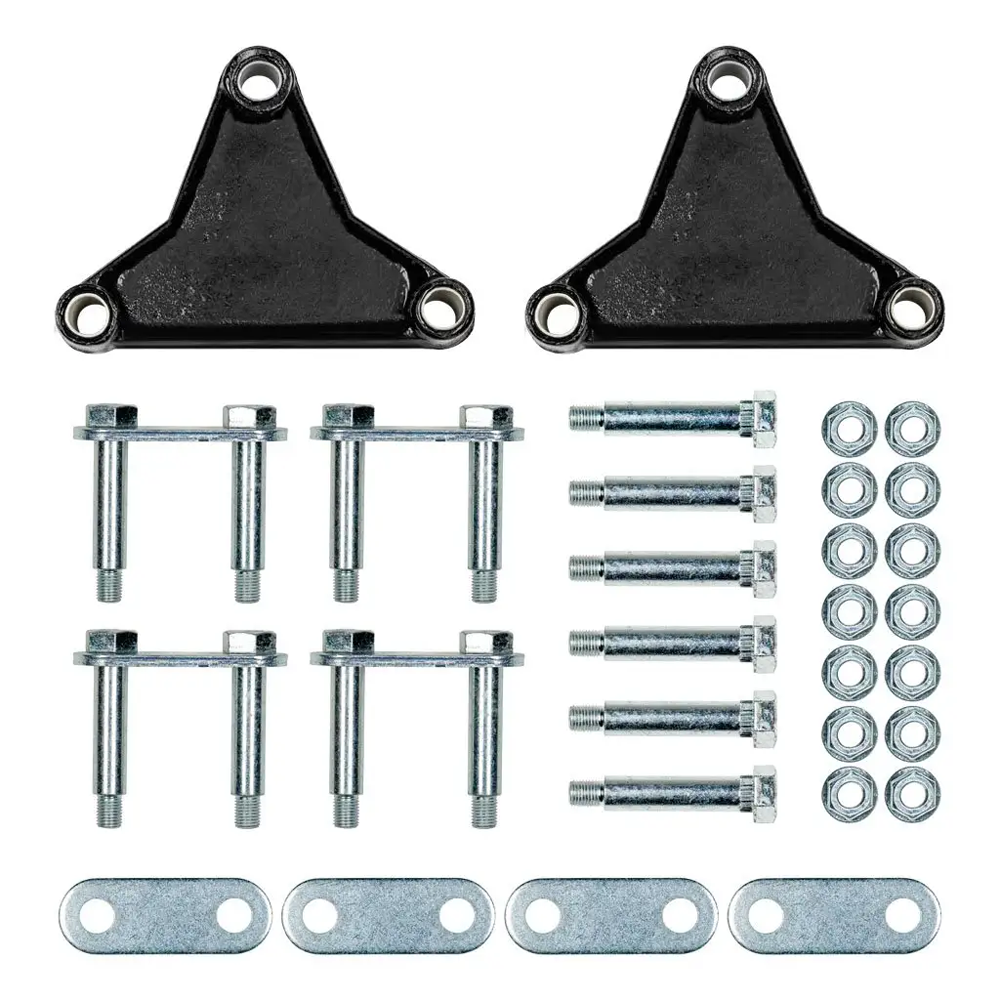

• QTY (1): Lippert Trailer Axle AP Kit for 2-7K Double-Eye Tandem Axles - Tall Equalizer
  • Equalizer Reference: EQ-310 (Tall Equalizer)
  • Equalizer Bolt Qty: 3, length: 2.88"
  • Shackle Assembly Qty: 4, length: 2.25"
  • Shackle Plate Qty: 4, length: 2.25"
  • Shackle Bolt Qty: 6, length: 2.88"
  • Equalizer Nut Qty: 2 (7/16"-20 thread)
  • Lock Nut Qty: 14 (7/16"-20 thread)

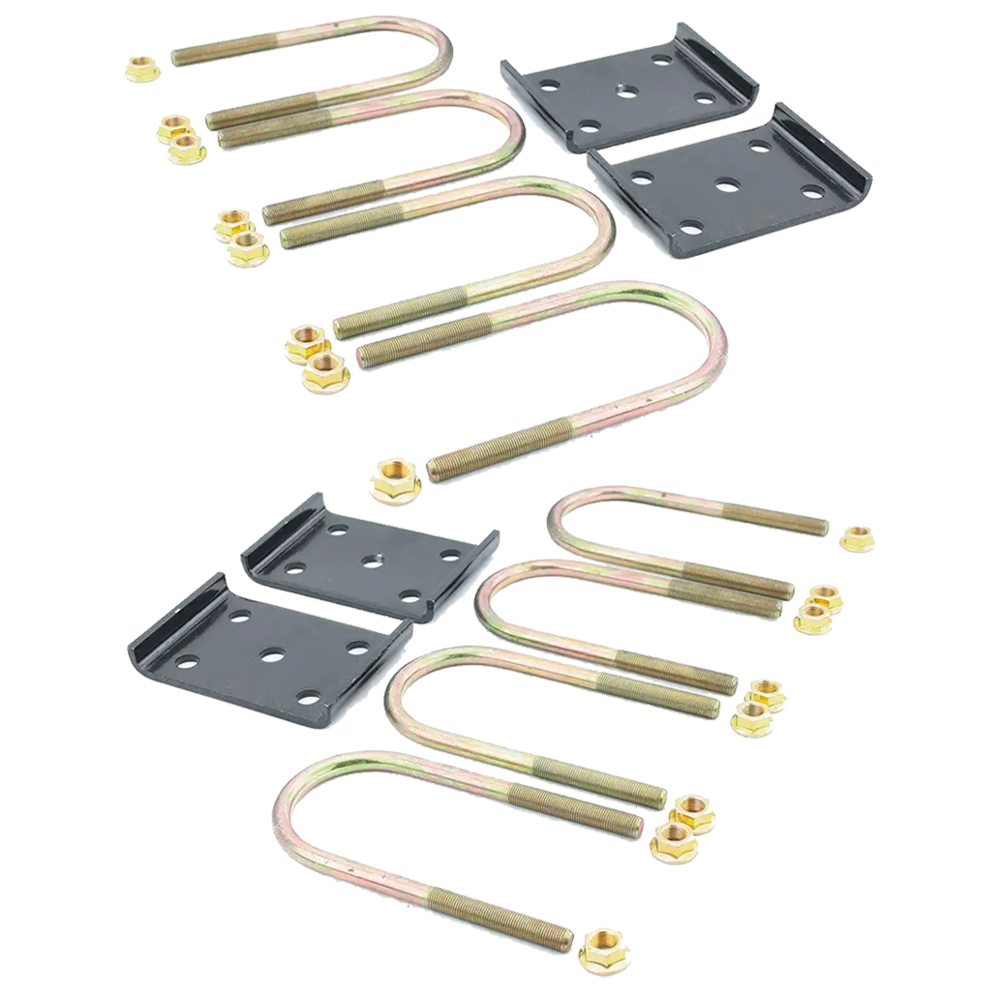

• QTY (2): Lippert Axle Mounting Kit - 3" Tube
  • Replacement axle mounting kit (U-bolt design)
  • Sized for 3" axle tubes
  • Installs like original equipment
• QTY (2): Front Trailer Axle Hanger - 4-5/16" x 2-3/16", 2,200-8,000-lb Axle Rating
  • Welded to chassis to allow mounting of axles and axle components
  • Axle capacity: 2,200 lbs.
  • Distance to hole: 3-9/16" on-center
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger - 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Rating
  • Axle capacity: 2,200-8,000 lbs.
  • Location: Center
  • Distance to hole: 3-5/16"
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger - 6" x 2-1/4", 2,200-8,000-lb Axle Rating
  • Axle capacity: 2,200-8,000 lbs.
  • Location: Rear
  • Distance to hole: 4"
  • Length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"

We recommend verifying fitment with your trailer’s original components and performing regular maintenance for optimal, long-lasting performance.
