Lippert Tandem Axle Suspension Kit � 3,500?lb Capacity � 3? Axle Tube � 4,000?lb Leaf Springs (24-7/8") � Tall Equalizer � Includes Hangers & Hardware � Dexter, Alko, Rockwell Compatible

Lippert Tandem Axle Suspension Kit – 3,500 lb, 3″ Axle Tube, 4,000 lb Leaf (24-7/8"), Tall Equalizer

Get a complete trailer suspension upgrade with this Lippert tandem axle kit. Designed for a 3,500 lb axle rating with a 3″ tube diameter, it features heavy-duty, 4,000 lb leaf springs measuring 24-7/8" (unloaded), a tall-style equalizer, plus front, center, and rear hangers. All mounting hardware is included. Compatible with Dexter, Alko, Rockwell, Quality Axles, and more.

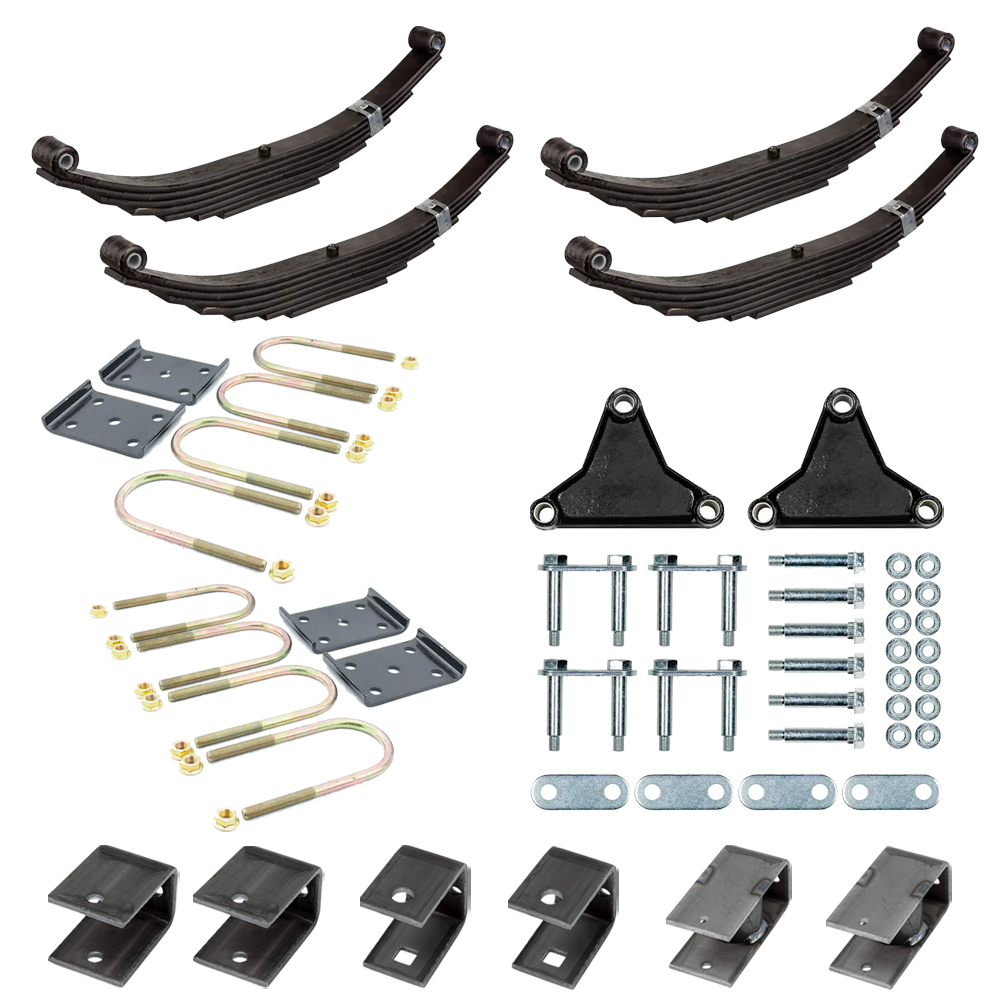

Bundle Contents:

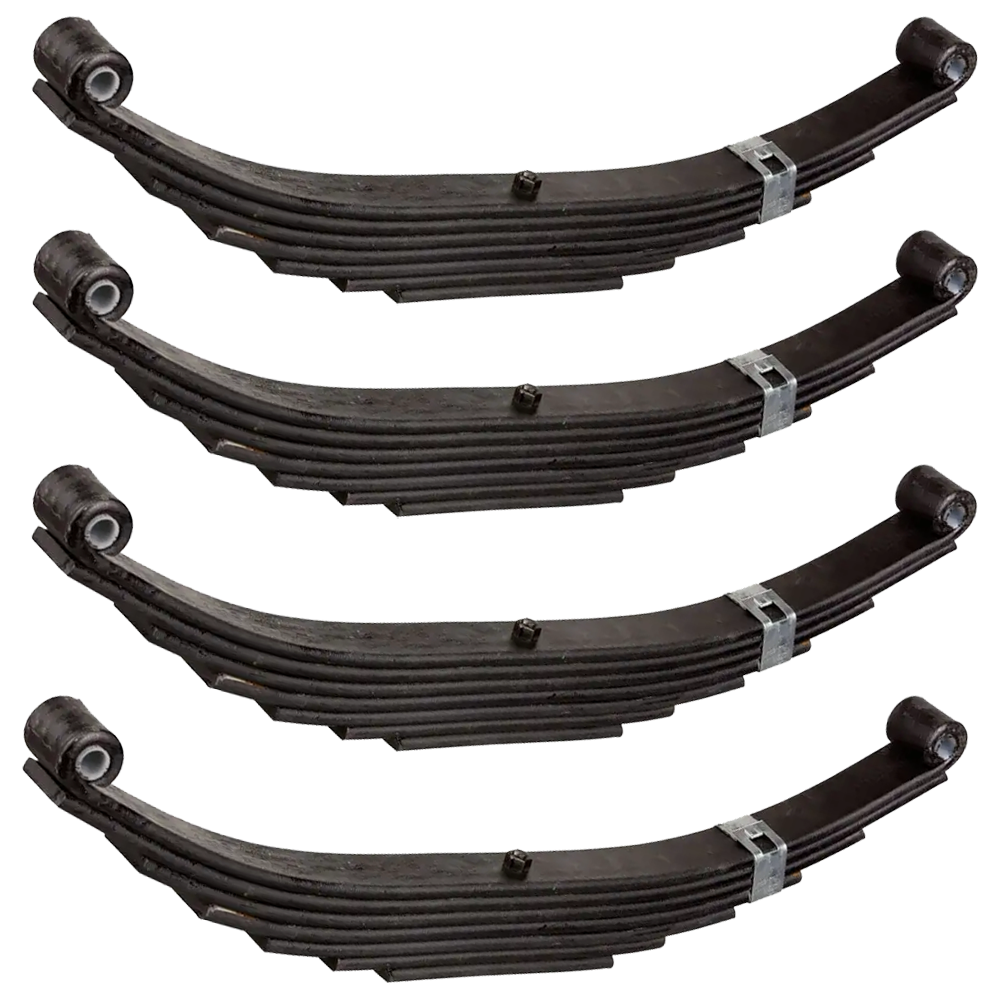

• QTY (4): 4,000 lb Capacity Leaf Springs (24-7/8" Unloaded)
  • 1-3/4" wide leaf spring
  • 7 leaves per spring
  • Loaded length: 26"
  • Reliable arch height for smooth towing

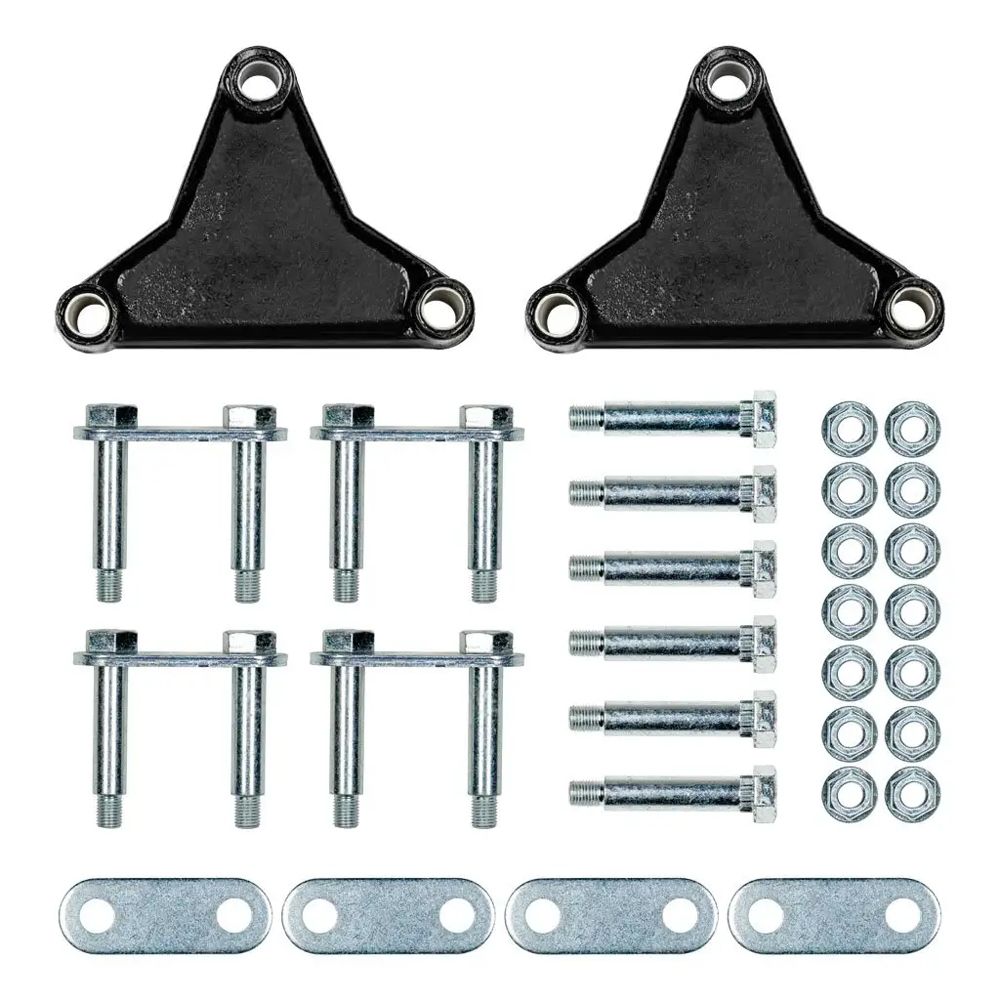

• QTY (1): Lippert Tall Equalizer AP Kit for 2-7K Double-Eye Tandem Axles
  • Equalizer Reference: EQ-310
  • Equalizer Bolt Qty: 3 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length)
  • Shackle Plate Qty: 4 (2.25" length)
  • Shackle Bolt Qty: 6 (2.88" length)
  • Equalizer Nut Qty: 2 (7/16" - 20)
  • Lock Nut Qty: 14 (7/16" - 20)
  • Standard bolts included
  • All hardware for installation included

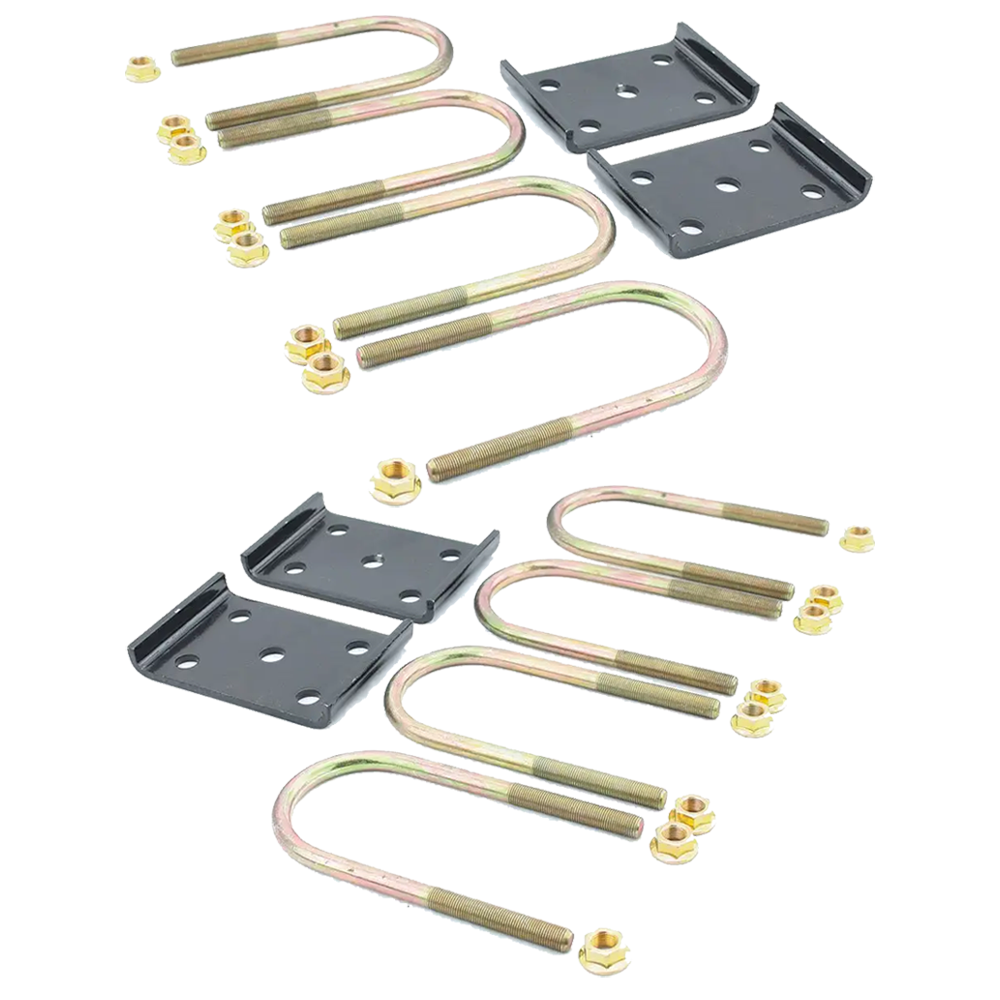

• QTY (2): Lippert Axle Mounting Kit – 3" Tube
  • Secure U-bolt design for 3" diameter axle tubes
  • Complete hardware for attaching springs to axles
• QTY (2): Front Trailer Axle Hanger
  • Length: 4-5/16", Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
• QTY (2): Center Trailer Axle Hanger
  • Length: 4-1/2", Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
• QTY (2): Rear Trailer Axle Hanger
  • Length: 6", Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"

Always confirm that these components match your trailer’s original specifications. Perform regular inspections to ensure proper function and safety.
