Lippert Tandem Axle Suspension Kit � 3,500?lb Capacity � 3? Axle Tube � Long Equalizer | 26? (2,600?lb) Leaf Springs, Complete Hanger & Hardware Set

Lippert Tandem Axle Suspension Kit (3,500 lb, 3″ Tube, 25-1/4" 2,600 lb Leaf, Long Equalizer)

Give your tandem axle trailer a significant upgrade with this complete Lippert suspension bundle. Designed for 3,500 lb axles with 3" tubes, it includes 25-1/4" leaf springs rated at 2,600 lbs each, a long equalizer setup, hangers, and all mounting hardware. Plus, it’s fully compatible with Dexter, Alko, Rockwell, and Quality Axles.

Bundle Contents:

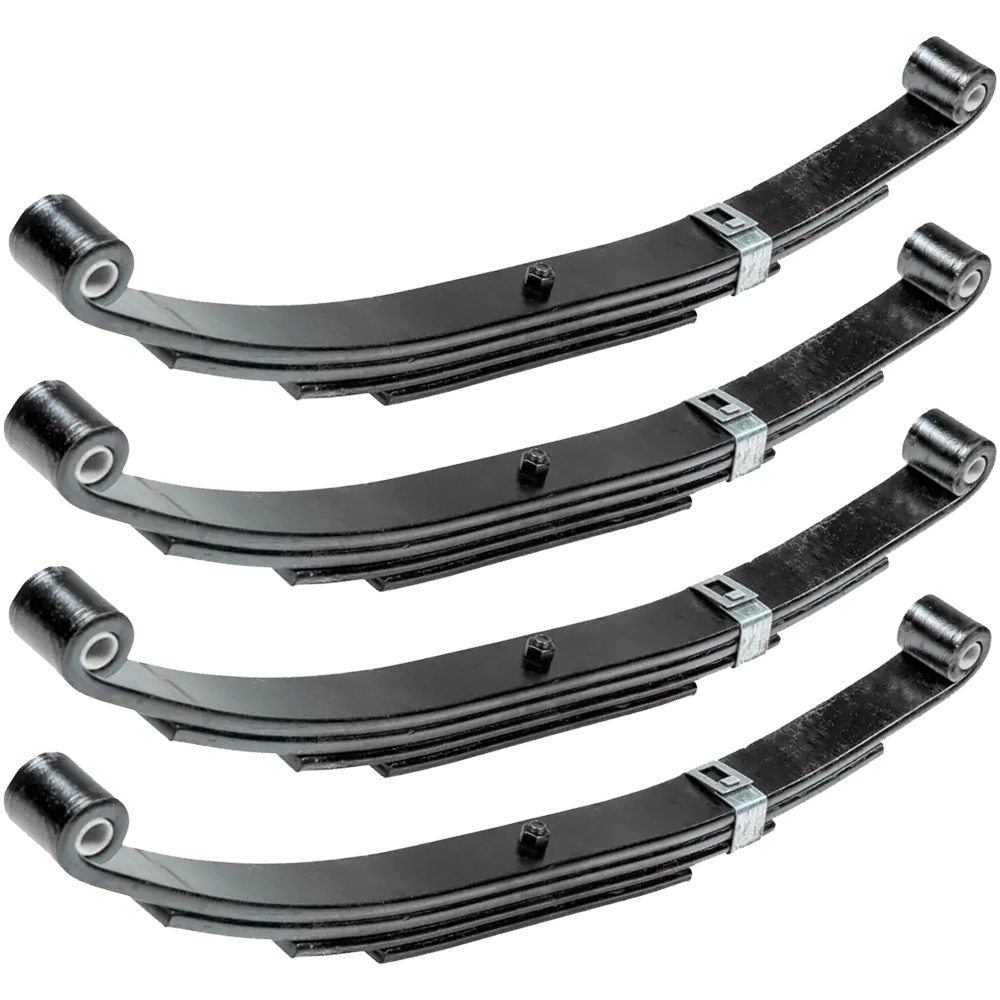

• QTY (4): Replacement Leaf Spring – 25-1/4" (2,600 lb Capacity), 4-Leaf
  • 1-3/4" wide, 25-1/4" eye-to-eye length
  • 4-layer spring provides stable load support
  • Rated for 2,600 lbs. per spring
  • 9/16" spring eye diameter
• QTY (1): Tandem Axle AP Kit with Long Equalizer and Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Precisely engineered to maintain optimal axle alignment
  • Installs like your original equipment

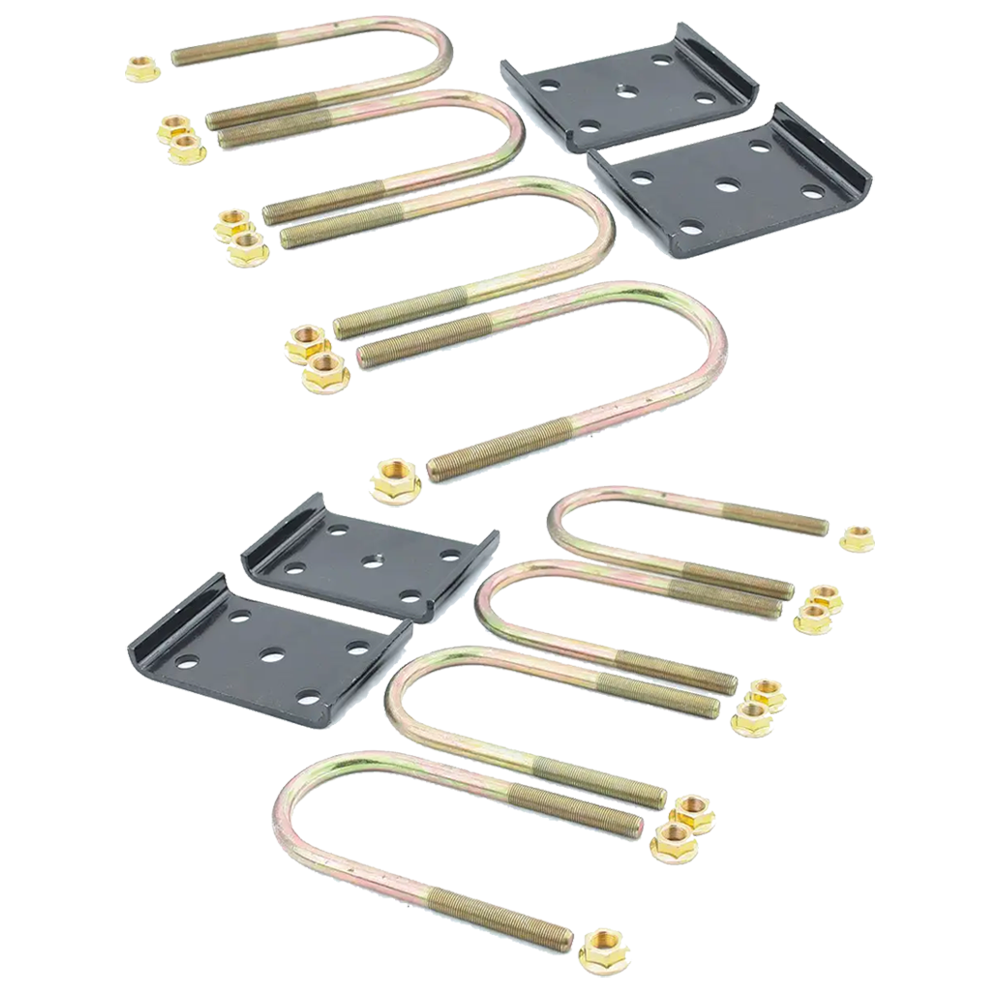

• QTY (2): Lippert Axle Mounting Kit – 3" Tube
  • Direct replacement for 3" diameter axle tubes
  • Includes U-bolts and tie plates
  • Designed to keep your axle firmly secured
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity range: 2,200–8,000 lbs.
  • Distance to hole (on-center): 3-9/16"
  • Hole size: 9/16"
  • Provides welded mounting point for front suspension
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity range: 2,200–8,000 lbs.
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
  • Maintains proper tandem axle spacing
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity range: 2,200–8,000 lbs.
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Secures rear portion of the suspension system

For best performance and safety, always verify existing components, follow proper torque specifications, and conduct regular maintenance. This complete kit helps ensure a smoother ride, longer tire life, and a reliable towing experience.
