Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity, 3″ Tube, 25‑1/4″ Leaf Springs, Standard Equalizer

This complete Lippert tandem suspension kit is engineered for trailers with 3,500 lb axles using a 3″ axle tube. It features 25‑1/4″ (2,200 lb) leaf springs (unloaded length), standard equalizers, heavy-duty hangers, and all essential hardware — everything you need for a reliable, streamlined installation. Compatible with Dexter, Alko, Rockwell, and Quality Axles.

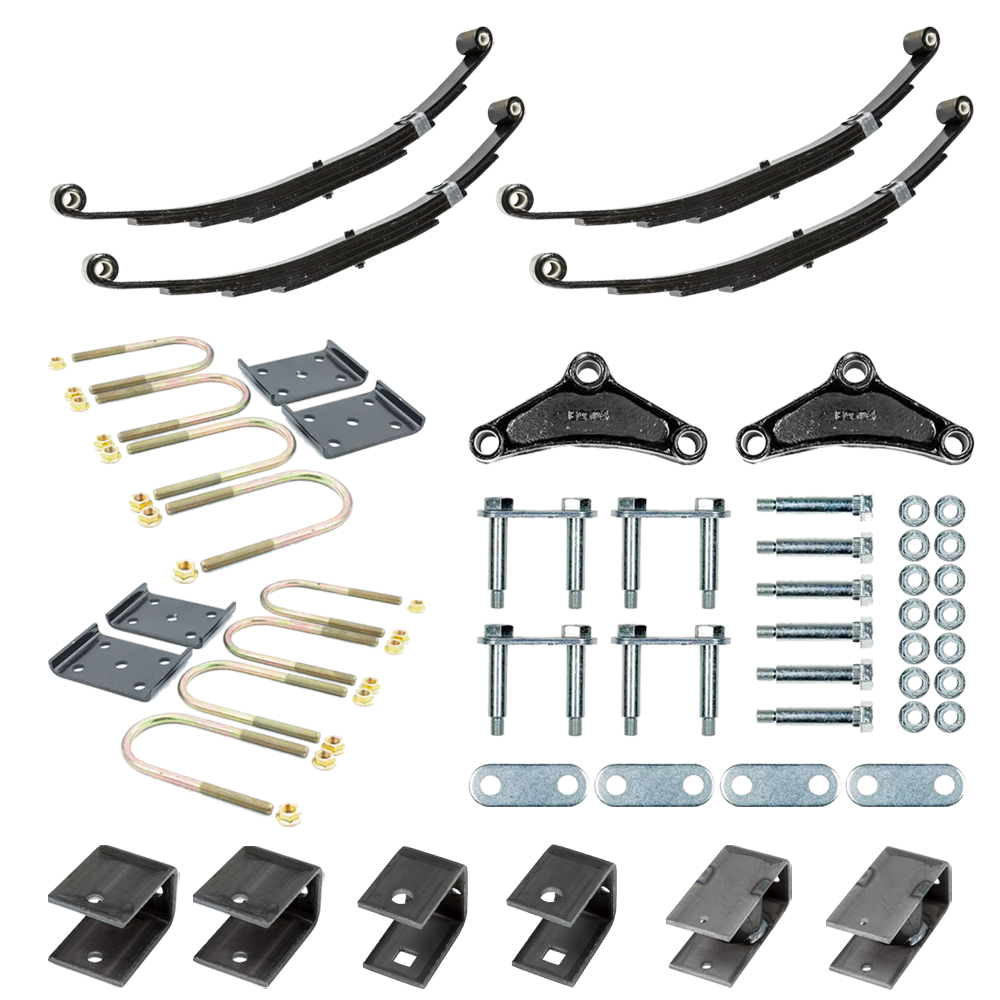

Bundle Contents:

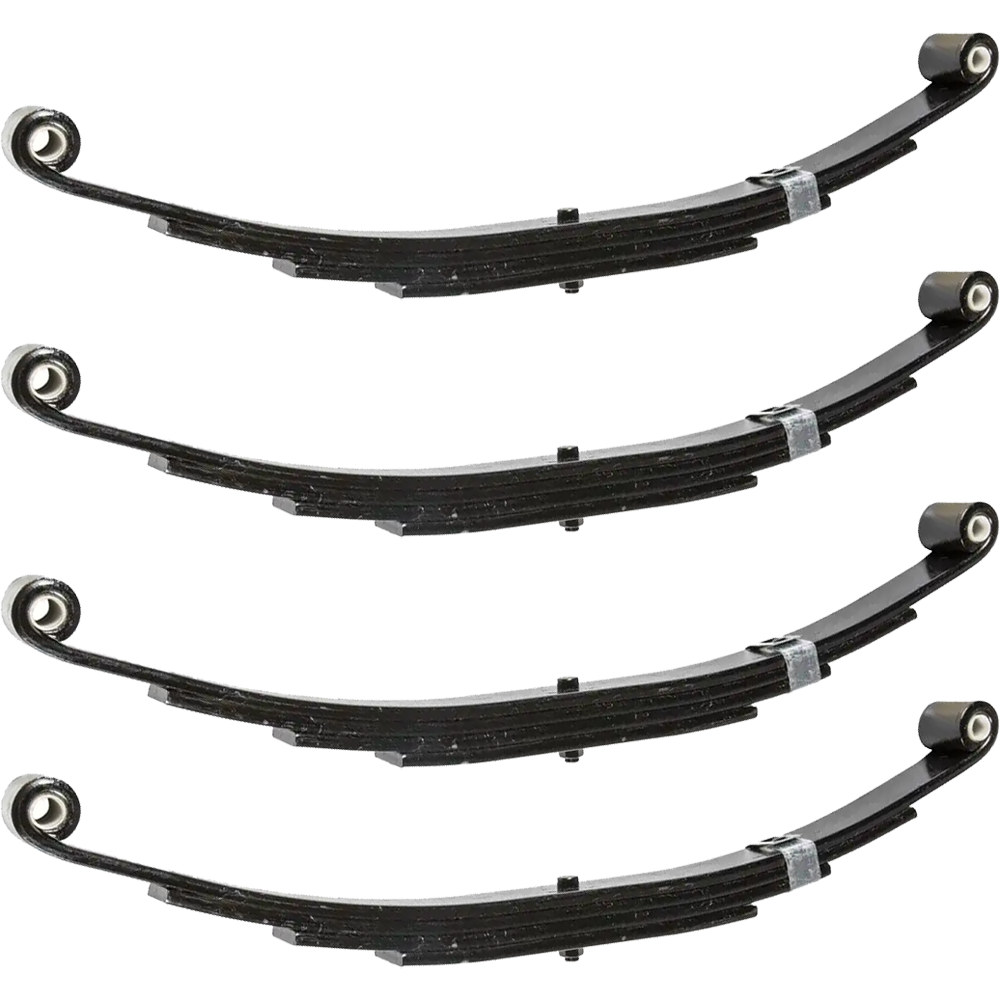

• QTY (4): Replacement Leaf Spring – 25‑1/4″ (unloaded), 2,200 lb Capacity
  • Double-eye leaf spring rated at 2,200 lbs.
  • 1‑3/4″ spring width; 25‑1/4″ eye-to-eye unloaded length
  • Loaded length is approximately 26″
  • 4 leaves per spring

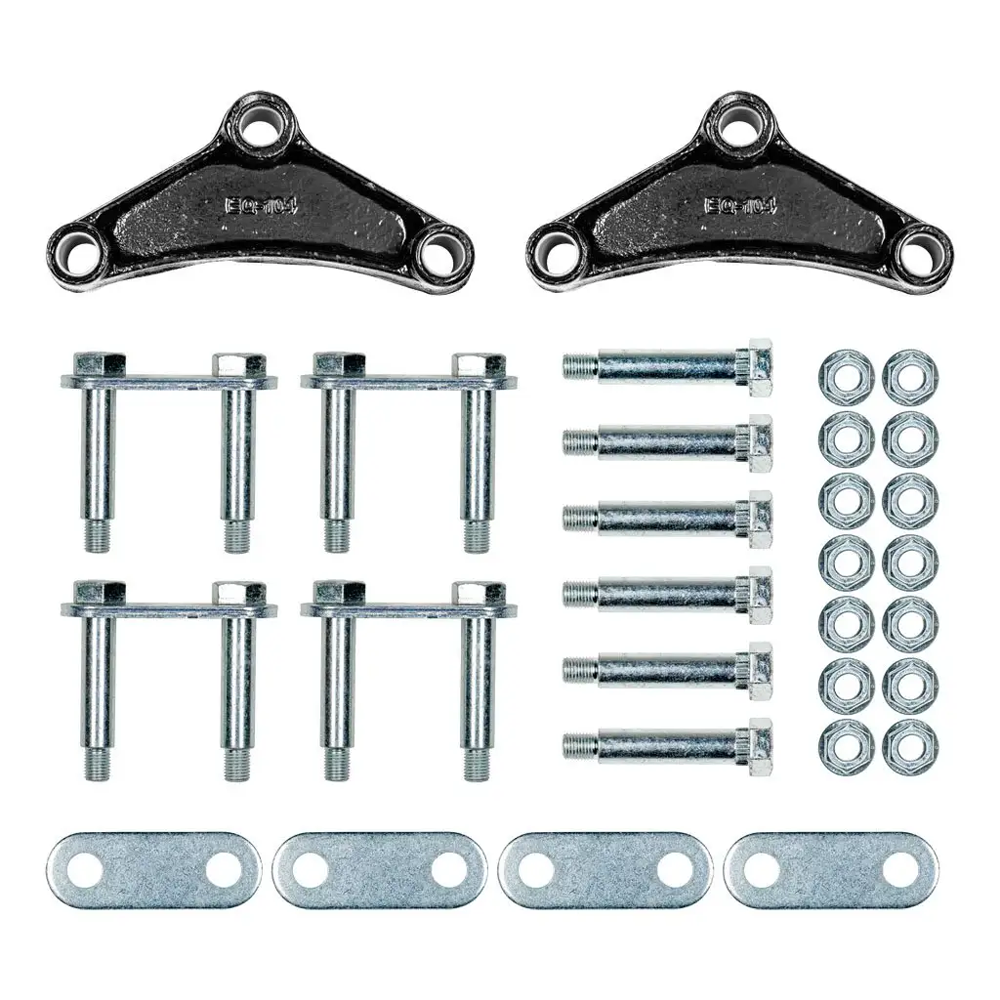

• QTY (1): Lippert Trailer Axle AP Kit for 2–7K Double-Eye Tandem Axles – Standard Equalizer
  • Equalizer Reference: EQ‑104 (standard)
  • Designed for 2,000 lb – 7,000 lb double-eye tandem axles
  • Equalizer Bolt Qty: 2, Length: 2.88″
  • Shackle Assembly Qty: 4, Length: 2.25″
  • Shackle Plate Qty: 4, Length: 2.25″
  • Shackle Bolt Qty: 6, Length: 2.88″
  • Equalizer Nut Qty: 2, Thread: 7/16″‑20
  • Lock Nut Qty: 14, Thread: 7/16″‑20

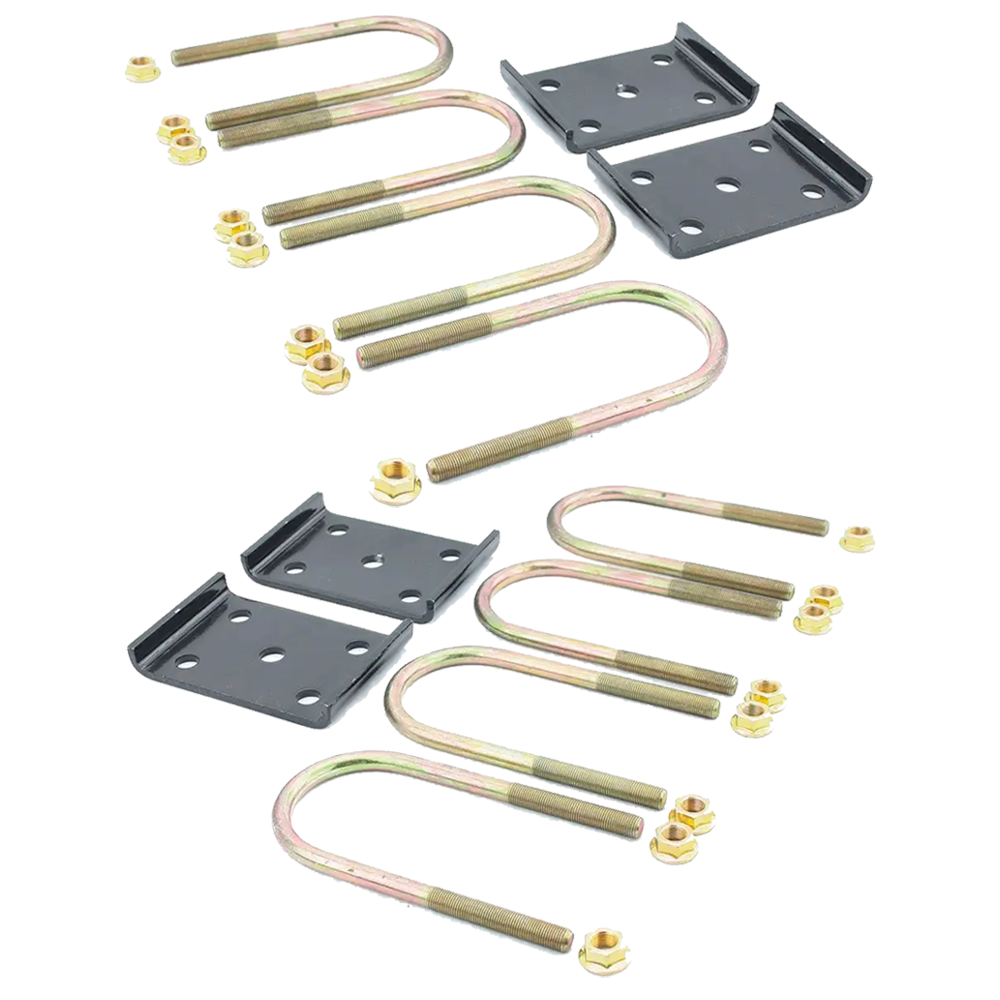

• QTY (2): Lippert Axle Mounting Kit – 3″ Tube
  • Exact-match kit for securing axles to leaf springs
  • Designed for 3″ tube diameter
  • U-bolt design for secure installation
  • Installs like original equipment
• QTY (2): Front Trailer Axle Hanger – 4‑5/16″ x 2‑3/16″, 2,200–8,000 lb Axle Rating
  • Welded to chassis for axle and component mounting
  • Distance to hole (on-center): 3‑9/16″
  • Hole size: 9/16″
  • Overall length: 4‑5/16″; width: 2‑3/16″
• QTY (2): Center Trailer Axle Hanger – 4‑1/2″ x 3‑1/8″, 2,200–8,000 lb Axle Rating
  • Welded to chassis for center equalizer mounting
  • Distance to hole: 3‑5/16″
  • Hole size: 7/8″
  • Overall length: 4‑1/2″; width: 3‑1/8″
• QTY (2): Rear Trailer Axle Hanger – 6″ x 2‑1/4″, 2,200–8,000 lb Axle Rating
  • Welded to chassis for rear axle support
  • Distance to hole: 4″
  • Hole size: 5/16″
  • Overall length: 6″; width: 2‑1/4″

Before ordering, verify your trailer’s axle rating, spring length, and mounting points. Regular inspection and maintenance will help ensure smooth, safe towing.
