Lippert Tandem Axle Suspension Kit for 3,500-lb Axles (2.375? Tube, 3,000-lb Leaf Springs, Standard Equalizer) � Includes Hangers & Hardware � Dexter, Alko, Rockwell, Quality Axles Compatible

Lippert Tandem Axle Suspension Kit – 3,500‑lb Capacity, 2.375″ Tube, 3,000‑lb Leaf Springs

Upgrade or replace your trailer’s tandem axle suspension with this complete Lippert kit designed for 3,500‑lb axles using a 2.375″ tube. Each component is precisely engineered for smoother towing, reduced road shock, and proper tire alignment. This kit includes leaf springs, hangers, equalizer hardware, and axle mounting hardware, all in one convenient bundle. Compatible with Dexter, Alko, Rockwell, Quality Axles, and more, this suspension solution ensures you can refresh or build your trailer with confidence.

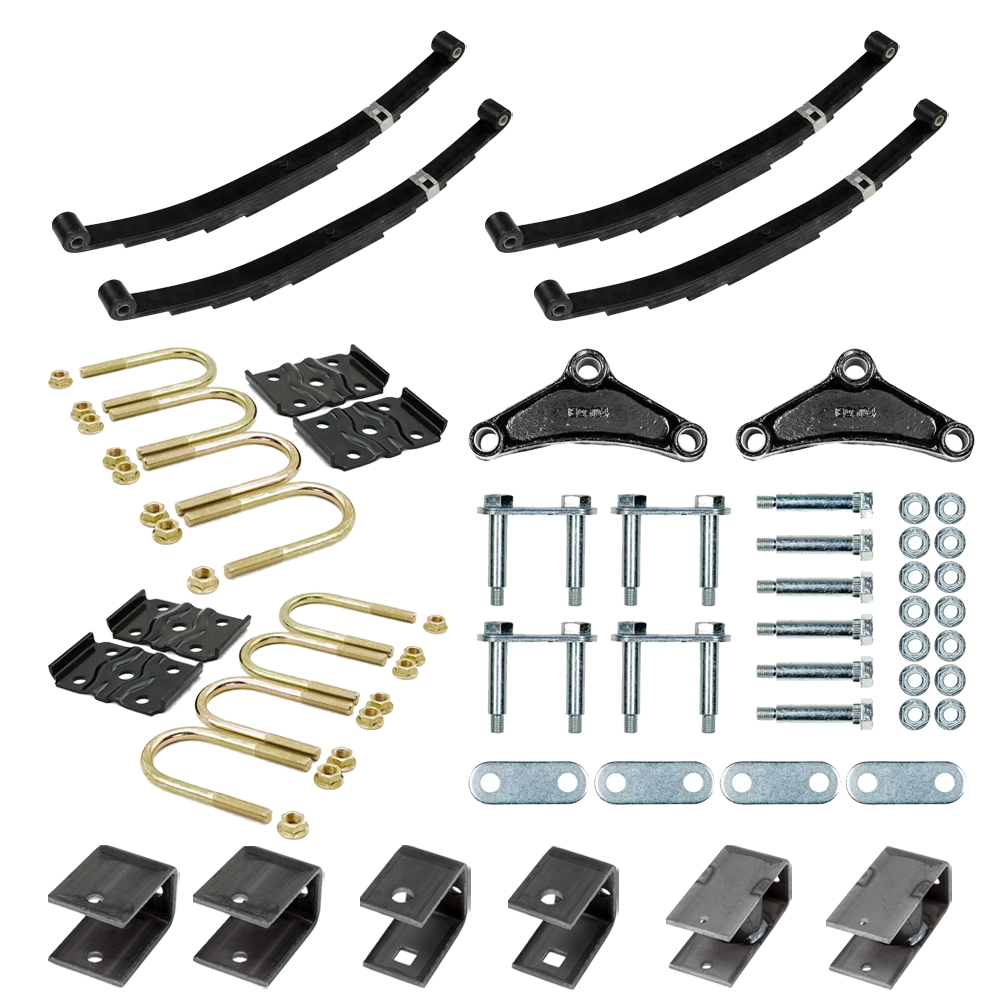

Bundle Contents:

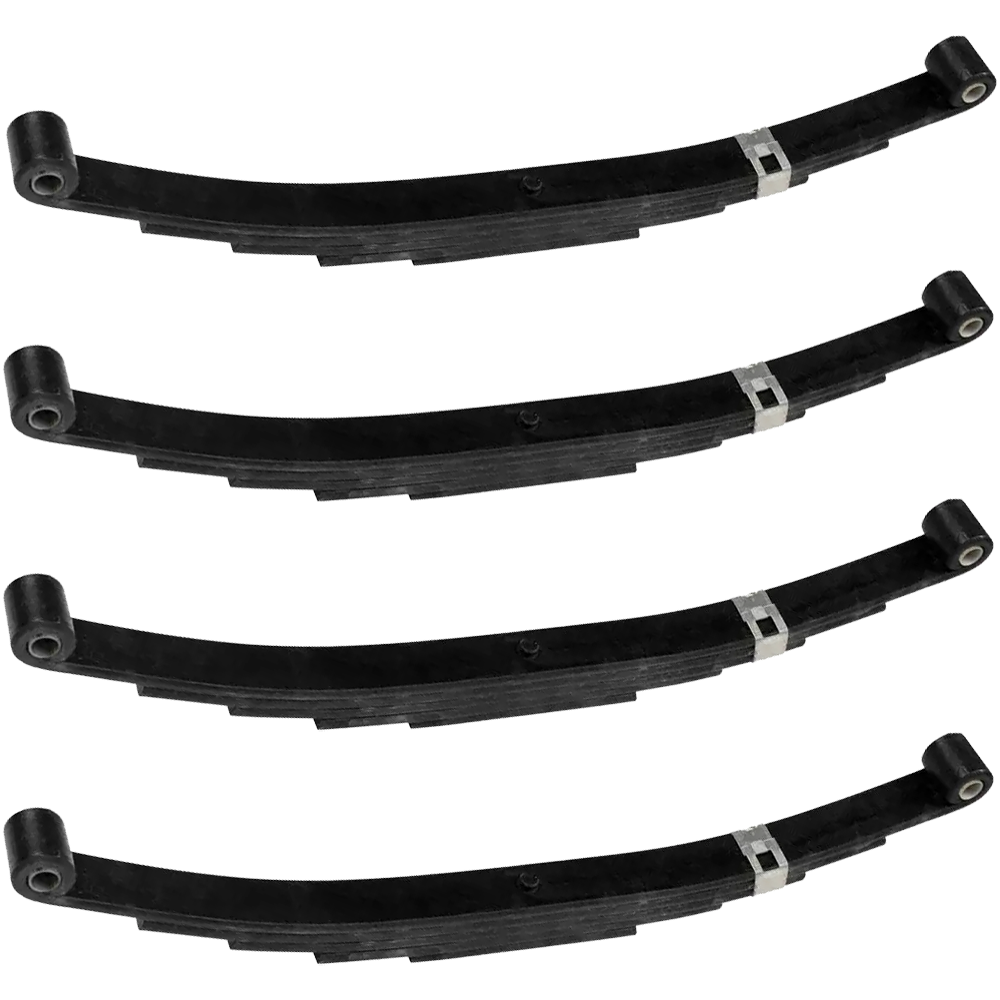

• QTY (4): Trailer Double‑Eye Spring – 3,000‑lb, 5‑Leaf, 1‑3/4" Wide x 25‑1/4" Long
  • Leaf spring capacity: 3,000 lbs.
  • Number of leaves: 5
  • Eye-to-eye length unloaded: 25‑1/4"
  • Loaded length: 26"
  • Arch height unloaded: 3‑1/8"
  • Eye diameter: 9/16"
  • Dexter, Alko, Rockwell, Quality Axles compatible

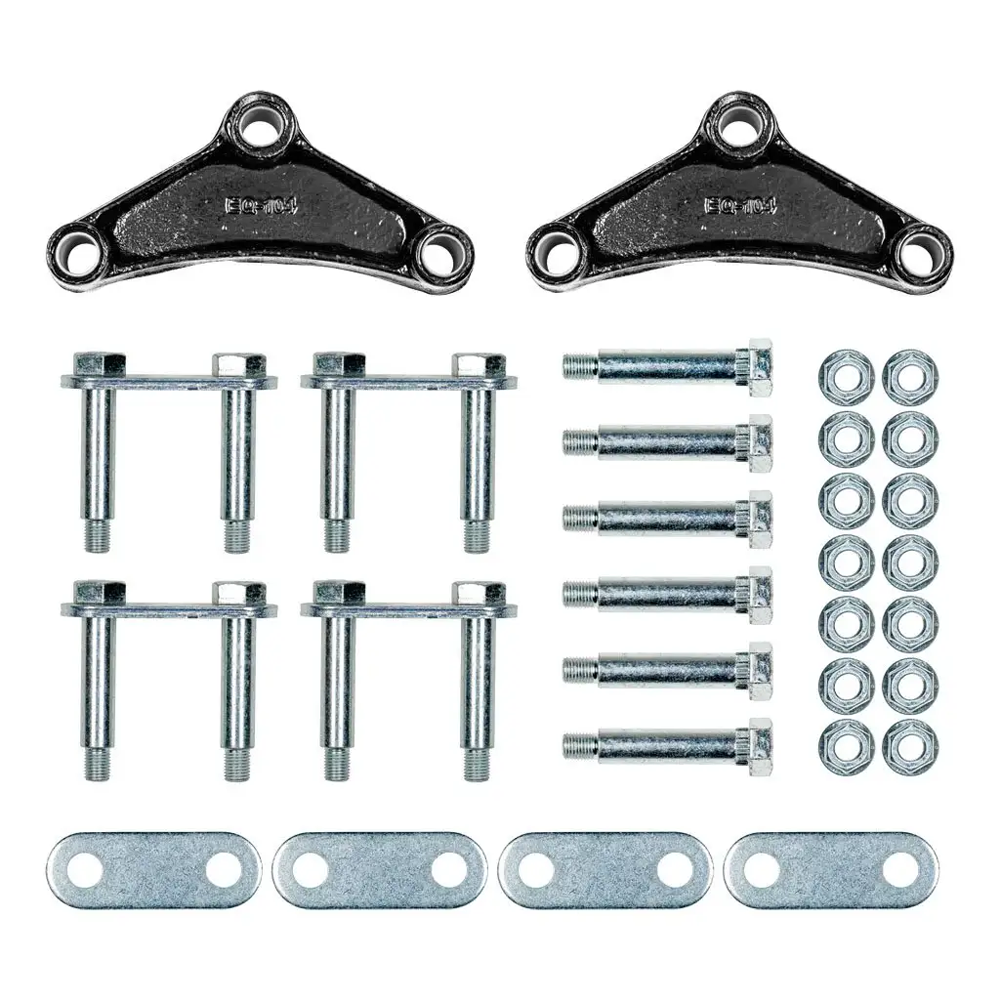

• QTY (1): Lippert Trailer Axle AP Kit (Attaching Parts) for 2‑7K Double‑Eye Tandem Axles – Standard Equalizer
  • Equalizer Reference: EQ‑104
  • Equalizer Bolt Qty: 2 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length)
  • Shackle Plate Qty: 4 (2.25" length)
  • Shackle Bolt Qty: 6 (2.88" length)
  • Equalizer Nut Qty: 2 (7/16"‑20)
  • Lock Nut Qty: 14 (7/16"‑20)
  • Ensures proper leaf spring articulation and smoother towing

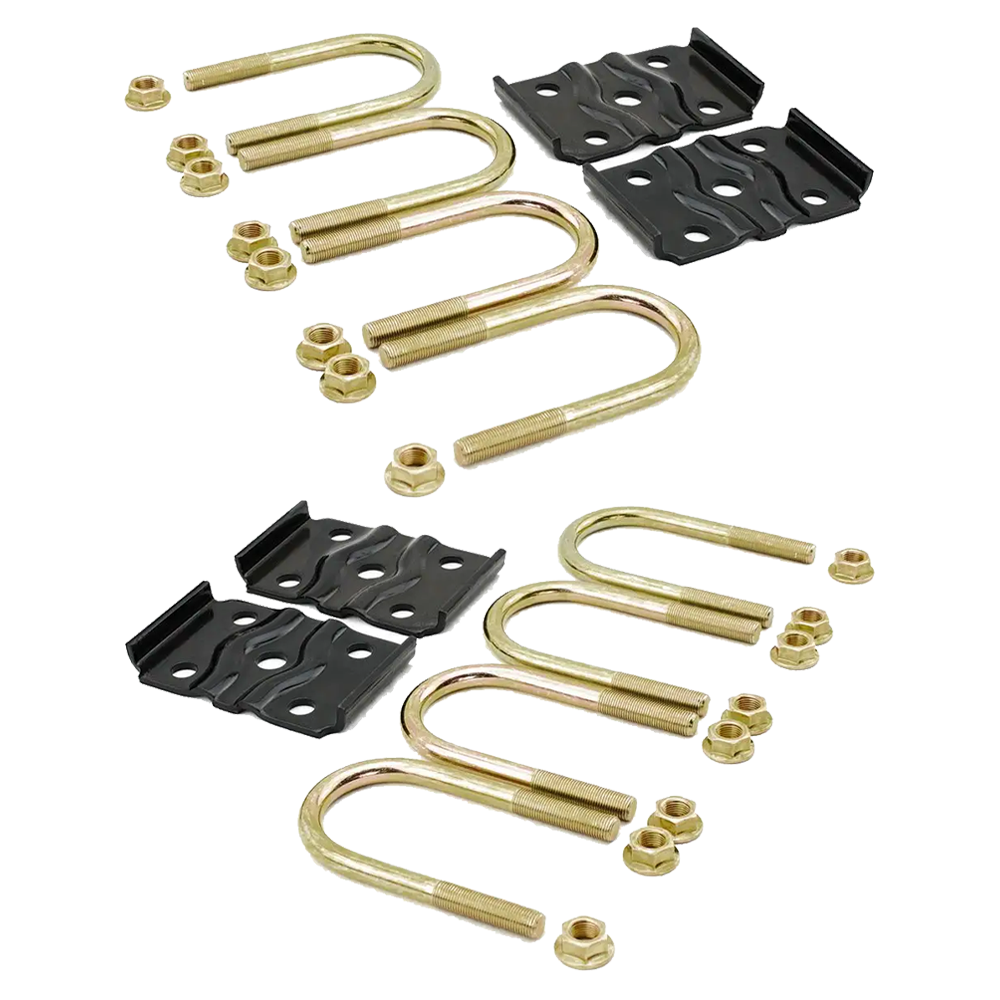

• QTY (2): Lippert Axle Mounting Kit – 2.375" Tube
  • Direct replacement for your original U-bolt mounting hardware
  • 2.375" axle tube diameter design
  • Installs like factory components
• QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16", 2,200‑8,000‑lb Rating (#127784)
  • Welded to chassis to allow mounting of axles and axle components
  • Distance to hole: 3‑9/16" on‑center
  • Hole size: 9/16"
  • Axle capacity: 2,200 lbs. (up to 8,000 lbs. max rating)
• QTY (2): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8", 2,200‑8,000‑lb Rating (#127782)
  • Weld-on center hanger for tandem axle setups
  • Distance to hole: 3‑5/16"
  • Hole size: 7/8"
  • Axle capacity: 2,200 lbs. (up to 8,000 lbs. max rating)
• QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4", 2,200‑8,000‑lb Rating (#127783)
  • Weld-on rear hanger for tandem axle trailer suspension
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Axle capacity: 2,200 lbs. (up to 8,000 lbs. max rating)

Always confirm that your replacement components match your trailer’s original specifications. Regular maintenance—such as checking hardware tightness and inspecting for wear—can extend the life of your suspension system, ensuring safer, smoother travels.
