Lippert Tandem Suspension Kit � 1,250 lb Leaf (24" Length), 3" Tube, Long Equalizer, Hangers & Hardware Included, Dexter/Alko/Rockwell/Quality Axles Compatible

Lippert Tandem Suspension Kit – 1,250 lb Leaf (24" Length), 3" Tube, Long Equalizer

This Lippert Tandem Suspension Kit is built for 3,500 lb. axles with a 3-inch tube, featuring 1,250 lb capacity leaf springs (24" length each). The kit includes long equalizers plus front, center, and rear hangers with all needed hardware—designed to deliver smoother towing, better load distribution, and reliable durability. It’s fully compatible with Dexter, Alko, Rockwell, and Quality Axles, making it a versatile replacement or upgrade solution for your tandem axle trailer.

Bundle Contents:

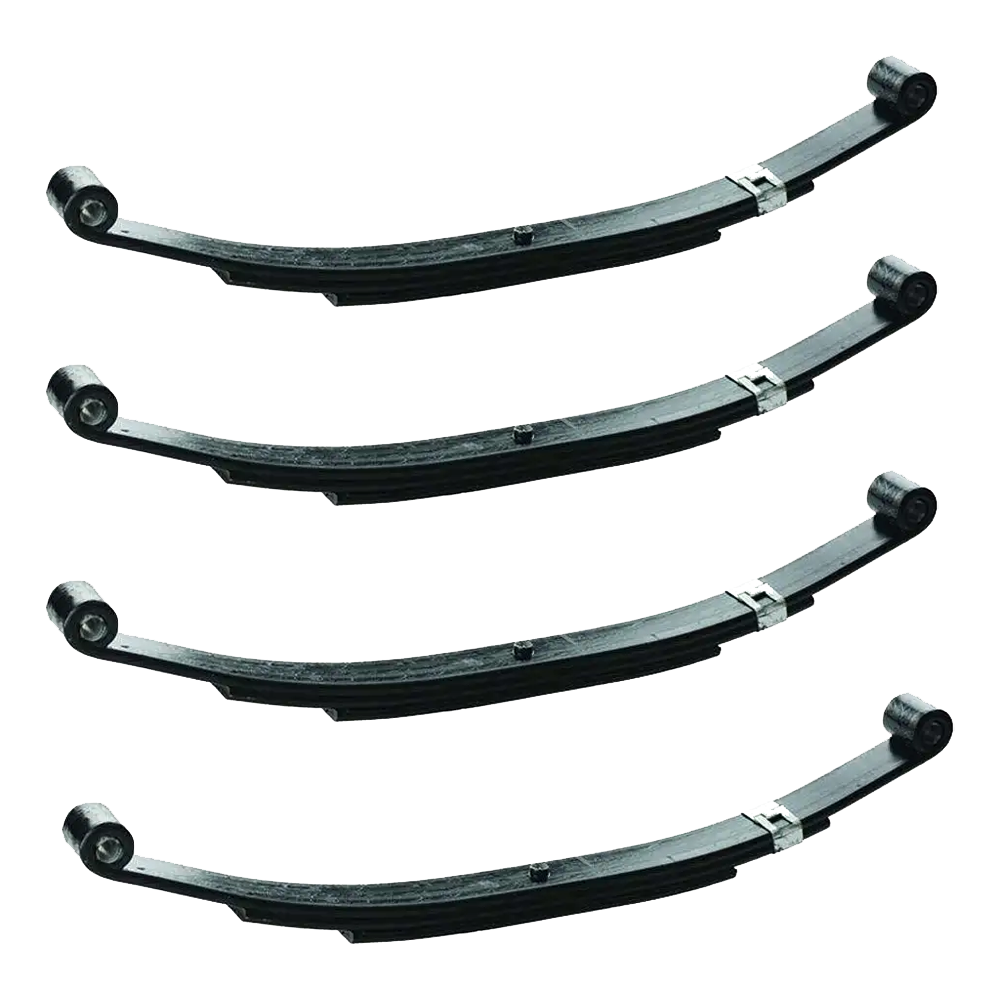

• QTY (4): 24" Leaf Spring (1,250 lb capacity each)
  • 1,250 lb capacity per spring
  • 24" loaded length
  • Designed for tandem axle trailers
  • Helps ensure smooth ride and weight distribution
• QTY (1): Tandem Axle AP Kit with Long Equalizer and Standard Bolts
  • Shackle links and mounting hardware included
  • Long equalizer design for improved suspension travel
  • Perfect for tandem configurations

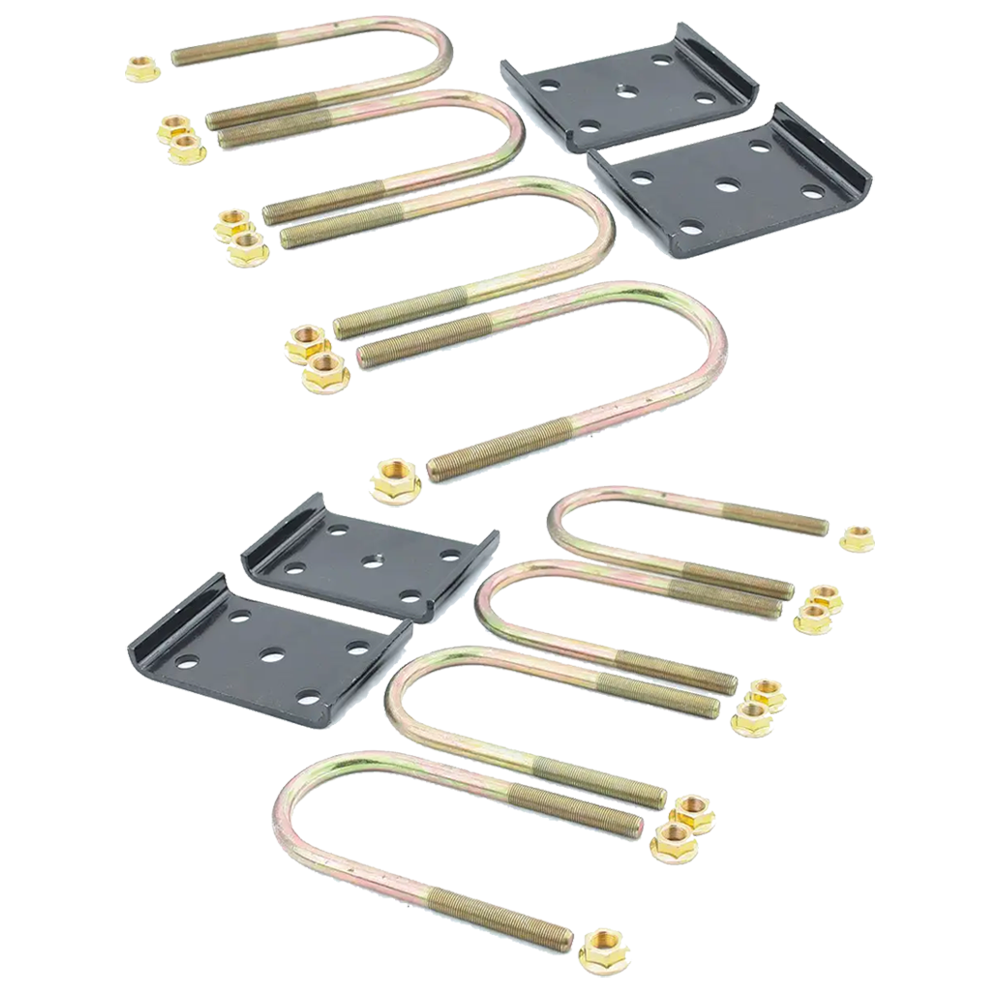

• QTY (2): Lippert Axle Mounting Kit – 3" Tube
  • U-bolt kits sized for 3" diameter axle tubes
  • Durable replacement for worn or damaged components
  • Ensures secure axle-to-spring connection
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000 lb Axle Rating
  • Used to weld or bolt onto frame for front spring eye
  • Axle capacity: 2,200–8,000 lbs.
  • Overall length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
  • Distance from top to spring hole center: 3-9/16"
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Axle Rating
  • Supports the equalizer between front and rear leaf springs
  • Axle capacity: 2,200–8,000 lbs.
  • Overall length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
  • Distance from top to spring hole center: 3-5/16"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Axle Rating
  • Mounts at the rear spring eye
  • Axle capacity: 2,200–8,000 lbs.
  • Overall length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"
  • Distance from top to spring hole center: 4"

For best results, always confirm compatibility with your original equipment. Regularly check and service your trailer’s suspension system per the manufacturer’s guidelines to maintain safe towing performance.
