Lippert Triple-Axle 12? Brake Drum & Hub Assembly Kit with Bearing Cones � 7,000-lb Axles, 8 on 6.5 Bolt Pattern, 9/16? Studs (Set of 6) � Dexter, Alko & Rockwell Compatible
$779.99
Lippert Triple-Axle 12″ Brake Drum & Hub Kit – 7K, 8 on 6.5, 9/16″ Studs (6 Hubs)
Upgrade all three 7,000-lb axles on your trailer with this complete Lippert bundle. Six cast-iron 12″ brake drum hubs—each pre-fitted with 9/16″ studs—and matching bearing cone kits give you the stopping power, durability, and convenience needed for heavy-duty towing.

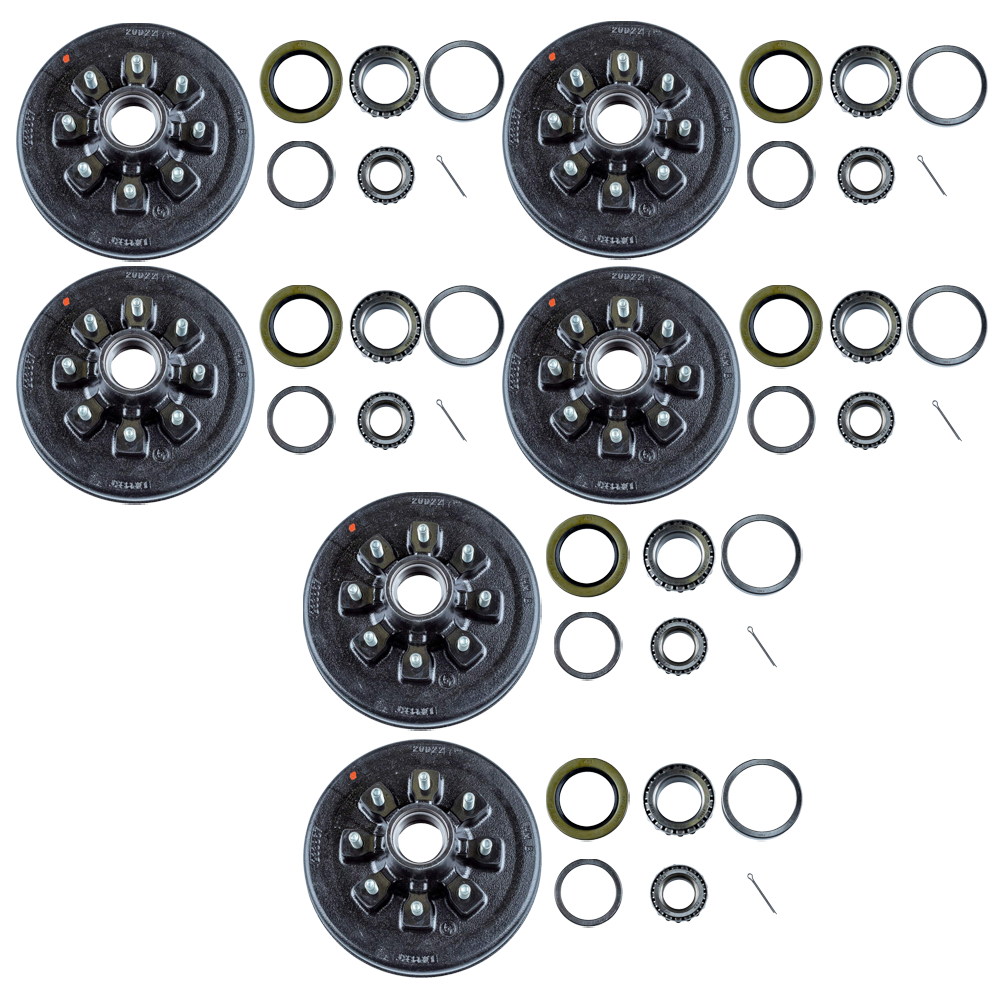

Bundle Contents:
-

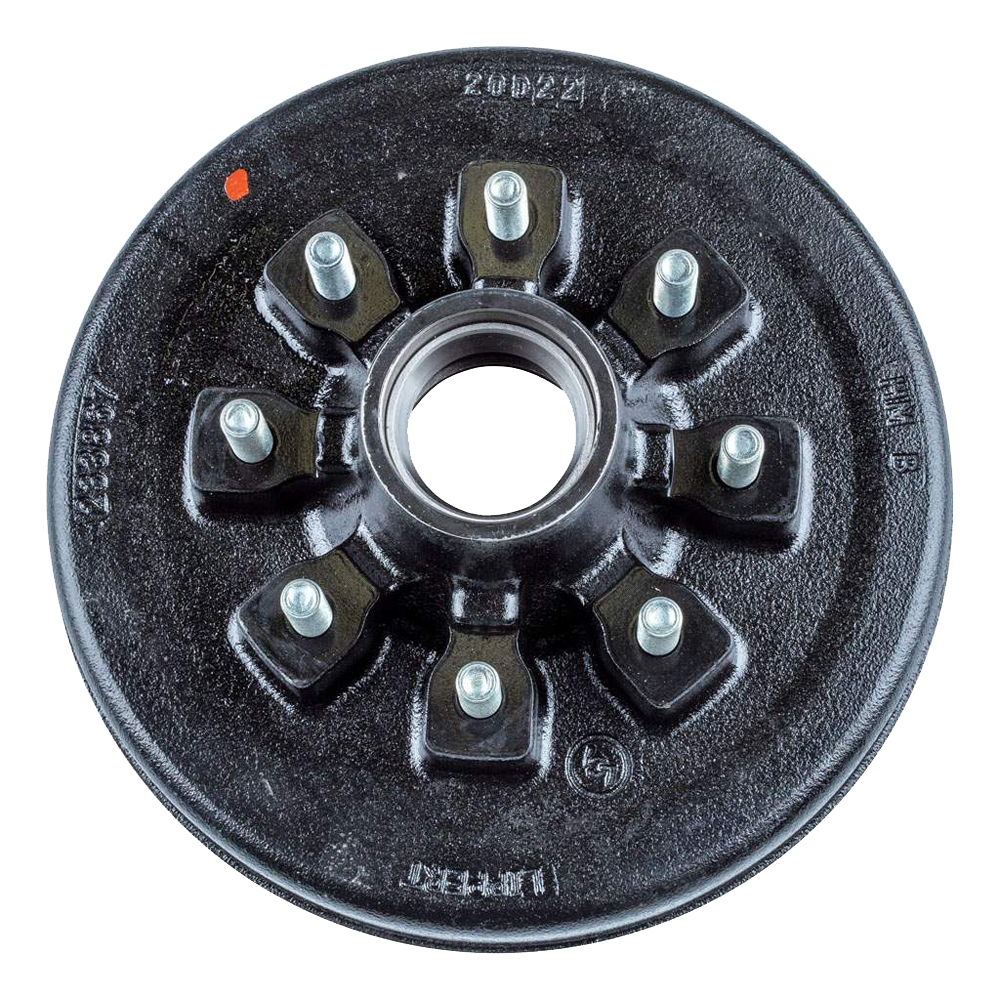

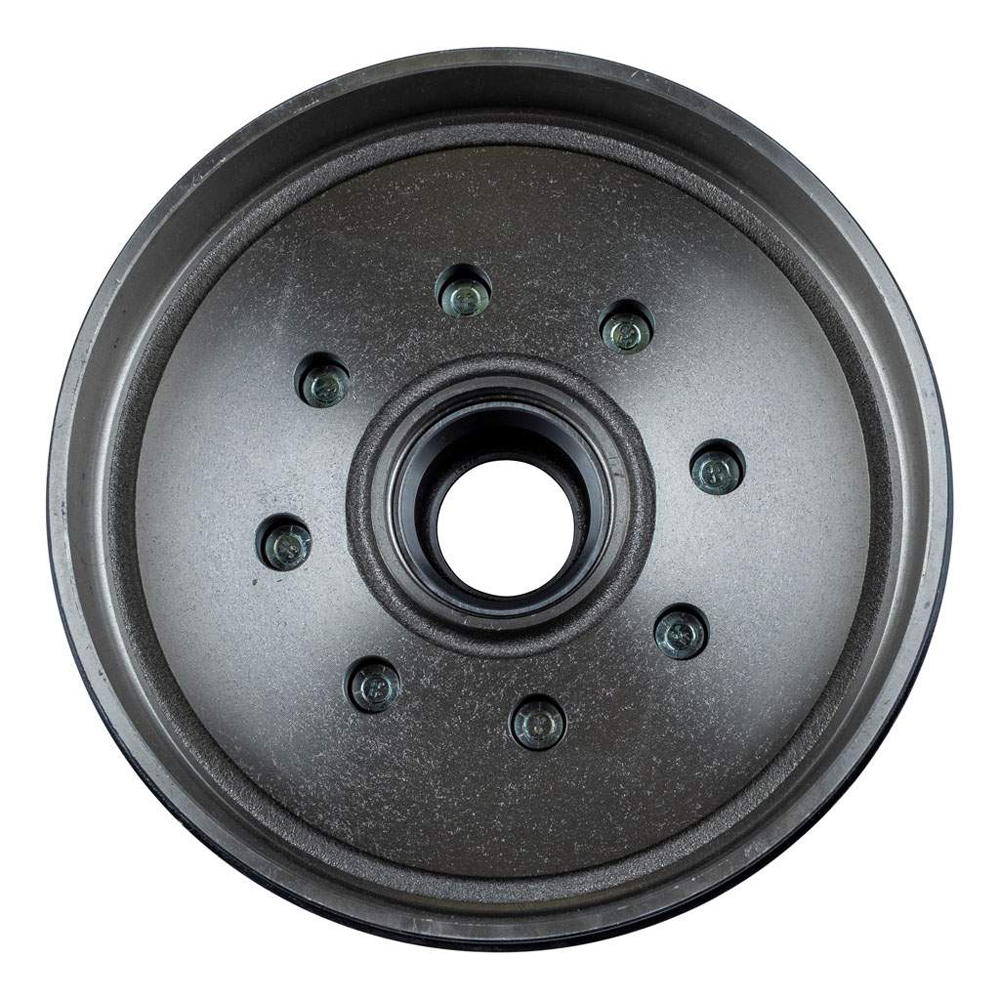

QTY (6): Lippert 12″ Brake Drum Hub Assembly for 7,000-lb Axle – 8 on 6.5, 9/16″ Stud
- Cast-iron 12″ drum with integrated hub for easier service
- Rated for 7,000-lb axles — ideal for triple-axle trailers
- 8 on 6.5″ bolt pattern with 9/16″ press-in studs
- Dexter compatible part number: K08-219-9C
- Fits 16″ – 17.5″ wheels (Lippert #134543)
- Backed by a 1-year limited Lippert warranty

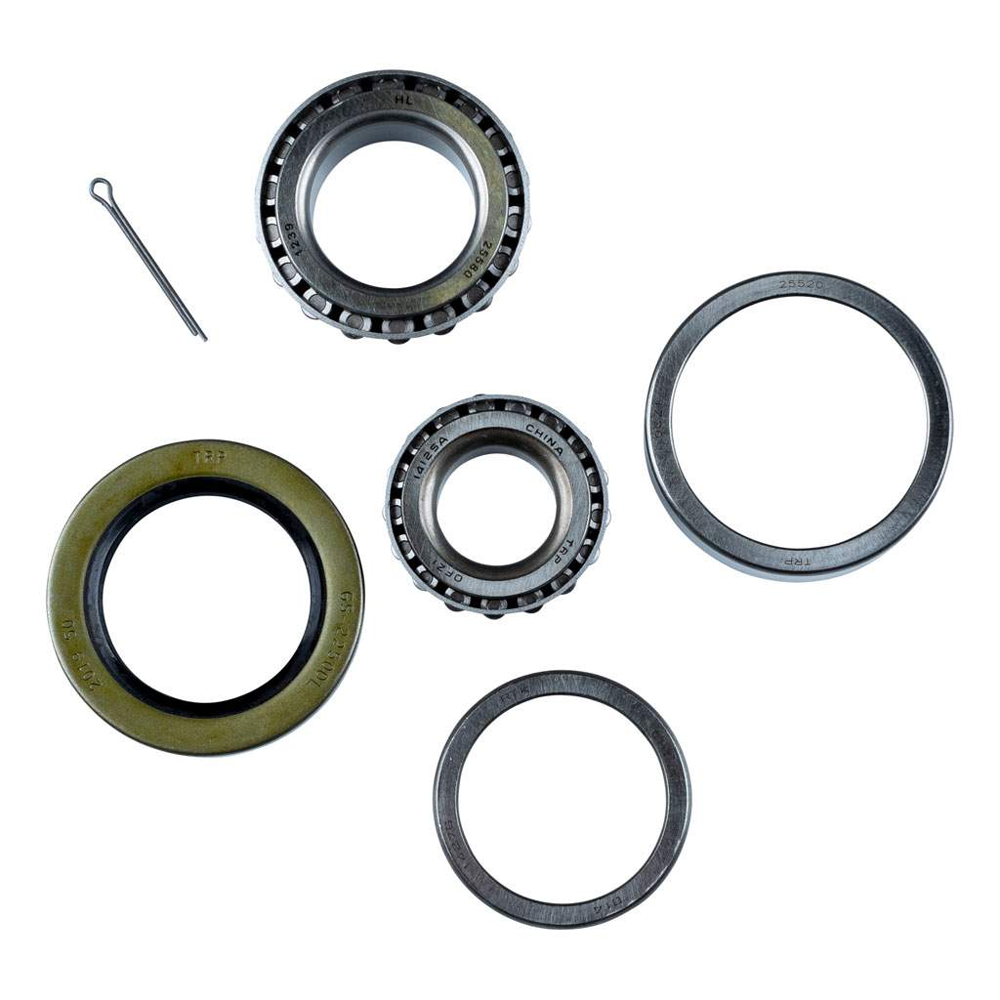

- Bearing Kit (bagged separately – 1 per hub):
- Inner bearing cone & cup
- Outer bearing cone & cup
- Double-lip grease seal
- Cotter pin
Always match bolt pattern and part numbers to your original equipment, and perform routine inspections to ensure safe, efficient braking performance.
| Specifications: | |
|---|---|
| Kit Type | Triple-Axle Brake Drum & Hub Kit |
| Axle Capacity | 7,000 lbs per axle |
| Hub Size | 12″ integrated drum |
| Stud Size | 9/16″ diameter |
| Bolt Pattern | 8 on 6.5″ |
| Wheel Size Compatibility | 16″ – 17.5″ |
| Material | Cast Iron |
| Quantity Included | 6 hubs with bearing kits |
| Manufacturer | Lippert Components |
| Warranty | 1-Year Limited |
