Lippert Triple‑Axle 12″ Electric Brake & Drum Hub Kit

Boost the stopping power and reliability of your triple‑axle trailer with this complete Lippert bundle. You get six manual‑adjust 12″ electric brake assemblies and six 8‑on‑6.5″ drum hubs, each with a separately bagged bearing kit. Engineered for 7,000‑lb axles, the components work seamlessly with Lippert, Dexter, Al‑Ko, Rockwell and most other quality axle brands.

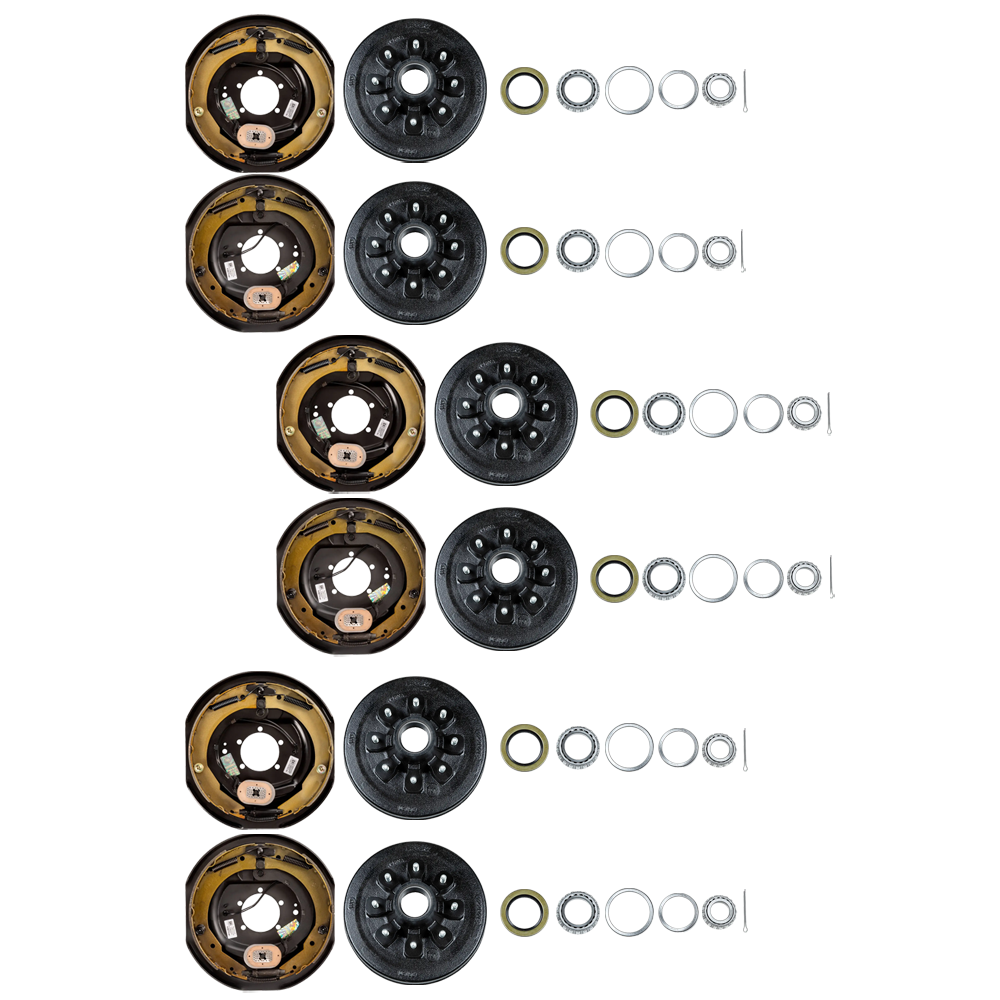

Bundle Contents:

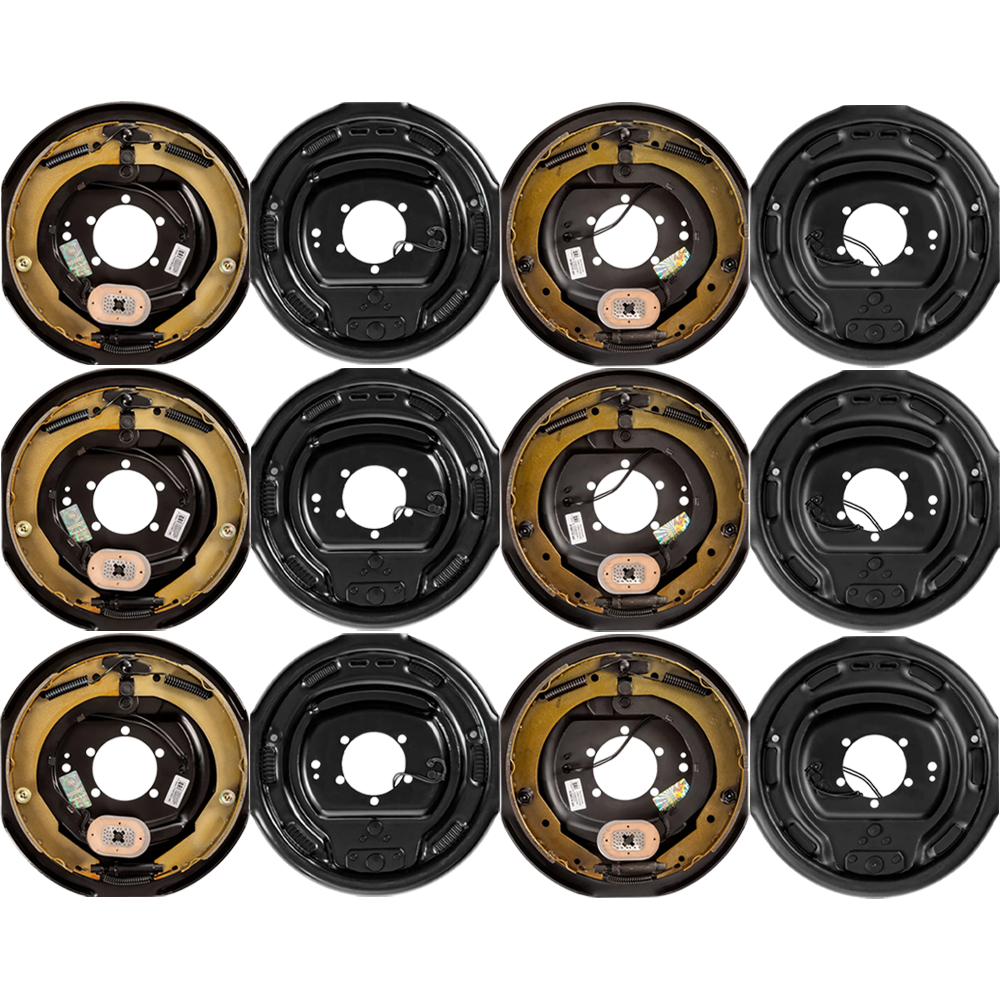

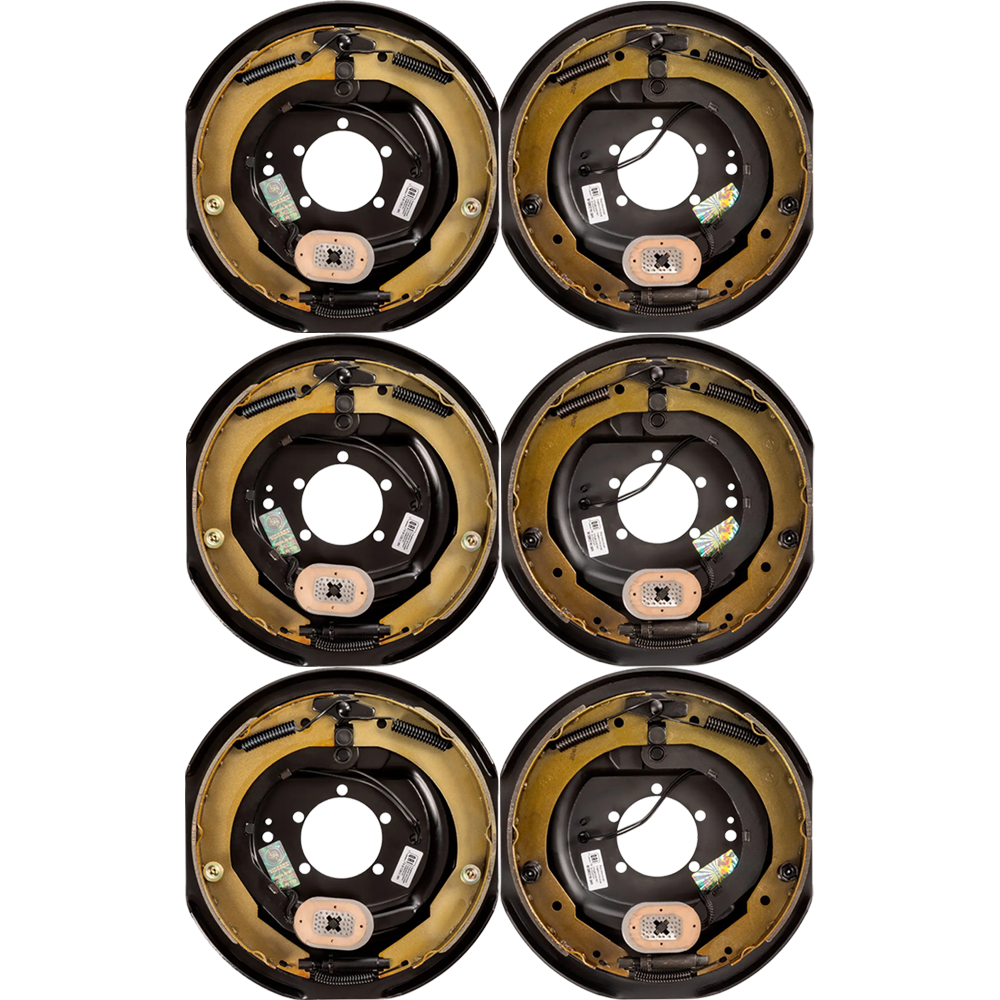

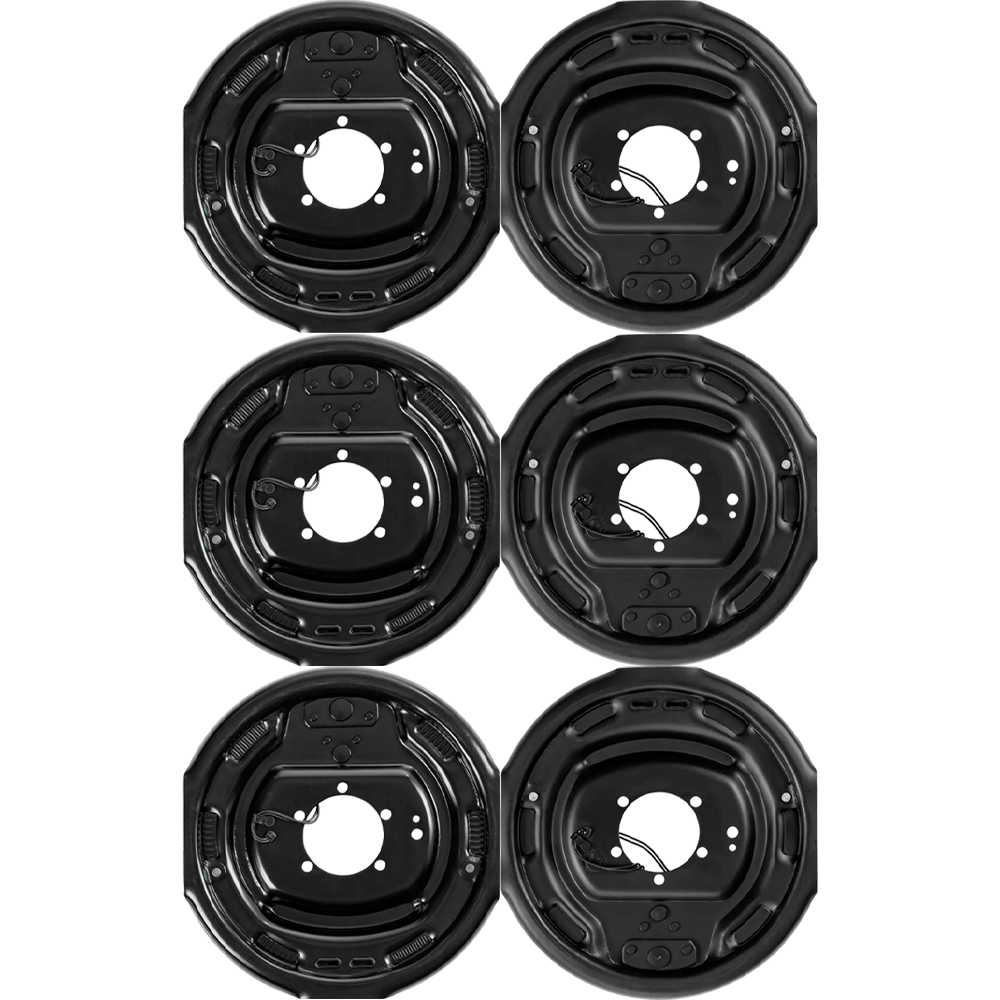

• QTY (3): Lippert 12″ × 2″ Manual‑Adjust Electric Brake Assembly – Left (Roadside)
  • Manual‑adjust design with integrated park brake
  • Fits 5,200‑7,000 lb & 8,000 lb hybrid axles
  • Five‑bolt brake flange; DIY friendly
  • Works with 15″‑17.5″ wheels
  • Dexter Compatible PN: K23‑180‑00 | 023‑180‑00
  • Break‑in required for full performance
• QTY (3): Lippert 12″ × 2″ Manual‑Adjust Electric Brake Assembly – Right (Curbside)
  • Mirror‑image of left‑hand unit for perfect pairing
  • Manual‑adjust with parking brake lever
  • Five‑bolt mounting pattern
  • Compatible with 15″‑17.5″ wheels
  • Dexter Compatible PN: K23‑181‑00 | 023‑181‑00

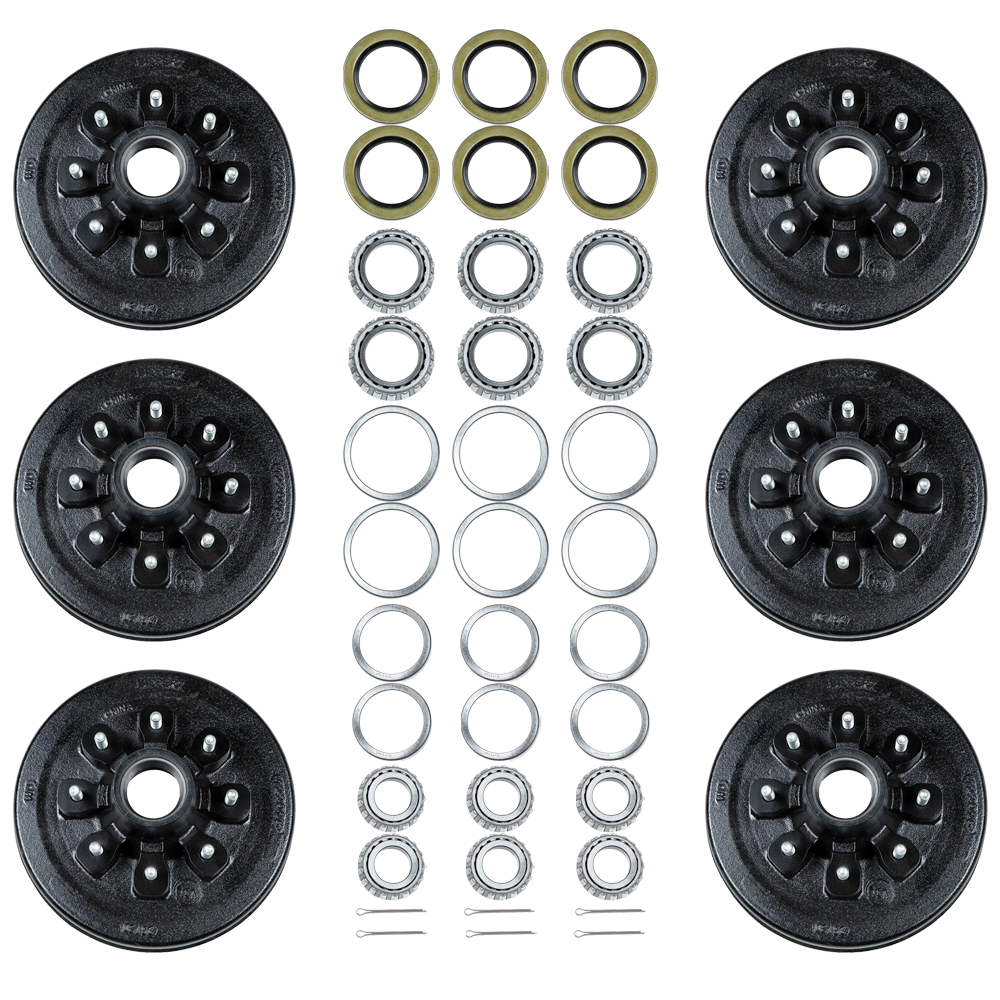

• QTY (6): Lippert 12″ Brake Drum Hub Assembly w/ Bearing Kit – 8 on 6.5″, 1/2″ Stud
  • Solid cast‑iron hub/drum rated for 7,000 lb axles
  • 8‑on‑6.5″ bolt pattern; 1/2″ pre‑installed studs
  • One individually bagged bearing kit per hub:
    • Inner bearing cone & cup
    • Outer bearing cone & cup
    • Double‑lip grease seal
    • Cotter pin
  • Fits 16″‑17.5″ wheels; hub #122096
  • Dexter Compatible PN: K08‑219‑9B
  • Limited 1‑year warranty

Recommendation: Always verify your original equipment specs, adjust the brakes after break‑in, and perform regular maintenance for maximum safety and longevity.
