Lippert Triple?Axle?12" Manual?Adjust Electric Brake?&?6?on?5.5 Drum?Hub Kit?w/?Bearing Sets � 6K Axles � Dexter?/?AL?KO?/?Rockwell Compatible

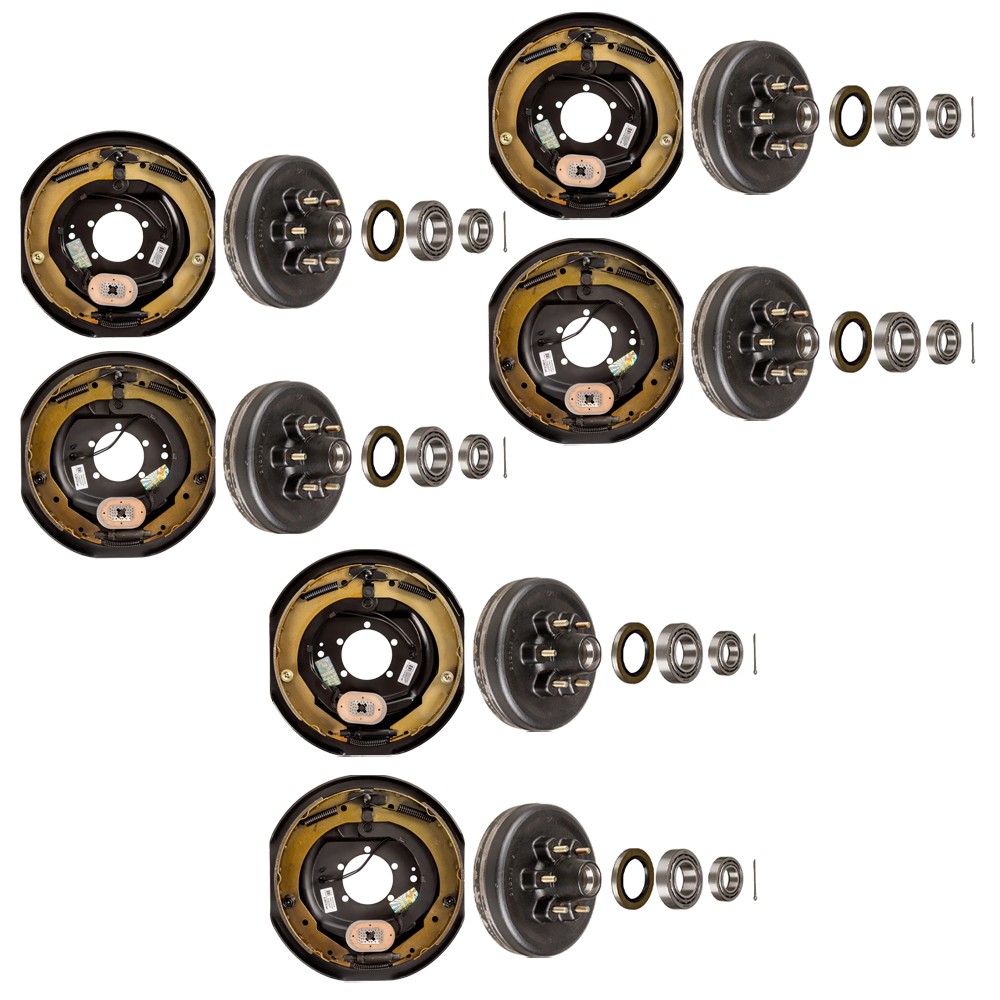

Lippert Triple‑Axle 12" Electric Brake & Drum Hub Kit – Complete 3‑Axle Set

Restore factory‑fresh stopping power on all three axles. This genuine Lippert bundle pairs six manual‑adjust 12" electric brake assemblies with six 6‑on‑5.5" drum hubs and individually bagged bearing kits. Rated for 6,000‑lb axles (the lower of the included components), it delivers smooth, even braking and long‑term reliability for heavy RV, cargo or equipment trailers.

Bundle Contents:

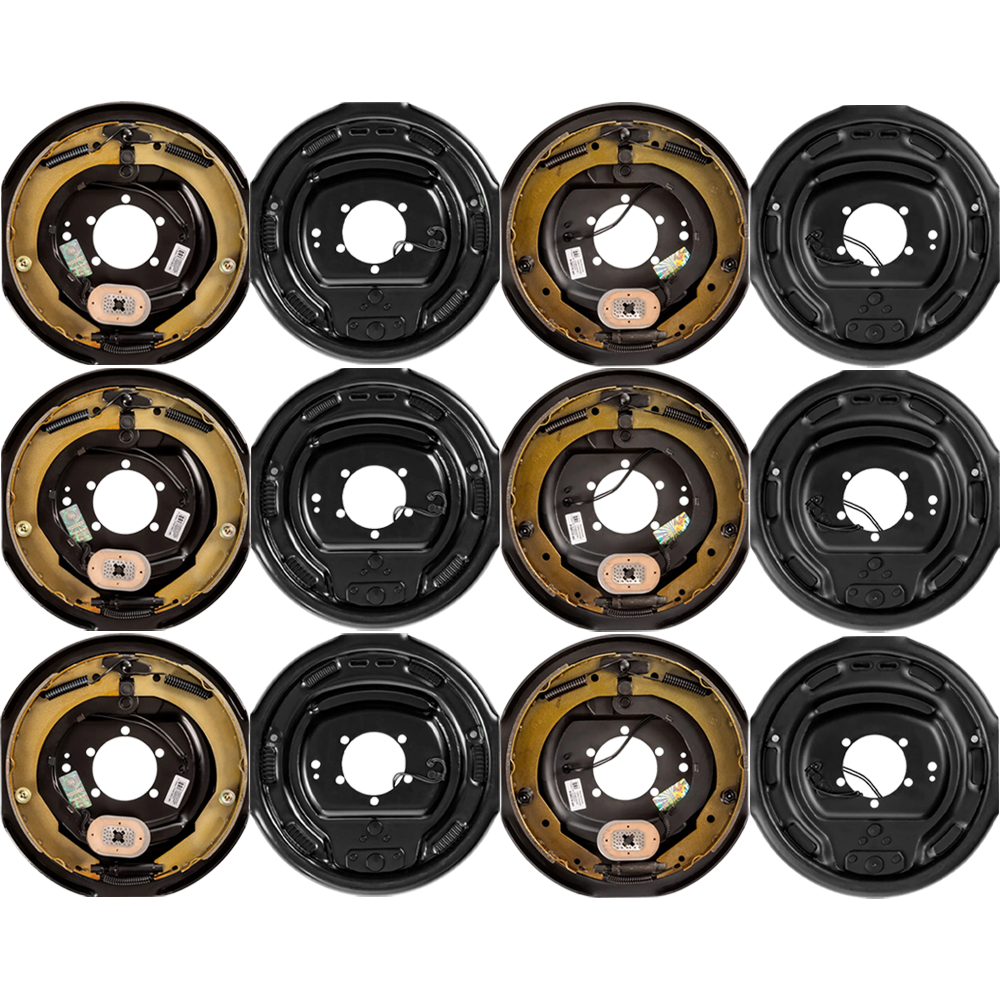

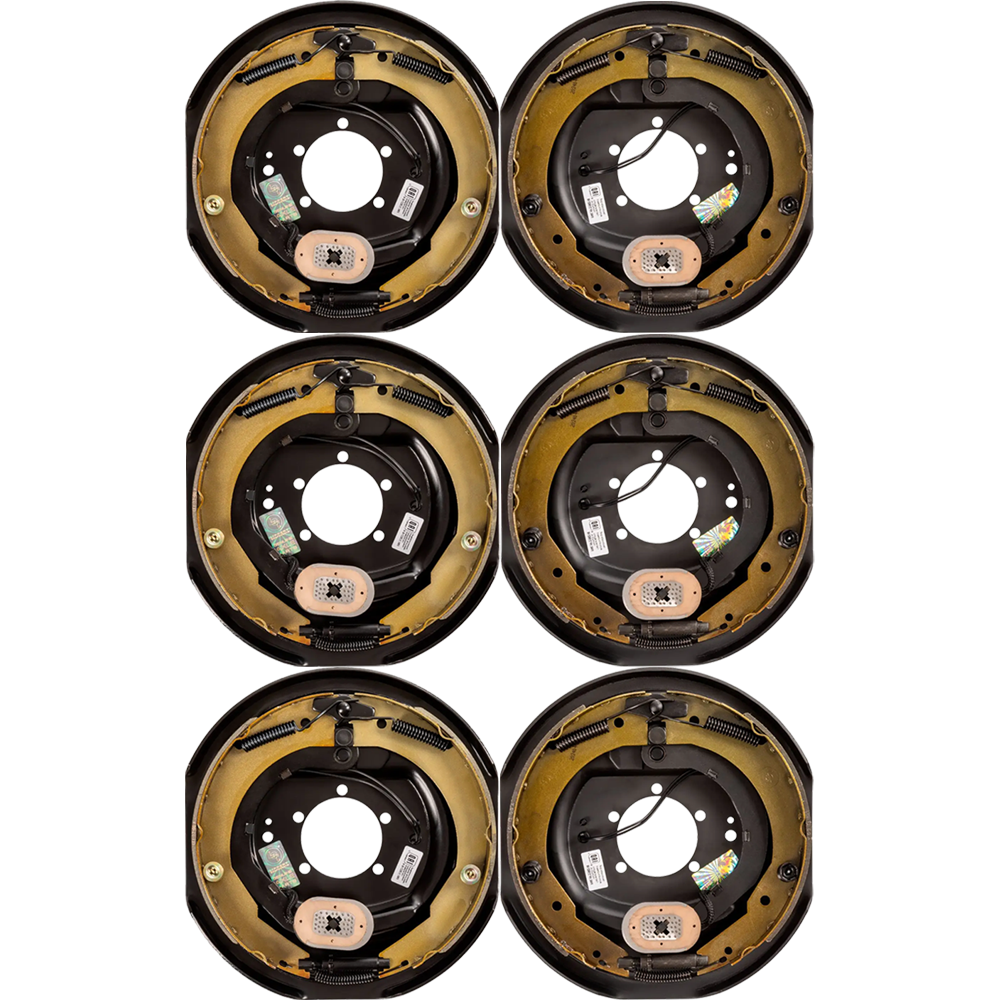

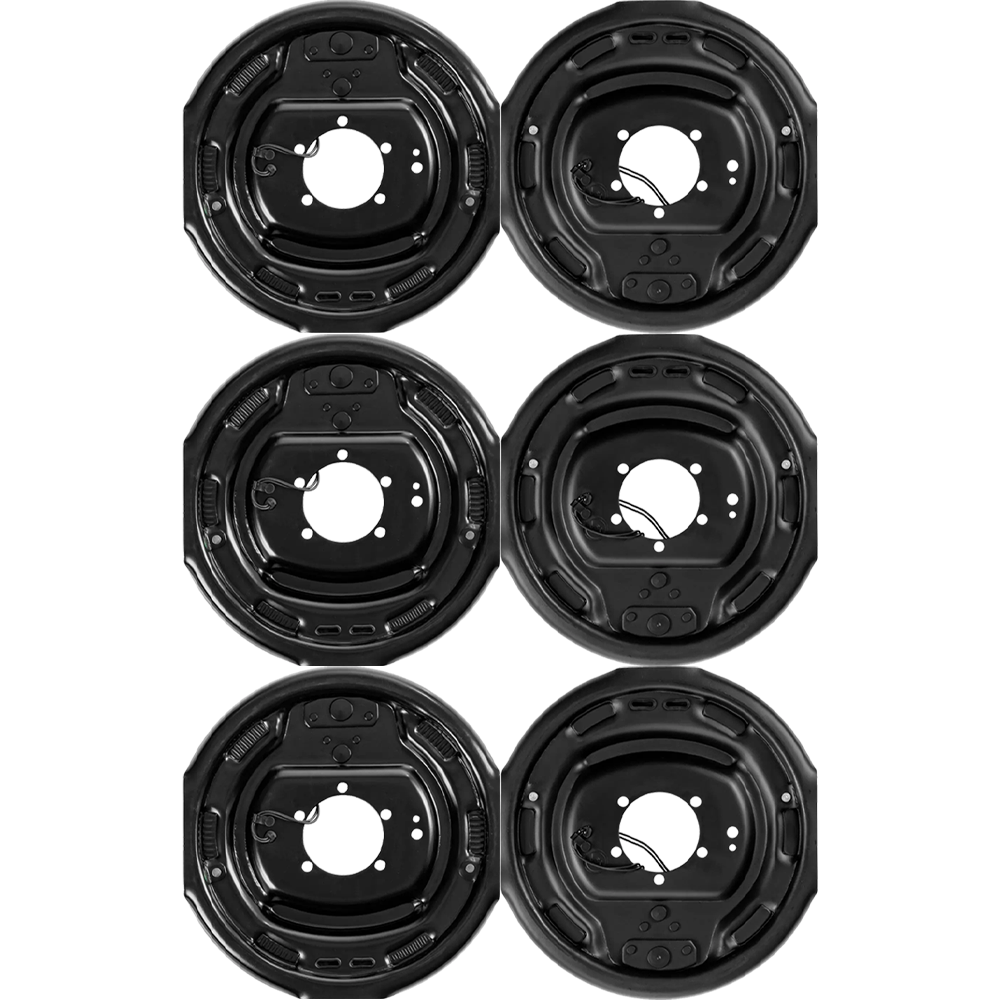

• QTY (3): Lippert 12" x 2" Electric Brake Assembly – Left‑Hand (Roadside)
  • Manual‑adjust design with parking feature
  • Fits 5,200‑7,000 lb & 8,000 lb hybrid axles
  • Five‑bolt mounting pattern; hardware sold separately
  • Compatible with 15"‑17.5" wheels
  • Dexter compatible part numbers: K23‑180‑00 | 023‑180‑00
• QTY (3): Lippert 12" x 2" Electric Brake Assembly – Right‑Hand (Curbside)
  • Mirror‑image of left‑hand unit; identical specs
  • Manual shoe adjustment for precise wear control
  • OEM‑grade components for long life
  • Break‑in period required for full performance
  • Dexter compatible part numbers: K23‑181‑00 | 023‑181‑00

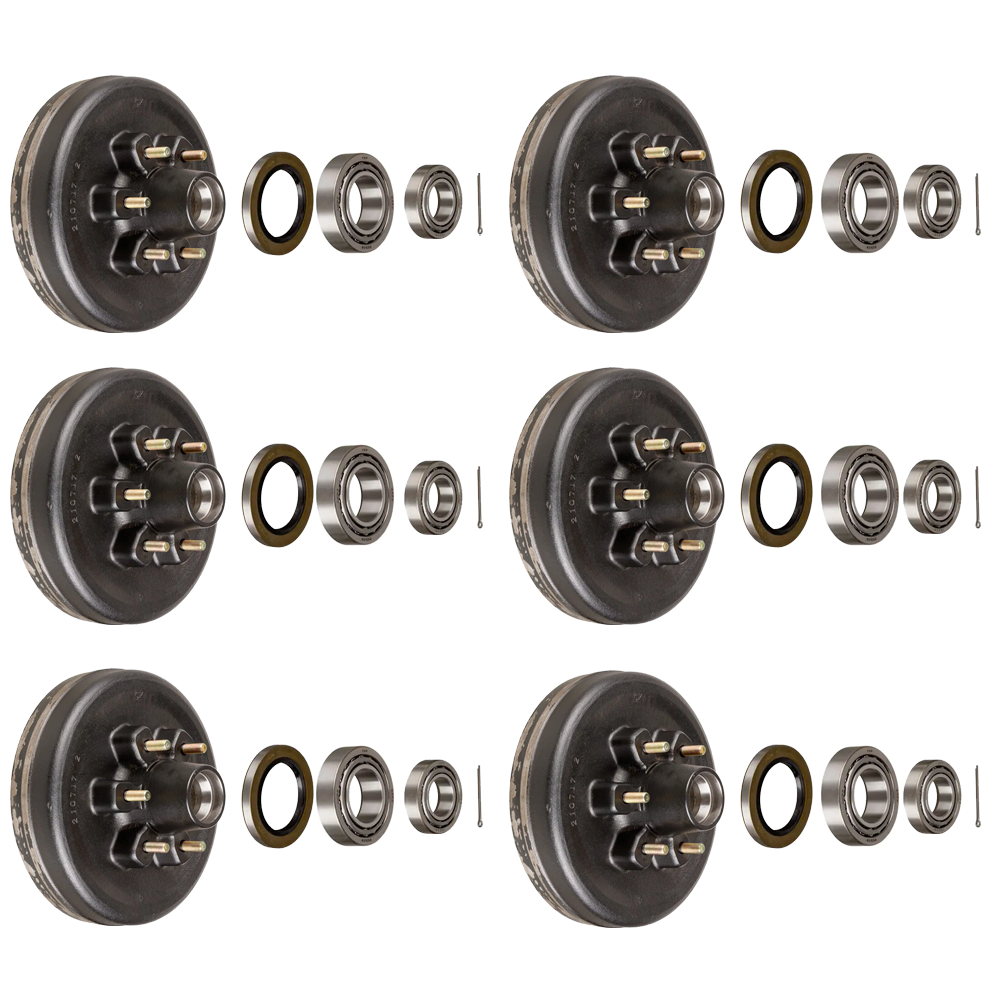

• QTY (6): Lippert 12" Brake Drum Hub Assembly – 6 on 5.5", 1/2" Stud
  • Solid cast‑iron drum rated for 6,000 lb axles
  • Works with 14.5"‑16.5" wheels
  • 1‑year limited warranty on hub components
  • Dexter compatible part number: K08‑201‑9A
  • Bearing kit (bagged separately – one per hub) includes:
    • Inner Bearing Cone
    • Inner/Outer Bearing Cone
    • Inner Bearing Cup
    • Inner/Outer Bearing Cup
    • Cotter Pin
    • Double‑Lip Grease Seal

Always verify bolt pattern, axle rating and brake size against your original equipment, and perform routine maintenance for optimum safety and performance.
