Lippert Triple?Axle 12" Manual?Adjust Electric Brake Assemblies & 6?on?5.5 Hub?Only Drums?�?6K,?1/2"?Studs?|?Dexter,?Al?Ko?&?Rockwell?Compatible

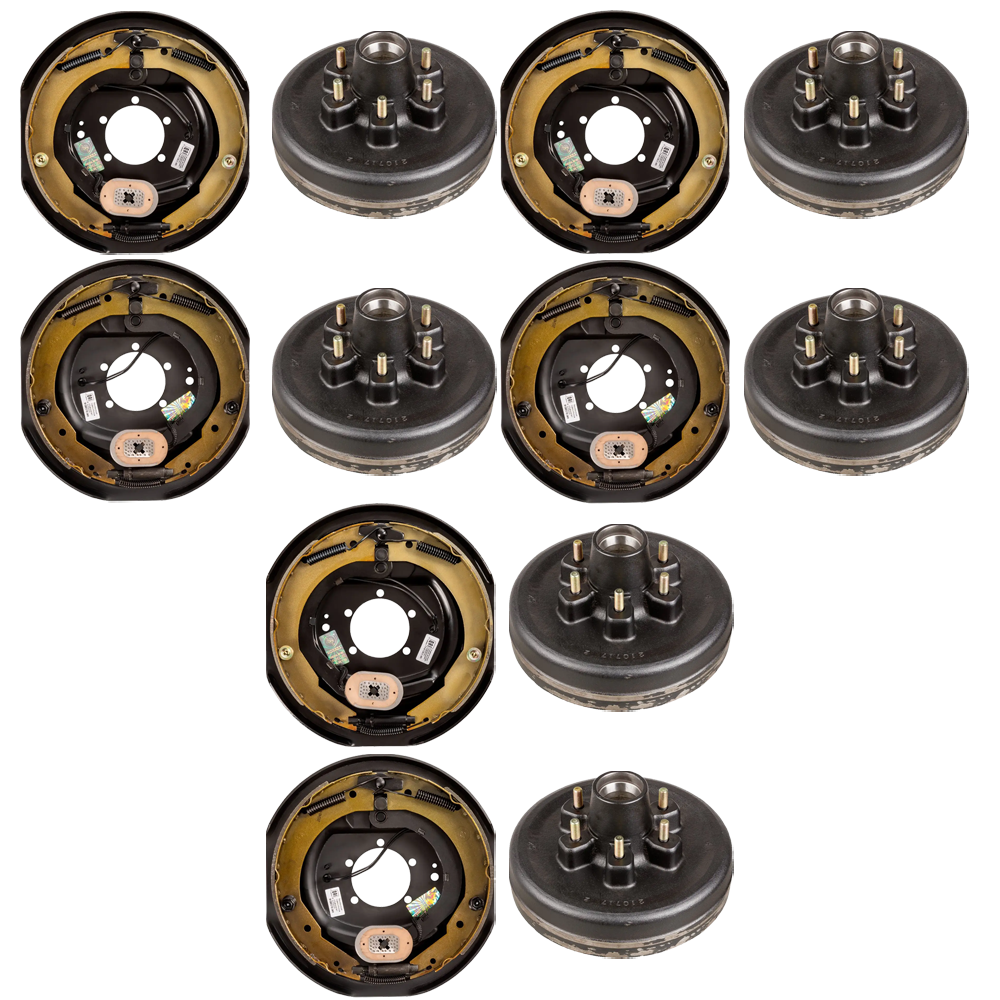

Lippert Triple‑Axle 12" Electric Brake & Hub Drum Kit

Upgrade the stopping power of your triple‑axle trailer with this complete Lippert bundle. It combines six 12" hub‑only drums with matching left‑ and right‑hand manual‑adjust electric brake assemblies. Engineered for 6,000‑lb axles, every component integrates seamlessly with Lippert, Dexter, Al‑Ko, Rockwell and other leading brands.

Bundle Contents:

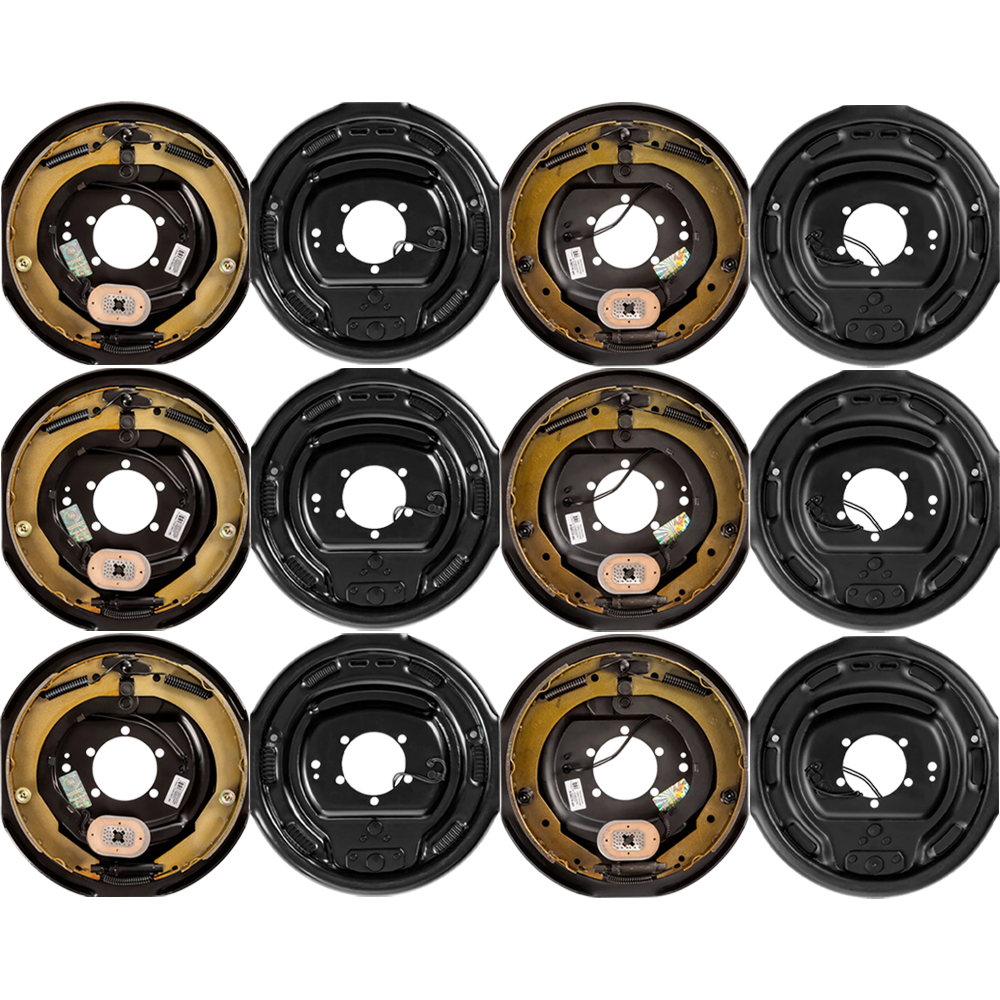

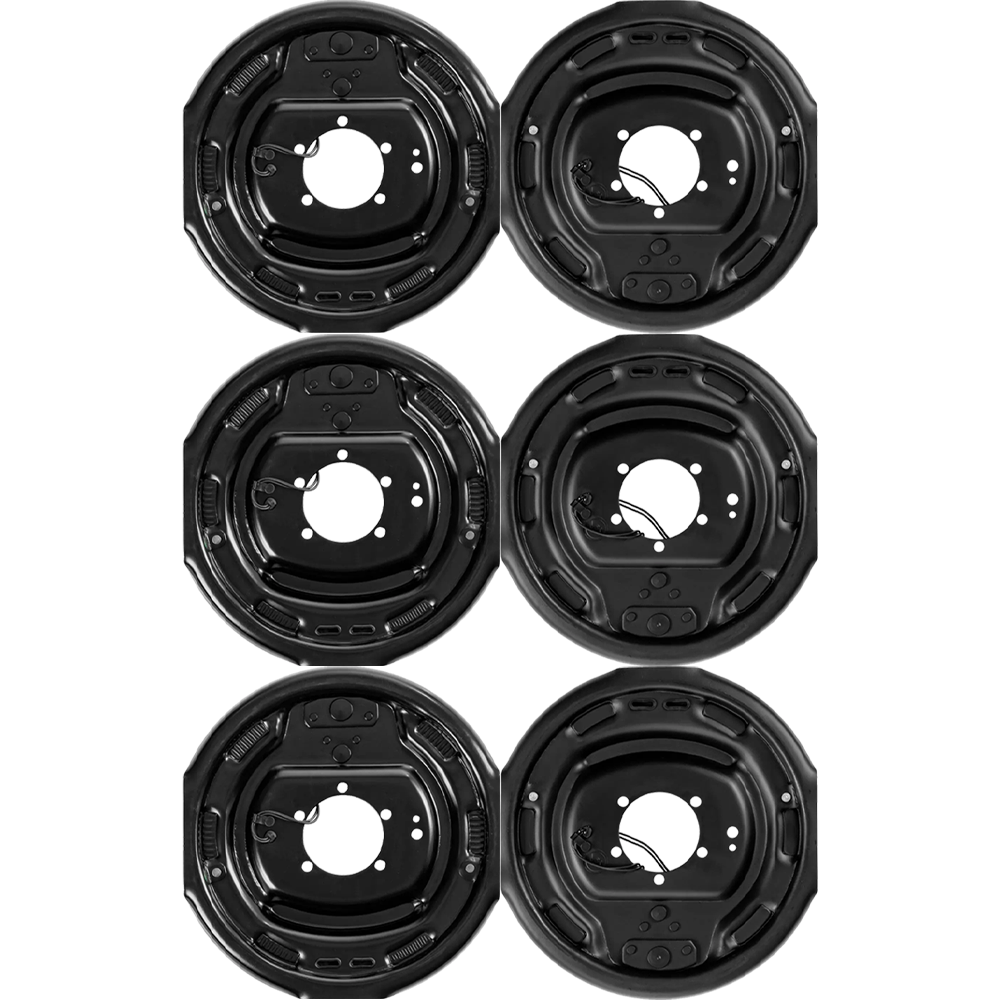

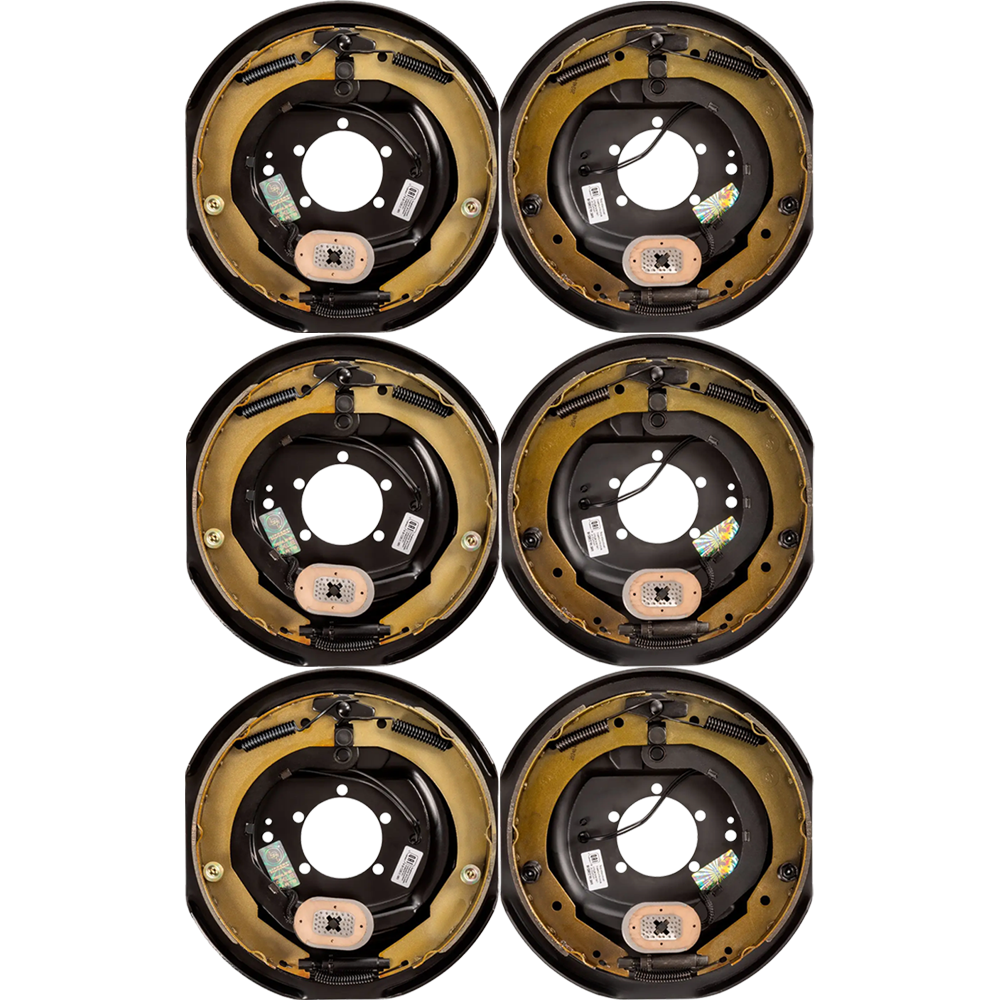

• QTY (3): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Left Hand (Roadside)
  • Replacement 12" x 2" electric brake with parking feature
  • Manual adjustment; 5‑bolt mounting pattern
  • Fits 5,200 – 7,000‑lb & 8,000‑lb hybrid axles
  • For 15" – 17.5" wheels; break‑in required
  • Dexter Compatible Part Number: K23‑180‑00 | 023‑180‑00
• QTY (3): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Right Hand (Curbside)
  • Replacement 12" x 2" electric brake with parking feature
  • Manual adjustment; 5‑bolt mounting pattern
  • Fits 5,200 – 7,000‑lb & 8,000‑lb hybrid axles
  • For 15" – 17.5" wheels; break‑in required
  • Dexter Compatible Part Number: K23‑181‑00 | 023‑181‑00

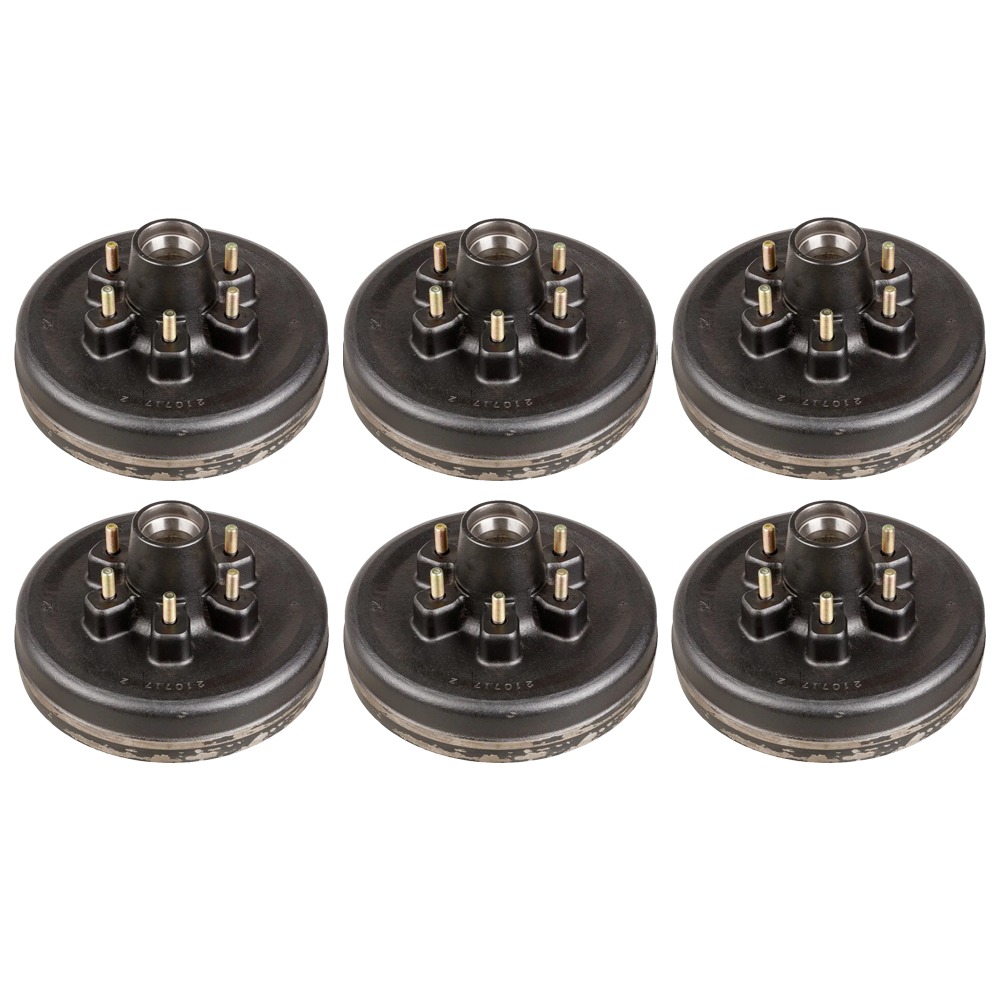

• QTY (6): 12" Trailer Brake Hub Assembly – 6,000‑lb, 6 on 5.5", 1/2" Studs
  • Hub‑only drum for electric brakes (shoe & magnet assembly not included)
  • Rated 6,000 lb; 1/2" pre‑installed studs
  • 6 on 5.5" bolt circle; fits 14.5" – 16.5" wheels
  • Compatible with Lippert, Dexter, Al‑Ko, Rockwell axles
  • Limited 1‑year warranty

Always confirm bolt pattern, bearing numbers and brake size before ordering, and perform regular maintenance for optimum performance.
