Lippert Triple‑Axle 12″ Manual Brake & 8‑on‑6.5 Drum Hub Kit

Service or upgrade your heavy‑duty trailer with this all‑inclusive triple‑axle package. The kit bundles six genuine Lippert 12″ manual‑adjust electric brake assemblies and six pre‑greased drum hubs with matching bearing kits. Engineered for 7K axles, these components integrate seamlessly with Dexter, Al‑Ko, Rockwell and other quality axles, delivering reliable stopping power and long‑term durability.

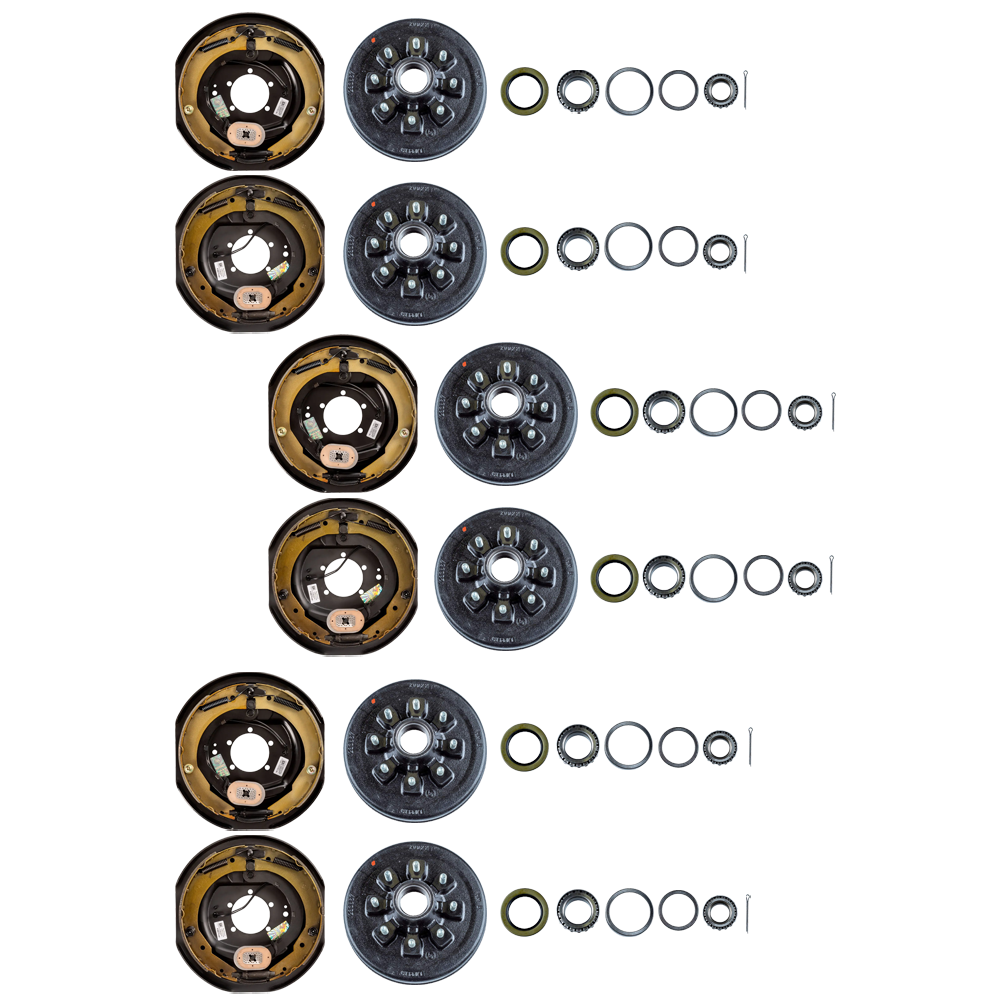

Bundle Contents:

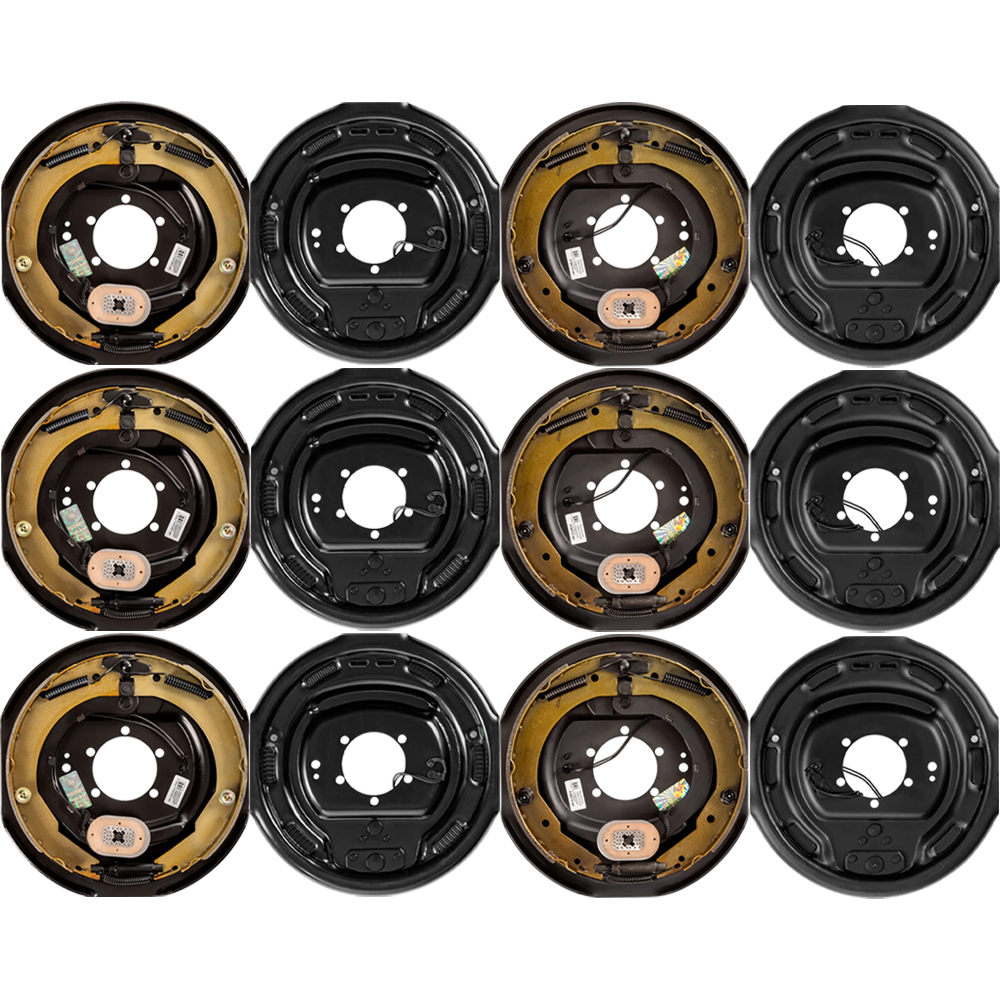

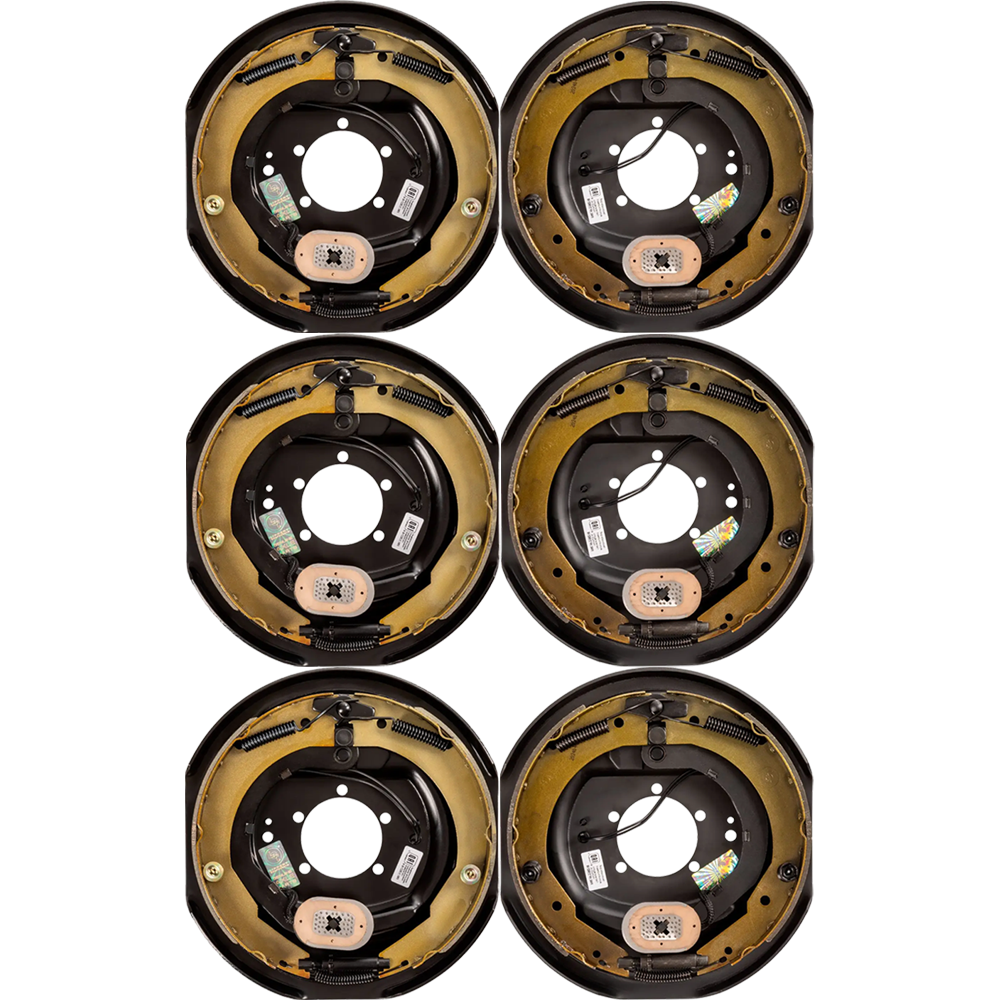

• QTY (3): Lippert 12″ × 2″ Manual Electric Brake Assembly – Left Hand
  • Road‑side orientation for 5,200‑7,000 lb (and 8K hybrid) axles
  • Manual star‑wheel adjustment with integrated parking feature
  • Five‑bolt mounting pattern – easy DIY install
  • Fits 15″‑17.5″ wheels
  • Dexter Compatible Part No.: K23‑180‑00 | 023‑180‑00
  • Requires break‑in for peak performance
• QTY (3): Lippert 12″ × 2″ Manual Electric Brake Assembly – Right Hand
  • Curb‑side orientation for 5,200‑7,000 lb (and 8K hybrid) axles
  • Manual star‑wheel adjustment with integrated parking feature
  • Five‑bolt mounting pattern – easy DIY install
  • Fits 15″‑17.5″ wheels
  • Dexter Compatible Part No.: K23‑181‑00 | 023‑181‑00
  • Requires break‑in for peak performance

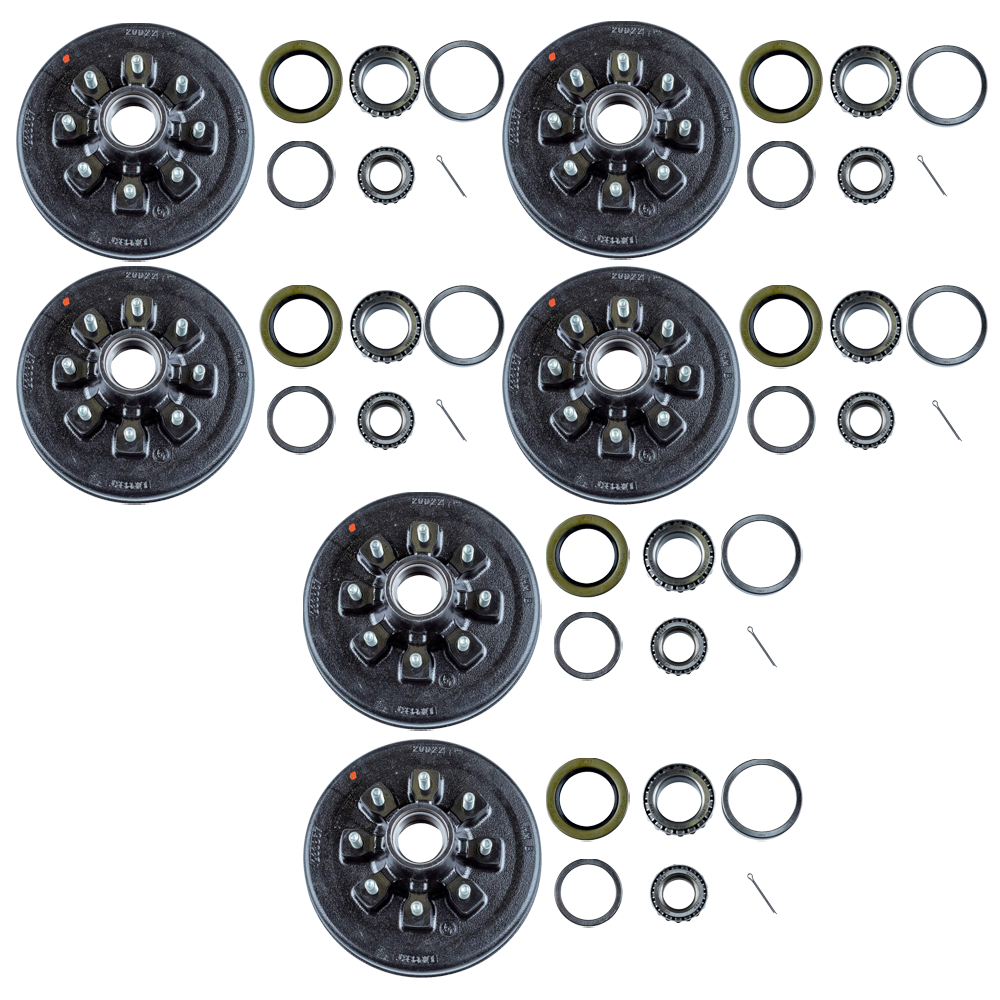

• QTY (6): Lippert 12″ Hub‑and‑Drum Assembly w/ Bearing Kit – 8 on 6.5″, 9/16″ Stud
  • Solid cast‑iron drum rated for 7,000 lb axles
  • Pre‑installed 9/16″ studs, 8‑lug pattern
  • Accepts 16″‑17.5″ wheels
  • Dexter Compatible Part No.: K08‑219‑9C
  • Hub #134543 • Bearing Kit #333951 • 1‑year limited warranty
  • Bearing Kit (bagged separately – one kit per hub) includes:
    • Inner Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cone
    • Outer Bearing Cup
    • Double‑lip Grease Seal
    • Cotter Pin

Always verify fitment against your OEM axle tag and perform routine bearing inspection, lubrication and brake adjustment to maximize safety and component life.
