Lippert Triple?Axle 12" Self?Adjust Electric Brake Assemblies & 6?on?5.5 Drum Hub Kit � 6K Axles, Dexter/Alko/Rockwell Compatible

Lippert Triple‑Axle 12" Self‑Adjusting Electric Brake & Drum Hub Kit – 6‑on‑5.5, 6K

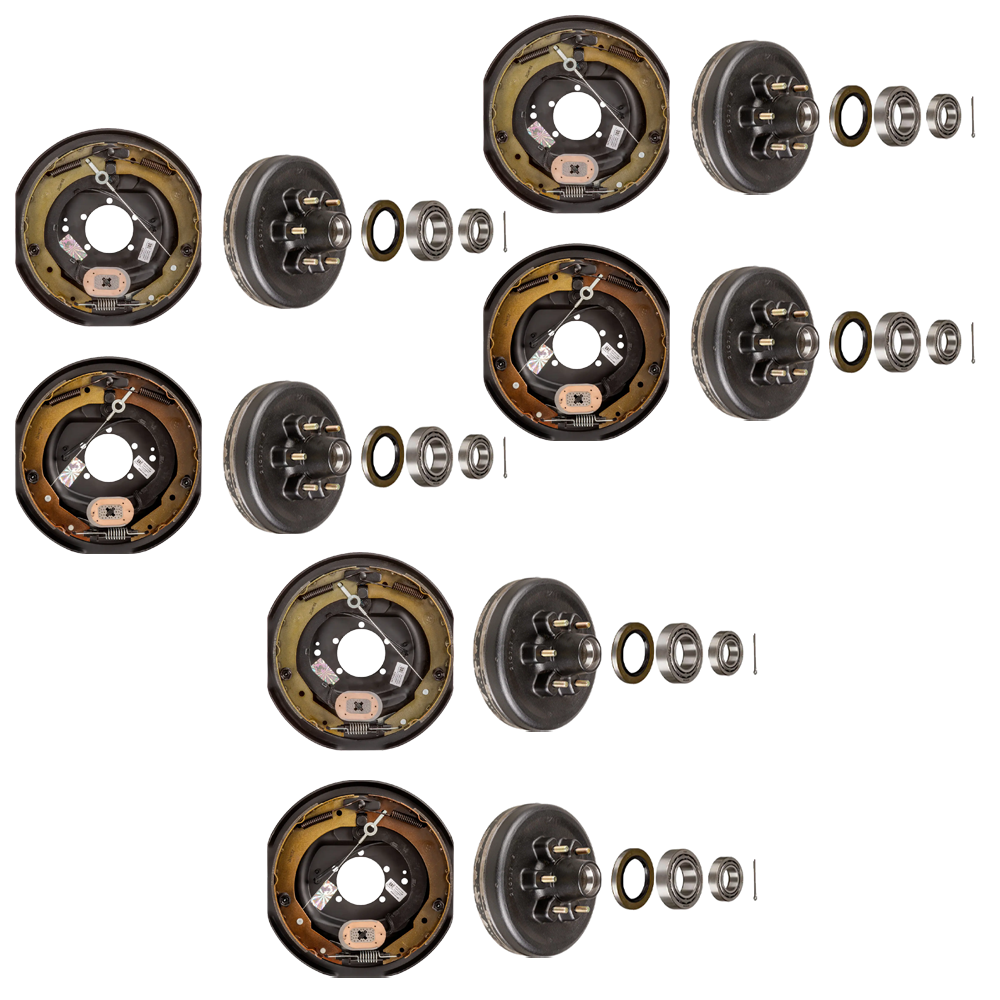

Restore confident stopping power on your triple‑axle trailer with this complete Lippert bundle. Six forward self‑adjusting 12" electric brake assemblies and six 12" hub‑and‑drums (bearing kits included) give you everything required for an easy, do‑it‑yourself upgrade or replacement. Engineered for 6,000‑lb axles and finished with a 6‑on‑5.5 bolt pattern and 1/2" studs, this kit is also cross‑compatible with popular Dexter, Alko, and Rockwell setups.

Bundle Contents:

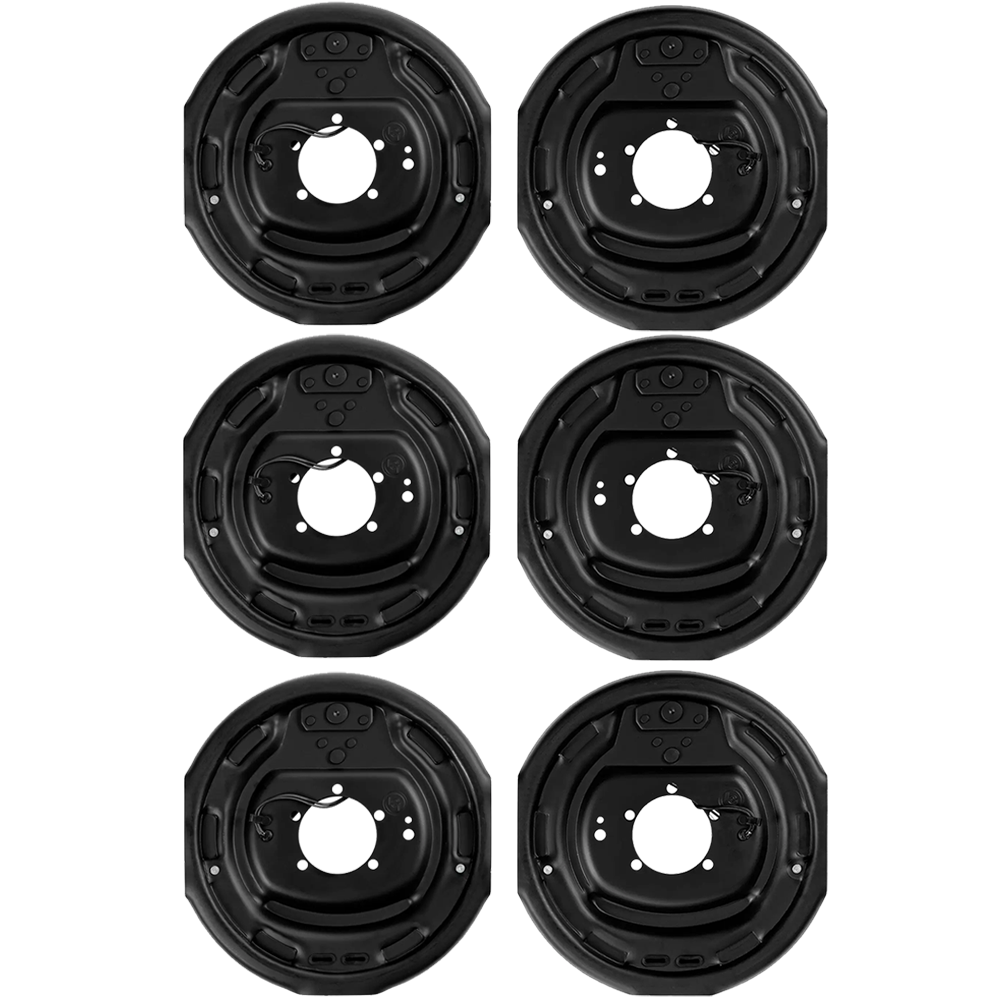

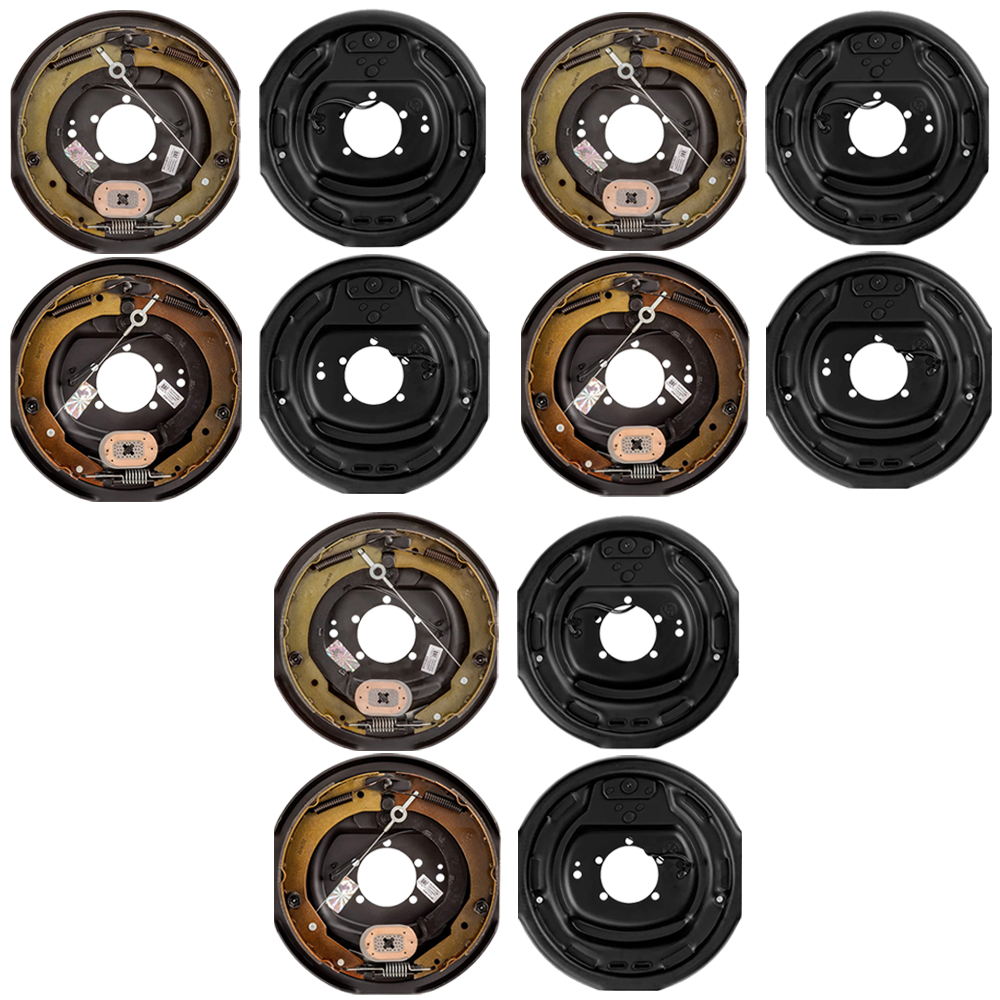

• QTY (3): Lippert 12" × 2" Forward Self‑Adjusting Electric Brake Assembly – Left‑Hand
  • Road‑side (LH) orientation
  • Fits 4,000‑7,000 lb axles
  • Five‑bolt brake flange
  • Self‑adjusts with every forward stop
  • Dexter compatible part numbers: K23‑464‑00 | 023‑464‑00
  • One‑year limited warranty
• QTY (3): Lippert 12" × 2" Forward Self‑Adjusting Electric Brake Assembly – Right‑Hand
  • Curb‑side (RH) orientation
  • Fits 4,000‑7,000 lb axles
  • Five‑bolt brake flange
  • Self‑adjusts with every forward stop
  • Dexter compatible part numbers: K23‑465‑00 | 023‑465‑00
  • One‑year limited warranty

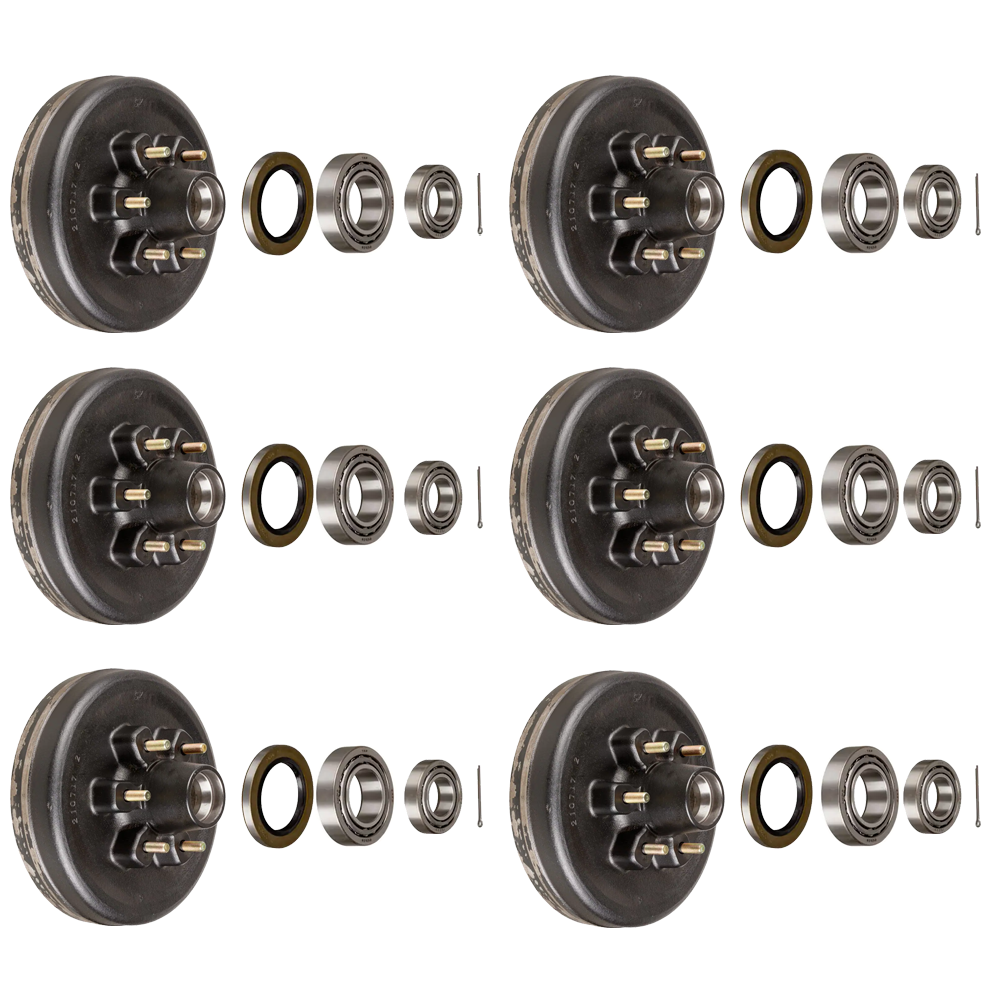

• QTY (6): Lippert 12" Brake Drum Hub Assembly – 6‑on‑5.5, 1/2" Studs
  • Rated for 6,000 lb axles
  • Pre‑machined cast‑iron drum & hub
  • 6‑on‑5.5" bolt pattern; 1/2" press‑in studs
  • Wheel compatibility: 14.5" – 16.5"
  • Dexter compatible part number: K08‑201‑9A
  • Includes separately bagged bearing kit (1 per hub):
    • Inner Bearing Cone
    • Outer Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cup
    • Cotter Pin
    • Double‑Lip Grease Seal
  • Limited one‑year warranty

Always confirm your existing axle, brake, and hub specifications before ordering, and inspect wear components regularly to maintain optimal braking performance.
