Lippert?Triple?Axle?12??Self?Adjusting?Electric?Brake?Assemblies?&?12??Grease?Drum?Hubs?Bundle?—?8?on?6.5?BP,?9/16??Studs?—?Dexter/Alko/Rockwell?Compatible

Lippert Triple‑Axle Self‑Adjusting Brake & Drum Hub Bundle

Service or upgrade your heavy‑duty trailer with this complete Lippert package. The bundle combines six forward self‑adjusting electric brake assemblies with six 12″ bare cast‑iron drum hubs, supplying everything needed for a triple‑axle setup. Self‑adjusting brakes shorten stopping distance while the grease‑lubed, threaded‑stud hubs simplify routine maintenance. Fits Dexter, Alko, Rockwell and other 8 K‑class axles.

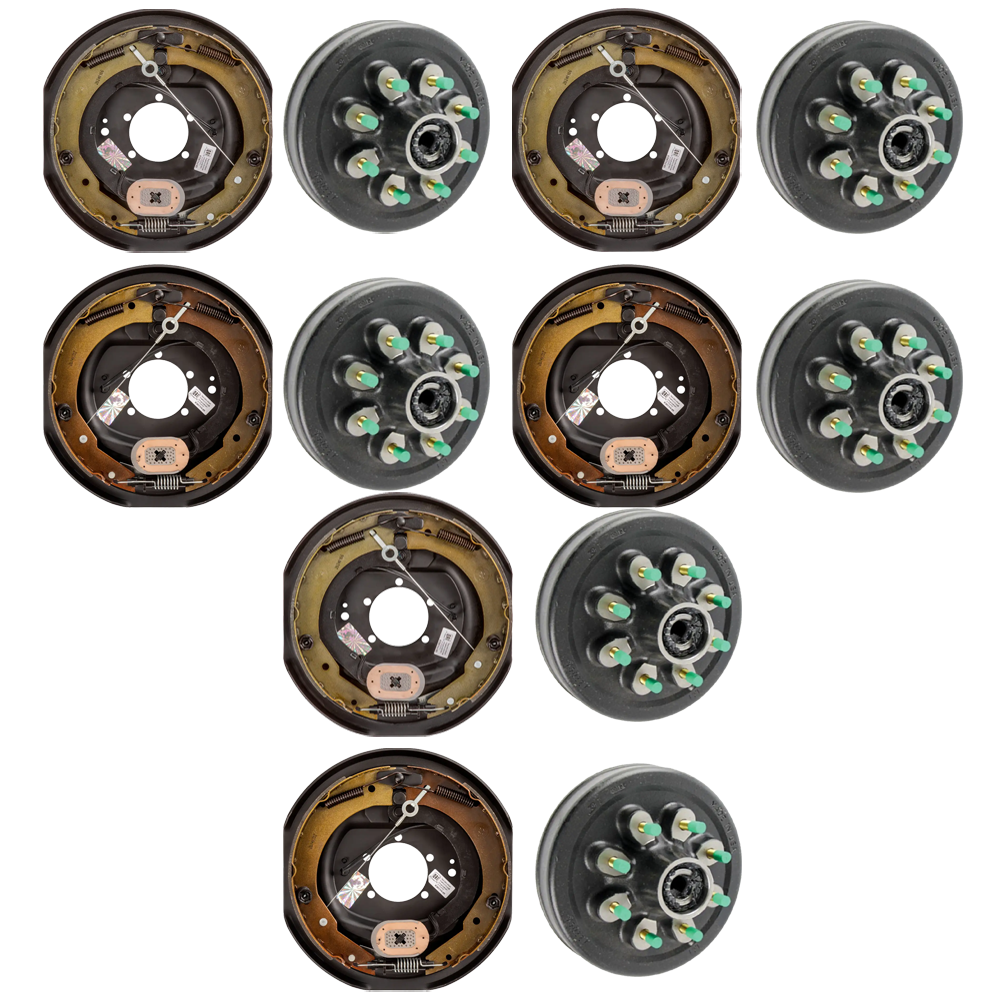

Bundle Contents:

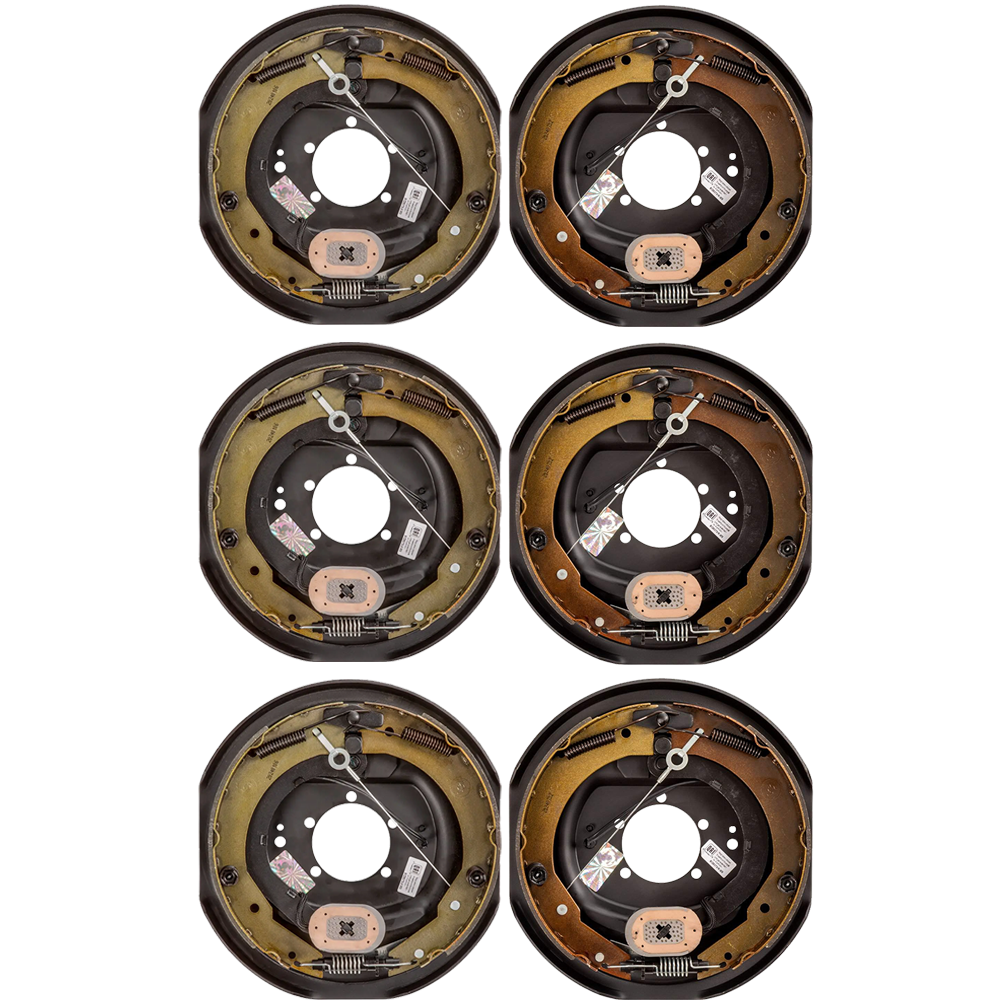

• QTY (3): Lippert Forward Self‑Adjusting Brake Assembly — 12″ × 2″, 5‑Bolt, 4‑7K (Left‑Hand)
  • Forward self‑adjusting electric brake assembly (road side)
  • 12″ × 2″ brake shoes; fits 4,000–7,000 lb axles
  • 5‑bolt brake‑flange mounting
  • Improves braking distance up to 50%
  • Dexter compatible part #: K23‑464‑00 | 023‑464‑00
• QTY (3): Lippert Forward Self‑Adjusting Brake Assembly — 12″ × 2″, 5‑Bolt, 4‑7K (Right‑Hand)
  • Forward self‑adjusting electric brake assembly (curb side)
  • 12″ × 2″ brake shoes; fits 4,000–7,000 lb axles
  • 5‑bolt brake‑flange mounting
  • Reduces magnet & shoe wear
  • Dexter compatible part #: K23‑465‑00 | 023‑465‑00

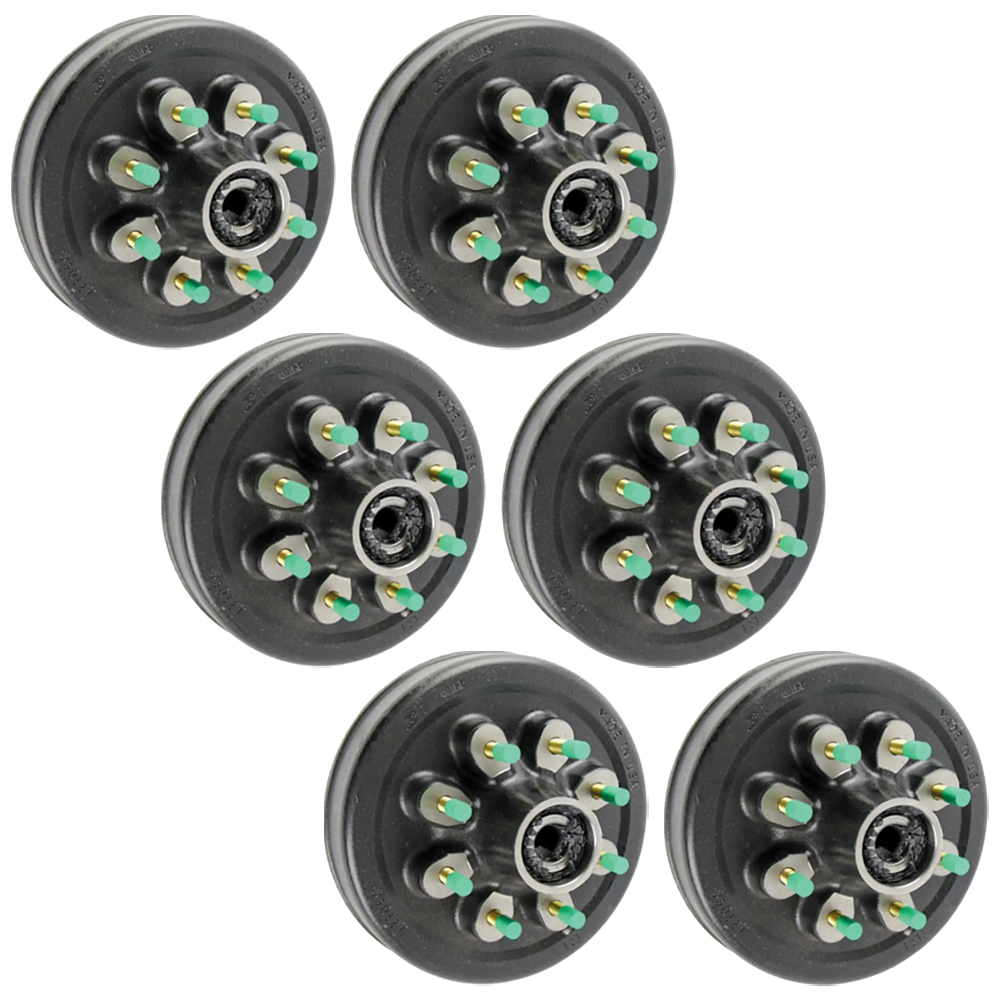

• QTY (6): Threaded Hybrid Trailer Brake Drum Hub — 12″, 8‑on‑6.5″, 9/16″ Studs, Grease‑Lubed
  • 8,000 lb axle capacity per hub
  • 12″ bare cast‑iron drum hub
  • 8‑on‑6.5″ bolt pattern with 9/16″ threaded studs
  • Fits 16″–17‑1/2″ wheels
  • Races and wheel studs come pre‑installed
  • Accepts Valcrum threaded dust caps; ready for electric or hydraulic brakes

Always match part numbers and specs to your original equipment, torque lug nuts to manufacturer values, and inspect brakes and bearings regularly for peak performance and safety.
