Lippert Triple?Axle 12" Self?Adjusting Electric Brake Assemblies & 8?on?6.5 12" Drum Hub Kit � 7K Rated, 5/8"?Studs � Compatible with Dexter, Alko, Rockwell

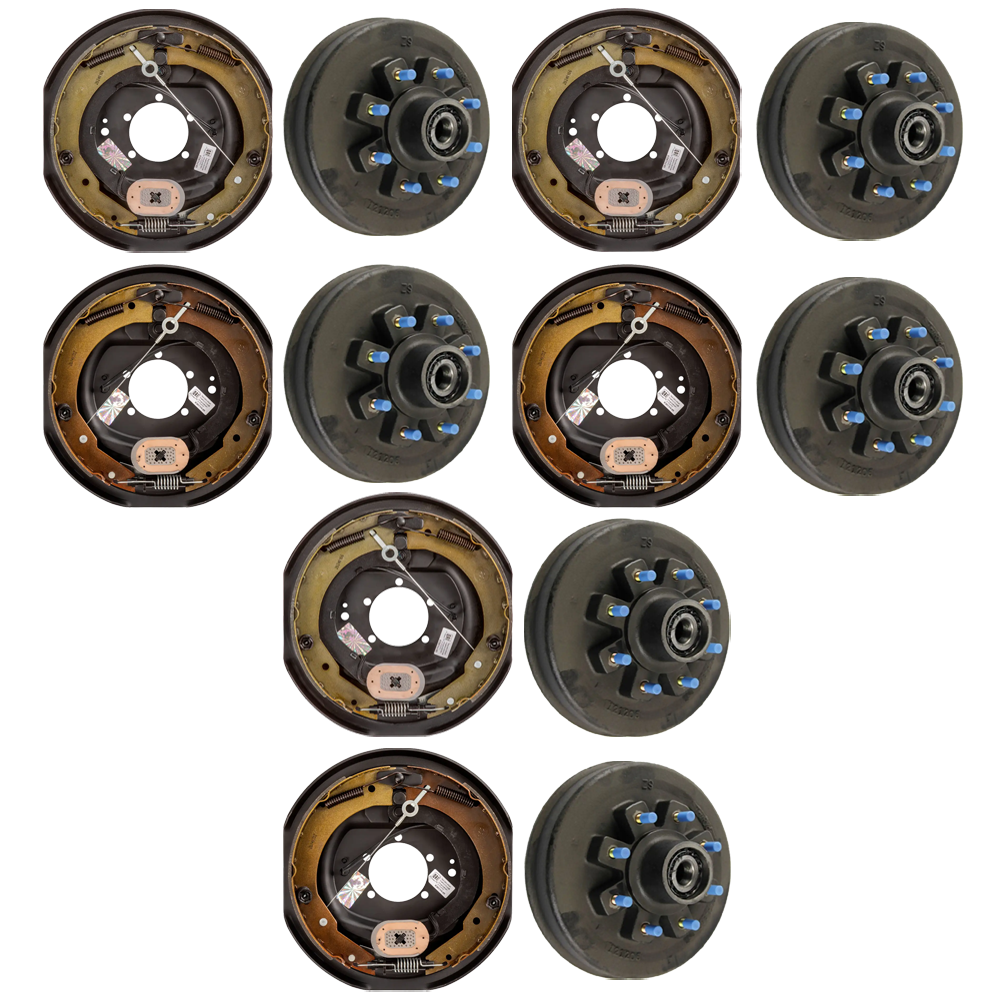

Lippert Triple‑Axle 12" Self‑Adjusting Brake Assemblies & 8‑on‑6.5 Drum Hubs Kit

Upgrade or replace your heavy‑duty trailer brakes with this complete Lippert bundle. Six forward self‑adjusting 12" electric brake assemblies (rated up to 7,000 lbs) pair with six integrated 12" hub‑and‑drum units with 5/8" studs. While the hubs are rated for 8,000 lbs, the overall capacity of the kit is limited to 7,000 lbs by the brake assemblies—delivering balanced, reliable stopping power for triple‑axle trailers.

Bundle Contents:

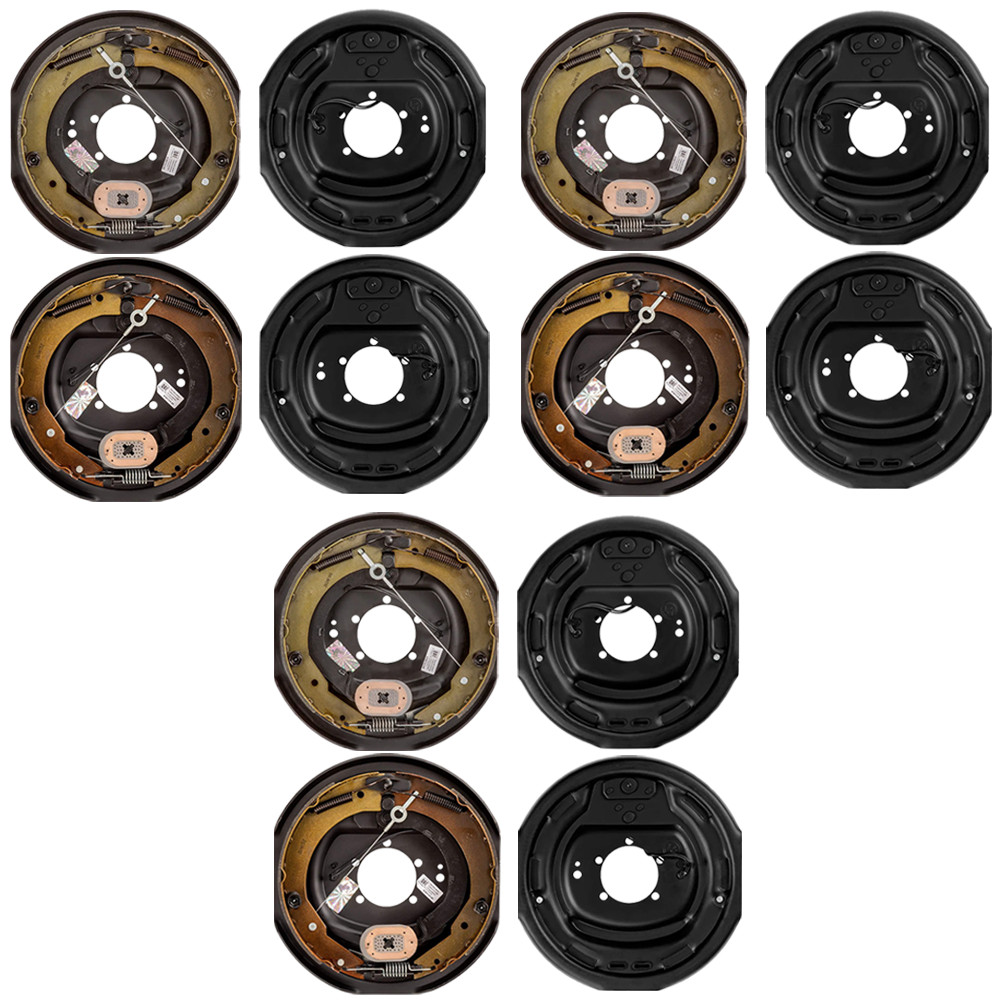

• QTY (3): Lippert 12" × 2" Forward Self‑Adjusting Brake Assembly – Left Hand
  • Road‑side electric drum brake
  • Self‑adjusts at every forward stop
  • Fits 4K‑7K axles; 5‑bolt brake flange
  • 12" × 2" shoes improve stopping distance
  • Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
  • Direct OEM replacement; 1‑year warranty
• QTY (3): Lippert 12" × 2" Forward Self‑Adjusting Brake Assembly – Right Hand
  • Curb‑side electric drum brake
  • Maintenance‑free self‑adjusting design
  • Fits 4K‑7K axles; 5‑bolt brake flange
  • Balanced 12" × 2" braking surface
  • Dexter Compatible Part Number: K23‑465‑00 | 023‑465‑00
  • Genuine Lippert part; 1‑year warranty

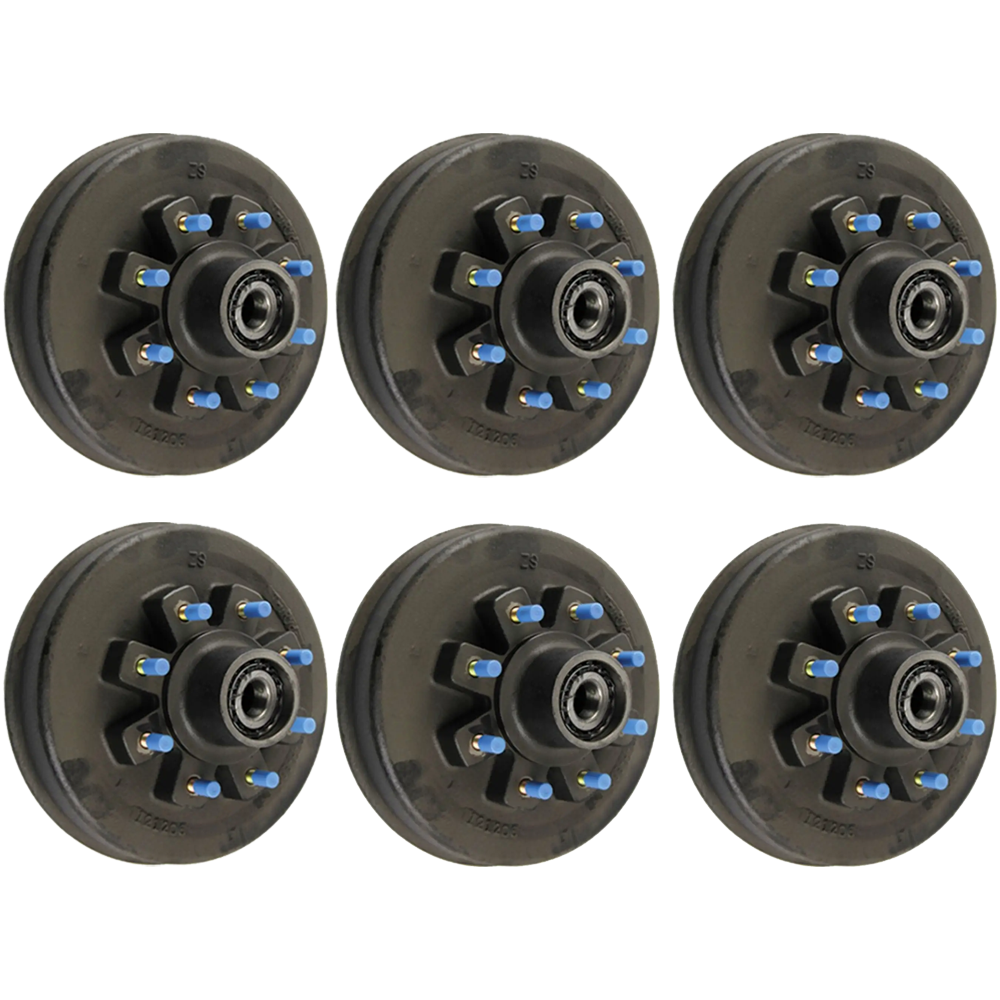

• QTY (6): Lippert 8,000‑lb Threaded Hybrid Hub & 12" Drum – 8‑on‑6.5, 5/8" Studs
  • Integrated cast‑iron hub & 12" drum
  • 8‑on‑6.5" pattern with pre‑installed 5/8" studs
  • Races and wheel studs come pre‑installed
  • Hub rated 8K; bundle capacity limited to 7K
  • Fits 17.5" wheels
  • Accepts Valcrum threaded dust caps

Confirm axle, brake‑flange and wheel specifications before installation, and inspect your braking system regularly for peak performance and safety.
