Lippert Triple?Axle 12" Self?Adjusting Electric Brake Assemblies?&?Fully Assembled 12" Brake Drum Hubs Kit � 8?on?6.5, 9/16" Studs, Races Installed � Dexter / Al?Ko / Rockwell Compatible

Lippert Triple‑Axle Self‑Adjusting Brake & Fully Assembled Drum Hub Bundle – 8‑on‑6.5, 9/16" Studs

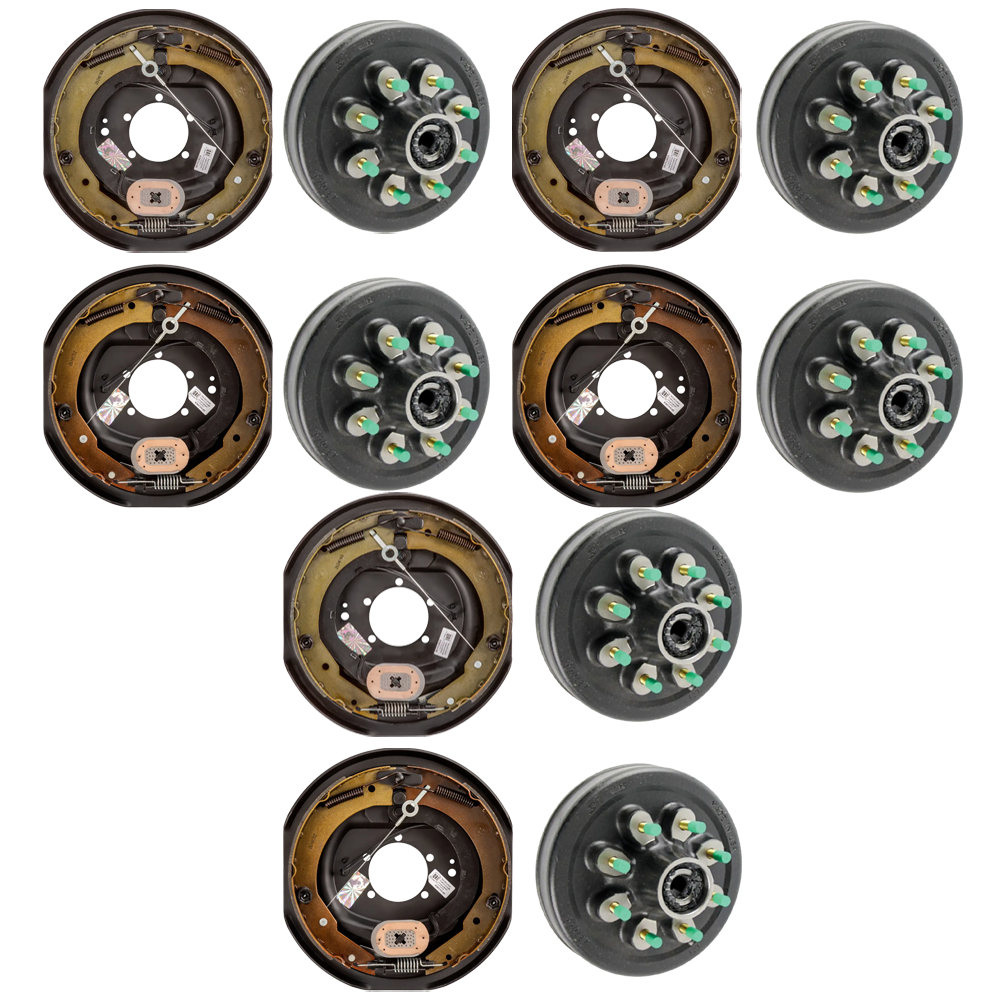

Outfit all three axles of your trailer with matched, OEM‑quality braking power in one convenient package. This Lippert bundle pairs six fully assembled, race‑installed 12" hub‑drums with left‑ and right‑hand 12" × 2" forward self‑adjusting electric brake assemblies. Enjoy shorter stopping distances, automatic wear compensation, and components engineered for dependable service on 7,000‑lb axles.

Bundle Contents:

• QTY (3): Lippert 12" × 2" Self‑Adjusting Electric Brake Assembly – Left‑Hand, 5‑Bolt, 4‑7K
  • Forward self‑adjusting—no manual tweaks after break‑in
  • Fits 4,000–7,000 lb axles; road‑side (LH)
  • 12" × 2" shoe size; five‑bolt brake flange
  • Dexter compatible part number: K23‑464‑00 / 023‑464‑00
  • Improves stopping distance by up to 50 %
  • DIY‑friendly install; 1‑year limited warranty
• QTY (3): Lippert 12" × 2" Self‑Adjusting Electric Brake Assembly – Right‑Hand, 5‑Bolt, 4‑7K
  • Mirror‑image curb‑side (RH) unit
  • Forward self‑adjusting design
  • 12" × 2" shoes; five‑bolt brake flange
  • Dexter compatible part number: K23‑465‑00 / 023‑465‑00
  • Reduces premature magnet & lining wear
  • 1‑year limited warranty

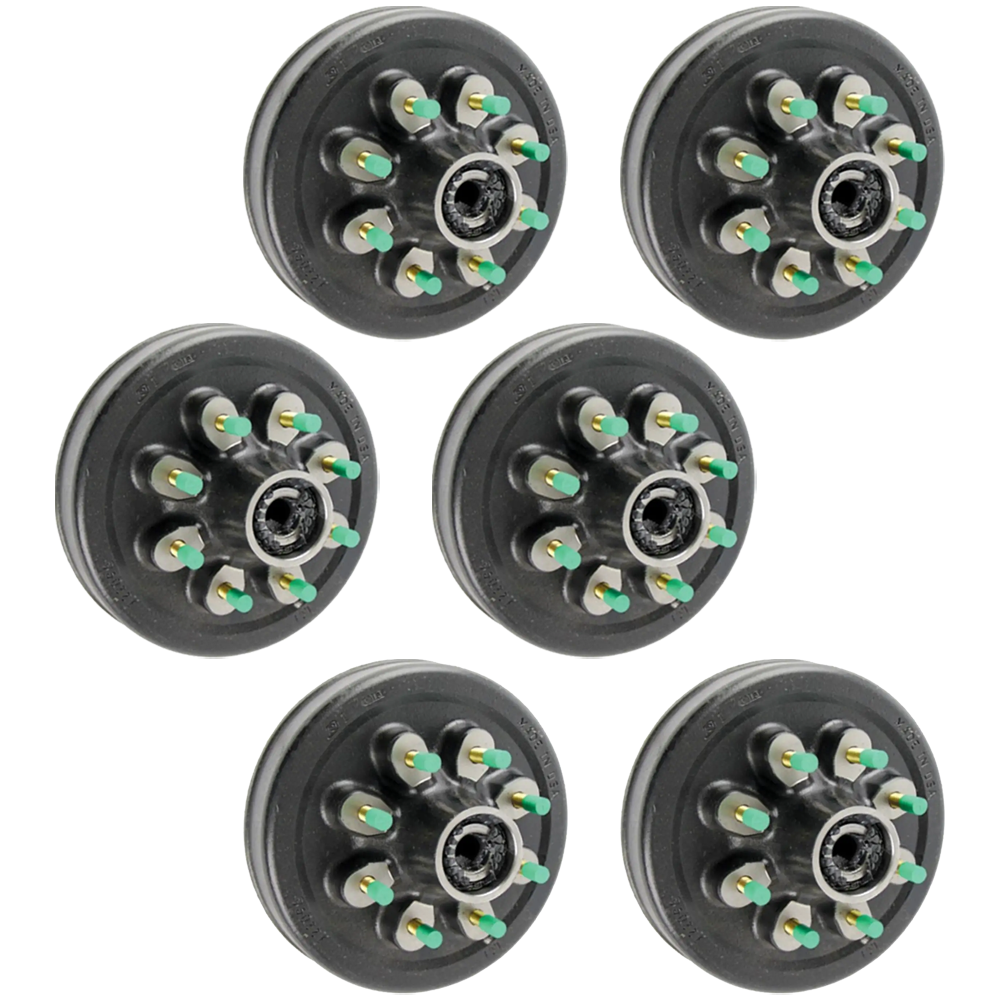

• QTY (6): Lippert 12" Brake Drum Hub Assembly – 8‑on‑6.5, 9/16" Studs, 8,000 lb
  • Fully assembled hub with bearing races installed
  • Solid cast‑iron drum rated to 8,000 lb axles
  • 8‑lug on 6.5" bolt pattern; 9/16" studs
  • Compatible wheels: 16", 16.5", 17", 17.5"
  • 1‑year limited warranty

Always verify your existing axle, hub, and brake specifications before installation, and perform routine inspections to ensure safe, reliable braking performance.
