Lippert?Triple?Axle 12? Self?Adjusting Electric Brake & Pre?Greased 6?on?5.5?Hub?Drum Kit (6K) � Complete 6?Wheel Set, Compatible w/?Dexter,?AL?KO,?Rockwell

$1,399.99

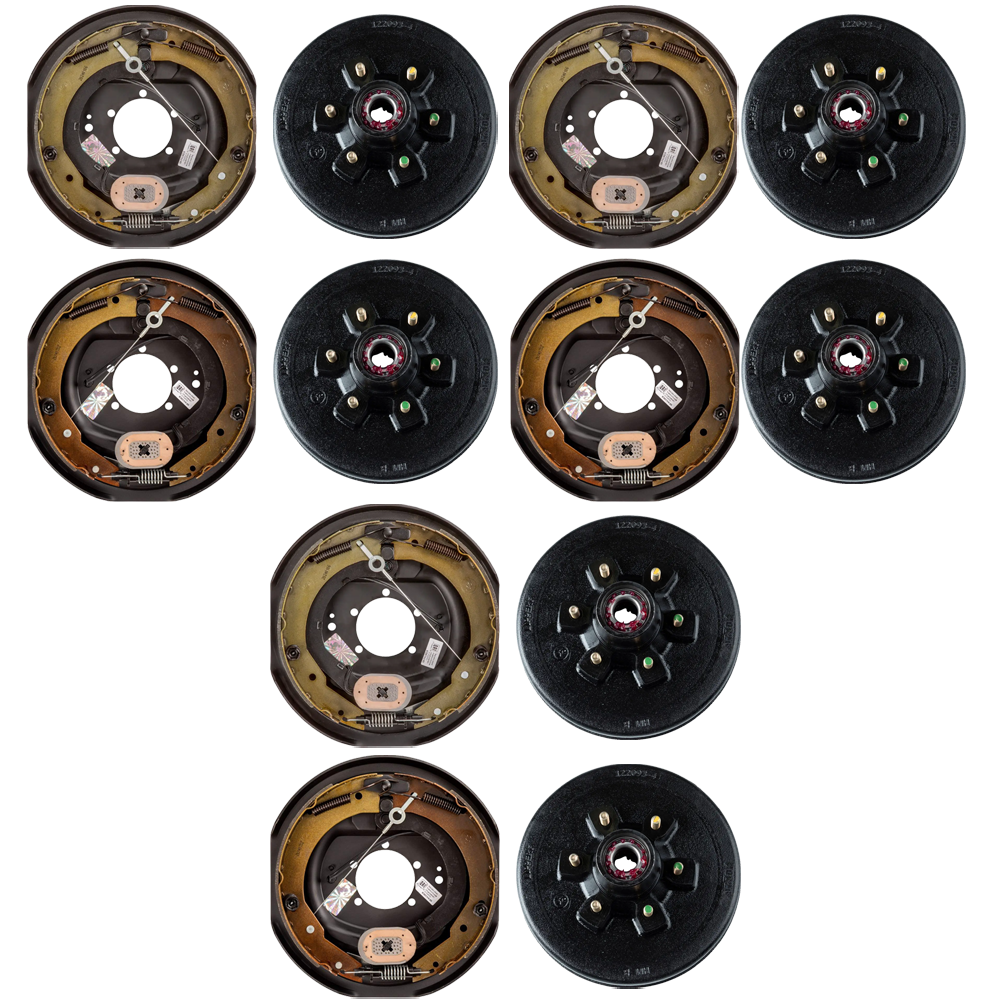

Lippert 12″ Electric Brake & Pre‑Greased Hub‑Drum Kit – Triple‑Axle 6‑Wheel Package

Refresh the stopping system on three 6,000‑lb trailer axles with this fully assembled Lippert bundle. You receive six pre‑greased, fully assembled hub‑drums plus six forward self‑adjusting 12″ × 2″ electric brake assemblies (three left‑hand, three right‑hand) – all engineered for superior performance and proven cross‑compatibility with Dexter, AL‑KO, Rockwell and other quality axles.

Bundle Contents:

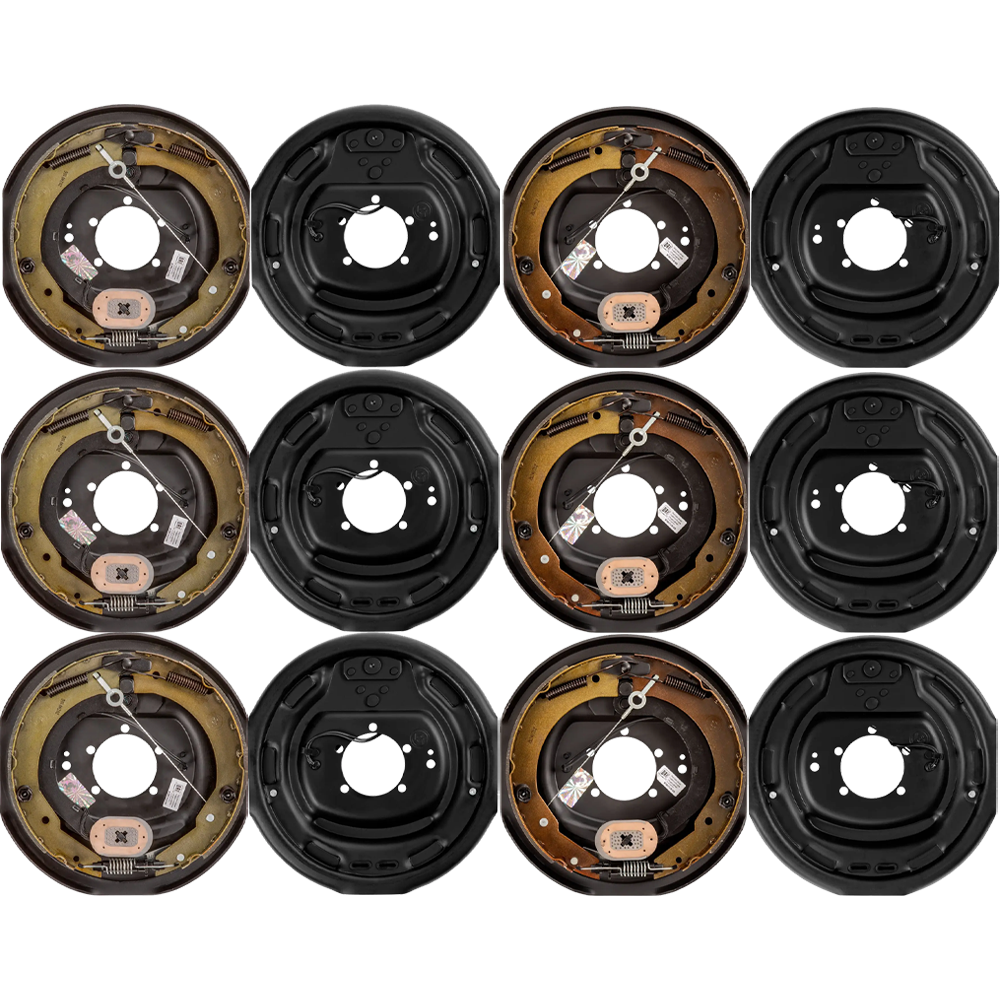

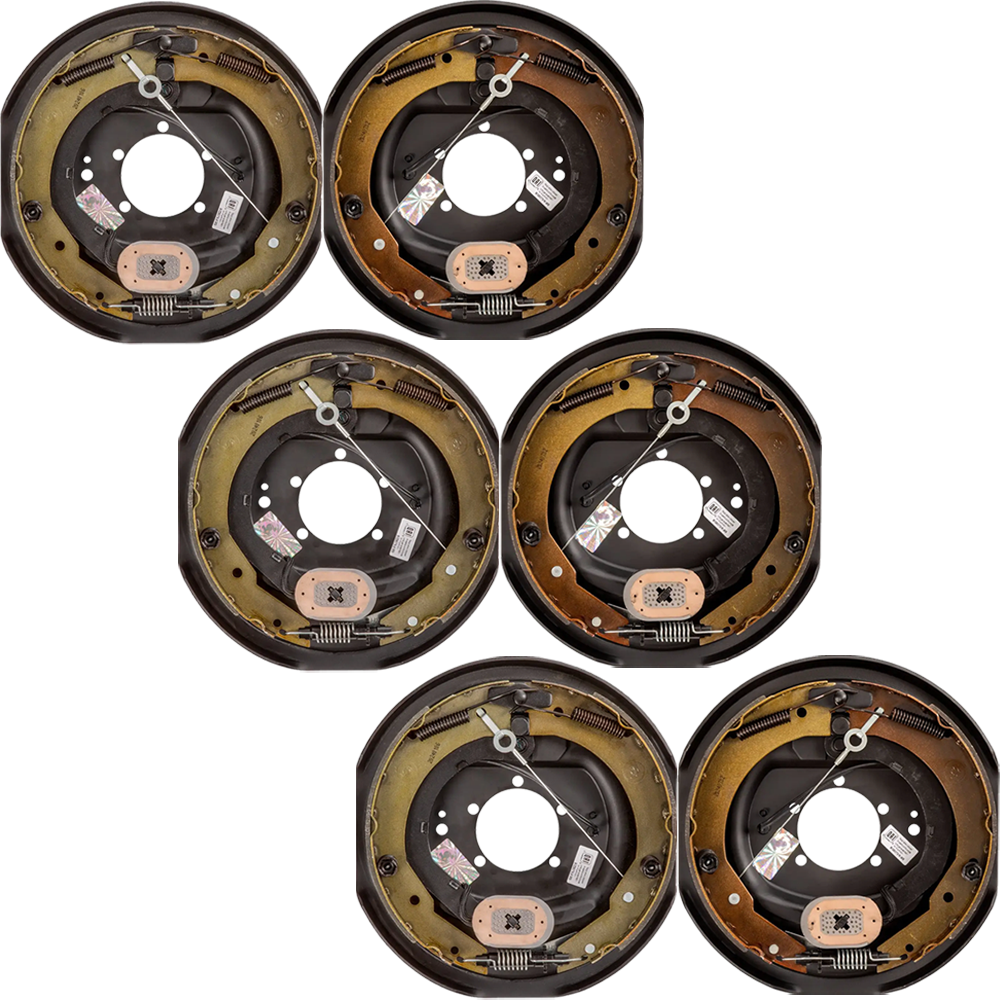

  • QTY (3): Lippert Forward Self‑Adjusting Brake Assembly – 12″ × 2″, 7,000 lbs. (Left)
    • Road‑side, self‑adjusting electric brake
    • Fits 15″–17.5″ wheels; 5‑bolt mount
    • Suits 5,200‑7,000 lb & 8K hybrid axles
    • Dexter compatible P/N: K23‑464‑00 | 023‑464‑00
    • Genuine Lippert part with 1‑year warranty
  • QTY (3): Lippert Forward Self‑Adjusting Brake Assembly – 12″ × 2″, 7,000 lbs. (Right)
    • Curb‑side, self‑adjusting electric brake
    • Fits 15″–17.5″ wheels; 5‑bolt mount
    • Suits 5,200‑7,000 lb & 8K hybrid axles
    • Dexter compatible P/N: K23‑465‑00 | 023‑465‑00
    • Genuine Lippert part with 1‑year warranty

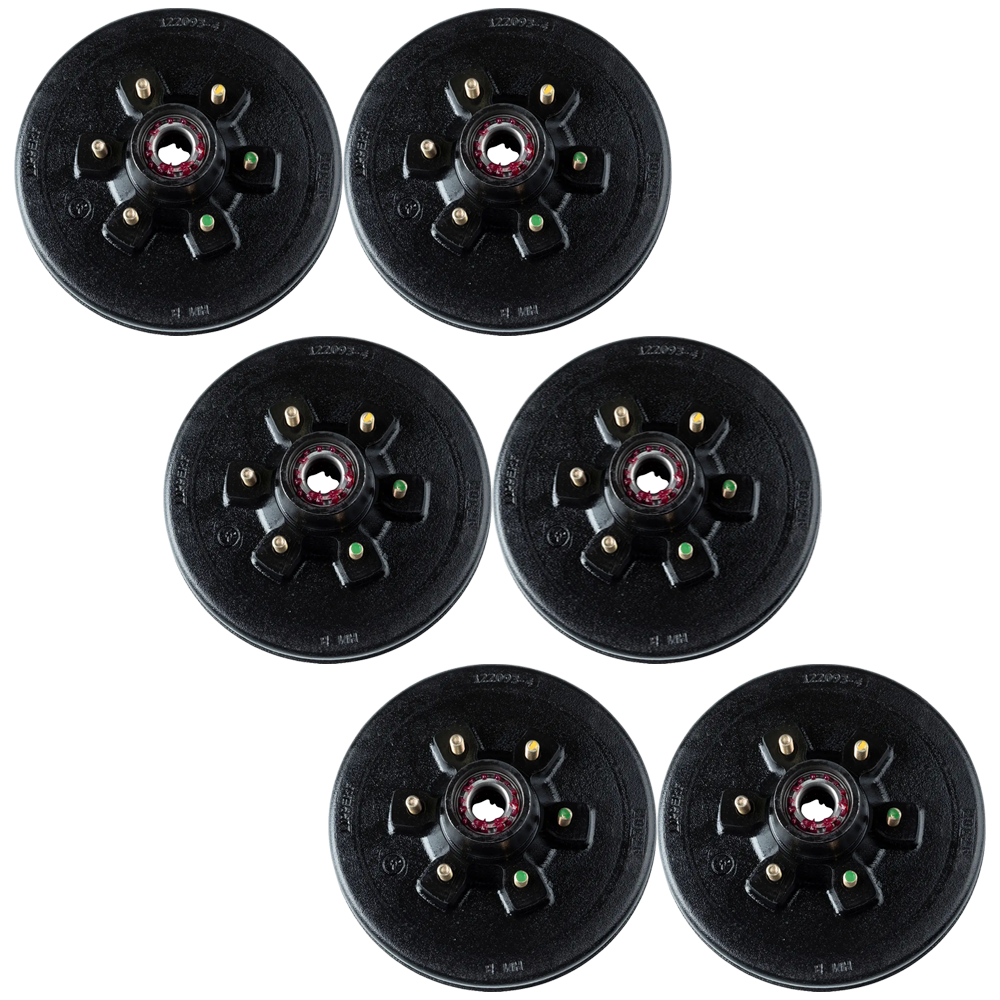

  • QTY (6): Lippert 12″ Pre‑Greased Hub‑Drum Assembly – 6 on 5.5″, 1/2″ Stud, 6K Axle
    • Cast‑iron hub with integrated brake drum #122463
    • 6 on 5.5″ bolt pattern, 1/2″ studs
    • Fully assembled with bearings, seal & premium grease installed
    • For 14.5″–16.5″ wheels; 6,000 lb axle rating
    • Limited 1‑year warranty

Always verify dimensions and load ratings against your original equipment, and perform routine inspections and maintenance for safe towing.

Specifications:
Kit Type Complete Trailer Brake & Hub Kit
Axle Rating 6,000 lbs. (per axle)
Brake Drum Dimensions 12″ × 2″ (inside dia. × shoe width)
Brake Mounting Pattern 5‑bolt backing plate
Hub Type Fully Assembled, Pre‑Greased Hub with Integrated Drum
Hub Bolt Pattern 6 on 5‑1/2″
Stud Size 1/2″
Type of Adjustment Forward Self‑Adjusting Electric
Brake Location 3 Left‑Hand (Road), 3 Right‑Hand (Curb)
Wheel Size Compatibility Brakes: 15″–17.5″  |  Hubs: 14.5″–16.5″
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
