Lippert Triple-Axle 3,500-lb Electric Brake & 10? Drum-Hub Kit � Park-Ready 5-on-4.5 (Dexter / Alko / Rockwell Compatible)

Lippert Triple-Axle 3,500-lb Electric Brake & 10" Drum-Hub Kit

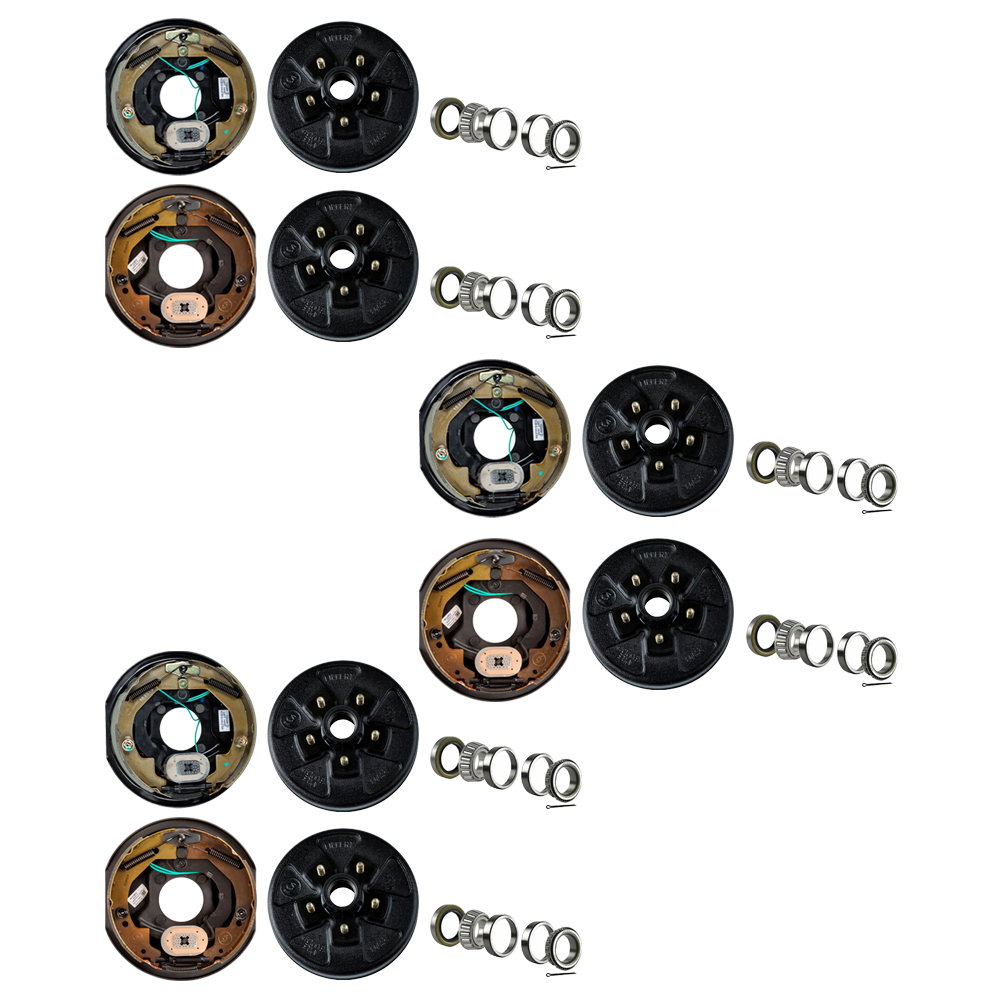

This park-ready bundle outfits three 3,500-lb axles with matched left- and right-hand electric brake assemblies and six heavy-duty 10" drum-hubs. All components are Lippert originals sized for the popular 5-on-4.5" pattern—ideal for RV, cargo, boat and utility trailers that demand reliable, DIY-friendly stopping power.

Bundle Contents:

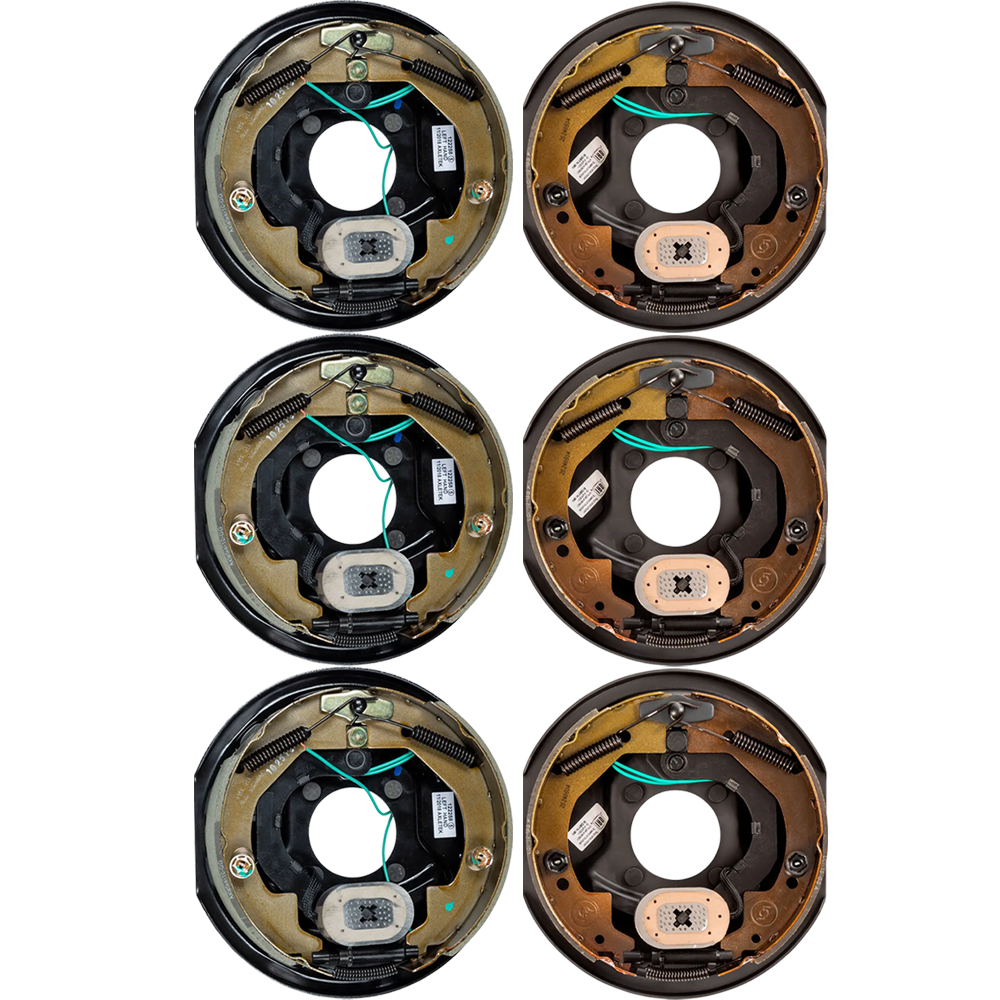

• QTY (3): Lippert 10" × 2.25" Electric Brake Assembly – Left-Hand
  • Standard electric drum brake with integrated park brake
  • Manual-adjust; mounts on driver / road-side (4-bolt flange)
  • Rated for 3,500-lb axles; fits 13-15" wheels
  • Dexter compatible P/N: K23-026-00 | 023-026-00
  • New brakes require a short break-in period
• QTY (3): Lippert 10" × 2.25" Electric Brake Assembly – Right-Hand
  • Mirror-image assembly for curb / passenger side
  • Manual-adjust; 4-bolt mounting pattern
  • 3,500-lb axle rating; fits 13-15" wheels
  • Dexter compatible P/N: K23-027-00 | 023-027-00

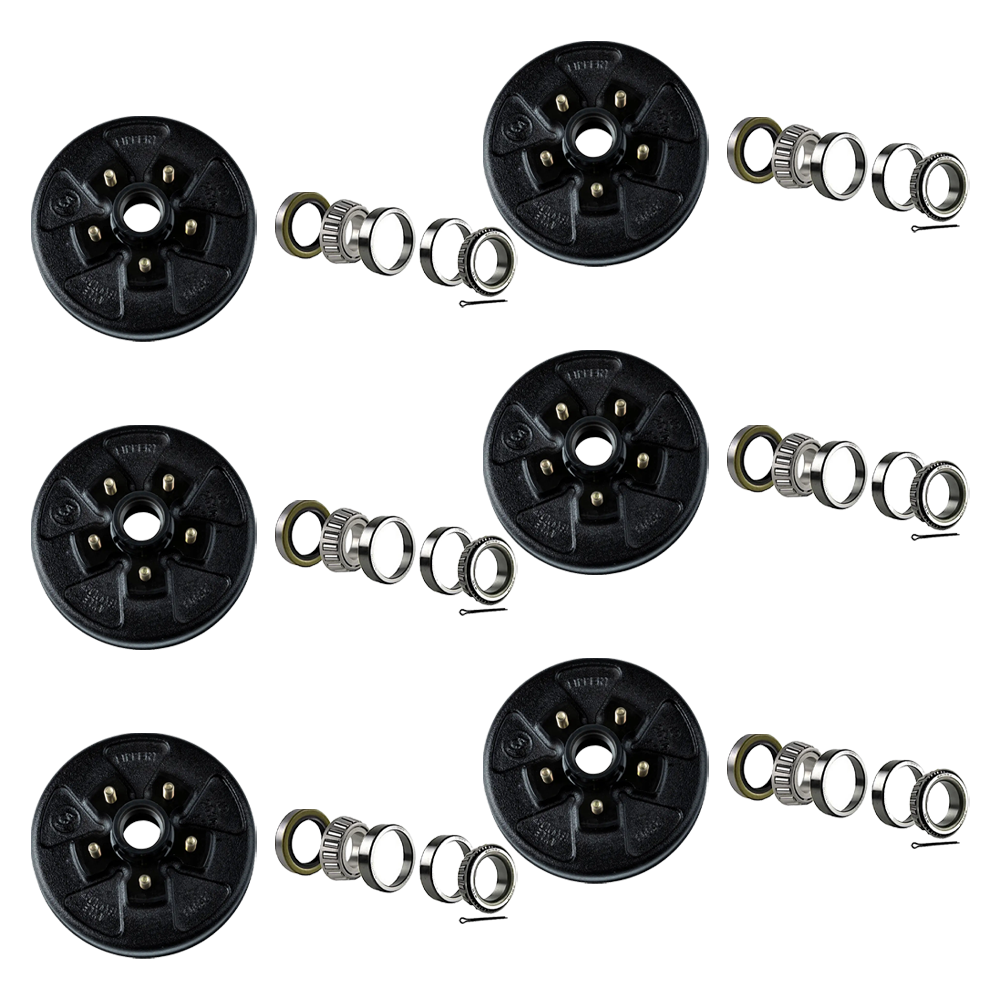

• QTY (6): Lippert 10" Brake Drum-Hub – 5 on 4.5", 1/2" Stud
  • Cast-iron drum hub for 3,500-lb axles, Lippert #126003
  • 5-on-4.5" bolt pattern with 1/2" studs; fits 13-15" wheels
  • Dexter compatible P/N: K08-247-94 | 008-247-94
  • Includes one individually bagged bearing kit per hub:
    • Inner bearing cone (L68149) & cup (L68111)
    • Outer bearing cone (L44649) & cup (L44610)
    • Double-lip grease seal (10-19)
    • Cotter pin
  • 1-year limited warranty for peace of mind

Verify axle rating, bolt pattern and brake-flange style before installation, and inspect your brakes regularly to maintain safe, dependable performance.
