Lippert Triple-Axle 3,500-lb Electric Brake & Pre-Greased 10? Drum-Hub Kit � 6 Brakes (3 LH + 3 RH) & 6 5-on-4.5? Drum Hubs � Dexter/AL-KO Compatible

Lippert Triple-Axle 3,500-lb Electric Brake & Pre-Greased 10″ Drum-Hub Kit

Convert or service your triple-axle trailer in one purchase. This Lippert bundle equips all three 3,500-lb axles with six matched electric brake assemblies (left and right) and six fully assembled, pre-greased 10″ drum-hubs. Everything bolts on quickly, saving hours of prep and delivering reliable, even braking and smoother towing right out of the box.

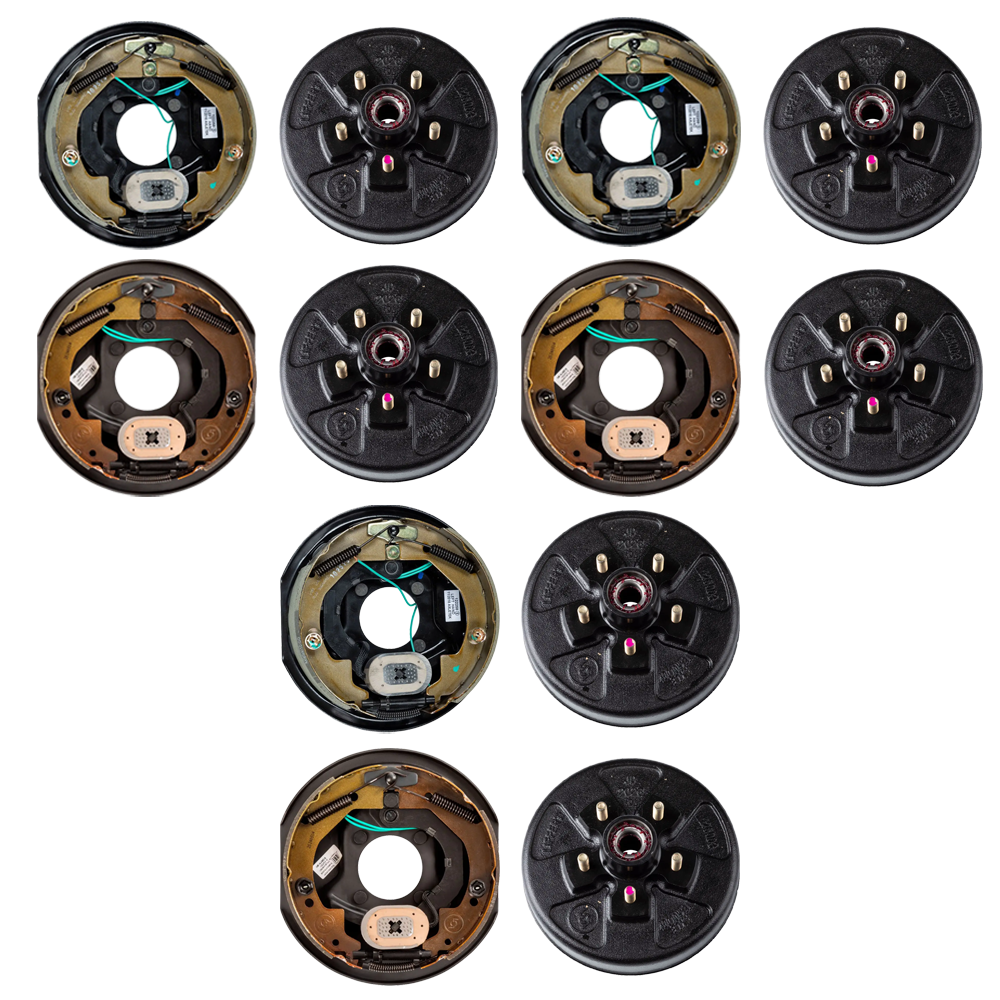

Bundle Contents:

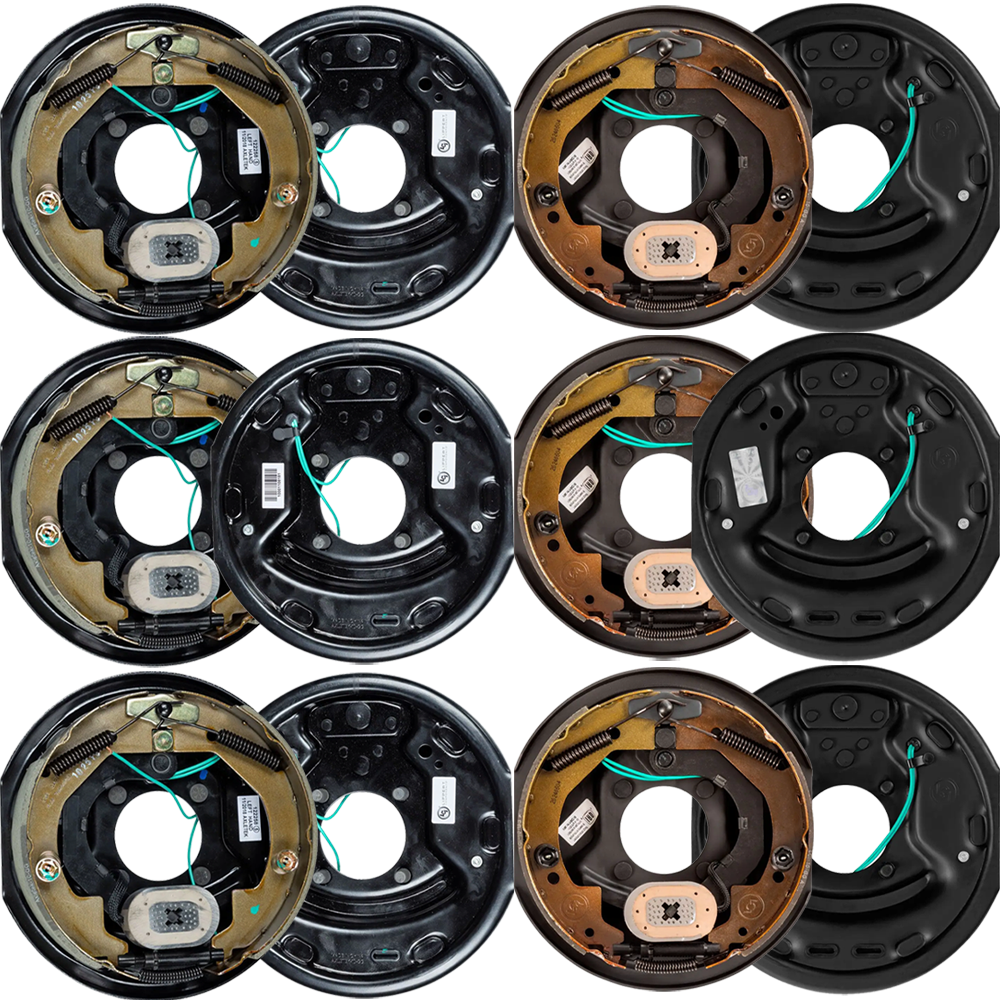

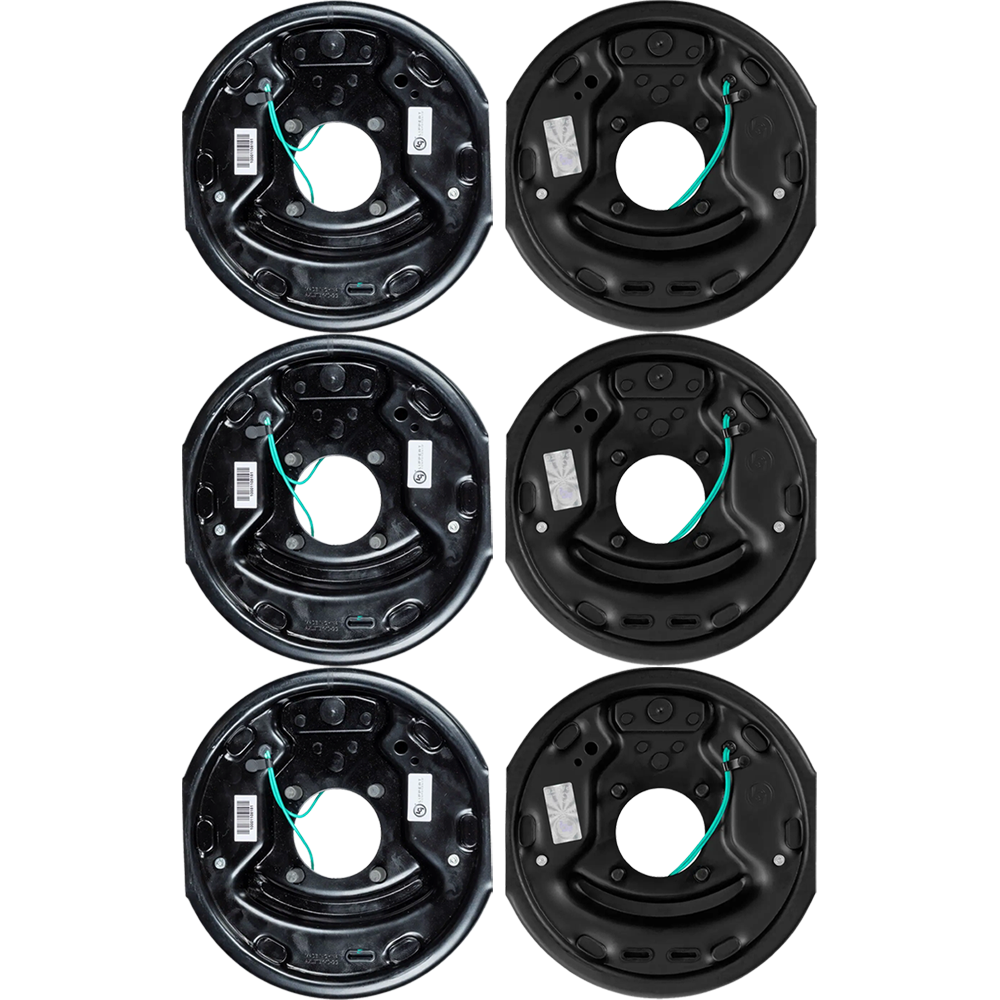

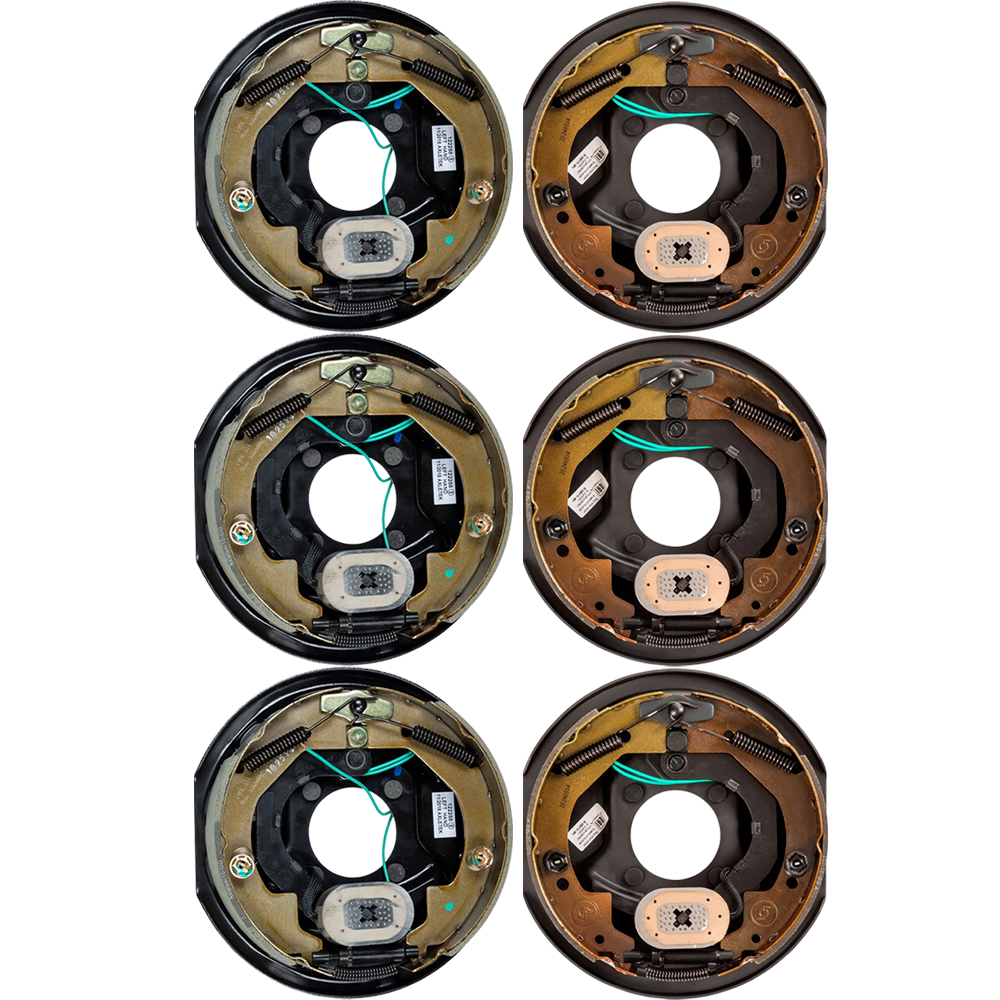

• QTY (3): Lippert 10″ × 2.25″ Electric Brake Assembly – Left Hand
  • Roadside (driver) side – fits 3,500-lb axles
  • Manual-adjust, park-ready electric drum design
  • Dexter compatible part #: K23-026-00 | 023-026-00
  • Four-bolt mounting pattern; works with 13″–15″ wheels
• QTY (3): Lippert 10″ × 2.25″ Electric Brake Assembly – Right Hand
  • Curb (passenger) side – fits 3,500-lb axles
  • Manual-adjust, park-ready electric drum design
  • Dexter compatible part #: K23-027-00 | 023-027-00
  • Four-bolt mounting pattern; works with 13″–15″ wheels

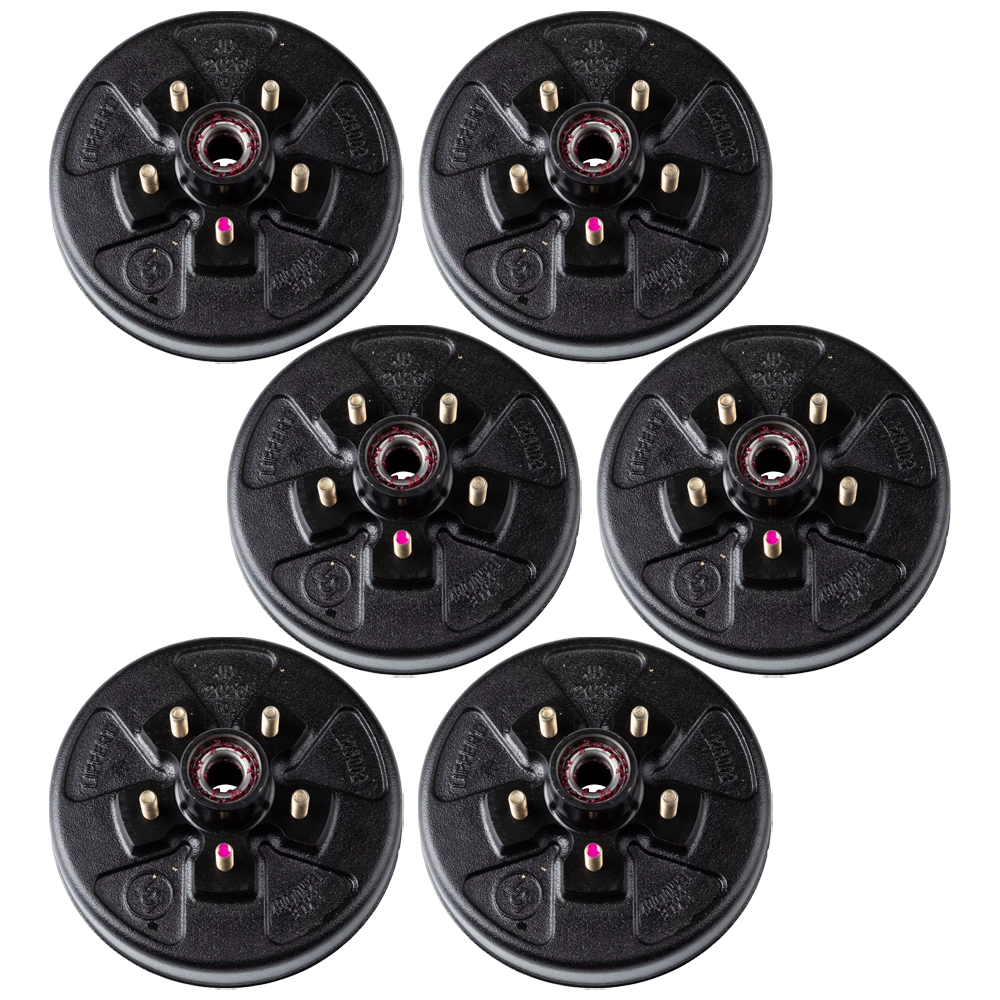

• QTY (6): Lippert 10″ Pre-Greased Drum-Hub Assembly – 5 on 4.5″, 1/2″ Studs
  • Fully assembled—bearings, seal & grease installed
  • Axle rating : 3,500 lbs; 10″ drum diameter
  • 5-on-4.5″ bolt circle; 1/2″ press-in wheel studs
  • Fits 13″–15″ wheels; Lippert #122460

Verify your original equipment specs before installation, and inspect brakes, bearings and seals periodically for safe performance.
