Lippert Triple-Axle 3,500-lb Self-Adjusting Electric Brake & 10? Drum-Hub Kit � 5-on-4.5? Bolt Pattern (Complete 3-Axle Package) � Dexter/Alko/Rockwell Compatible

Lippert Triple-Axle 3,500-lb Self-Adjusting Brake & Drum-Hub Kit

Give your triple-axle trailer shorter stopping distances and easier maintenance with this complete Lippert package. You get forward self-adjusting 10″ × 2.25″ electric brake assemblies plus heavy-duty cast-iron drum-hubs, all engineered for 3,500-lb axles. Service every wheel in one order and enjoy worry-free performance mile after mile.

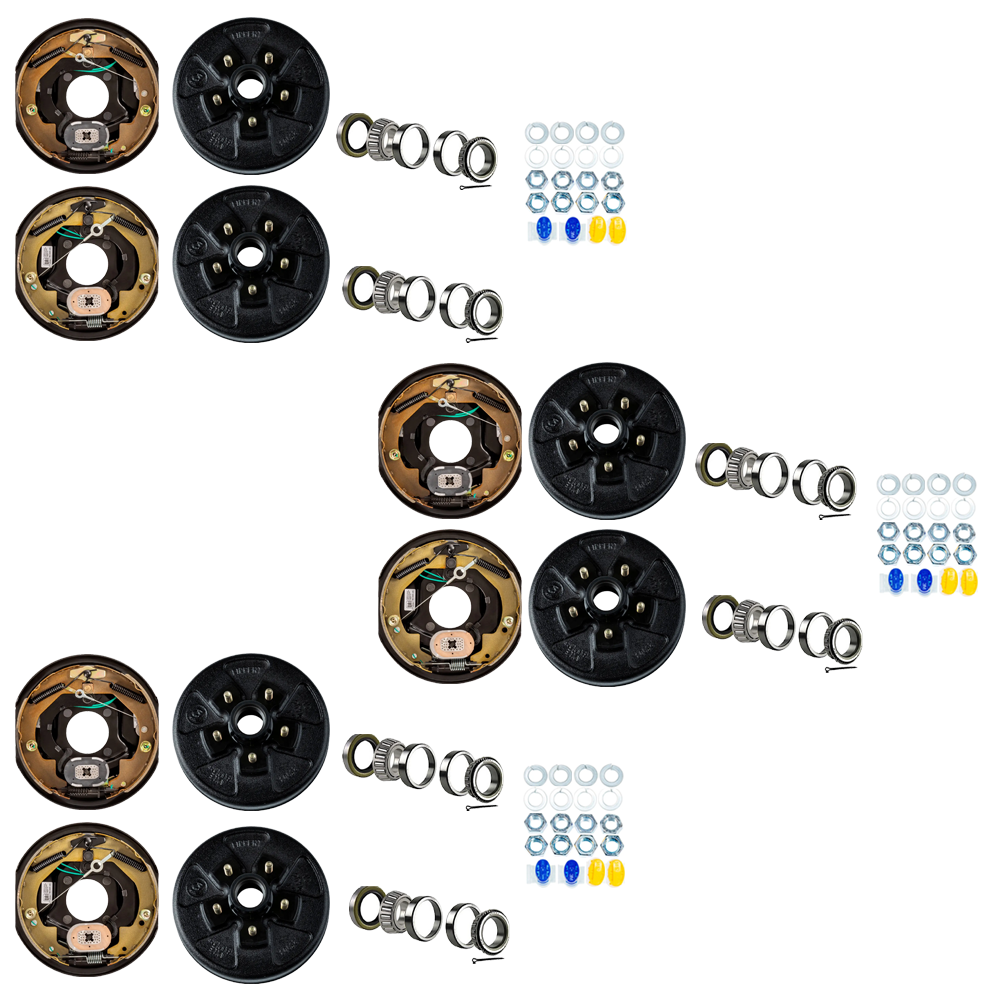

Bundle Contents:

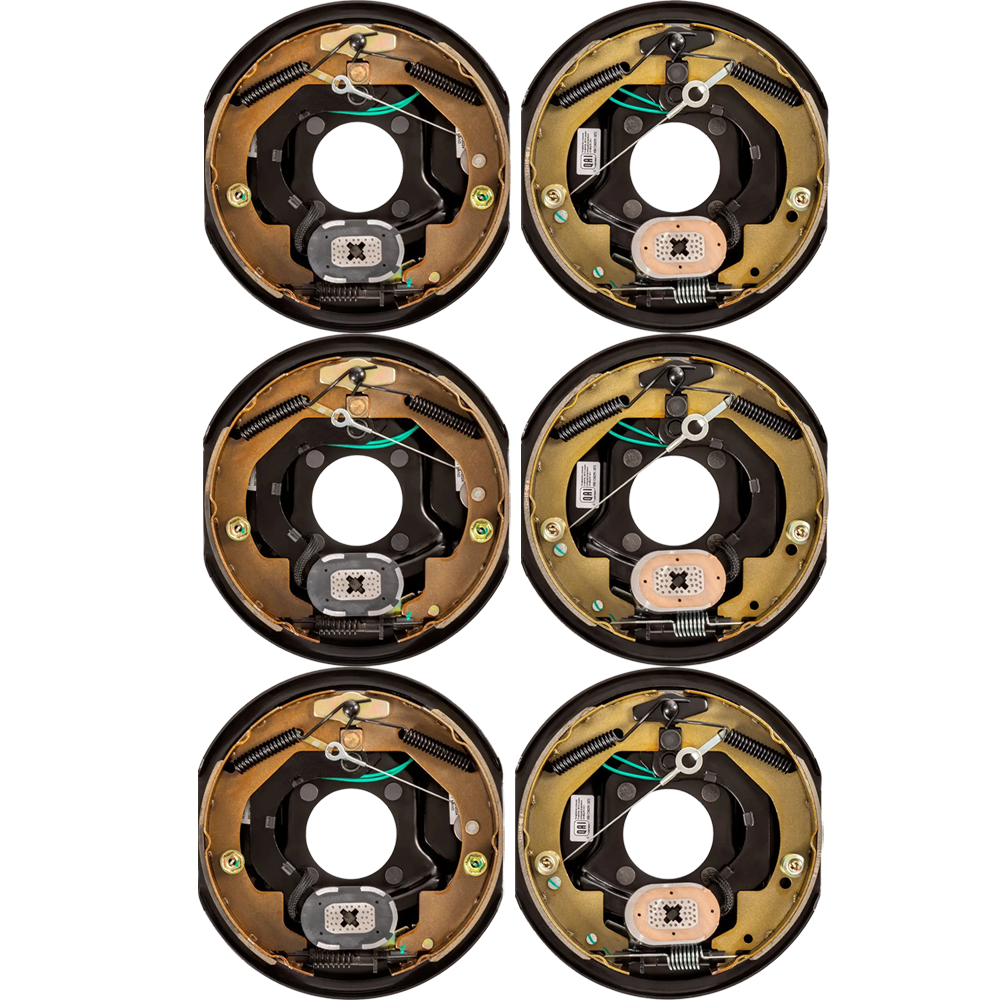

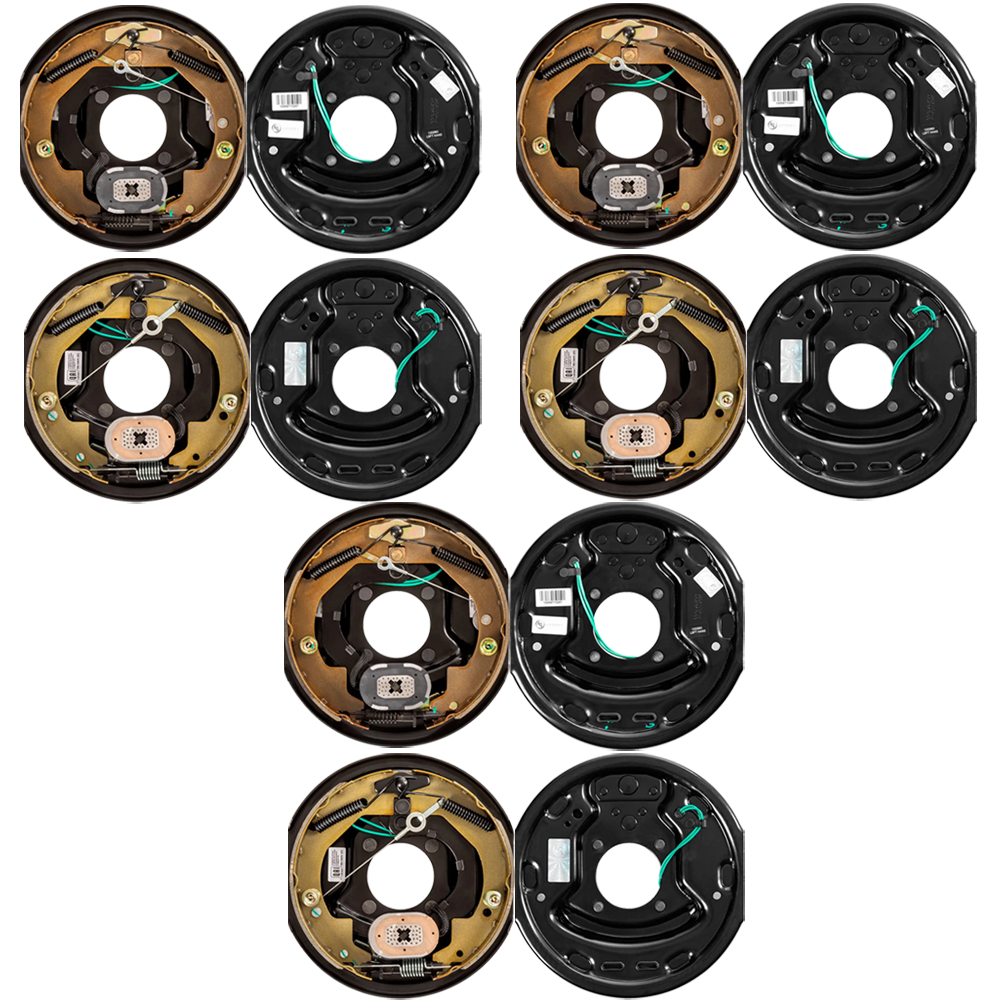

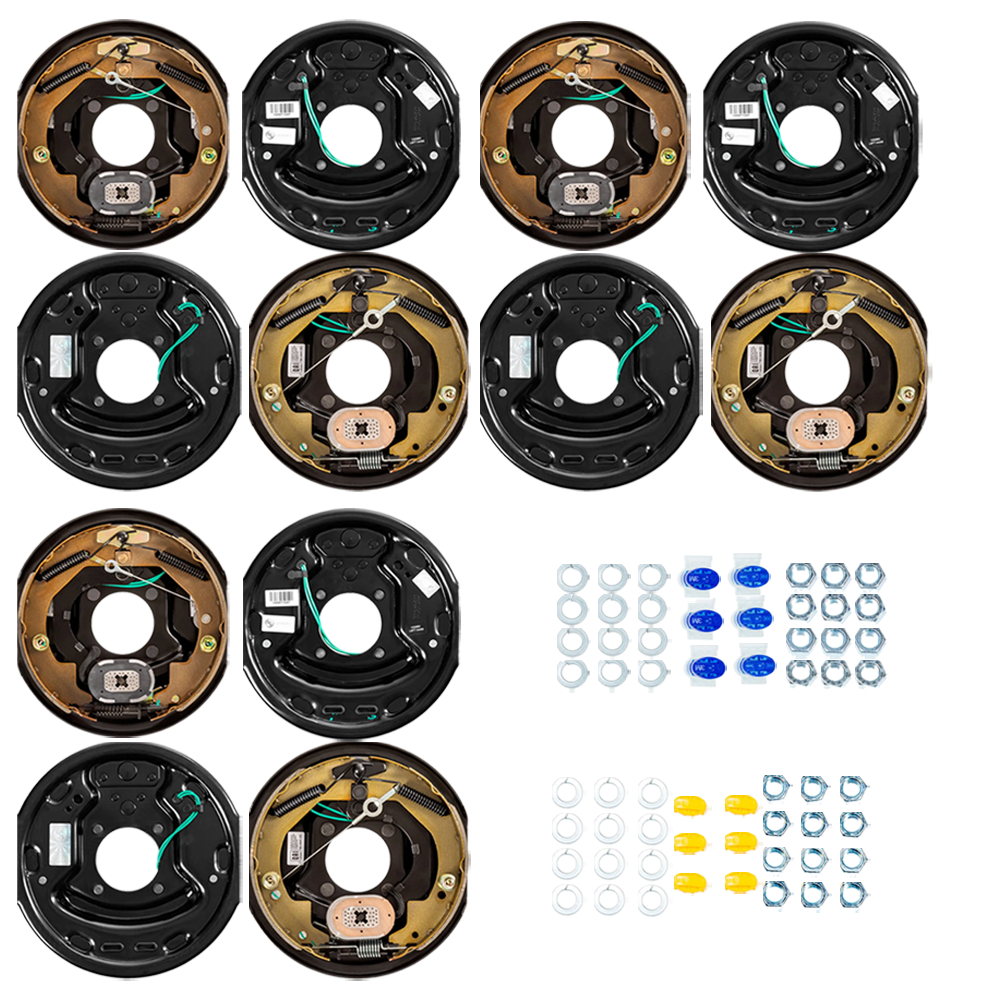

• QTY (3): Lippert Forward Self-Adjusting Brake Assembly — 10″ × 2.25″, 3,500 lbs (Left-Hand)
  • Road-side (LH) electric brake
  • Dexter compatible part #: K23-468-00 | 023-468-00
  • Self-adjusts with every forward stop
  • Fits 13″ – 15″ wheels
  • Four-bolt backing-plate mount
  • 3,500-lb axle rating
  • DIY-friendly installation
  • 1-year limited warranty
• QTY (3): Lippert Forward Self-Adjusting Brake Assembly — 10″ × 2.25″, 3,500 lbs (Right-Hand)
  • Curb-side (RH) electric brake
  • Dexter compatible part #: K23-469-00 | 023-469-00
  • Self-adjusts with every forward stop
  • Fits 13″ – 15″ wheels
  • Four-bolt backing-plate mount
  • 3,500-lb axle rating
  • DIY-friendly installation
  • 1-year limited warranty

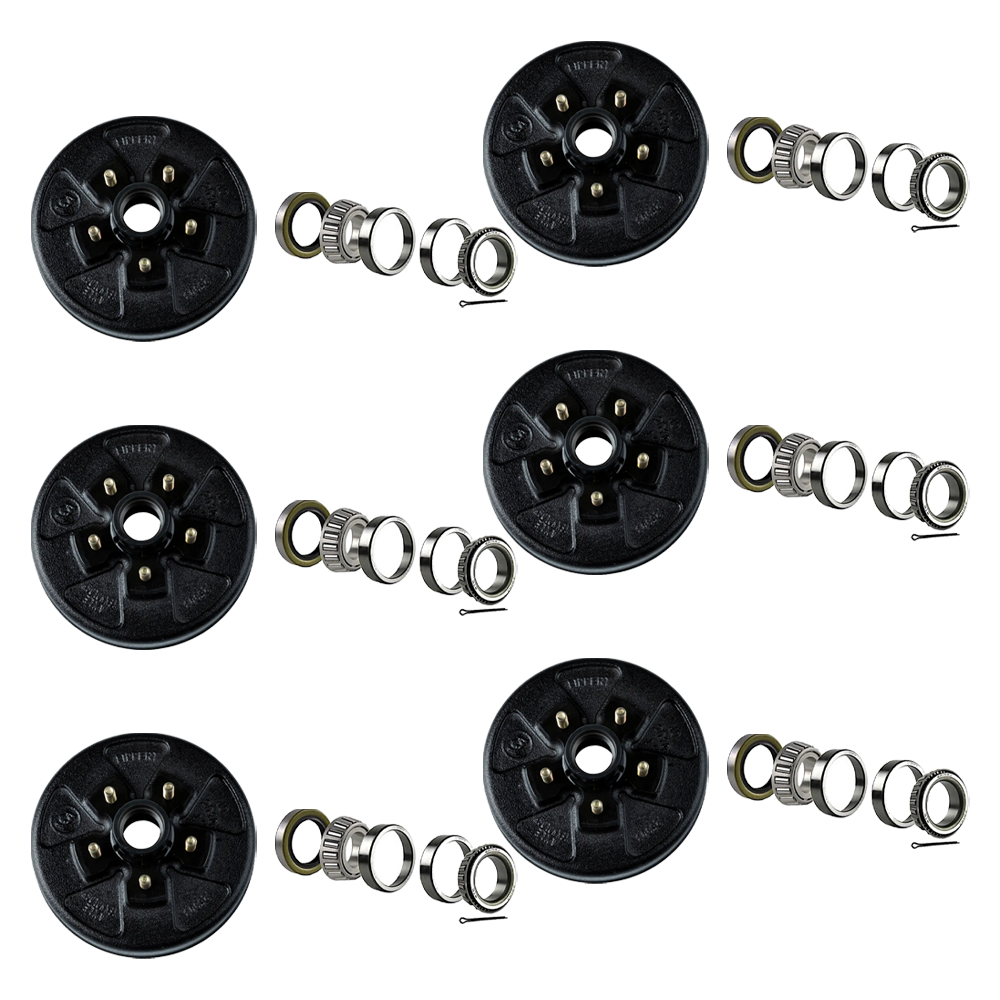

• QTY (6): Lippert 10″ Brake Drum-Hub Assembly — 5-on-4.5″, 1/2″ Stud, 3,500 lbs
  • Durable cast-iron hub with integrated drum
  • 5-on-4.5″ bolt pattern, 1/2″ studs
  • Rated for 3,500-lb axles
  • Compatible with 13″ – 15″ wheels
  • Brake Hub #126003, Bearing Kit #333948
  • Bearing kit (bagged separately, 1 per hub) includes:
    • Inner Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cone
    • Outer Bearing Cup
    • Cotter Pin
    • Double Lip Grease Seal
  • 1-year limited warranty

Inspect brake linings, magnets, bearings, and seals regularly and replace any worn components. Follow OEM torque specs for safe installation.
