Lippert Triple-Axle 3.5K Electric Brake & 10? Drum-Hub Kit � 3 LH + 3 RH, 6 Hubs � Fits Dexter, Alko & Rockwell

Lippert Triple-Axle 3,500-lb Electric Brake & 10″ Drum-Hub Kit

Refresh or complete your triple-axle trailer with Lippert’s all-in-one braking bundle. You get six genuine 10 × 2.25 in electric brake assemblies and six 10 in bare drum-hubs (hub-only) for reliable stopping power on three 3,500-lb axles with the common 5-on-4.5 bolt circle. Ideal for new builds or full overhauls, every component arrives ready for an easy bolt-on install so you can hit the road with confidence.

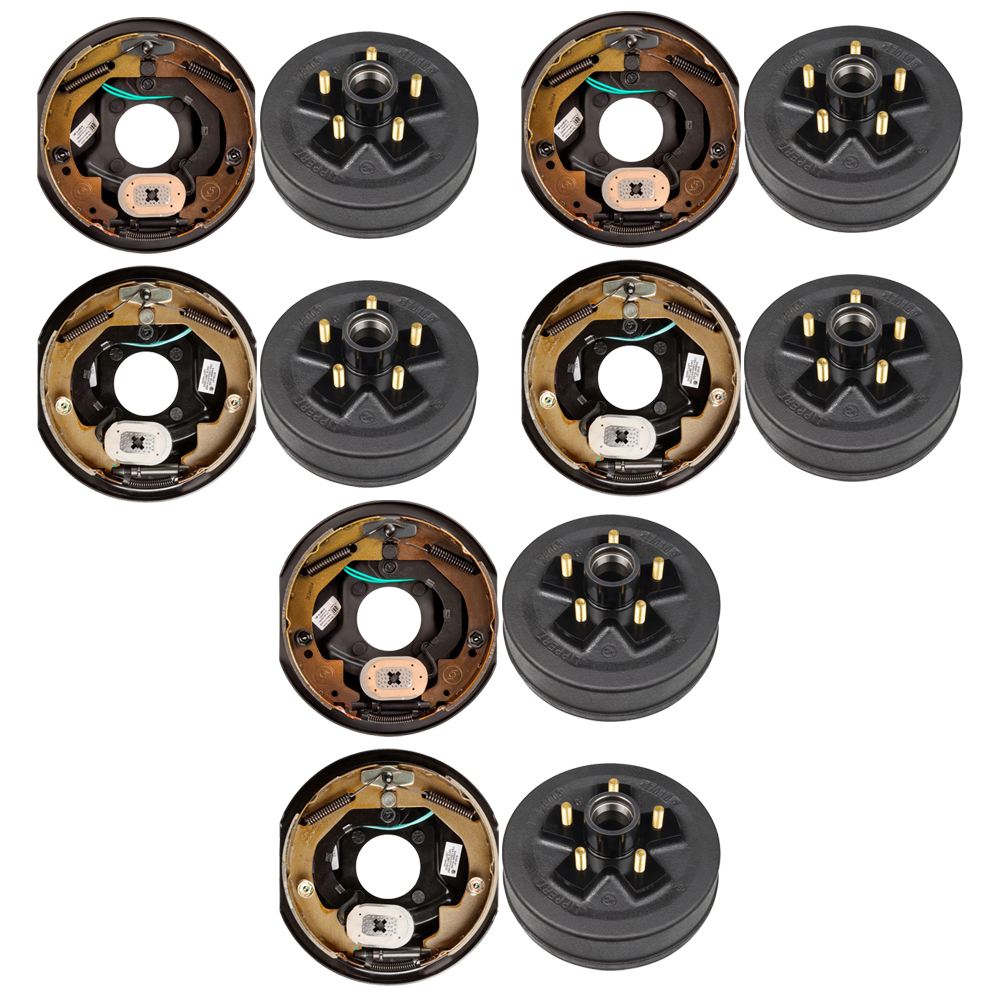

Bundle Contents:

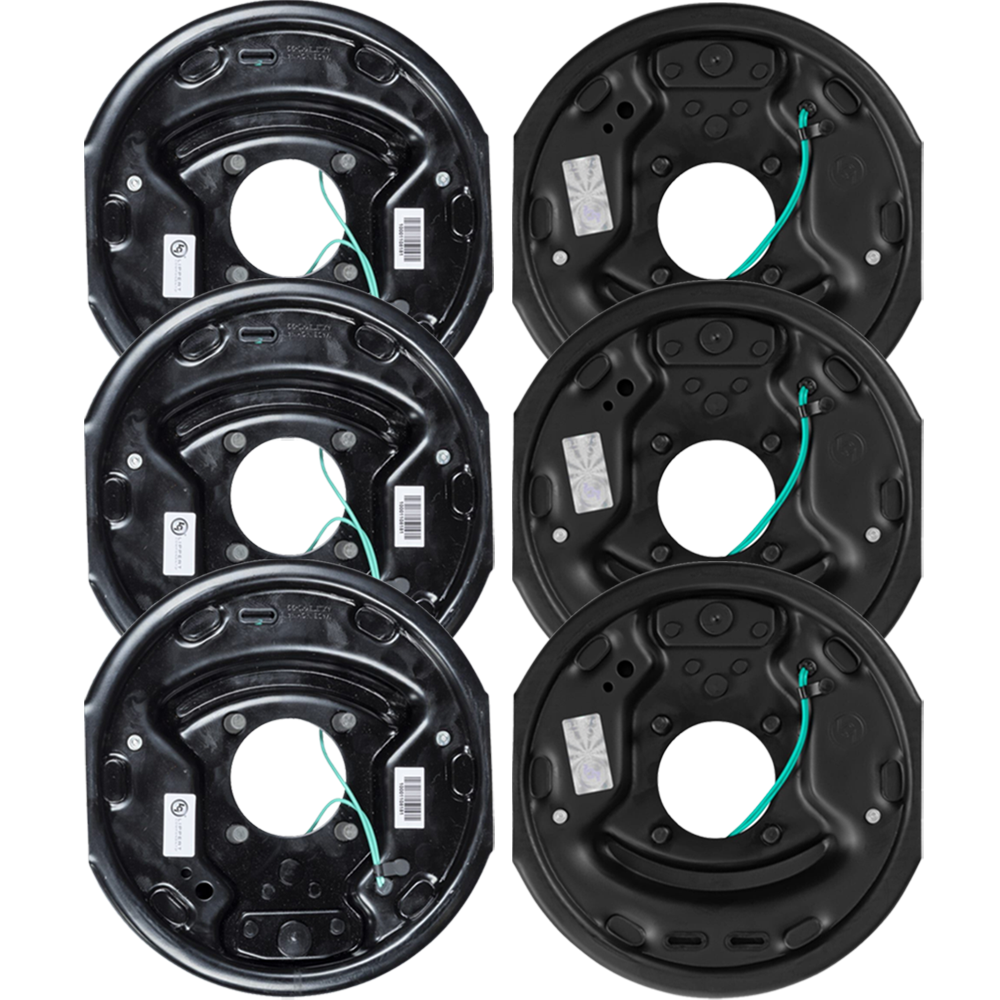

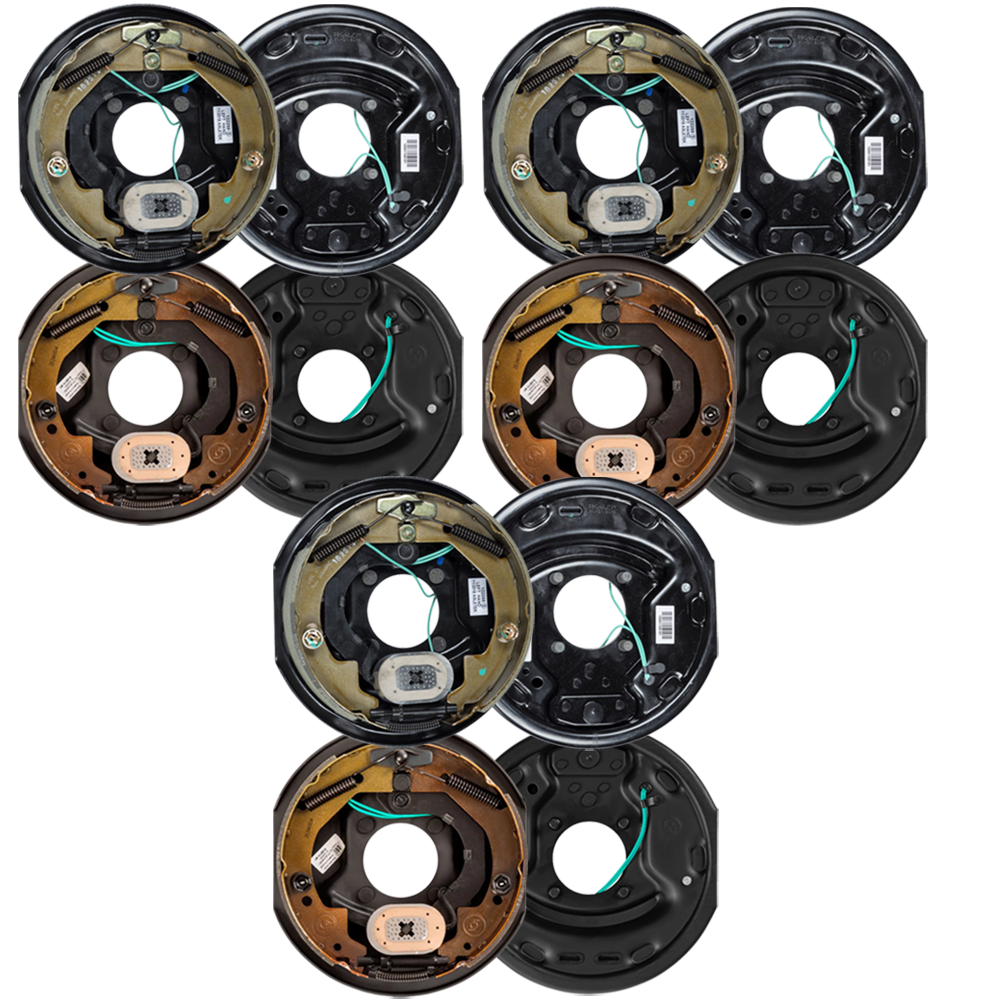

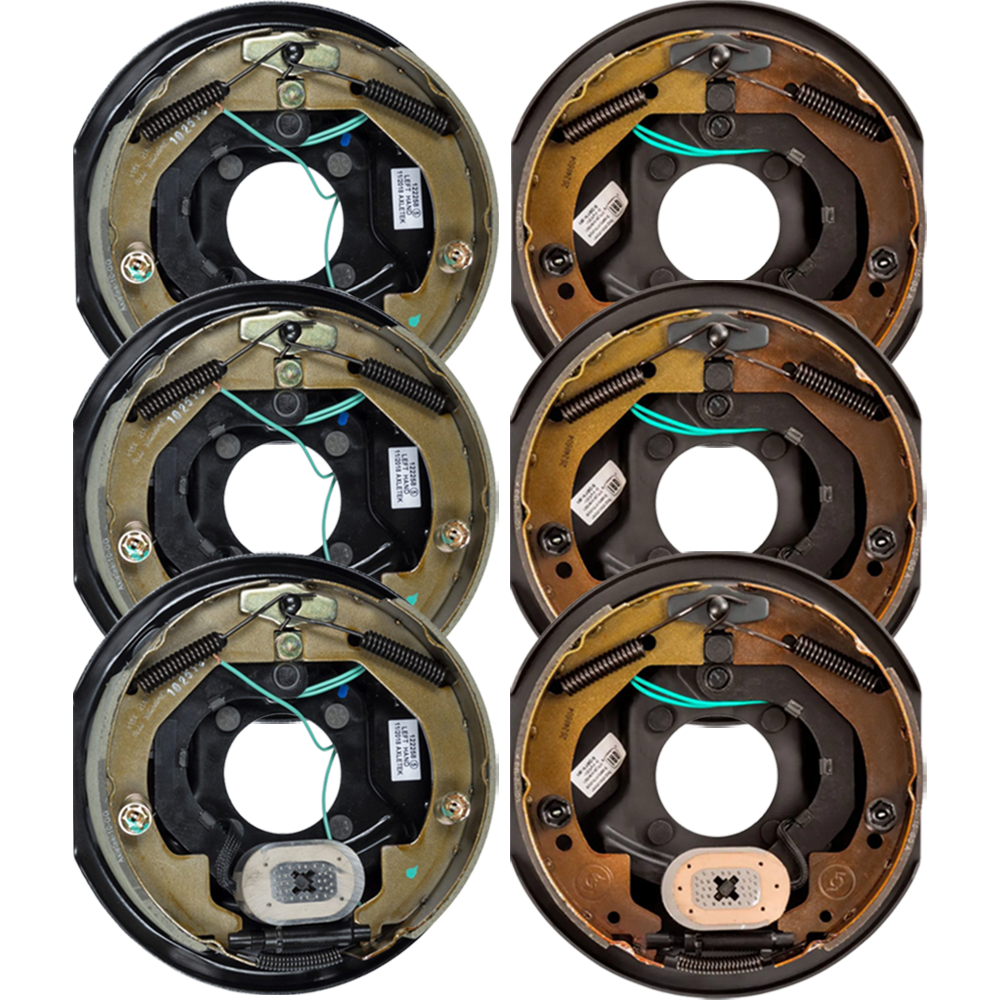

• QTY (3): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs (Left-Hand)
  • Road-side (LH) module – OEM bolt pattern
  • Manual-adjust for precise control
  • Rated for 3,500-lb axle, 10″ × 2.25″ drum
  • Dexter Compatible PN: K23-026-00 | 023-026-00
  • OE-quality parts | 1-year warranty
• QTY (3): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs (Right-Hand)
  • Curb-side (RH) module – OEM bolt pattern
  • Manual-adjust for even wear
  • Fits 3,500-lb axle, 10″ × 2.25″ drum
  • Dexter Compatible PN: K23-451-00 | 023-451-00
  • Genuine Lippert | 1-year warranty

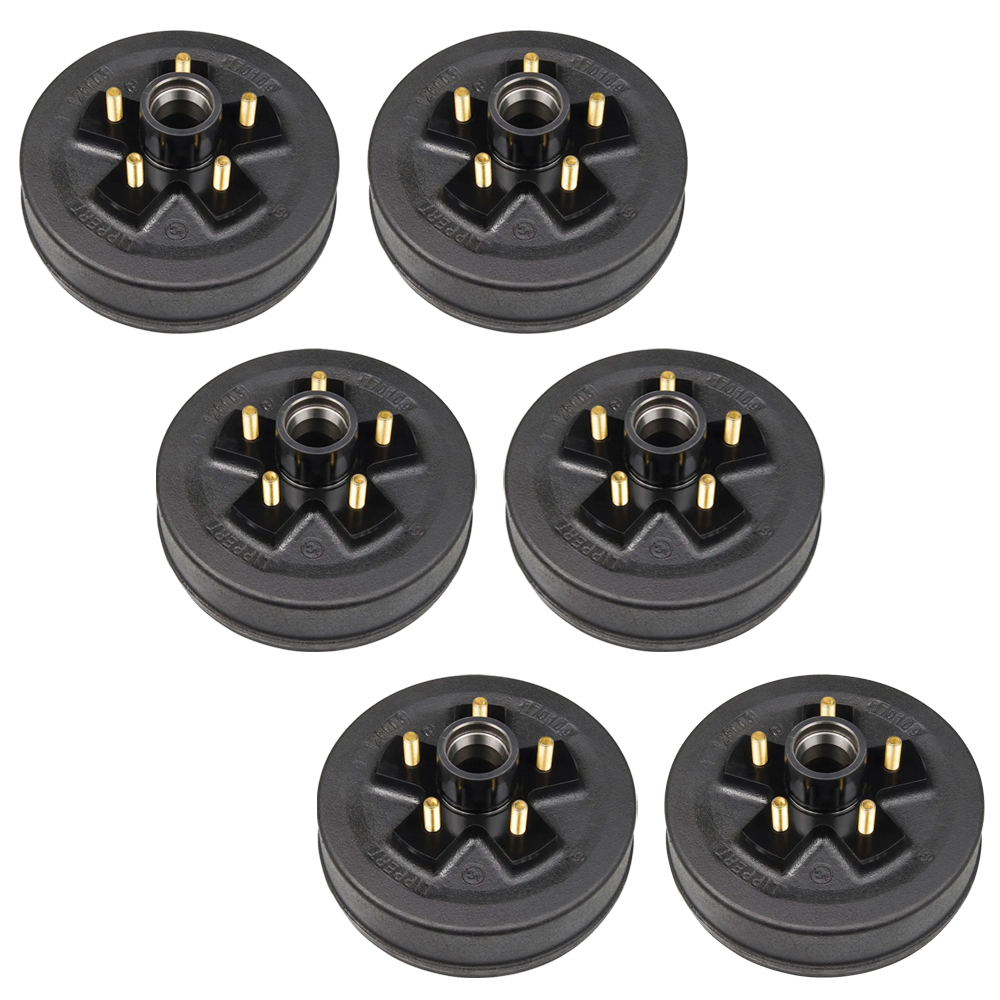

• QTY (6): Lippert 10″ Bare Drum-Hub – 3,500 lb Axle, 5-on-4.5″, 1/2″ Stud
  • Heavy-duty cast-iron drum with integrated hub
  • Hub only – bearing, seal & cap assembly sold separately
  • Bolt circle: 5-on-4.5″  | 1/2″ studs
  • Works with 13″–15″ wheels
  • Direct fit for Dexter, Alko & Rockwell 3.5K axles
  • Limited 1-year warranty

Recommendation: Verify fitment against your original equipment, torque wheel nuts to spec, and inspect brakes, bearings, and seals at every service interval for maximum safety and performance.
