Lippert Triple-Axle 7? � 1.25? Electric Brake, Hub & Bearing Kit � 2,200 lb, 5 on 4.5? � Dexter / AL-KO / Rockwell Compatible

Lippert Triple-Axle 7″ × 1.25″ Electric Brake, Hub & Bearing Kit – 2,200 lb, 5 on 4.5″

Upgrade three 2,200-lb axles at once with this ready-to-install — just add grease Lippert® bundle. Matched left- and right-hand 7″ electric brakes, solid-iron hubs, and individual bearing kits for six wheels deliver smoother stops, easier maintenance, and reliable towing.

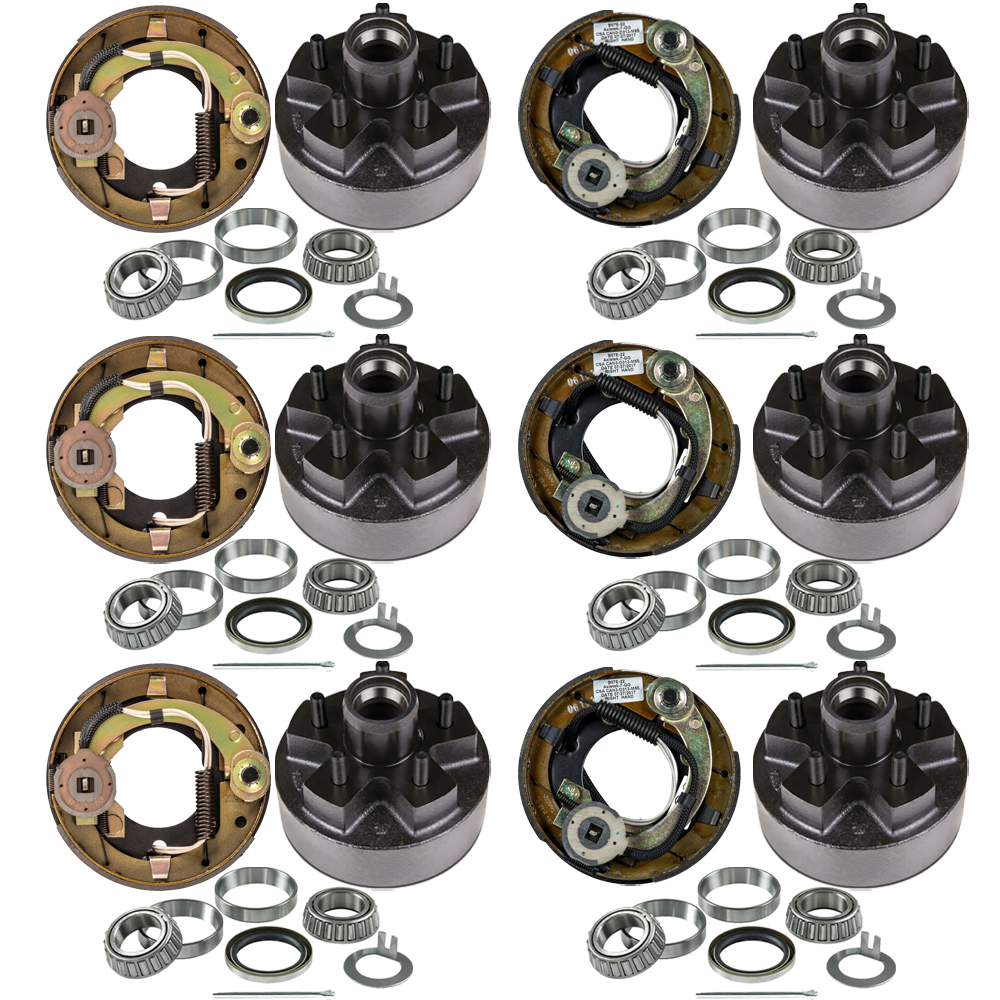

Bundle Contents:

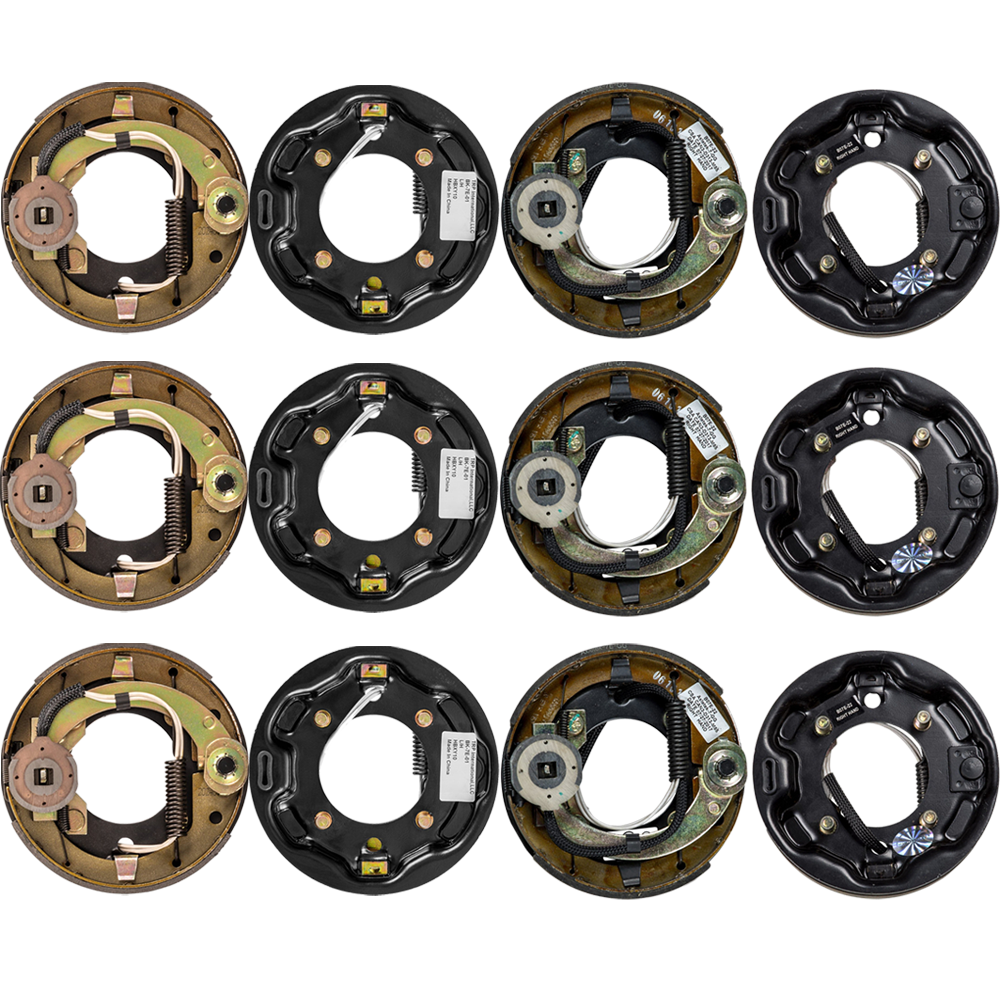

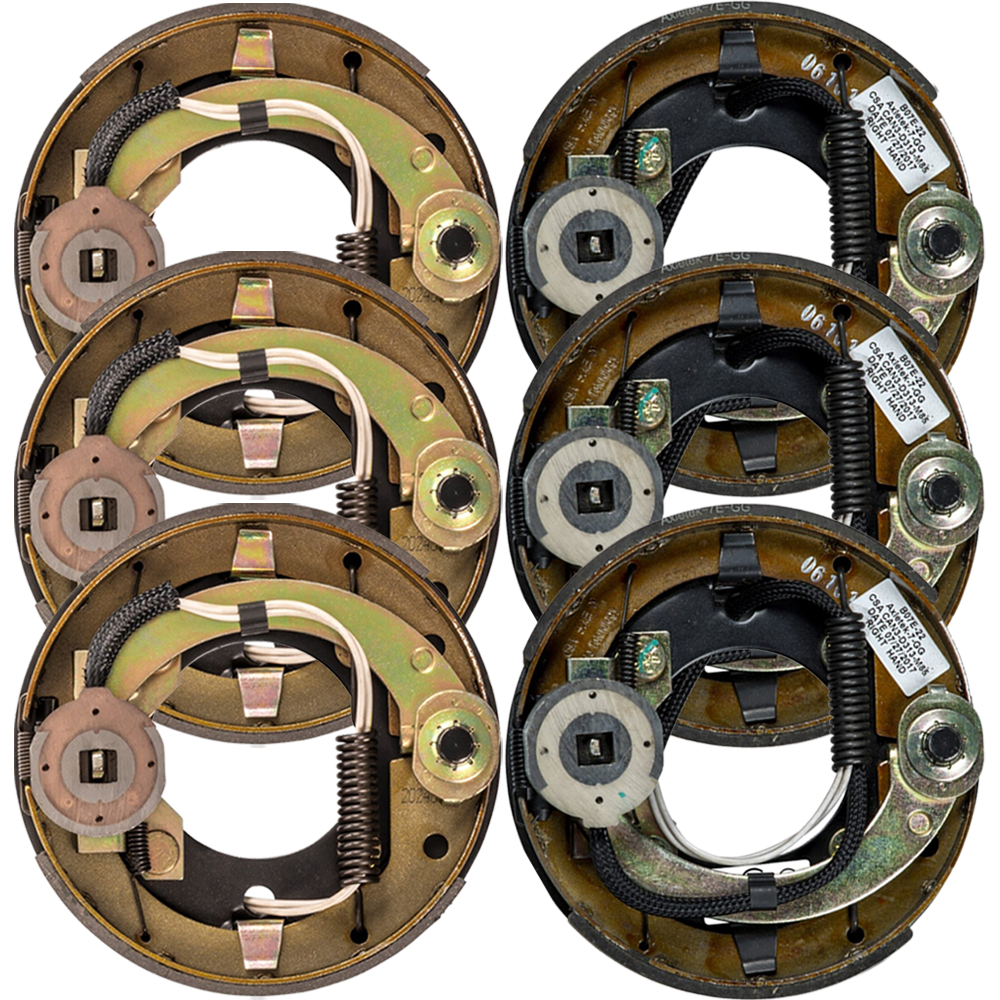

• QTY (3): Electric Brake Assembly, 7″ × 1.25″, 2,200 lb – Left Side
  • Genuine Lippert® roadside unit
  • Manual-adjust, 4-bolt mount
  • Fits 10″–13″ wheels; 2,200 lb rating
  • Dexter compatible part number: K23-047-00 | 023-047-00
• QTY (3): Electric Brake Assembly, 7″ × 1.25″, 2,200 lb – Right Side
  • Genuine Lippert® curb-side unit
  • Manual-adjust, 4-bolt mount
  • Fits 10″–13″ wheels; 2,200 lb rating
  • Dexter compatible part number: K23-048-00 | 023-048-00

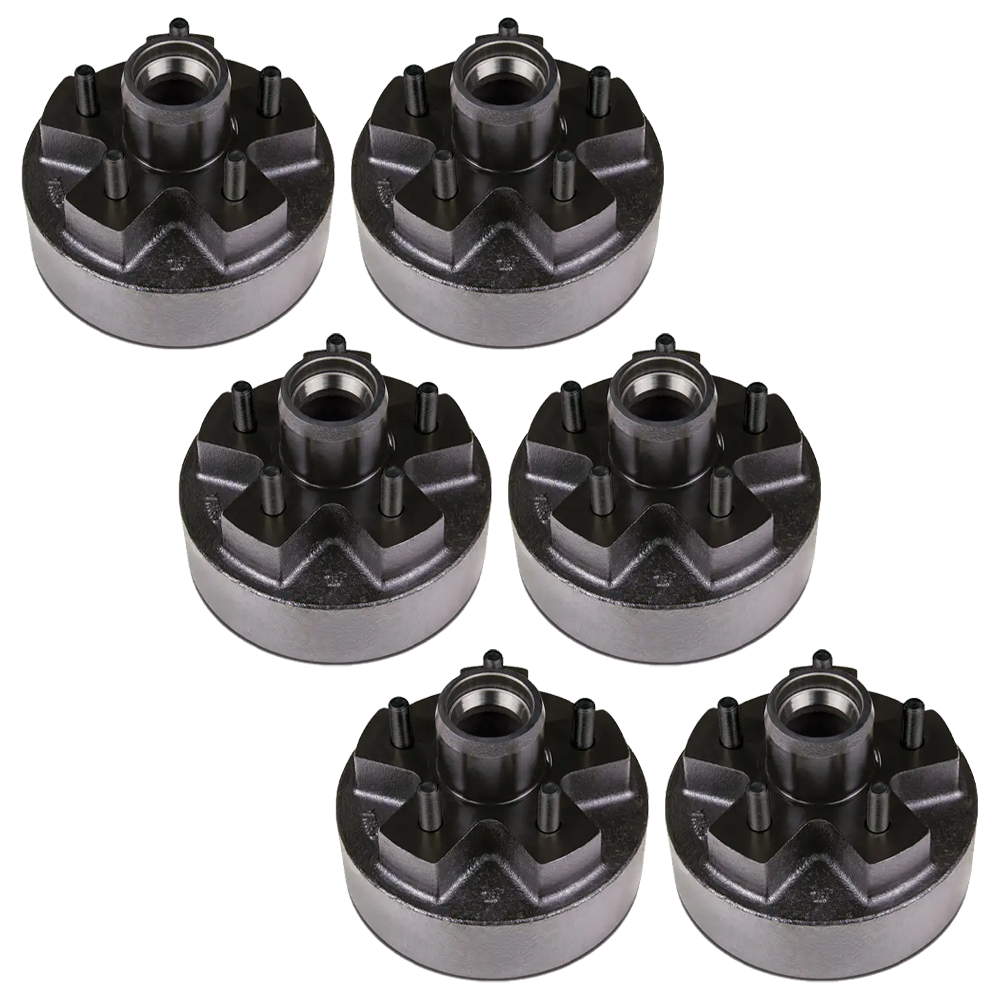

• QTY (6): 7″ Brake Hub, 5 on 4.5″; 1/2″ Stud – 2,200 lb
  • Solid-iron hub with integrated drum
  • 5 on 4.5″ bolt pattern, 1/2″ studs
  • Rated 2,200 lb; fits 8″–12″ wheels
  • Lippert™ genuine replacement part

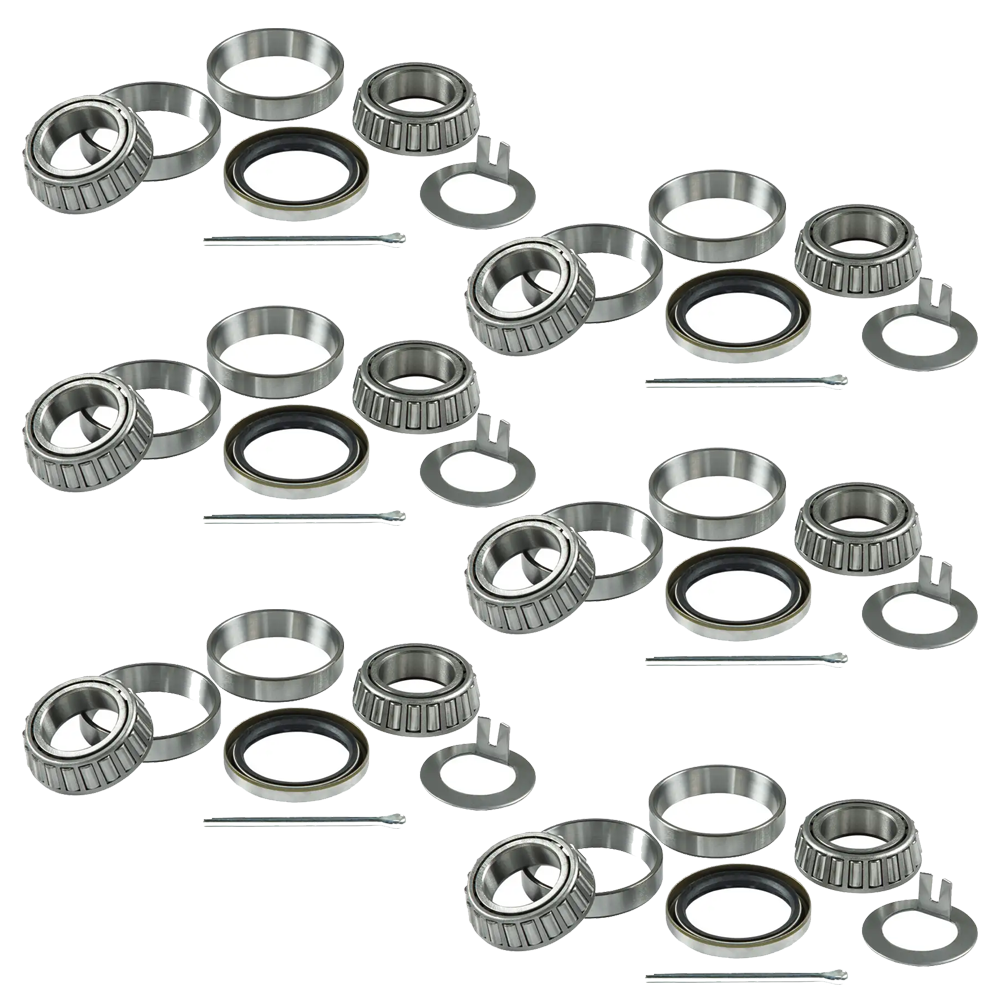

• QTY (6): Lippert Trailer Bearing Replacement Kit – 1.5″ ID Seal (1 kit per hub)
  • (2) Inner/outer bearing cones
  • (2) Inner/outer bearing races
  • (1) 1.5″ double-lip grease seal
  • (1) 1.75″ cotter pin
  • (1) 1.5″ tang spindle washer

Verify bolt pattern, bearing sizes, and axle rating before installation. Regular lubrication and inspection extend component life and on-road safety.
