Lippert Triple-Axle 7? x 1.25?, 2,200-lb Manual Electric Brake Assembly & Hub Installation Kit � 5 on 4.5?, w/ Spindle Hardware, Dust Caps & Lug Nuts

Lippert Triple-Axle 7″ x 1.25″ 2,200-lb Electric Brake & Hub Installation Kit

This comprehensive triple-axle kit from Lippert® provides everything you need for reliable 7″ x 1.25″ manual electric brakes and matching brake hub assemblies rated at 2,200 lbs. per axle. It comes with high-quality spindle hardware, dust caps, and lug nuts to simplify installation and help keep your trailer road-ready. Each brake assembly includes Dexter-compatible part numbers for added versatility.

Bundle Contents:

• QTY (3): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. - Left Side
  • Genuine Lippert® replacement part
  • Left hand (roadside)
  • For 10", 12", or 13" wheels
  • Brake size: 7" x 1.25"
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number(s): K23-047-00 | 023-047-00
  • 1-year warranty
• QTY (3): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. - Right Side
  • Genuine Lippert® replacement part
  • Right hand (curb side)
  • For 10", 12", or 13" wheels
  • Brake size: 7" x 1.25"
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number(s): K23-048-00 | 023-048-00
  • 1-year warranty
• QTY (6): 7" Brake Hub, 5 on 4.5"; 1/2" Stud - 2,200 lbs. (with Bearing Cone Kit)
  • Lippert® genuine replacement part (#134206)
  • Axle rating: 2,200 lbs.
  • Wheel size compatibility: 8" to 12"
  • Bolt pattern: 5 on 4.5"
  • Stud size: 1/2"
  • Includes (6) bearing kits total — each hub has its own kit:
    • 1 Inner Bearing Cone
    • 1 Outer Bearing Cone
    • 1 Inner Bearing Cup
    • 1 Outer Bearing Cup
    • 1 Cotter Pin
    • 1 Double Lip Grease Seal
  • 1-year warranty

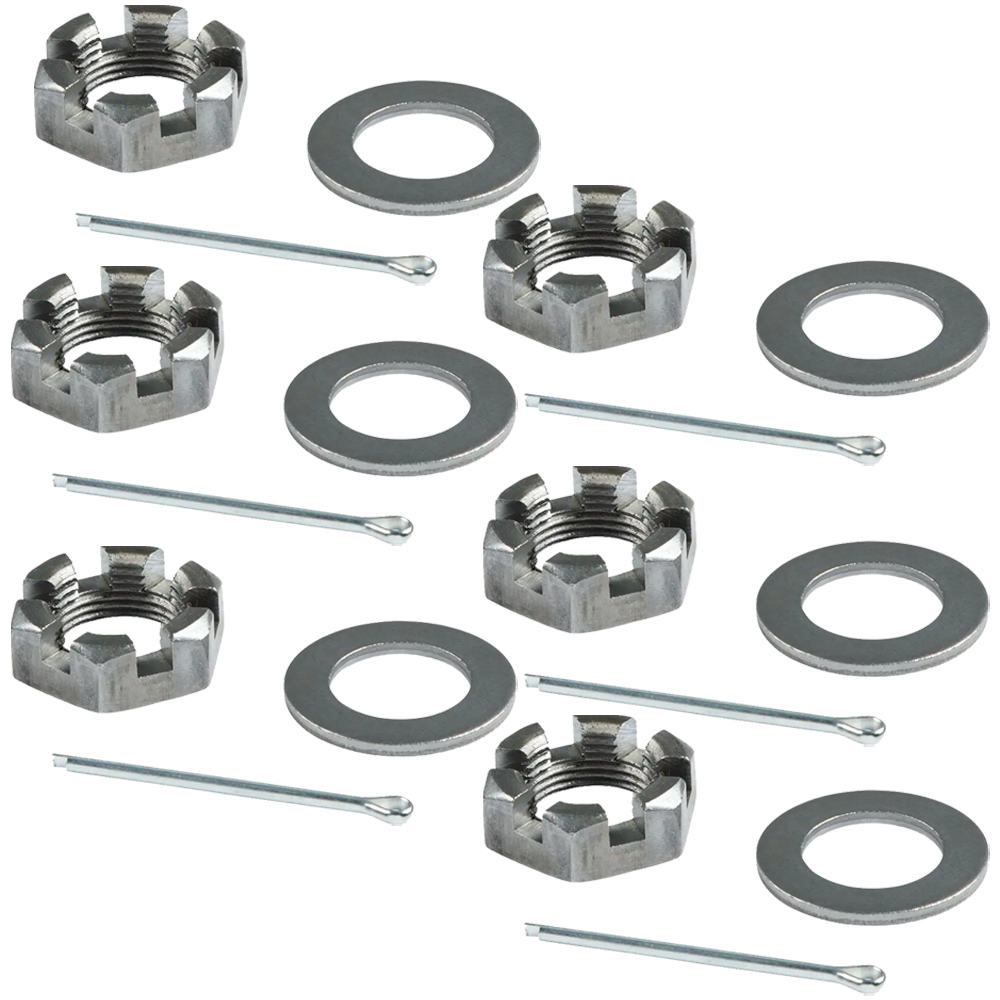

• QTY (6): 1" Round Spindle Nut Retainer Kit for 3,500-8,000-lb. Axle Hubs
  • Complete spindle nut retainer kit
  • (1) 6-slot castle spindle nut with 1"-14 threads
  • (1) Round spindle washer with 1" ID, 1.68" OD
  • (1) 1.75" cotter pin

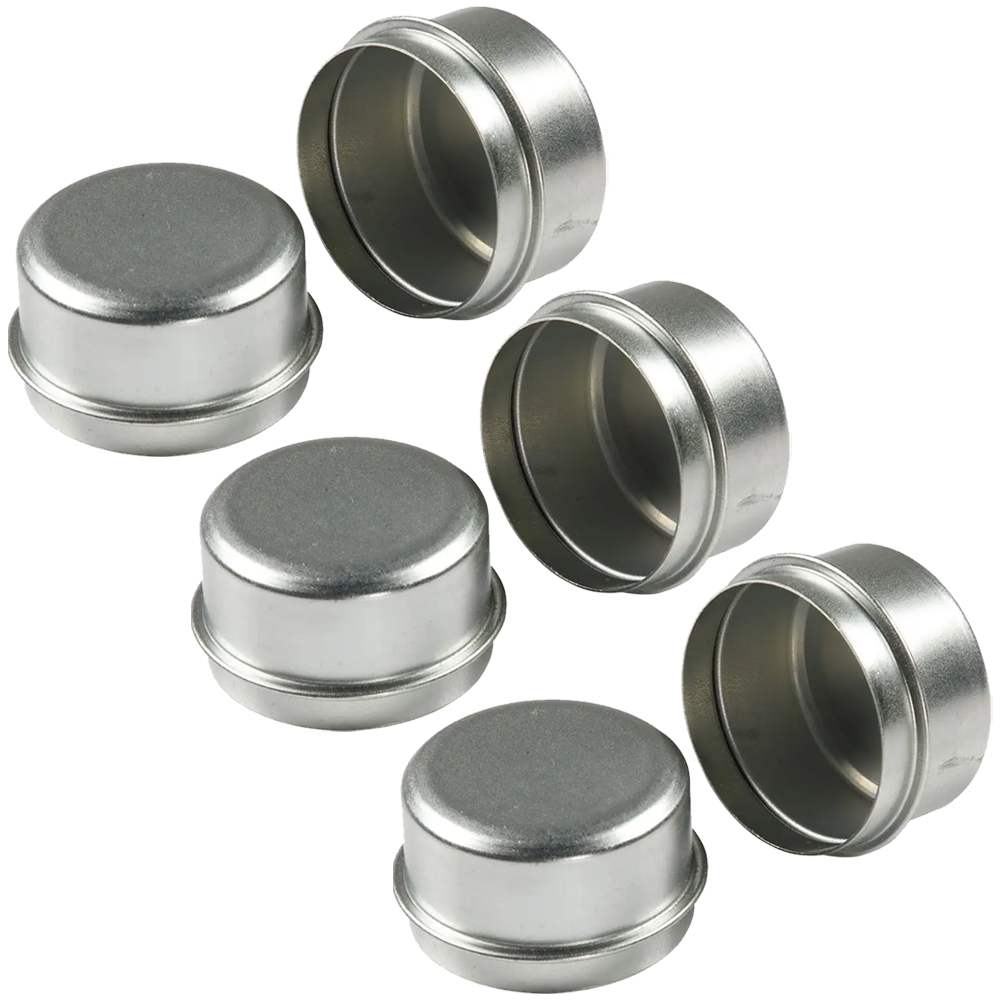

• QTY (3): Dust Cap - 2,000-3,500-lb. Axles (Pack of 2)
  • Replacement dust caps (3 packs total = 6 caps)
  • For 2,000-3,500-lb. axle capacities
  • 1.988" outer diameter
  • 1-1/4" tall
• QTY (5): Lippert 60° Cone Trailer Lug Nut - 1/2"-20
  • Fits 1/2"-20 lug studs
  • Common replacement for 2,200-lb. capacity Lippert wheel hubs
  • 60-degree cone design
  • Each set is a 6-pack (5 packs total = 30 lug nuts)
  • Ships in a retail clam shell package

Always verify your existing trailer components and follow a consistent maintenance schedule. Check brake assemblies, hubs, and hardware every 3,000 miles to ensure optimum safety and performance on the road.
