Lippert Triple Axle 7? x 1.25? 2,200-lb Manual Electric Brake & Hub Kit � 5 on 4.5? (Dexter Compatible)

Lippert Triple Axle 7″ x 1.25″ 2,200-lb Manual Electric Brake & Hub Kit – 5 on 4.5″ (Dexter Compatible)

Upgrade or replace your trailer’s braking system with this complete Lippert® Triple Axle bundle. Featuring six brake hubs (each with its own bearing kit) and six manual-adjustment electric brake assemblies (three left and three right), this kit ensures dependable stopping power for 2,200-lb axles. It’s an all-in-one solution designed for easy installation and peace of mind on the road.

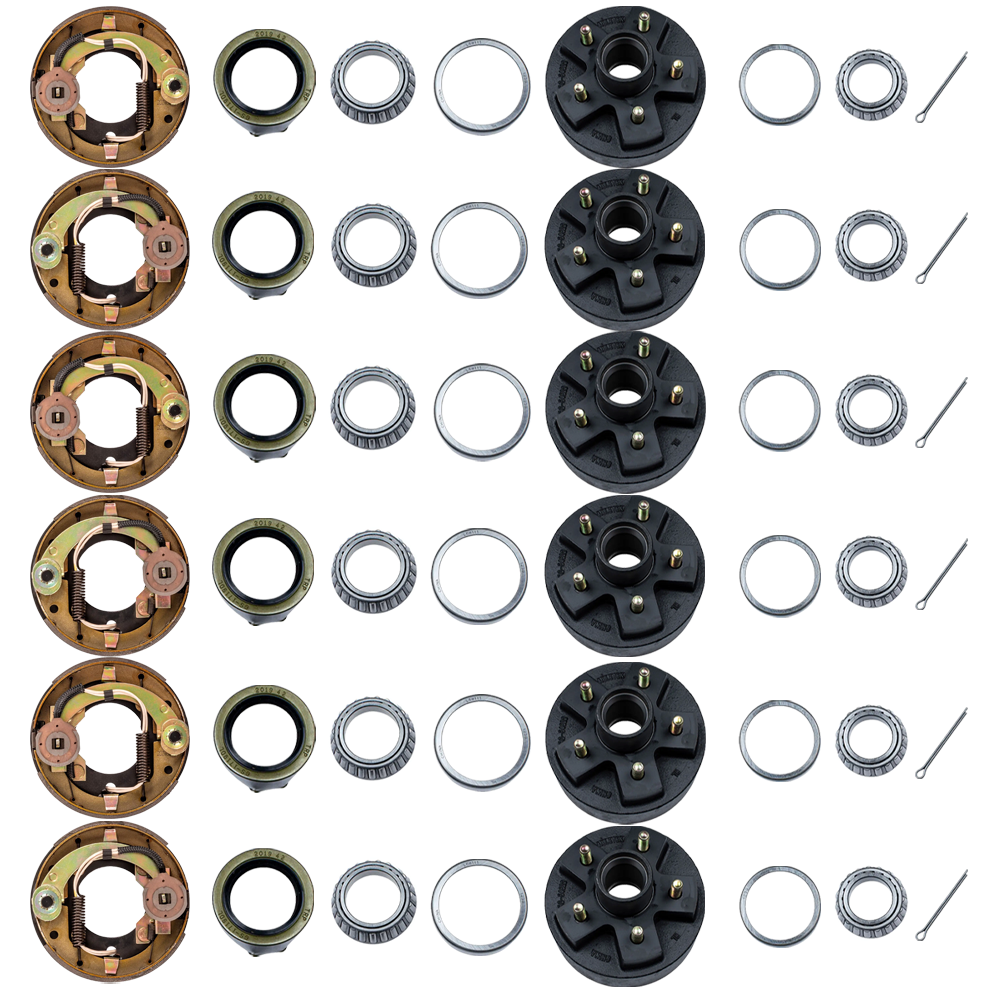

Bundle Contents:

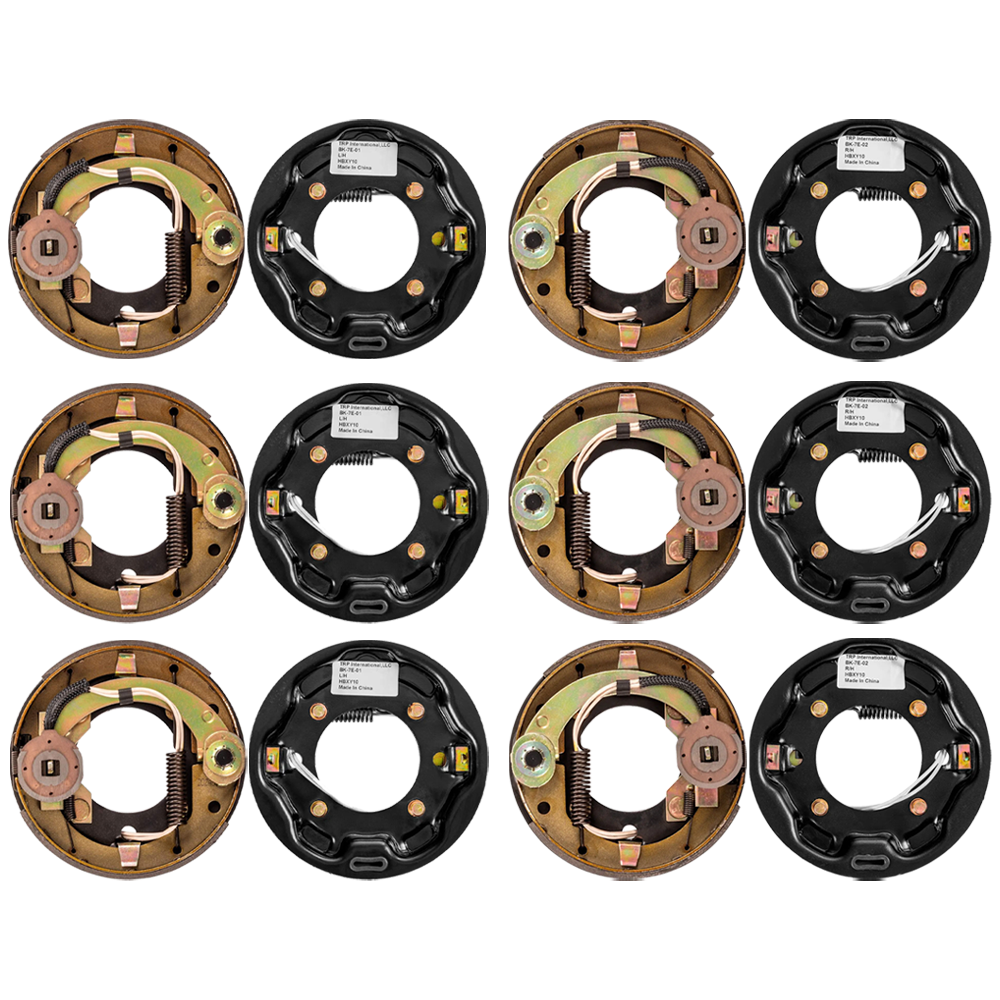

• QTY (3): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. - Left Side
  • Genuine Lippert® replacement part
  • Left hand (roadside)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-047-00 | 023-047-00
  • 1-year warranty
• QTY (3): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. - Right Side
  • Genuine Lippert® replacement part
  • Right hand (curb side)
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • Dexter Compatible Part Number: K23-048-00 | 023-048-00
  • 1-year warranty

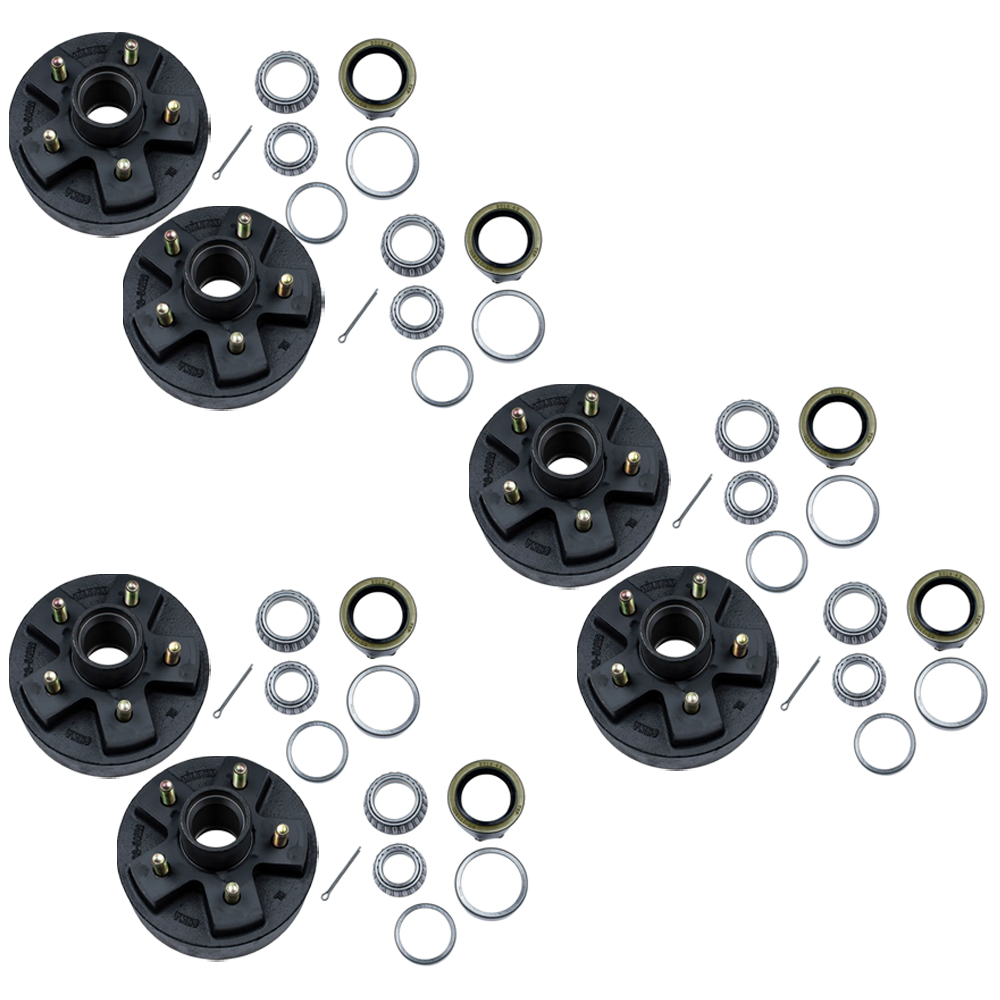

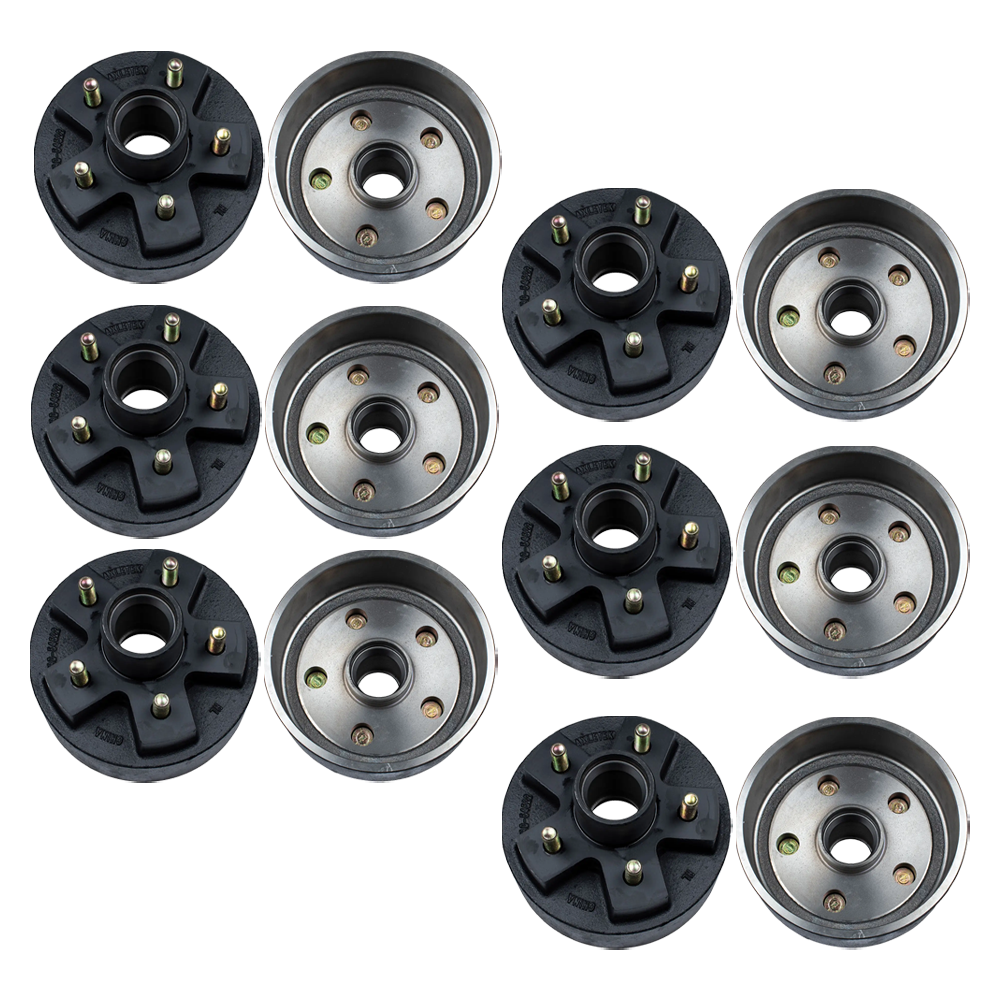

• QTY (6): 7" Brake Hub, 5 on 4.5"; 1/2" Stud – 2,200 lbs. (with Bearing Cone Kit)
  • Lippert® genuine replacement part
  • Brake Hub #134206
  • Axle rating: 2,200 lbs.
  • Wheel size: 8" to 12"
  • Bolt pattern: 5 on 4.5"
  • Stud size: 1/2"

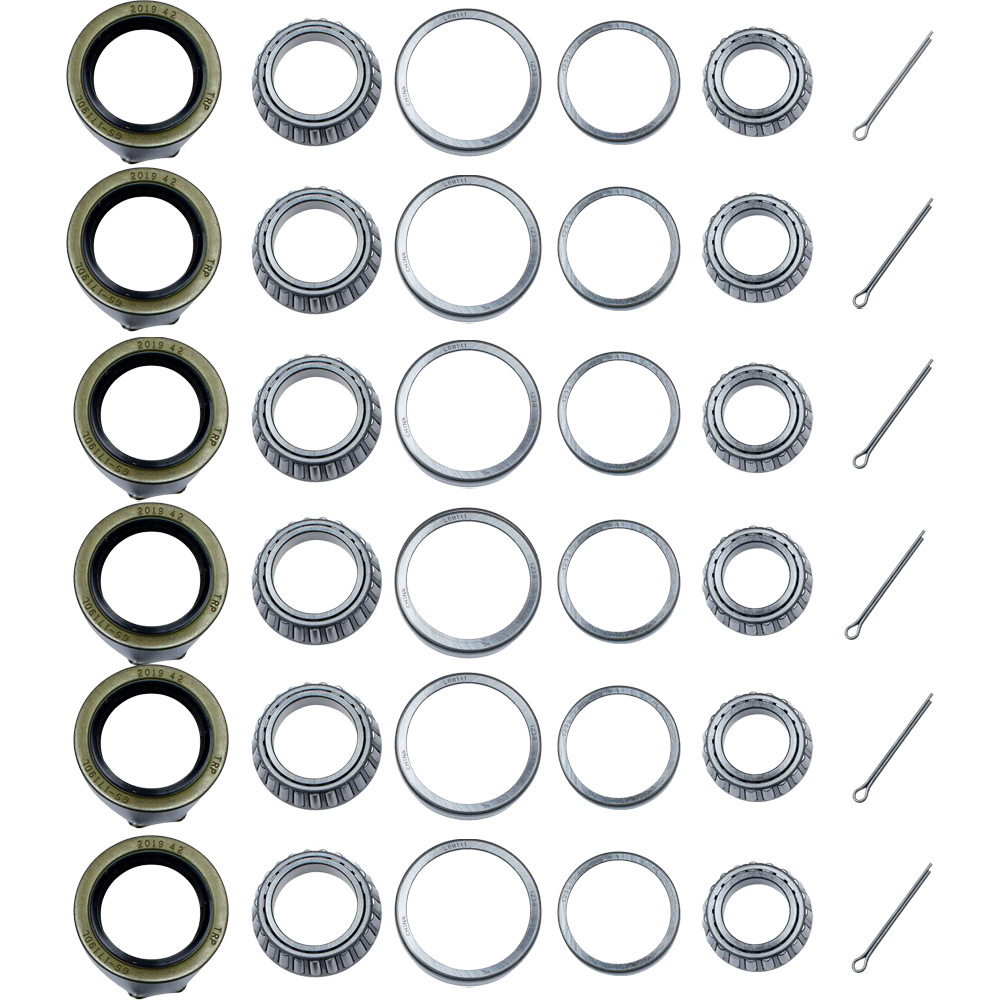

  • Bearing Kit #333948 (one kit per hub, total of 6 kits), each kit contains:
    • Inner Bearing Cone
    • Outer Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cup
    • Cotter Pin
    • Double Lip Grease Seal
  • 1-year warranty

For optimal performance, regularly inspect your brakes, confirm all parts match original specifications, and follow proper maintenance schedules.

Note: This particular bundle includes only the brake assemblies and hubs. If you need a kit with additional hardware, we also offer a more comprehensive package.
