Lippert Triple‑Axle Slipper‑Spring Suspension Bundle – Complete Kit with Hangers & Hardware

This premium Lippert bundle replaces or upgrades the entire slipper‑spring suspension on triple‑axle trailers equipped with 2,200‑lb axles and 1.75″ round tubes. It pairs six heavy‑duty 4‑leaf springs (26‑7/8″ eye‑to‑slipper) with an AP‑style 33‑1/2″ equalizer system, plus all weld‑on hangers, U‑bolt mounting hardware and fasteners. Engineered for seamless fit with Dexter, Alko, Rockwell and other quality axles, it restores smooth towing performance and simplifies installation—no extra parts needed.

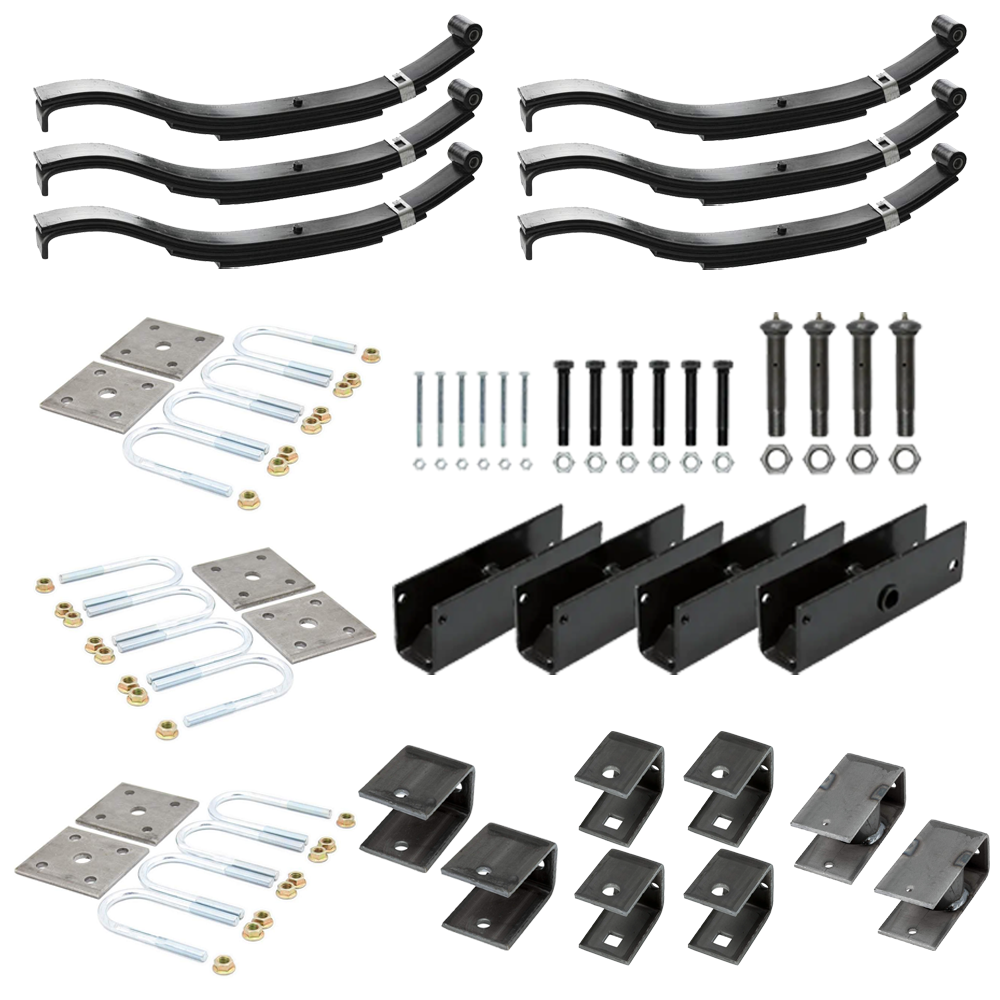

Bundle Contents:

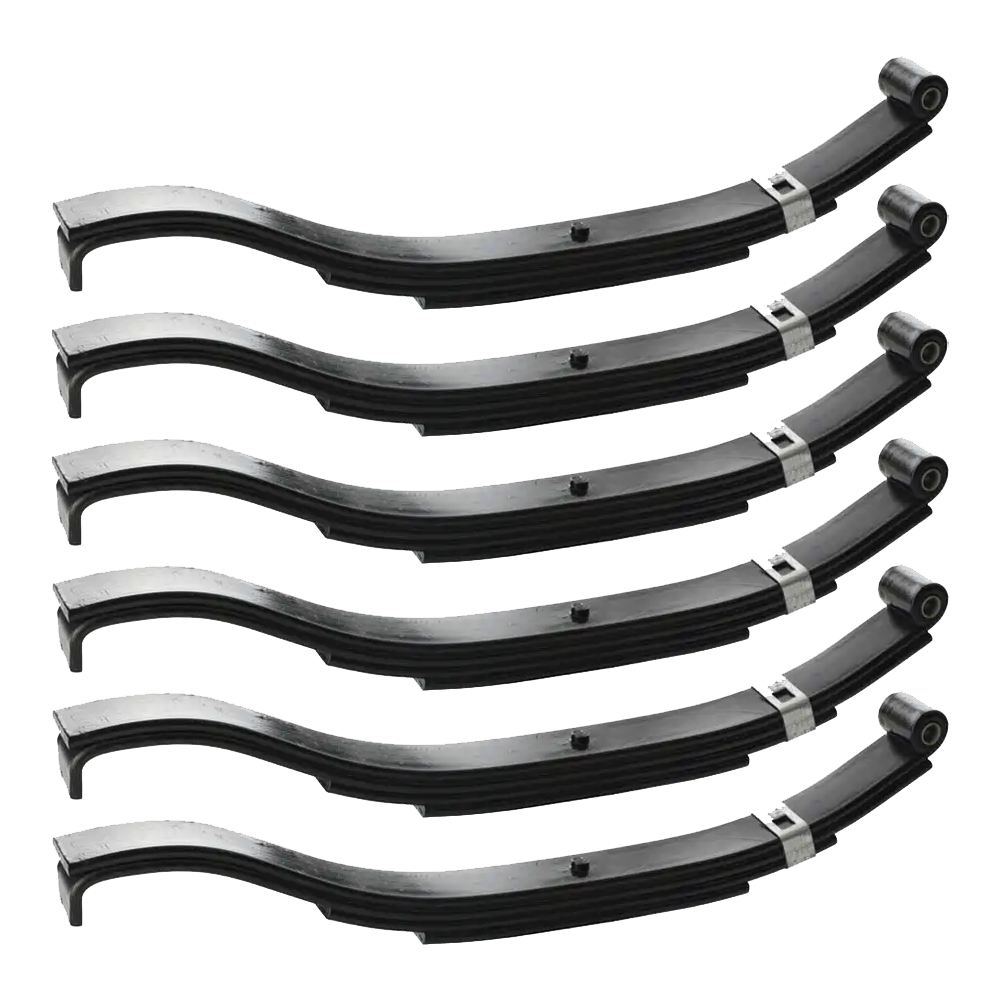

• QTY (6): 24″ Slipper Leaf Spring – 2,000 lb Capacity (Dexter #072‑030‑00)
  • 26.88″ eye‑to‑slipper length; 2″ wide
  • 4‑leaf stack – rated 2,000 lbs each
  • Arch height 3″ unloaded / 2″ loaded
  • Eye Ø 9/16″

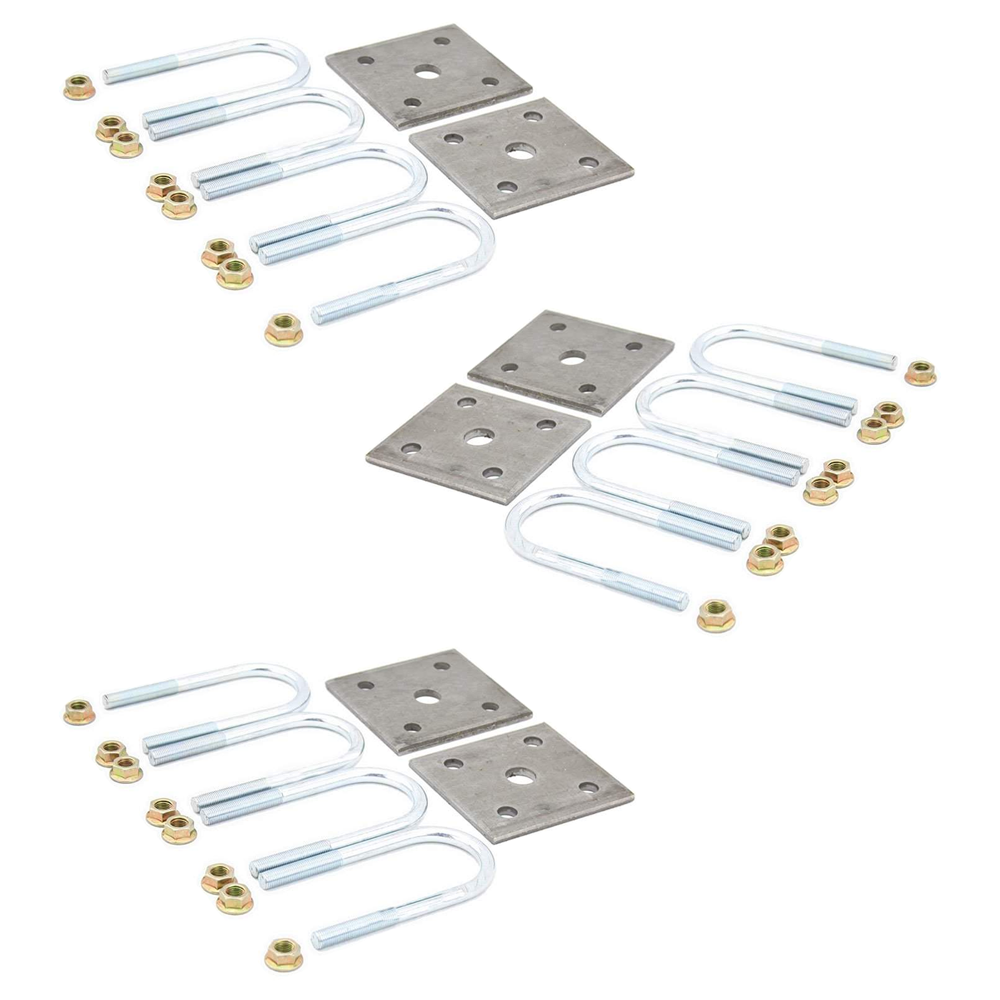

• QTY (3): Axle U‑Bolt Mounting Kit – 1.75″ Tube (Dexter #K71‑391‑00)
  • QTY 4 U‑Bolts – 3/8″‑24 × 4‑1/4″, zinc plated
  • QTY 2 Tie Plates – powder‑coated steel
  • QTY 8 Flange Nuts – 3/8″‑24, gold‑chromate
  • Fits 1.75″ round tubes; supports 2,200 lb axles

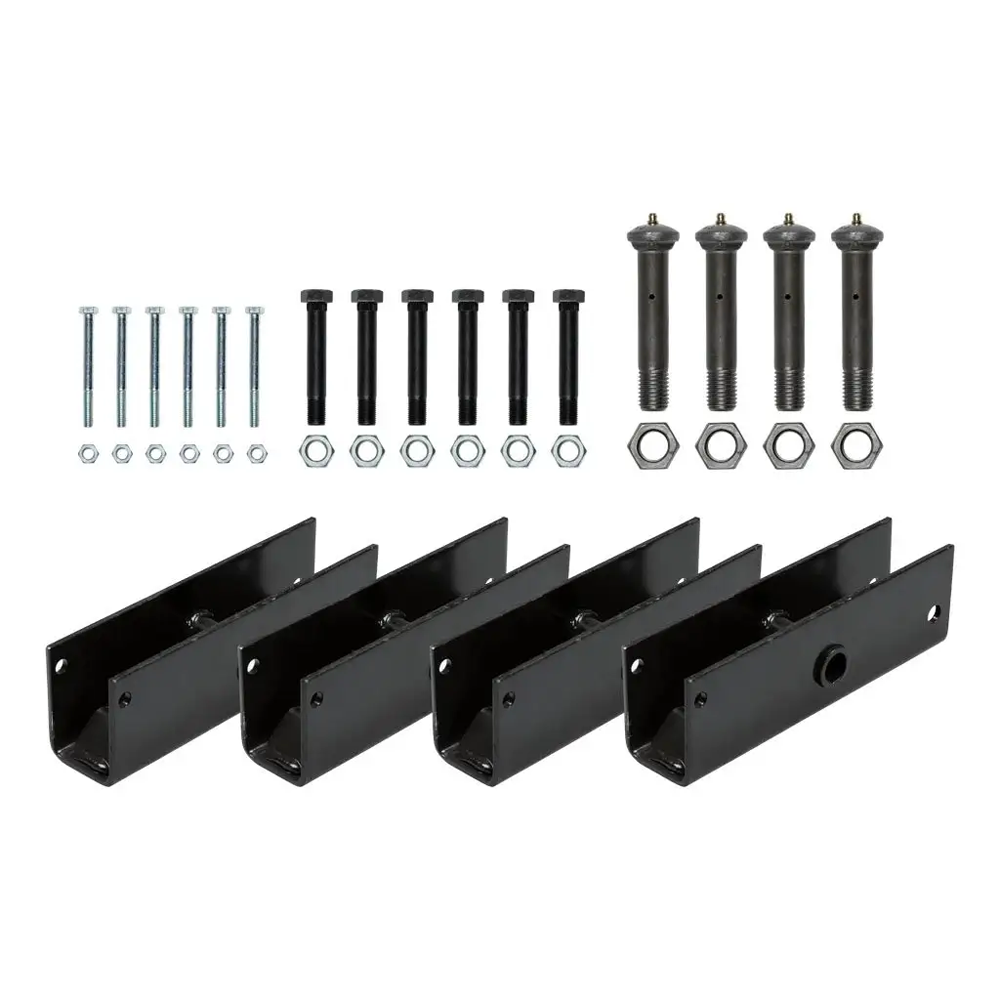

• QTY (1): AP Equalizer & Hardware Kit – Triple‑Axle Slipper (includes 4 Equalizers) (Dexter #A/P‑302‑00)
  • QTY 4 EQ‑1304 Equalizers – 33‑1/2″ axle spacing each
  • QTY 4 Equalizer Bolts – 4.7″ L, 7/8″‑9 thread + nuts
  • QTY 6 Shackle Bolts – 3.5″ L, 9/16″‑18 thread + lock nuts
  • QTY 6 Keeper Bolts – 3.25″ L, 5/16″‑18 thread + keeper nuts
  • Robotic‑welded construction for maximum strength
• QTY (2): Front Weld‑On Axle Hanger – 4‑5/16″ L × 2‑3/16″ W
  • Axle rating 2,200–8,000 lbs • Location Front
  • Distance to hole 3‑9/16″ • Hole Ø 9/16″
• QTY (4): Center Weld‑On Axle Hanger – 4‑1/2″ L × 3‑1/8″ W
  • Axle rating 2,200–8,000 lbs • Location Center
  • Distance to hole 3‑5/16″ • Hole Ø 7/8″
• QTY (2): Rear Weld‑On Axle Hanger – 6″ L × 2‑1/4″ W
  • Axle rating 2,200–8,000 lbs • Location Rear
  • Distance to hole 4″ • Hole Ø 5/16″

Before installation, verify all dimensions and capacities against your original equipment. Perform routine inspections and maintenance to keep your suspension operating safely.
