Lippert Triple‑Axle Slipper‑Spring Suspension Kit – 4,400 lb Axles, 3.00″ Tube, 26‑7/8″ Springs

Restore ride quality and durability in one purchase. This complete Lippert bundle equips triple‑axle trailers with heavy‑duty 26‑7/8″ slipper springs, 3.00″ U‑bolt mounting hardware, precision equalizers and four‑sided hangers—engineered to fit Lippert, Dexter, Alko, Rockwell and other quality axles spaced at 33‑1/2″.

Bundle Contents:

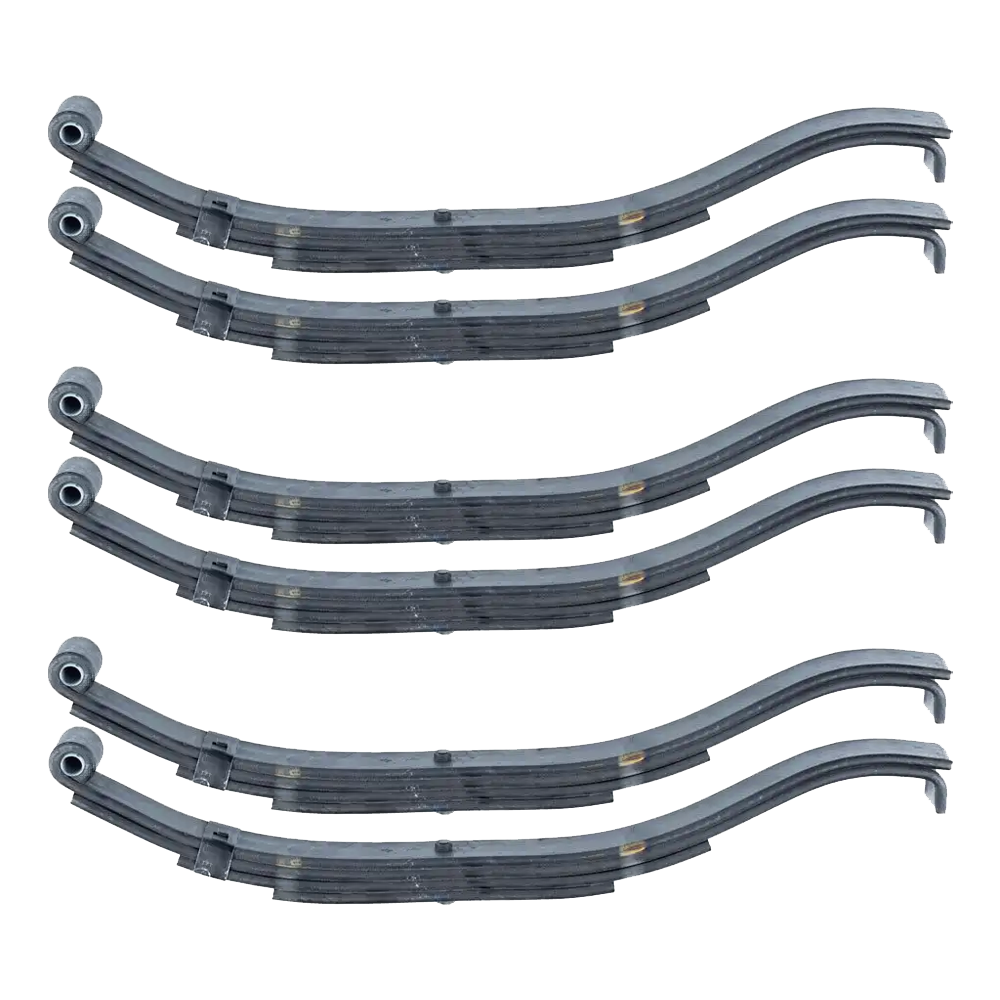

• QTY (6): 25″ Slipper Leaf Spring – 2,500 lb Capacity
  • Dexter Compatible Part # 072‑031‑00
  • 4 leaves, 2″ wide
  • Eye‑to‑slipper length: 26‑7/8″
  • Arch height: 3‑1/16″ unloaded / 2″ loaded
  • Eye diameter: 9/16″

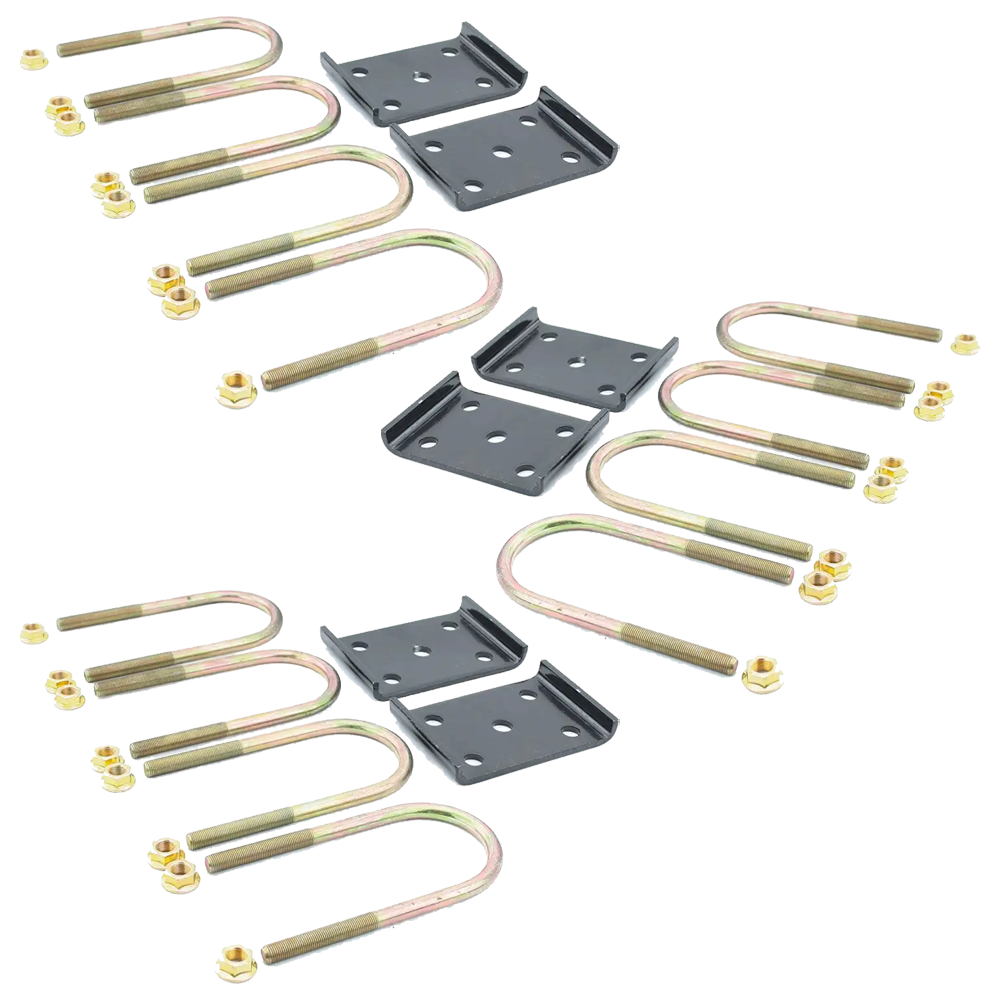

• QTY (3): Trailer Axle U‑Bolt Mounting Kit – 3.00″ Tube
  • Rated for 4,400 lb axles with 3.00″ round tubes
  • Includes (4) 1/2″‑20 × 7.25″ U‑bolts, (2) tie plates, (8) nuts
  • Fits 2″ slipper or 1‑3/4″ double‑eye springs

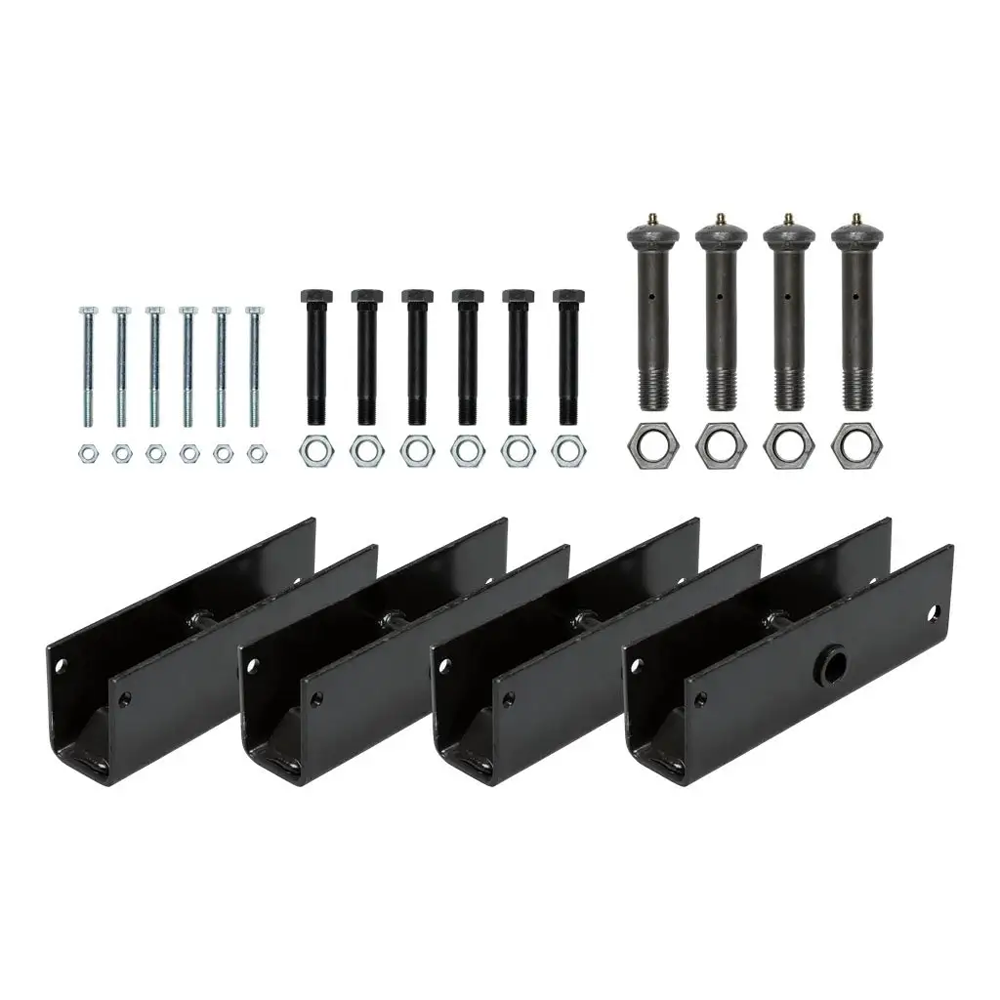

• QTY (1): Triple‑Axle AP Suspension Hardware Kit
  • Dexter Compatible Part # A/P‑302‑00
  • Kit Contents:
  • • QTY (4) Equalizers – EQ‑1304 (33‑1/2″ axle spacing)
  • • QTY (4) Equalizer Bolts – 4.7″ L, 7/8″‑9 thread
  • • QTY (6) Shackle Bolts – 3.5″ L, 9/16″‑18 thread
  • • QTY (6) Keeper Bolts – 3.25″ L, 5/16″‑18 thread
  • • QTY (4) Equalizer Nuts – 7/8″‑9 thread
  • • QTY (6) Lock Nuts – 9/16″‑18 thread
  • • QTY (6) Keeper Nuts – 5/16″‑18 thread
• QTY (2): Front Trailer Axle Hanger
  • Axle capacity: 2,200 – 8,000 lb
  • Length × Width: 4‑5/16″ × 2‑3/16″
  • Distance to hole: 3‑9/16″ on‑center
  • Hole size: 9/16″
• QTY (4): Center Trailer Axle Hanger
  • Axle capacity: 2,200 – 8,000 lb
  • Length × Width: 4‑1/2″ × 3‑1/8″
  • Distance to hole: 3‑5/16″
  • Hole size: 7/8″
• QTY (2): Rear Trailer Axle Hanger
  • Axle capacity: 2,200 – 8,000 lb
  • Length × Width: 6″ × 2‑1/4″
  • Distance to hole: 4″
  • Hole size: 5/16″

Always verify part numbers against your original equipment labels and perform routine inspections for optimal suspension performance.
