Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 33" Axle Spacing, 2,000 lb (23‑1/8" Unloaded) Leaf Springs, Standard Equalizers, Hangers & Hardware

This comprehensive Lippert Triple Axle Suspension Kit is designed for reliability and ease of installation. With a 1.75" axle tube diameter, 33" axle spacing, and 2,000 lb-rated leaf springs (23‑1/8" unloaded eye‑to‑eye length), it offers excellent towing stability and durability. This bundle includes leaf springs, hangers, an axle mounting kit, and a triple axle AP kit featuring standard equalizers and hardware. Compatible with top axle brands such as Dexter, Alko, and Rockwell, it’s an ideal solution for anyone looking to upgrade or repair their triple axle trailer setup.

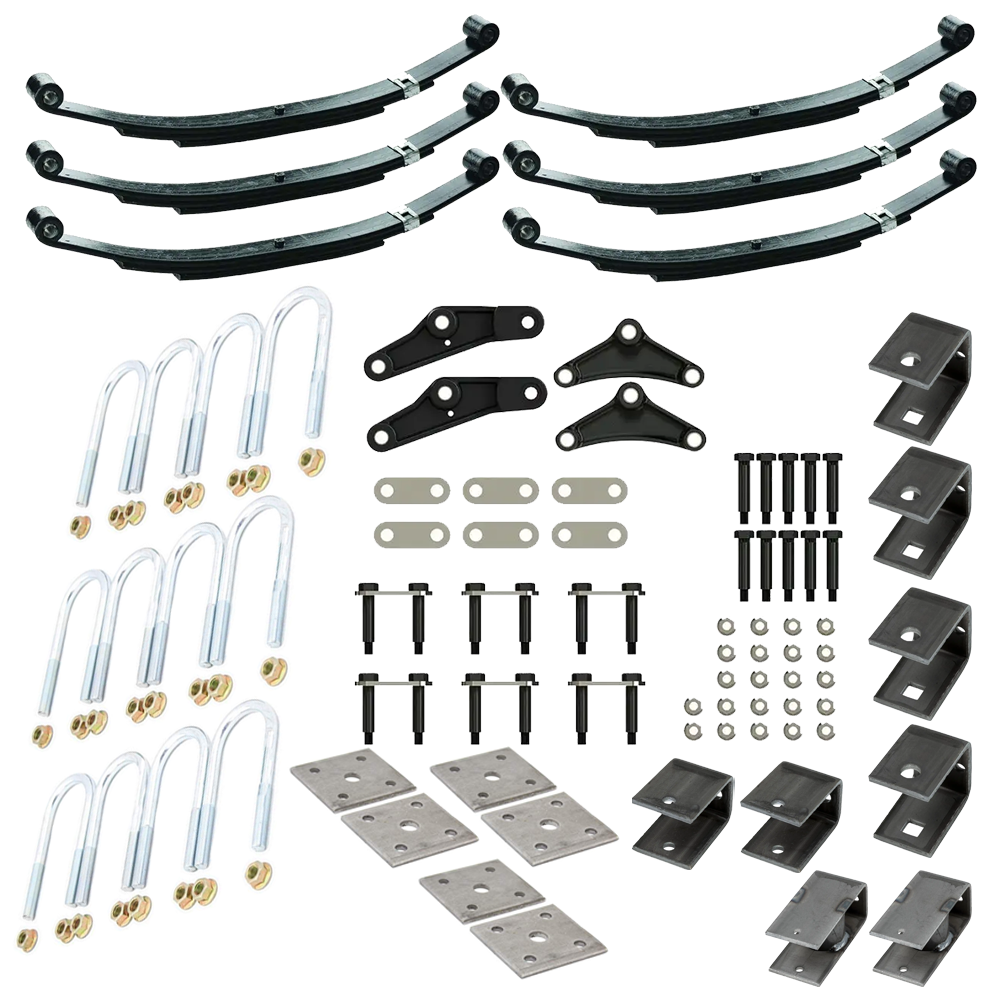

Bundle Contents:

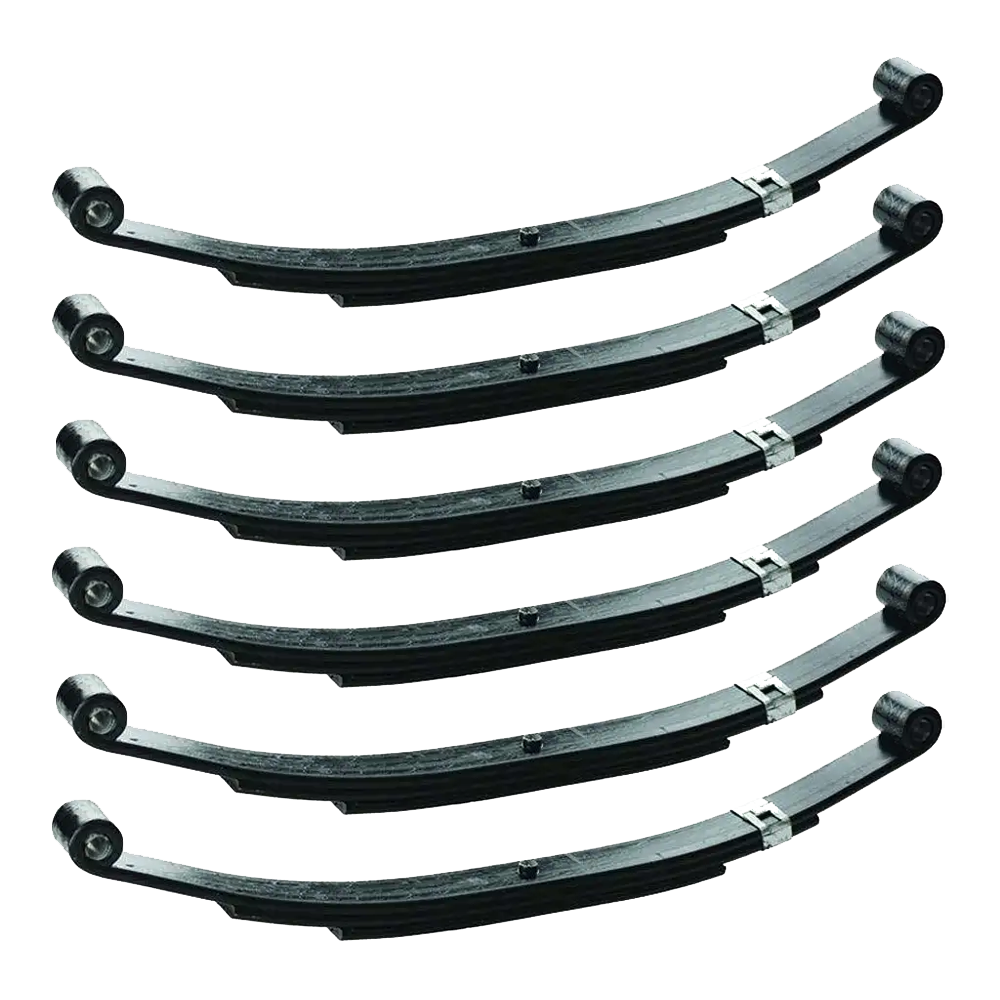

• QTY (6): Replacement Double-Eye Leaf Spring (2,000 lb, 23‑1/8" Unloaded)
  • 2,000 lb capacity per spring
  • 1‑3/4" spring width
  • 23‑1/8" unloaded eye‑to‑eye length; 24" loaded length
  • Arch height: 3‑1/2" unloaded, 2‑1/2" loaded
  • 9/16" spring eye diameter
  • 3 leaves per spring for stable load support

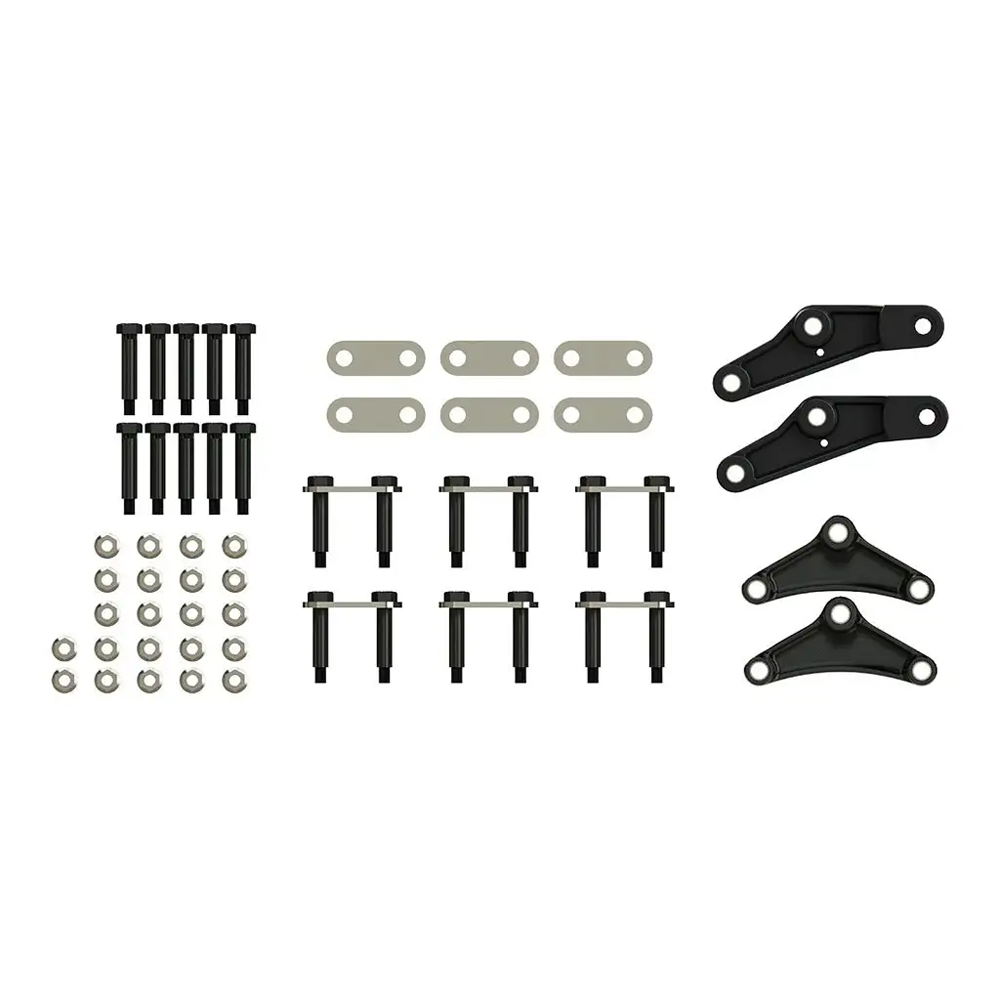

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Standard equalizers for balanced weight distribution
  • Includes shackle links and mounting hardware
  • Installs just like your original equipment

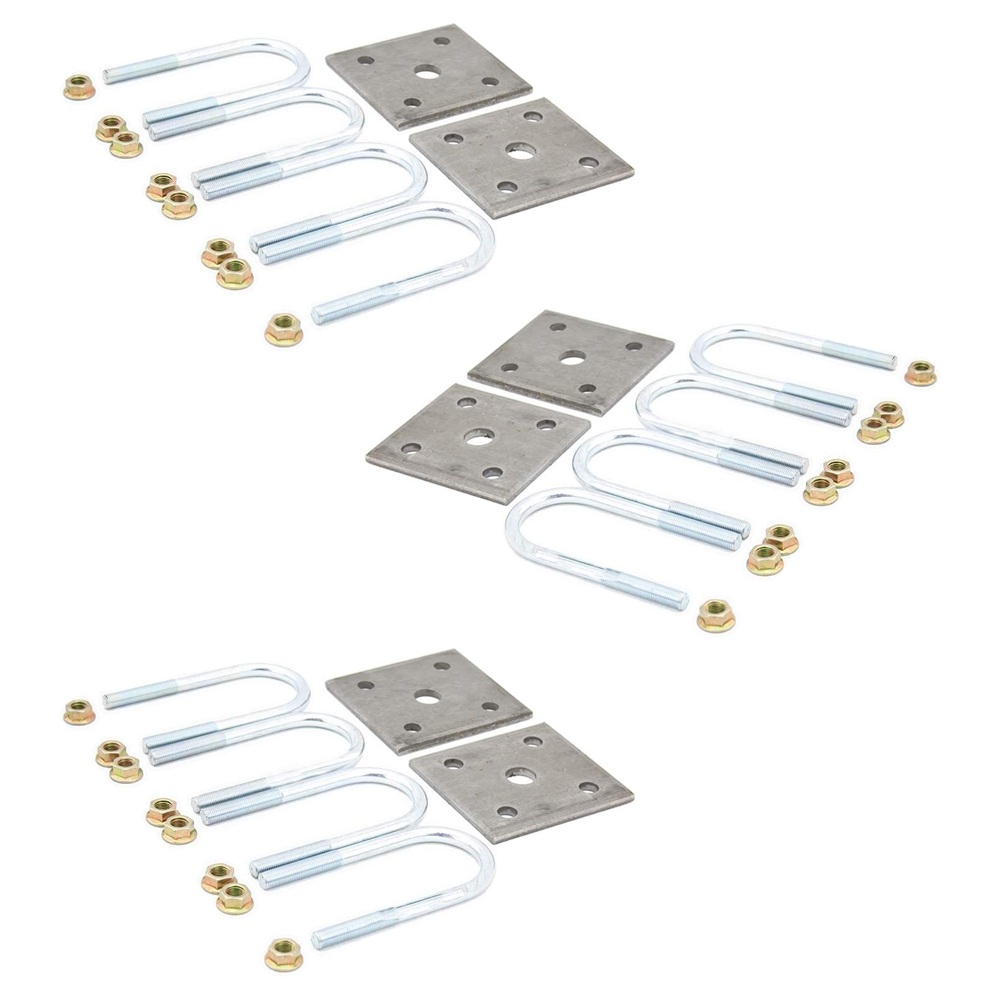

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • U-bolt design for secure axle attachment
  • Exact-match replacement for quick installation
  • Durable construction built to OEM standards
• QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16"
  • Axle capacity: 2,200 lbs.
  • Welded to chassis to allow mounting of axles and axle components
  • Length: 4‑5/16", Width: 2‑3/16"
  • Distance to hole: 3‑9/16" (on‑center)
  • Hole size: 9/16"
• QTY (4): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8"
  • Axle capacity: 2,200–8,000 lbs.
  • Location: Center
  • Length: 4‑1/2", Width: 3‑1/8"
  • Distance to hole: 3‑5/16"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4"
  • Axle capacity: 2,200–8,000 lbs.
  • Location: Rear
  • Length: 6", Width: 2‑1/4"
  • Distance to hole: 4"
  • Hole size: 5/16"

Always confirm compatibility with your trailer’s original equipment and follow recommended maintenance schedules for safe, consistent towing performance.
