Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 33" Spacing, 1,750-lb Leaf (23-3/16" Unloaded), Standard Equalizer, Hangers & Hardware � Dexter, Alko, Rockwell, Quality Axles

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 33" Spacing, 1,750-lb Leaf (23-3/16" Unloaded), Standard Equalizer, Hangers & Hardware

Upgrade your trailer or RV with this complete triple axle suspension kit from Lippert. Featuring 1,750-lb leaf springs (with an unloaded eye-to-eye length of 23-3/16"), a 1.75" axle tube diameter, and 33" axle spacing, this bundle includes standard equalizers, hangers, and all the hardware needed for a smoother, more reliable towing experience. Compatible with Dexter, Alko, Rockwell, and Quality Axles.

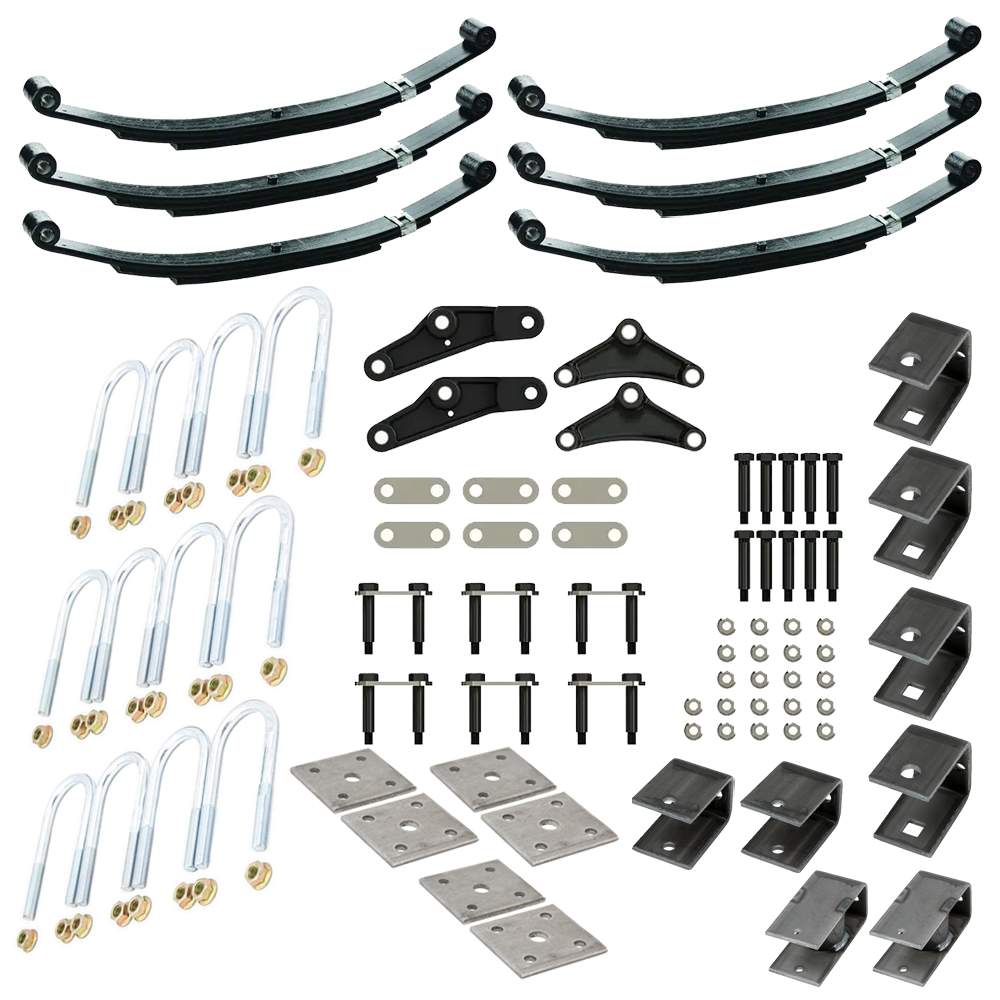

Bundle Contents:

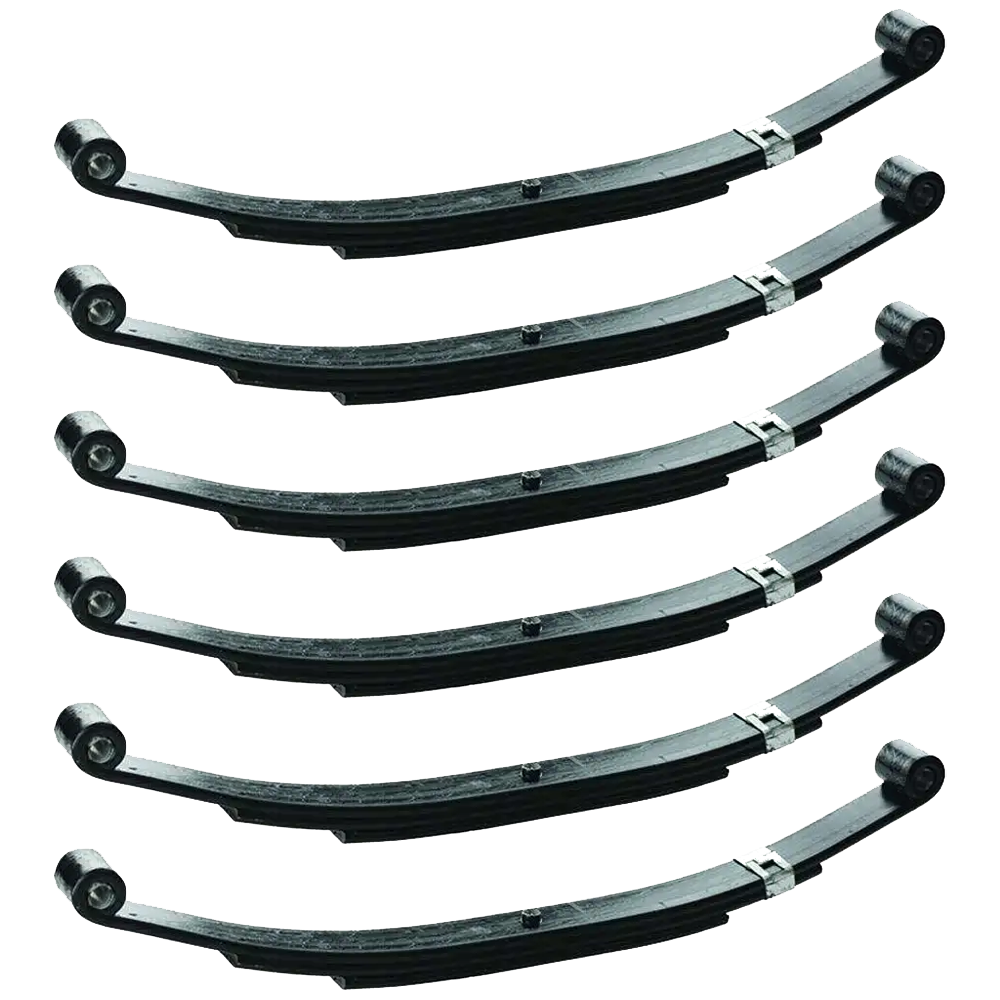

• QTY (6): Replacement Double-Eye Leaf Spring, 1,750-lb Capacity
  • Unloaded eye-to-eye length: 23-3/16"
  • Loaded eye-to-eye length: 24"
  • Spring width: 1-3/4"
  • 3 leaves per spring

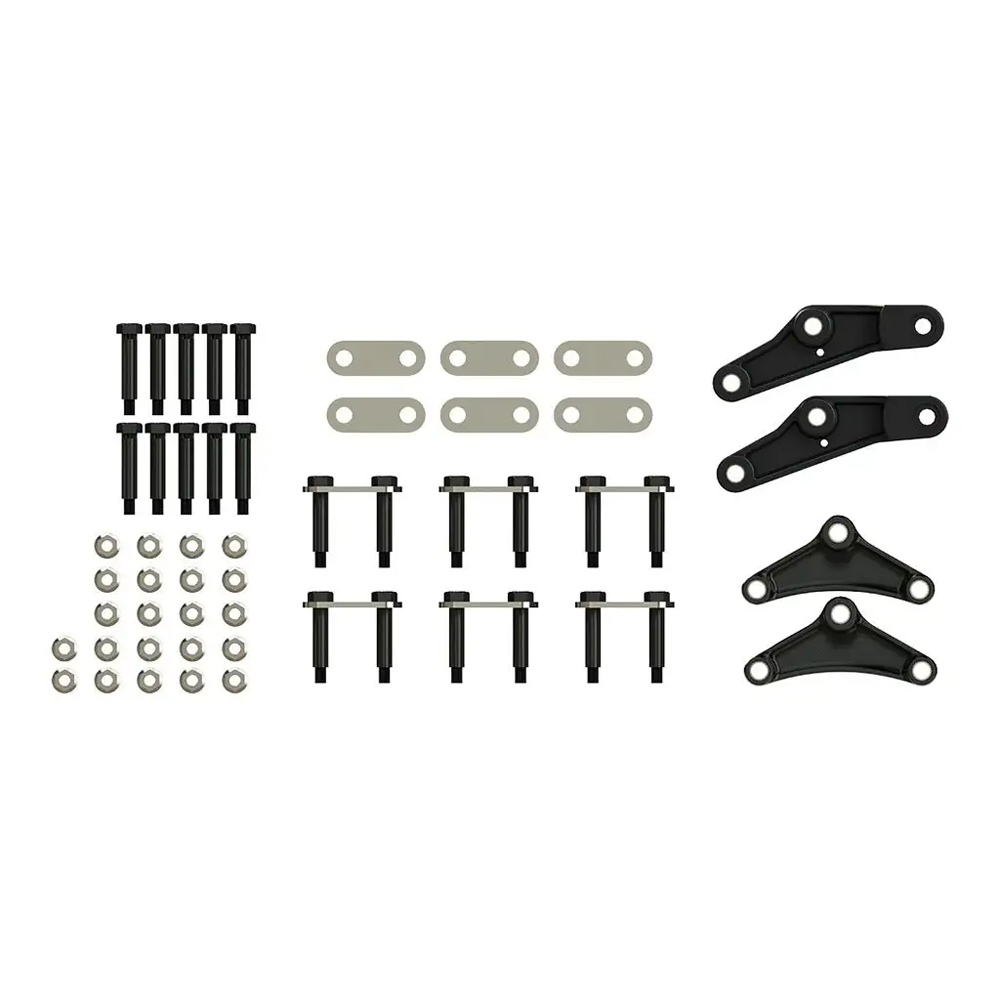

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Standard equalizers and bolts
  • Includes shackle links, mounting hardware, and equalizers

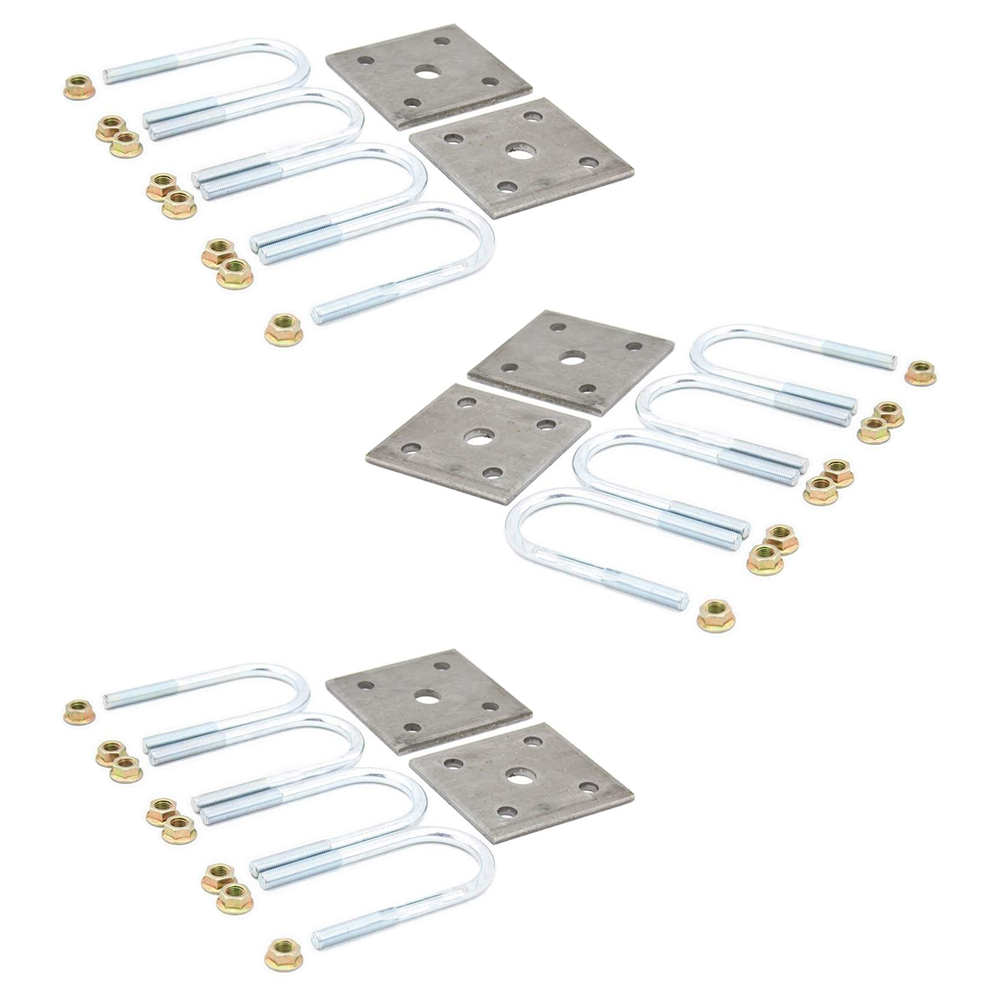

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Exact-match replacement kit
  • Size: 1.75" tube
  • U-bolt design
  • Installs just like your original equipment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-lb Axle Rating
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Welded to chassis for axle mounting
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Rating
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Welded to chassis for axle mounting
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Axle Rating
  • Length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"
  • Welded to chassis for axle mounting

For best results, always verify compatibility with your existing components, ensure proper alignment, and perform regular maintenance of your trailer suspension system.
