Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 33" Spacing, 2,500 lb Leaf Springs (23-1/8" Unloaded), Standard Equalizers, Hangers & Hardware � Dexter, Alko, Rockwell

Lippert Triple Axle Suspension Kit – 2.375" Tube, 33" Spacing, 2,500 lb Leaf Springs (23-1/8" Unloaded), Standard Equalizer, Hangers & Hardware

Upgrade your triple-axle trailer with this comprehensive Lippert suspension bundle. Designed to fit Dexter, Alko, Lippert, Rockwell, and other quality axles, this kit helps ensure proper ride height, smoother towing, and enhanced stability under heavy loads. It includes leaf springs, an equalizer AP kit, axle mounting hardware, and front/center/rear hangers for a complete suspension overhaul.

Bundle Contents:

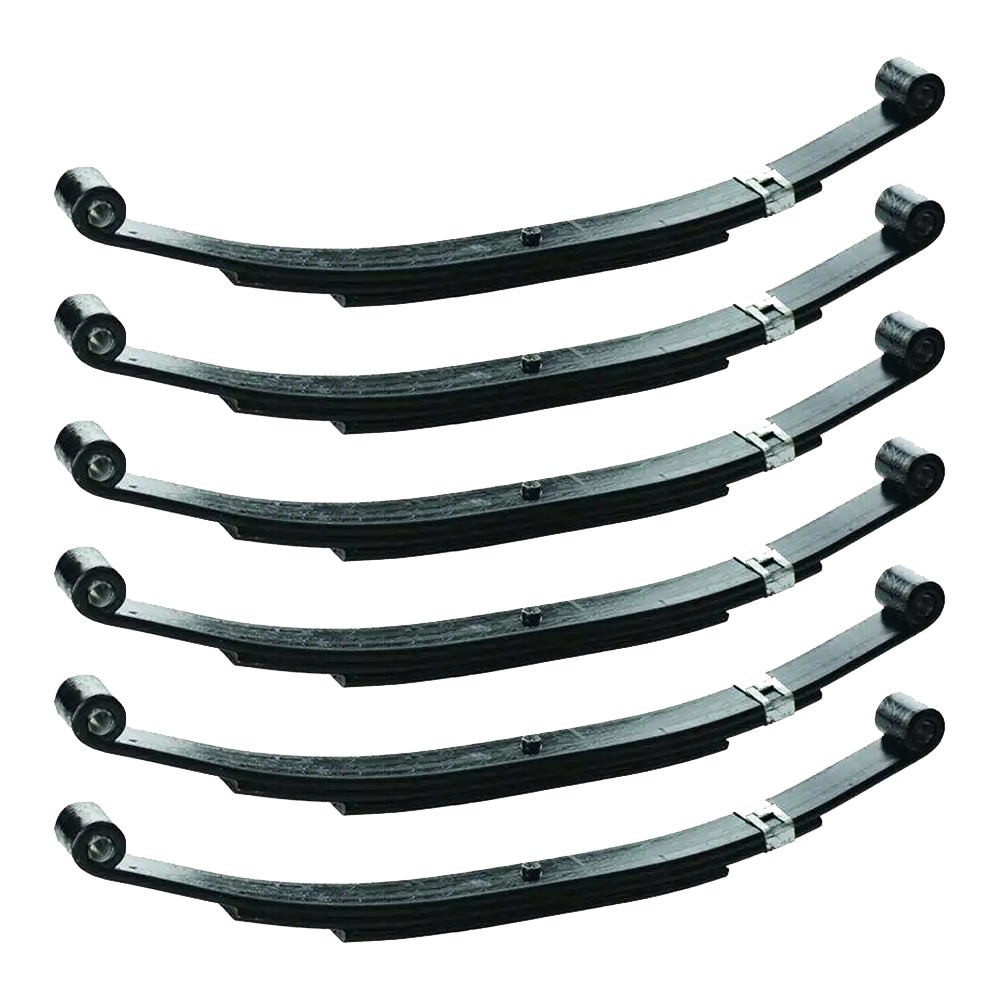

• QTY (6): 2,500 lb Leaf Springs (23-1/8" Unloaded Eye-to-Eye)
  • 2,500 lb spring capacity per spring (4 leaves)
  • 1-3/4" wide, 23-1/8" eye-to-eye unloaded, 24" loaded
  • 3-1/2" arch height unloaded, 2-1/2" arch height loaded
  • 9/16" spring eye diameter

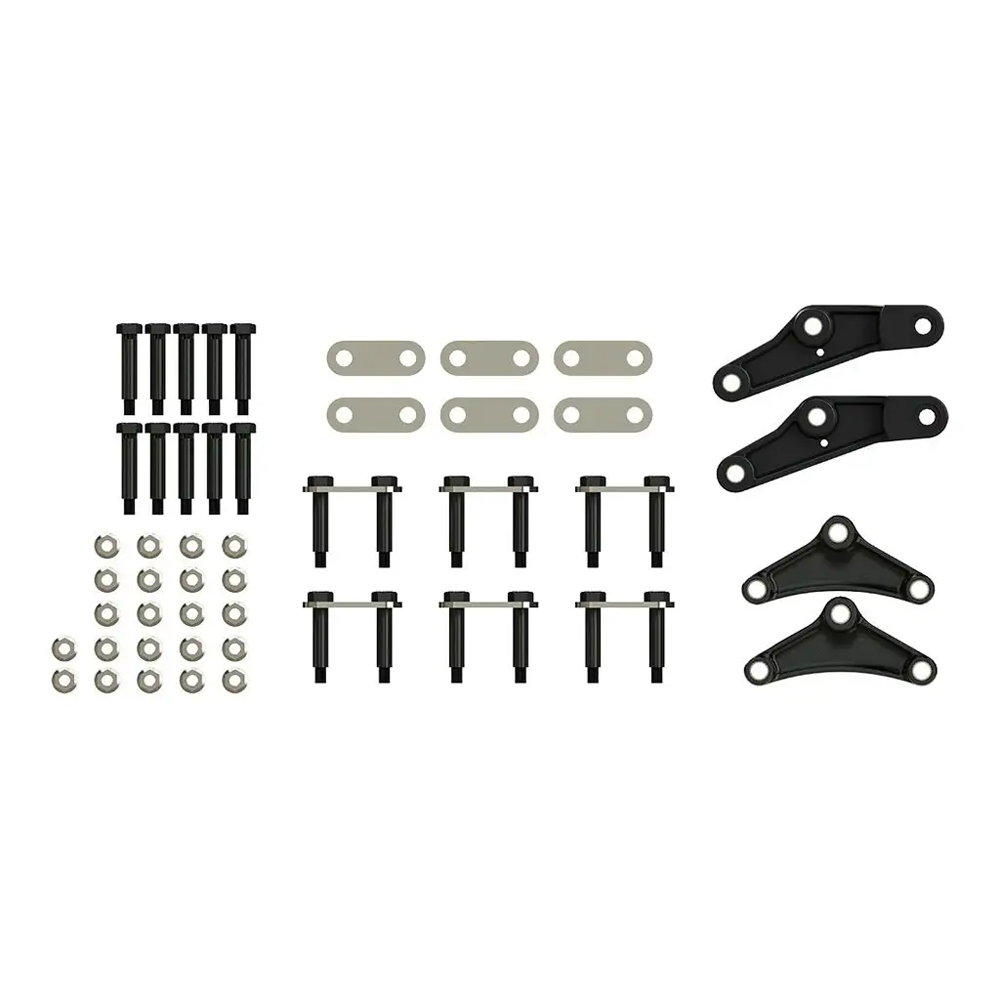

• QTY (1): Triple Axle AP Kit with Standard Equalizer & Standard Bolts
  • Includes shackle links, mounting hardware, and standard equalizers
  • Installs just like original equipment for secure, even weight distribution

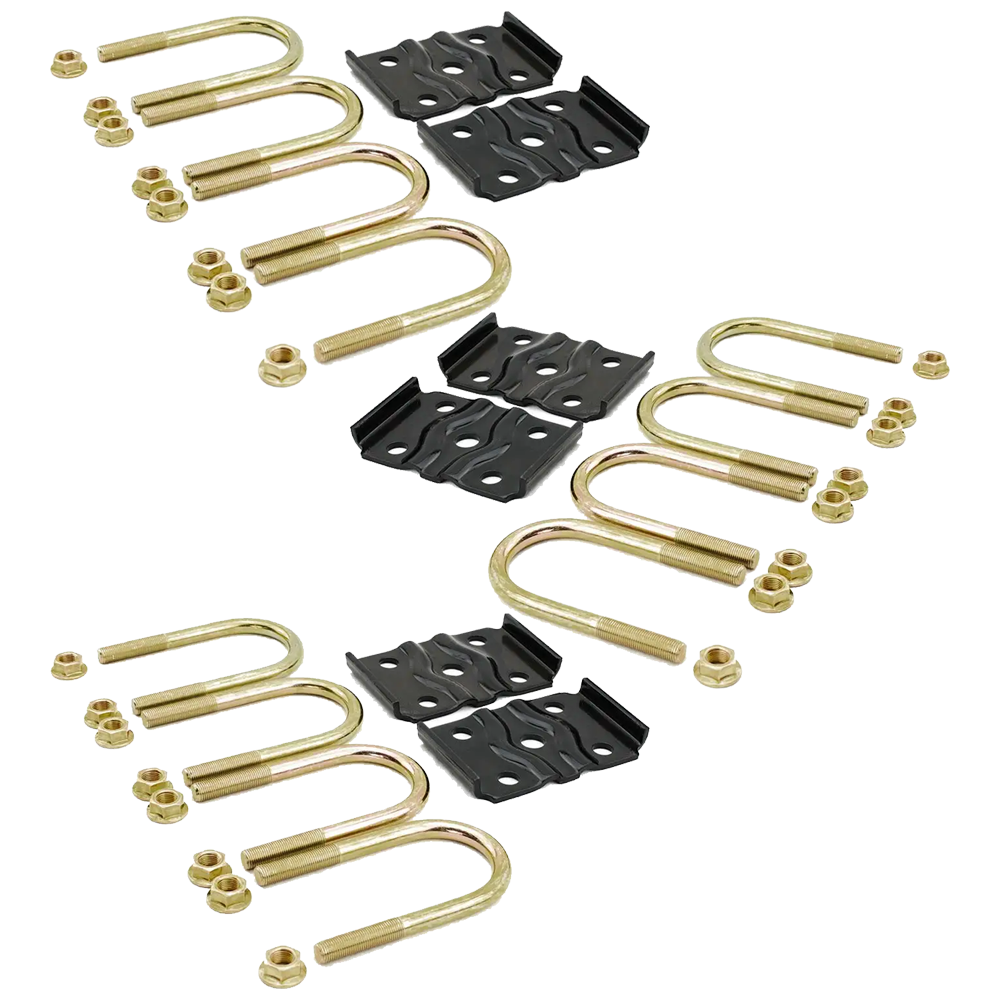

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • U-bolt style bracket kits sized for 2.375" axle tubes
  • Exact-match replacement for existing hardware
• QTY (2): Front Trailer Axle Hanger
  • Length: 4-5/16", Width: 2-3/16"
  • Hole Size: 9/16"
  • Distance to Hole (on-center): 3-9/16"
  • Welds to chassis for secure axle mounting
• QTY (4): Center Trailer Axle Hanger
  • Length: 4-1/2", Width: 3-1/8"
  • Hole Size: 7/8"
  • Distance to Hole: 3-5/16"
  • For the middle axle position on triple-axle setups
• QTY (2): Rear Trailer Axle Hanger
  • Length: 6", Width: 2-1/4"
  • Hole Size: 5/16"
  • Distance to Hole: 4"
  • Mounts at the rearmost axle position

For best performance, always verify that all suspension components (springs, hangers, mounting kits, and hardware) match your trailer’s axle spacing and rating requirements. Perform routine maintenance checks to ensure safer, smoother travels.
