Lippert Triple Axle Suspension Kit, 1.75" Axle Tube, 33" Spacing, 2,600 lb Leaf Springs (25-1/4" Unloaded), Standard Equalizer, Hangers & Hardware (Dexter/Alko/Rockwell Compatible)
$728.99
Lippert Triple Axle Suspension Kit, 1.75" Axle Tube, 33" Spacing, 2,600 lb Leaf Springs (25-1/4" Unloaded), Standard Equalizer, Hangers & Hardware (Dexter/Alko/Rockwell Compatible)
Enhance your RV or trailer setup with this complete Lippert triple axle suspension kit. Engineered for 1.75" axle tubes at 33" spacing, each leaf spring provides a 2,600 lb capacity with a 25-1/4" unloaded eye-to-eye length. This bundle includes standard equalizers, hangers, and all necessary hardware for a straightforward, reliable installation.

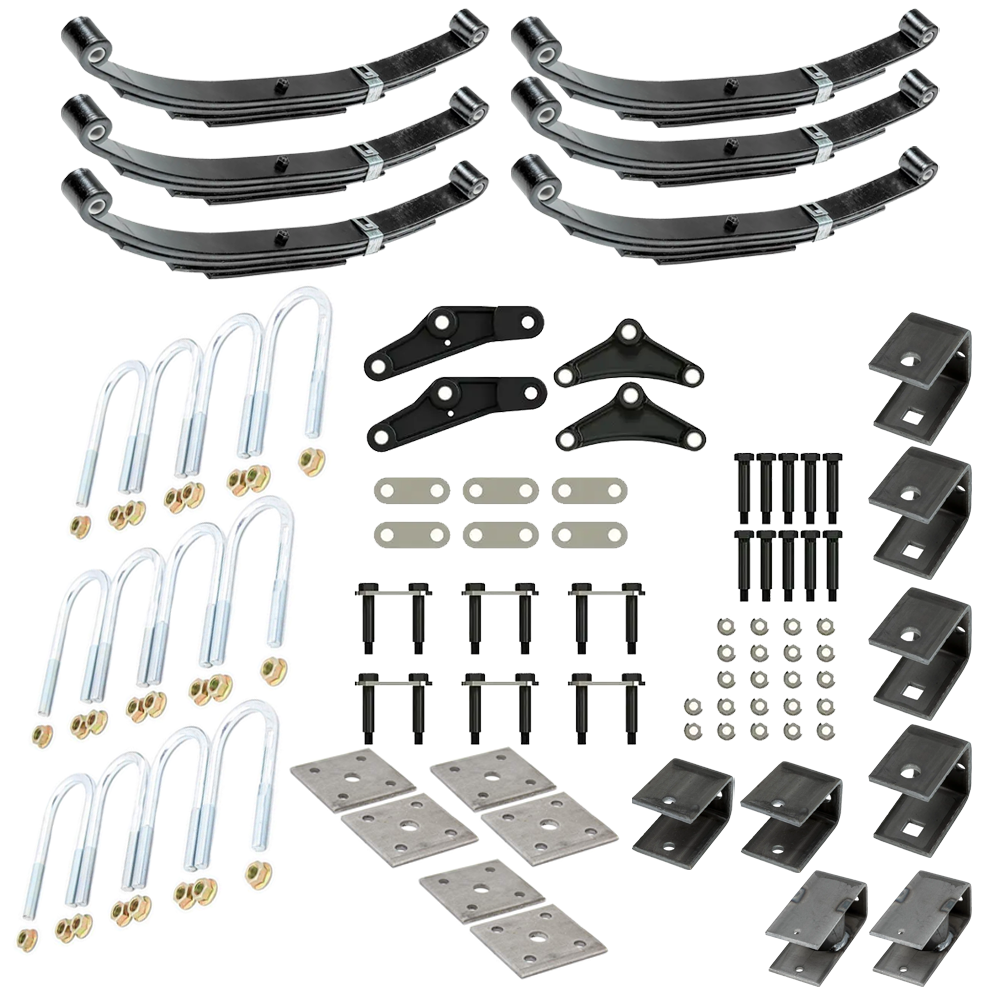

Bundle Contents:
-

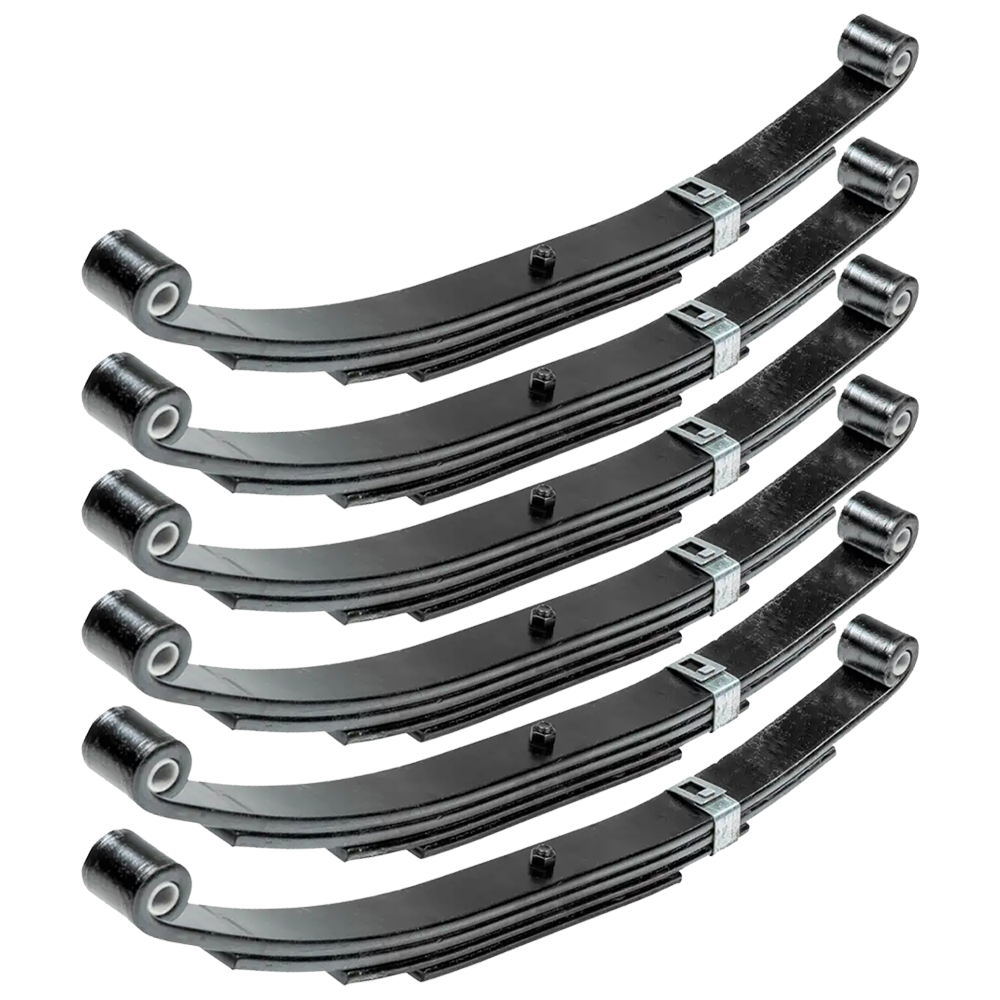

QTY (6): Replacement Leaf Spring for RV Trailer Suspension System – 26", 2,600 lbs.
- Replacement leaf spring for RV trailer
- Length: 25-1/4" unloaded, 26" loaded
- Weight capacity: 2,600 lbs.
- Width: 1-3/4"
- Number of leaves: 4
- Arch height: 3-1/8" unloaded, 1-3/4" loaded
- Eye diameter: 9/16"
- Dexter Compatible Part Number: 072-026-00
-

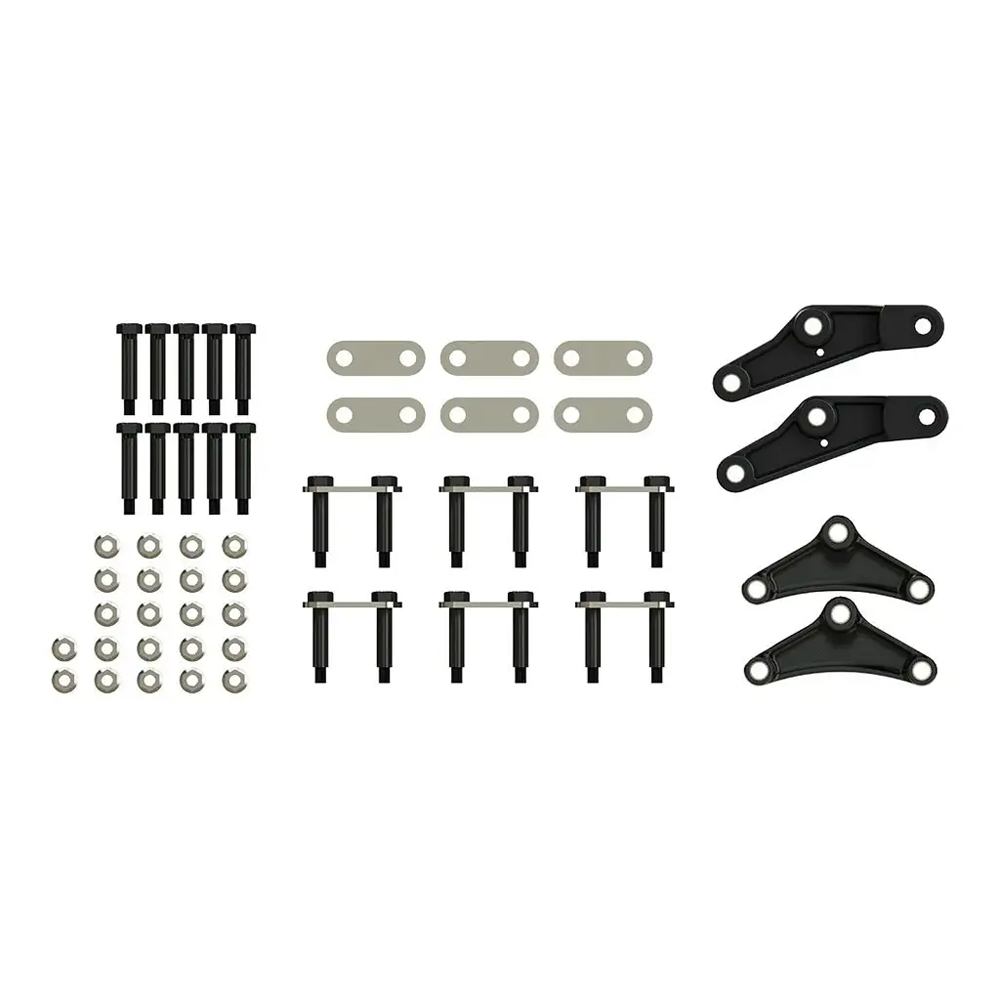

QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
- Replacement triple axle AP kit
- Includes shackle links, mounting hardware, and standard equalizers
- Dexter Compatible Part Number: A/P-335-00
-

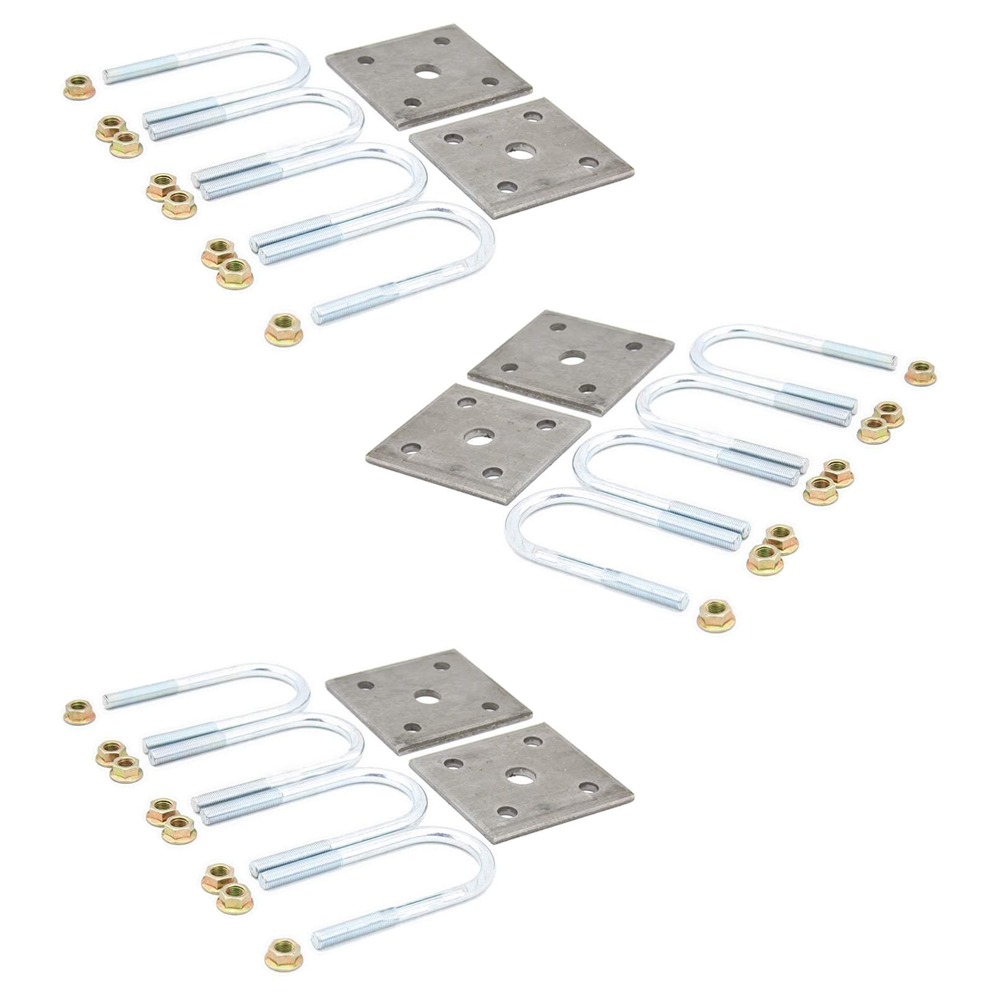

QTY (3): Axle Mounting Kit – 1.75" Tube
- Replacement axle mounting kit
- U-bolt design for secure attachment
- Please consult your original hardware before purchasing
- Dexter Compatible Part Number: K71-391-00
-
QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Axle Rating
- Welded to chassis to allow mounting of axles and axle components
- Length: 4-5/16", Width: 2-3/16"
- Hole size: 9/16", Distance to hole: 3-9/16" on-center
- Dexter Compatible Part Number: 028-001-00
-
QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Rating
- Welded to chassis to allow mounting of axles and axle components
- Length: 4-1/2", Width: 3-1/8"
- Hole size: 7/8", Distance to hole: 3-5/16"
- Dexter Compatible Part Number: 029-001-00
-
QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Axle Rating
- Welded to chassis to allow mounting of axles and axle components
- Length: 6", Width: 2-1/4"
- Hole size: 5/16", Distance to hole: 4"
- Dexter Compatible Part Number: 030-028-00
Always verify your existing trailer components, ensure proper loading, and maintain your suspension regularly for optimal performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Suspension Kit |
| Axle Rating | 2,200 - 8,000 lbs. |
| Leaf Spring Capacity | 2,600 lbs. each |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 25-1/4" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3-1/8" |
| Arch Height Loaded | 1-3/4" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 1.75" |
| Equalizer Type | Standard |
| Axle Configuration | Triple |
