Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 33" Spacing, 20-3/8" Unloaded, 1,000 lb Leaf Springs (Standard Equalizer) w/ Hangers & Hardware � Dexter, Alko, Rockwell

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 33" Spacing, 20-3/8" Unloaded Leaf, 1,000 lb Capacity

Upgrade your triple axle trailer with this complete Lippert suspension kit, designed for 1.75" axle tubes spaced at 33". Featuring six (6) 1,000-lb leaf springs (20-3/8" unloaded eye-to-eye length), a standard triple axle equalizer, plus front, center, and rear hangers, this bundle delivers a stable, smoother ride. Ideal for Dexter, Alko, Rockwell, Lippert, and other quality axles, it arrives with all the hardware you need for straightforward installation.

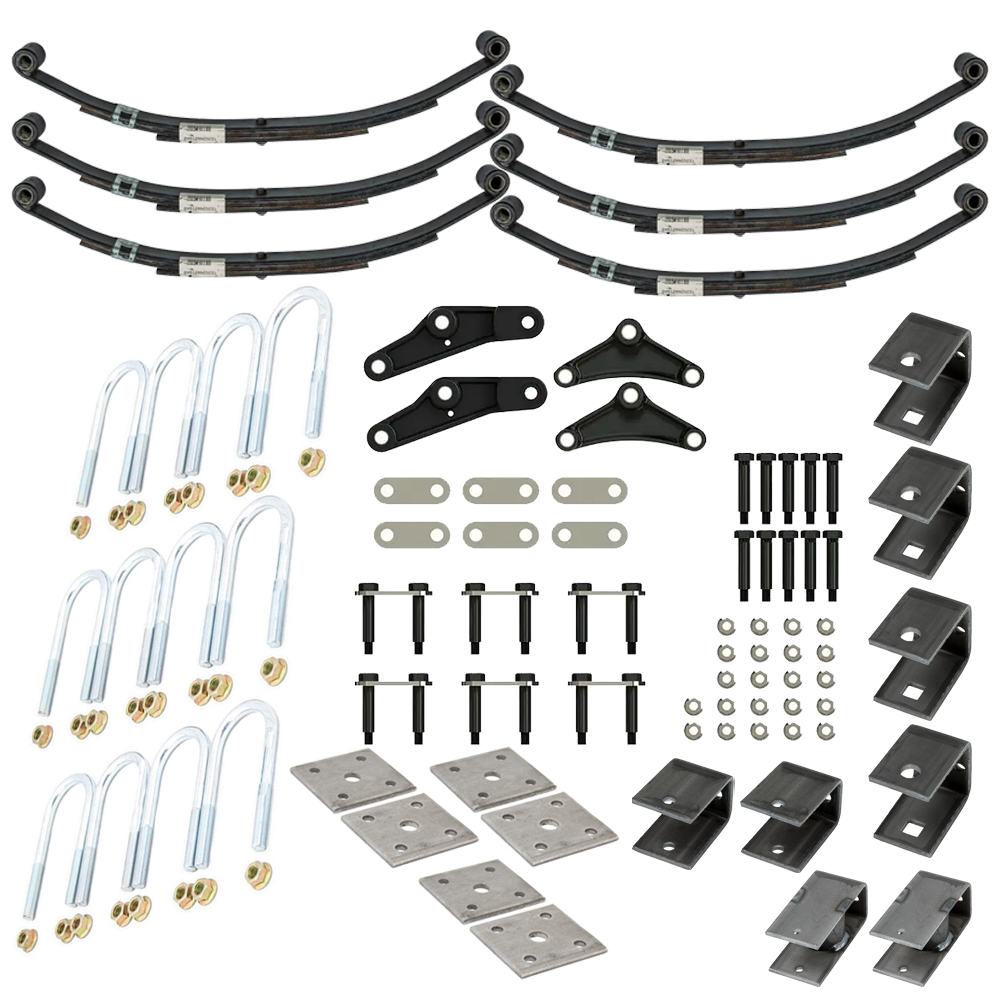

Bundle Contents:

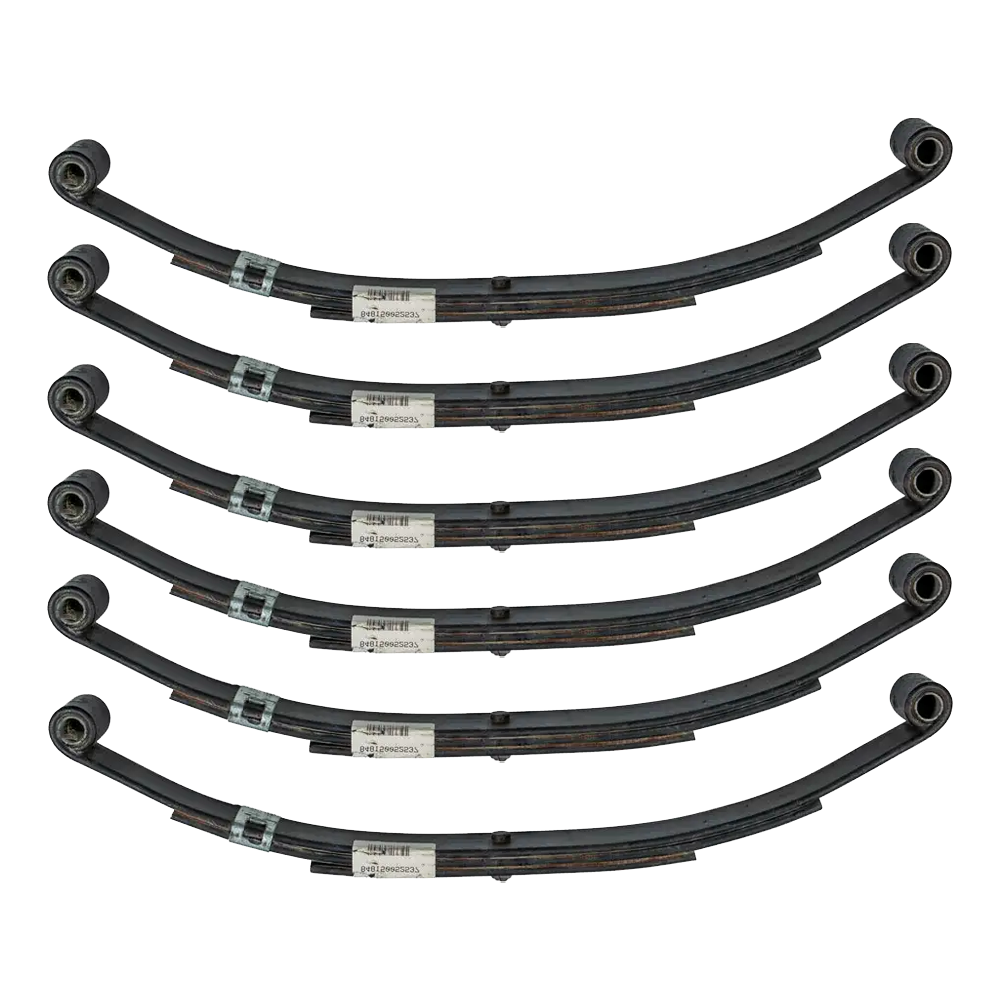

• QTY (6): 1,000 lb Leaf Spring (20-3/8" Unloaded)
  • 1,000-lb capacity, 1-3/4" width, 3 leaves
  • 20-3/8" eye-to-eye unloaded, 21" loaded
  • 2-7/8" arch height unloaded, 2-1/8" loaded
  • 9/16" spring eye diameter

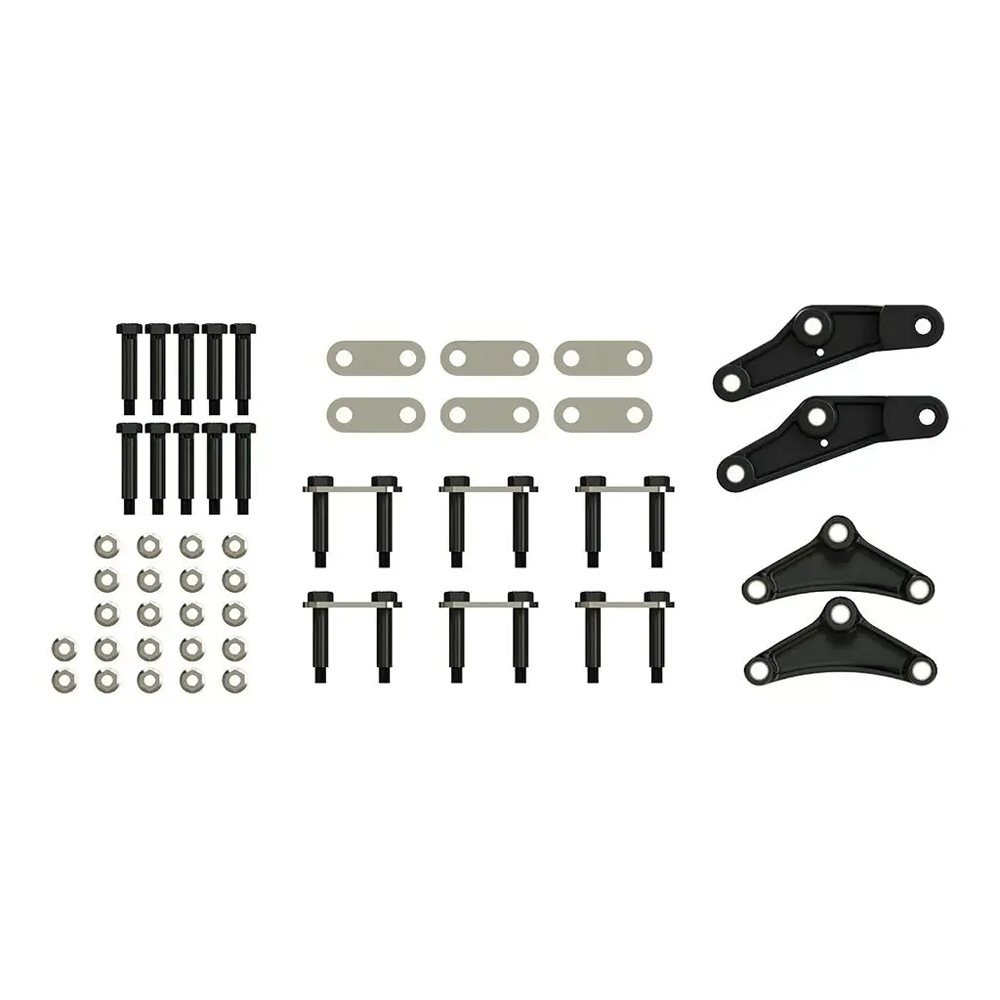

• QTY (1): Triple Axle AP Kit (Standard Equalizer + Bolts)
  • Standard equalizer for triple axle setups
  • Shackle links, mounting hardware, bolts included
  • Exact-match replacement for straightforward install

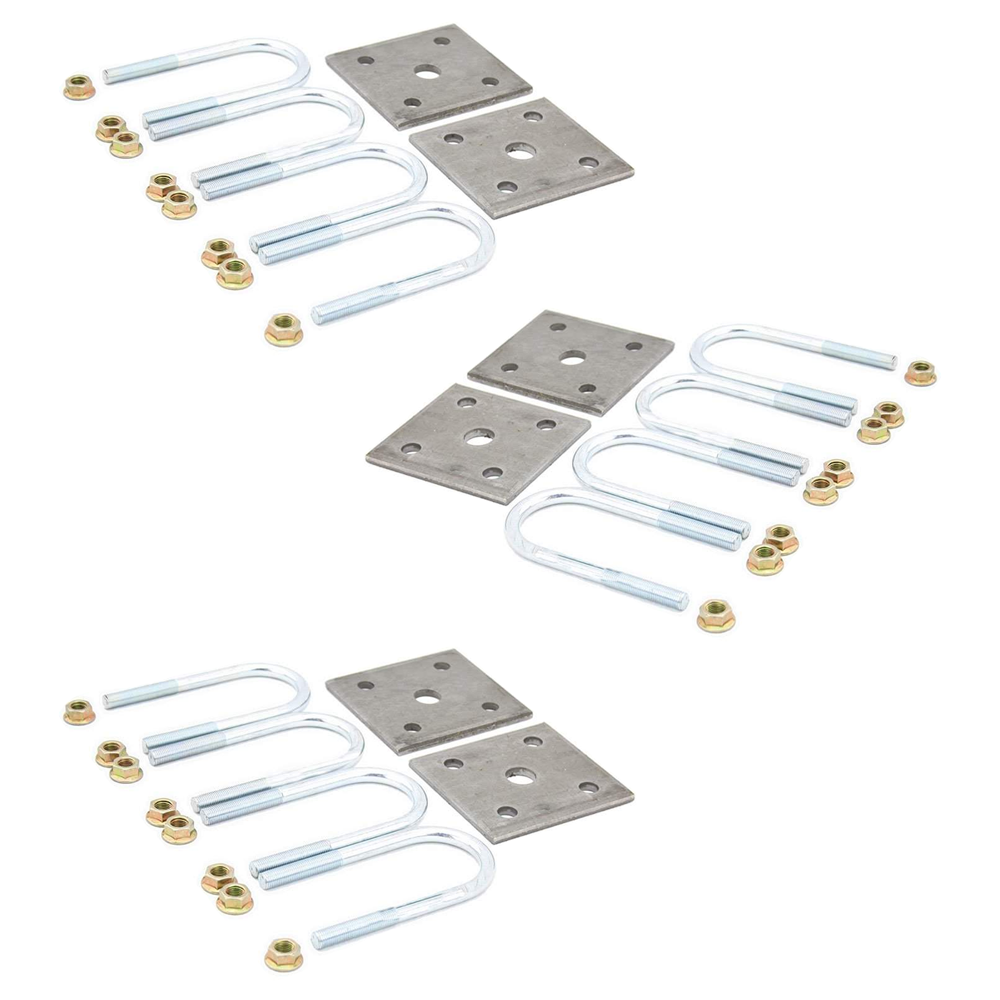

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Direct replacement U-bolt kits for 1.75" axle tubes
  • Ensures secure, stable suspension attachment
  • Installs just like the original equipment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Axle capacity: 2,200–8,000 lbs
  • Welded to chassis for mounting axles and components
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Distance to hole: 3-5/16" on-center
  • Hole size: 7/8"
  • Axle capacity: 2,200–8,000 lbs
  • Universal design fits competitor axles
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Distance to hole: 4" on-center
  • Hole size: 5/16"
  • Axle capacity: 2,200–8,000 lbs
  • Reliable performance and durability

For best results, verify all original equipment specs before installation. Performing regular maintenance and inspections will help prolong the life and performance of your trailer’s suspension system.
