Lippert Triple Axle Suspension Kit � 1.75" Axle Tube � 33" Spacing � 23-1/8" 1,250-lb Leaf Springs (Standard Equalizer) w/ Hangers & Hardware � Dexter/Alko/Rockwell Compatible

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube – 33" Spacing – 23-1/8" 1,250-lb Leaf Springs (Standard Equalizer) w/ Hangers & Hardware

Upgrade your triple axle trailer with this all-in-one Lippert suspension kit, designed to work seamlessly with 1.75" axle tubes and 33" spacing. Each 23-1/8" unloaded leaf spring supports 1,250 lbs. for a smooth ride, and the standard equalizer assembly keeps your axles in proper alignment. The included front, center, and rear hangers with hardware ensure a secure, durable installation. Compatible with Dexter, Alko, Rockwell, and other quality axles.

Bundle Contents:

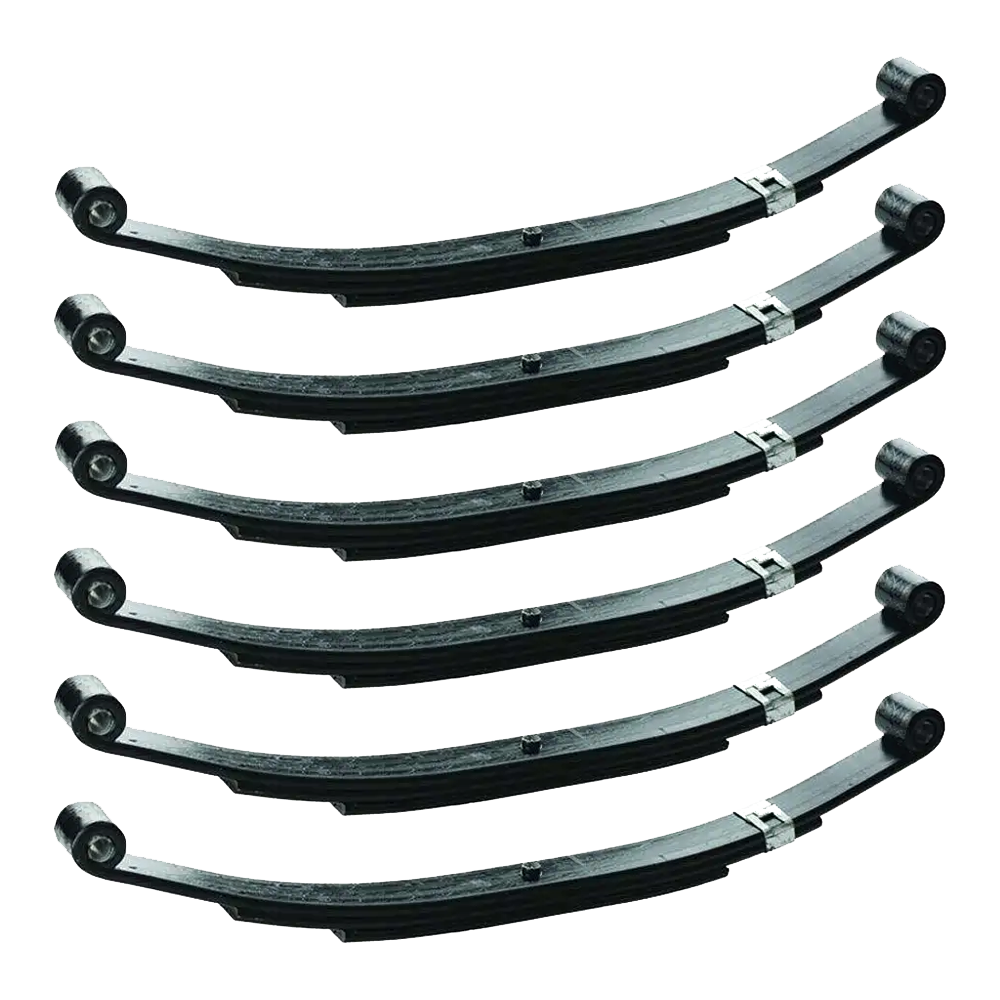

• QTY (6): 23-1/8" Unloaded Leaf Spring – 1,250-lb Capacity
  • Unloaded eye-to-eye length: 23-1/8"; loaded length: 24"
  • 1,250-lb capacity per spring
  • 1-3/4" wide, 3 leaves, 9/16" spring eye diameter
  • 3-1/2" arch height unloaded; 2-1/2" loaded

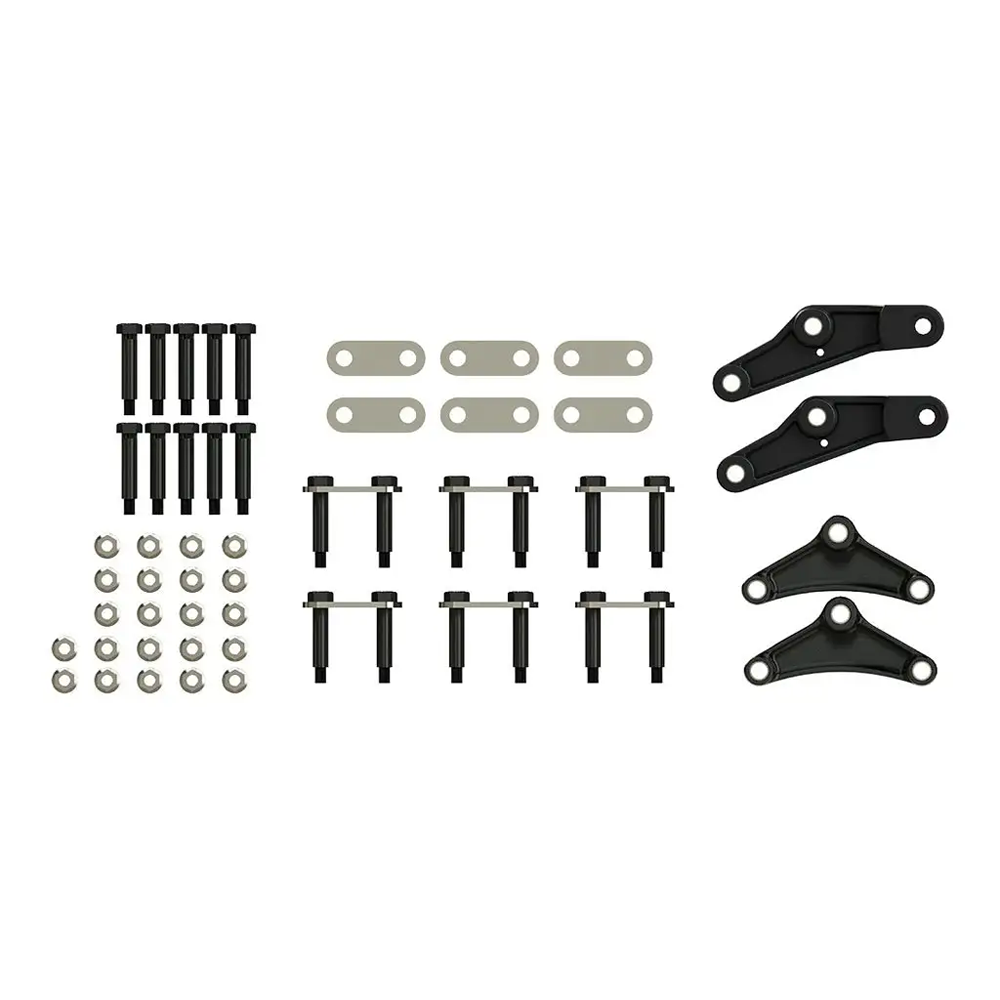

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Hardware
  • Includes shackle links, equalizers, and all standard bolts
  • Helps maintain proper axle alignment for smoother towing
  • Built for triple axle trailers

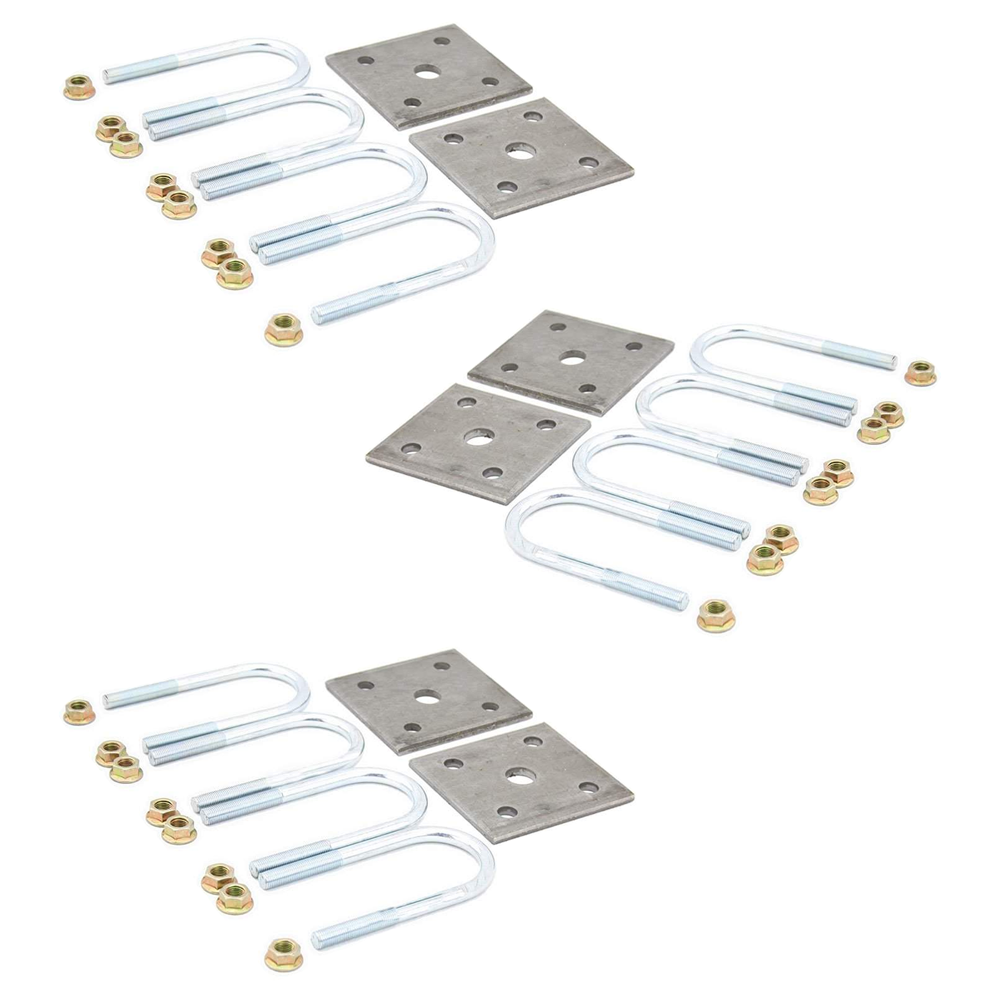

• QTY (3): Axle Mounting Kit – Fits 1.75" Axle Tube
  • U-bolt design for a secure clamp around the 1.75" axle tube
  • Direct replacement for worn or rusted mounting hardware
  • Maintains factory-style fit and function
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Rating
  • Length: 4-5/16"; width: 2-3/16"
  • Hole size: 9/16"; distance to hole: 3-9/16" on-center
  • Welds to chassis for front axle mounting
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Rating
  • Length: 4-1/2"; width: 3-1/8"
  • Hole size: 7/8"; distance to hole: 3-5/16" on-center
  • Welds to chassis for center axle mounting
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Rating
  • Length: 6"; width: 2-1/4"
  • Hole size: 5/16"; distance to hole: 4" on-center
  • Welds to chassis for rear axle mounting

For best results, confirm compatibility with your original equipment and adhere to recommended maintenance intervals for safe, reliable performance.
