Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 33" Spacing, 25-1/4" 2,200-lb Leaf Springs, Standard Equalizer, Hangers & Hardware (Dexter/Al-Ko Compatible)
$452.99
Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 33" Spacing, 25-1/4" 2,200-lb Leaf Springs
Upgrade or refresh your trailer’s ride with this complete Lippert triple axle suspension kit. Featuring 2,200-lb capacity, 25-1/4" unloaded-length leaf springs, a standard equalizer, plus hangers and hardware, this kit is fully compatible with Dexter, Al-Ko, Rockwell, and other quality axles. Enjoy a smoother, safer towing experience and simple installation with exact-match components.

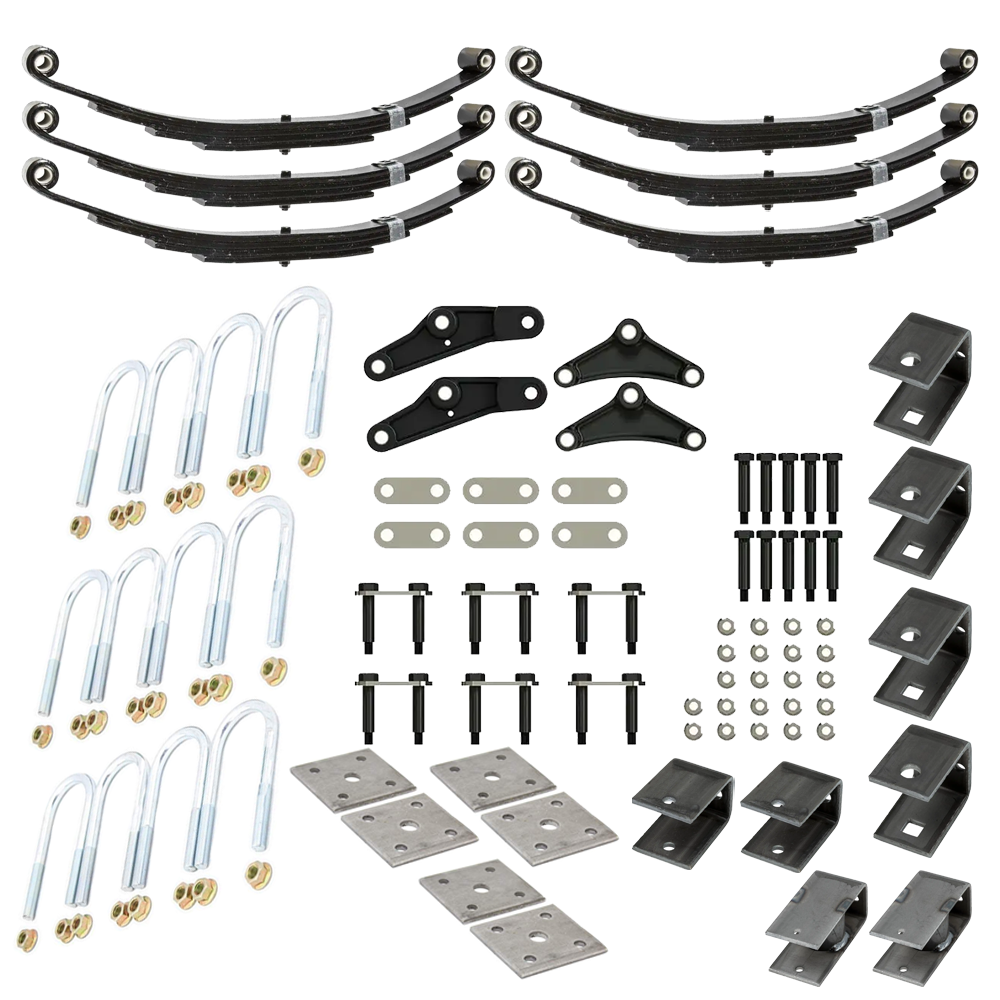

Bundle Contents:
-

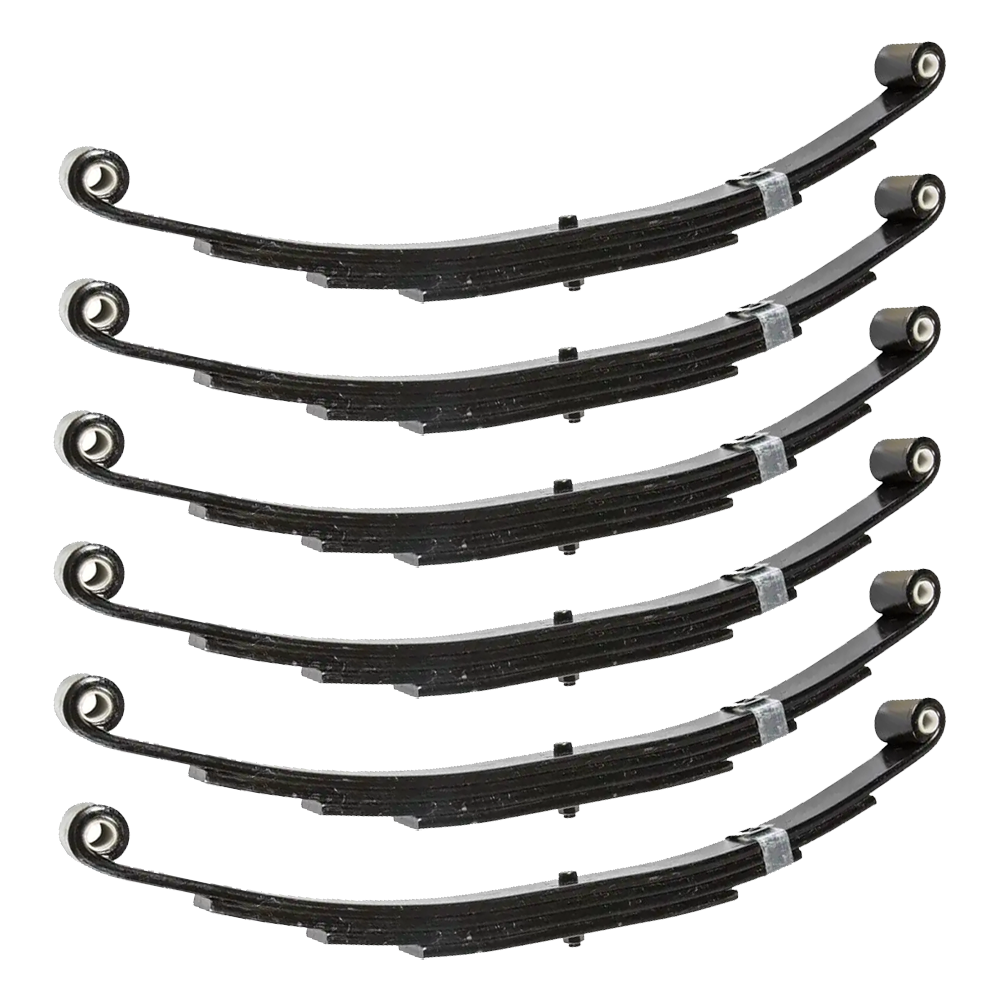

QTY (6): Replacement Leaf Spring for RV Trailer Suspension System
- Capacity: 2,200 lbs. (4 leaves, 1-3/4" width)
- Unloaded length (eye-to-eye): 25-1/4" | Loaded length: 26"
- Arch height: 3-1/8" unloaded, 2" loaded
- Spring eye diameter: 9/16"
- Dexter Compatible Part Number: 072-078-00
-

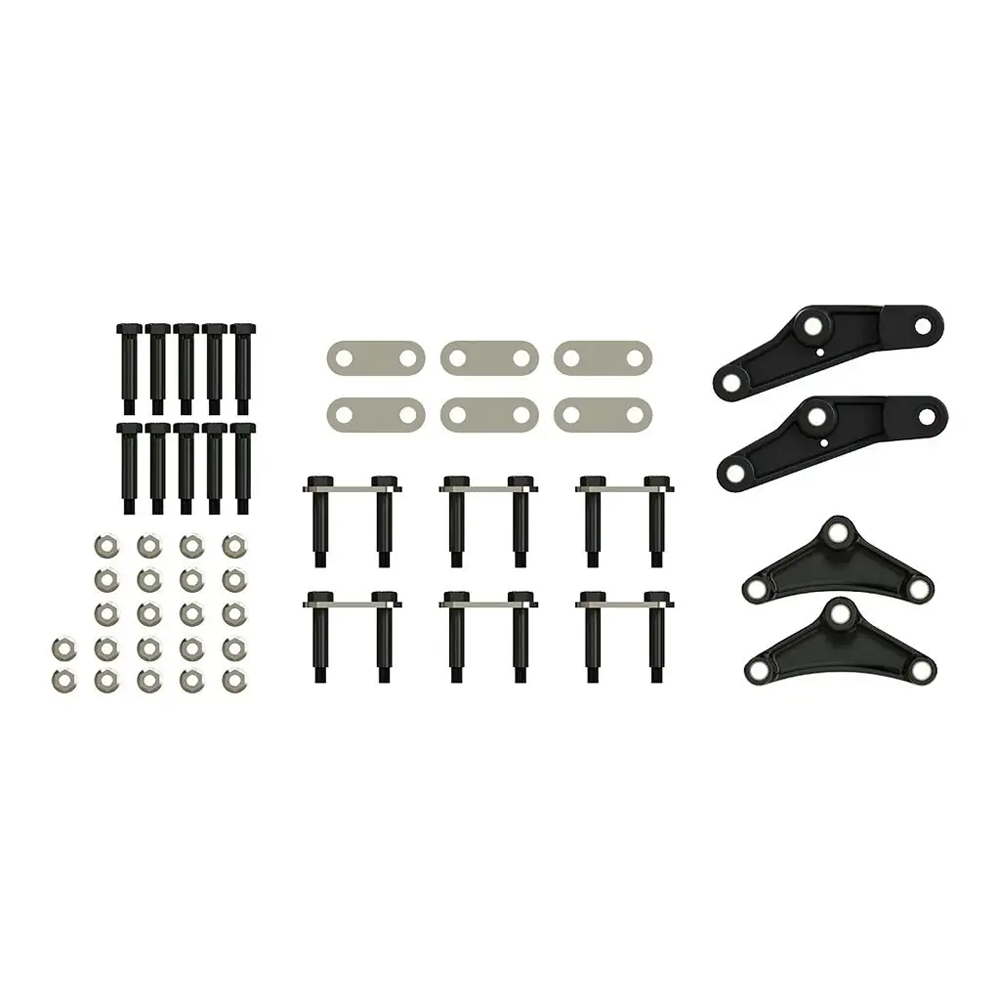

QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
- Includes shackle links, mounting hardware, and standard equalizers
- Direct replacement for seamless installation
- Dexter Compatible Part Number: A/P-335-00
-

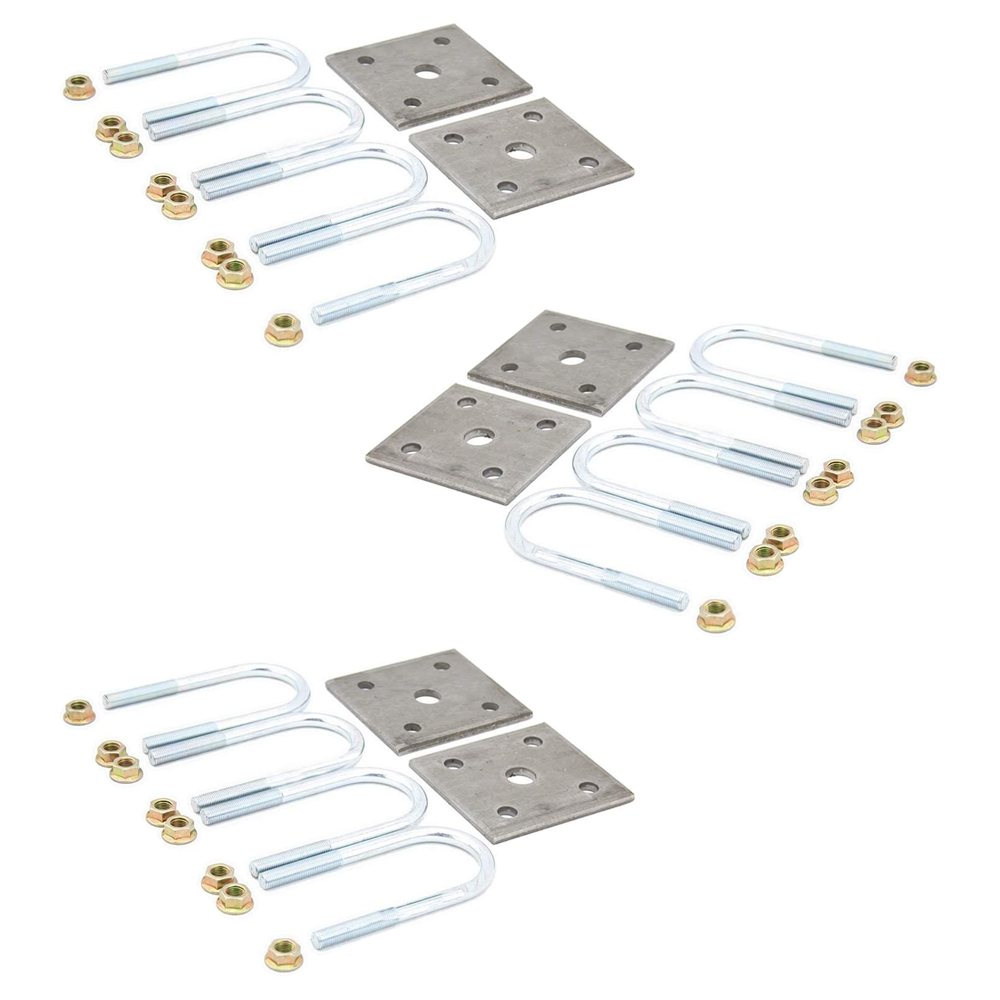

QTY (3): Axle Mounting Kit – 1.75" Tube
- U-bolt design for secure axle attachment
- Installs just like original hardware
- Dexter Compatible Part Number: K71-391-00
-
QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Axle Capacity
- Length: 4-5/16" | Width: 2-3/16"
- Distance to hole: 3-9/16" on-center | Hole size: 9/16"
- Dexter Compatible Part Number: 028-001-00
-
QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Capacity
- Length: 4-1/2" | Width: 3-1/8"
- Distance to hole: 3-5/16" | Hole size: 7/8"
- Dexter Compatible Part Number: 029-001-00
-
QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Axle Capacity
- Length: 6" | Width: 2-1/4"
- Distance to hole: 4" | Hole size: 5/16"
- Dexter Compatible Part Number: 030-028-00
Always confirm measurements, load ratings, and compatibility with your original equipment. Regularly inspect and maintain your trailer’s suspension system to ensure a safe, smooth ride.
| Specifications: | |
|---|---|
| Kit Type | Triple Axle Leaf Spring Suspension Kit |
| Axle Rating | 2,200 lbs. |
| Leaf Spring Capacity | 2,200 lbs. |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 25-1/4" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3-1/8" |
| Arch Height Loaded | 2" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 1.75" |
| Equalizer Type | Standard |
| Axle Configuration | Triple |
