Lippert Triple Axle Suspension Kit � 1.75" Axle Tube � 35" Axle Spacing � 20-3/8" (1,000 lb) Leaf Springs w/ Long Equalizer, Hangers & Hardware (Dexter/Alko/Rockwell/Quality Axles)

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube – 35" Spacing – 20-3/8" (1,000 lb) Leaf Springs

This complete triple axle suspension bundle is designed to outfit or upgrade your trailer with reliable, factory-grade components. It features six 1,000 lb leaf springs (20-3/8" unloaded length), a Lippert triple axle AP kit with long equalizers, and front/center/rear hangers with all necessary hardware. Engineered for 1.75" axle tubes and 35" axle spacing, this kit helps ensure smoother towing, enhanced ride quality, and dependable performance whether you’re hauling an RV or utility trailer.

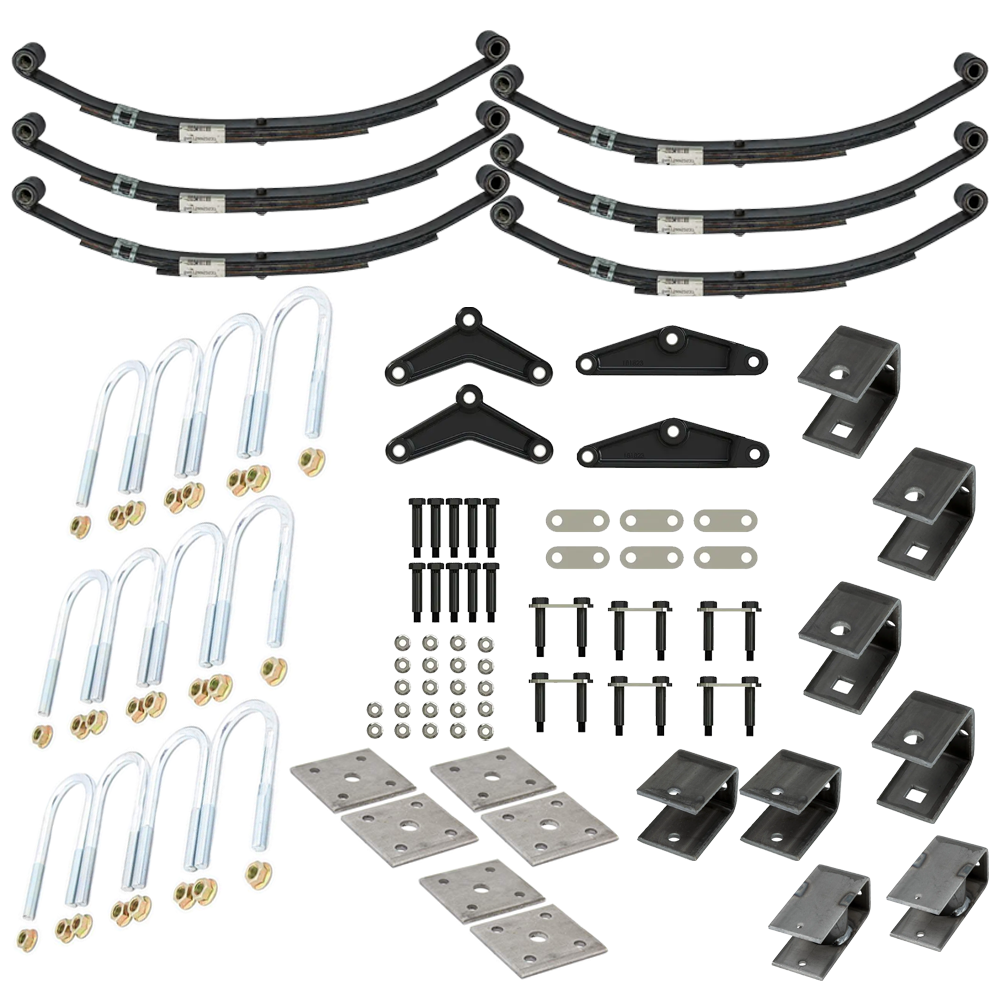

Bundle Contents:

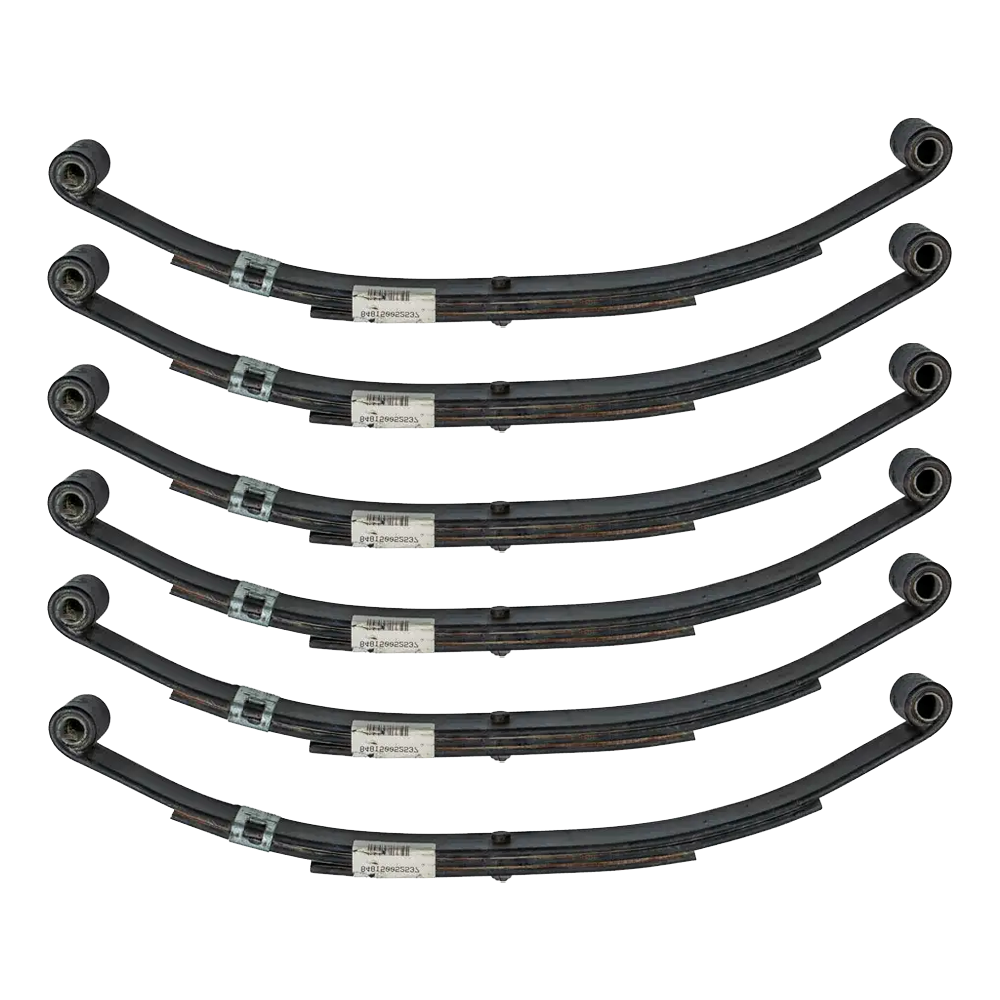

• QTY (6): 1,000 lb Leaf Spring – 20-3/8" Unloaded, 21" Loaded
  • 3 leaves per spring, 1-3/4" wide
  • Arch height: 2-7/8" (unloaded), 2-1/8" (loaded)
  • Spring eye diameter: 9/16"
  • Please reference your original equipment label before purchasing
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Standard bolts for secure installation
  • Direct replacement for OEM suspensions

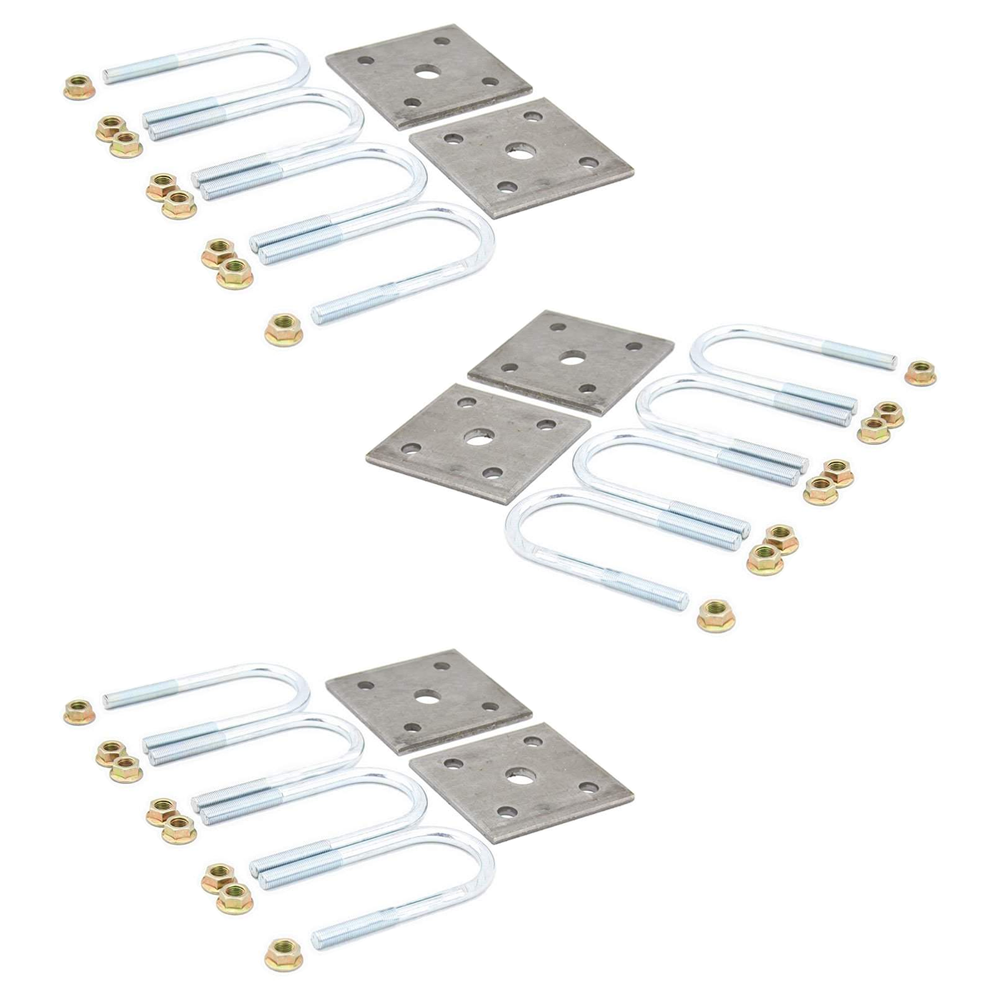

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Replacement axle mounting kit (U-bolt style)
  • Designed for 1.75" axle tubes
  • Installs like your original equipment
  • Please check existing hardware for correct sizing
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Welded to chassis to mount axles and axle components
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Length: 4-5/16", Width: 2-3/16"
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
  • Length: 4-1/2", Width: 3-1/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Length: 6", Width: 2-1/4"

For best results, confirm your trailer’s original equipment specifications before installing new suspension components. Regular inspections and maintenance will help extend the life of your towing system and ensure safer travels.
