Lippert Triple Axle Suspension Kit (1.75" Axle Tube, 35" Spacing, 1,750 lb Leaf Springs � 23-3/16" Unloaded, Long Equalizers, Hangers & Hardware), Compatible with Dexter/Alko/Rockwell

Lippert Triple Axle Suspension Kit – 1.75" Tube, 35" Spacing, 1,750 lb Leaf Springs

Enhance your trailer’s ride and stability with this complete Lippert triple axle suspension kit. It includes 1.75" axle tube U-bolts, 1,750-lb capacity leaf springs (23-3/16" unloaded length), long equalizers, plus front, center, and rear hangers with all necessary hardware. Perfect for RVs, utility trailers, and more—fully compatible with Dexter, Alko, and Rockwell axle setups.

Bundle Contents:

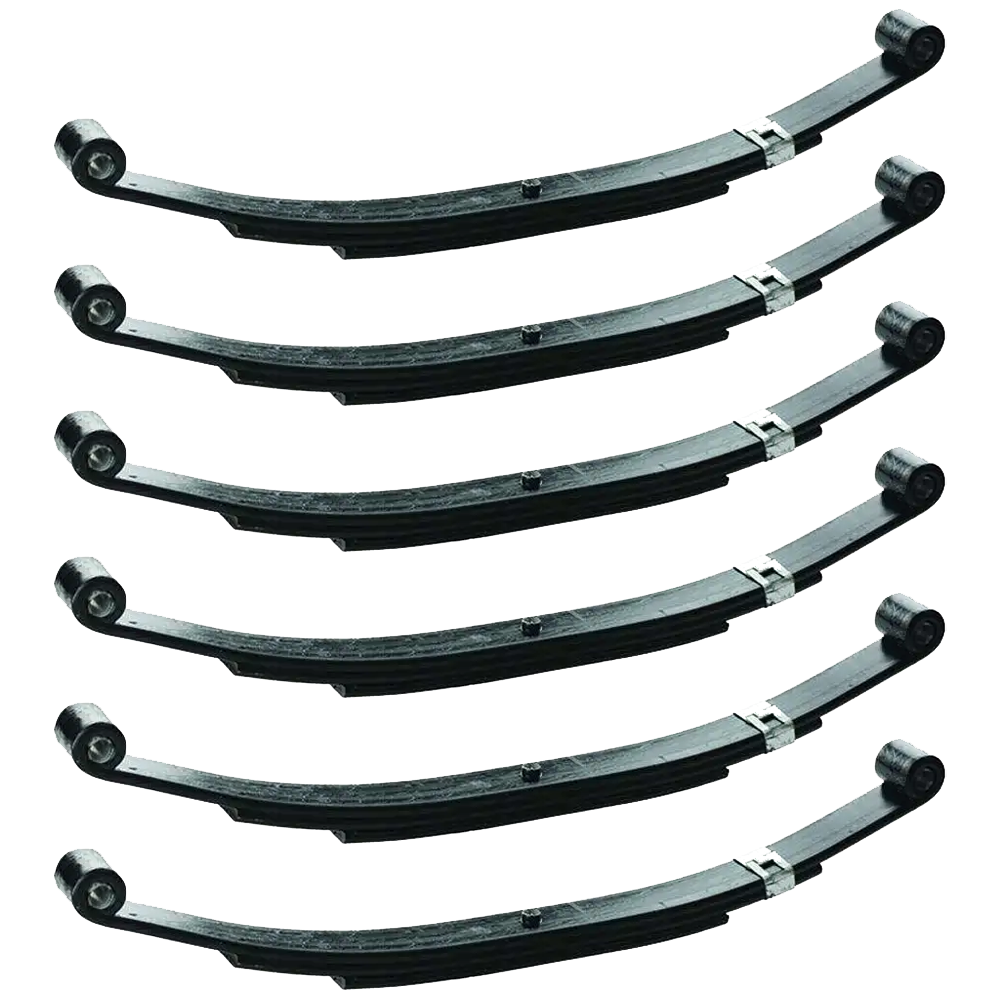

• QTY (6): Replacement Double-Eye Leaf Spring
  • 1,750-lb capacity, 1-3/4" width
  • 23-3/16" unloaded eye-to-eye length (24" loaded)
  • Arch height unloaded: 3.5"; loaded: 2.5"
  • Eye diameter: 9/16"
• QTY (1): Triple Axle AP Kit with Long Equalizer & Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Direct replacement for worn or damaged parts
  • Ensures proper tracking and smoother towing

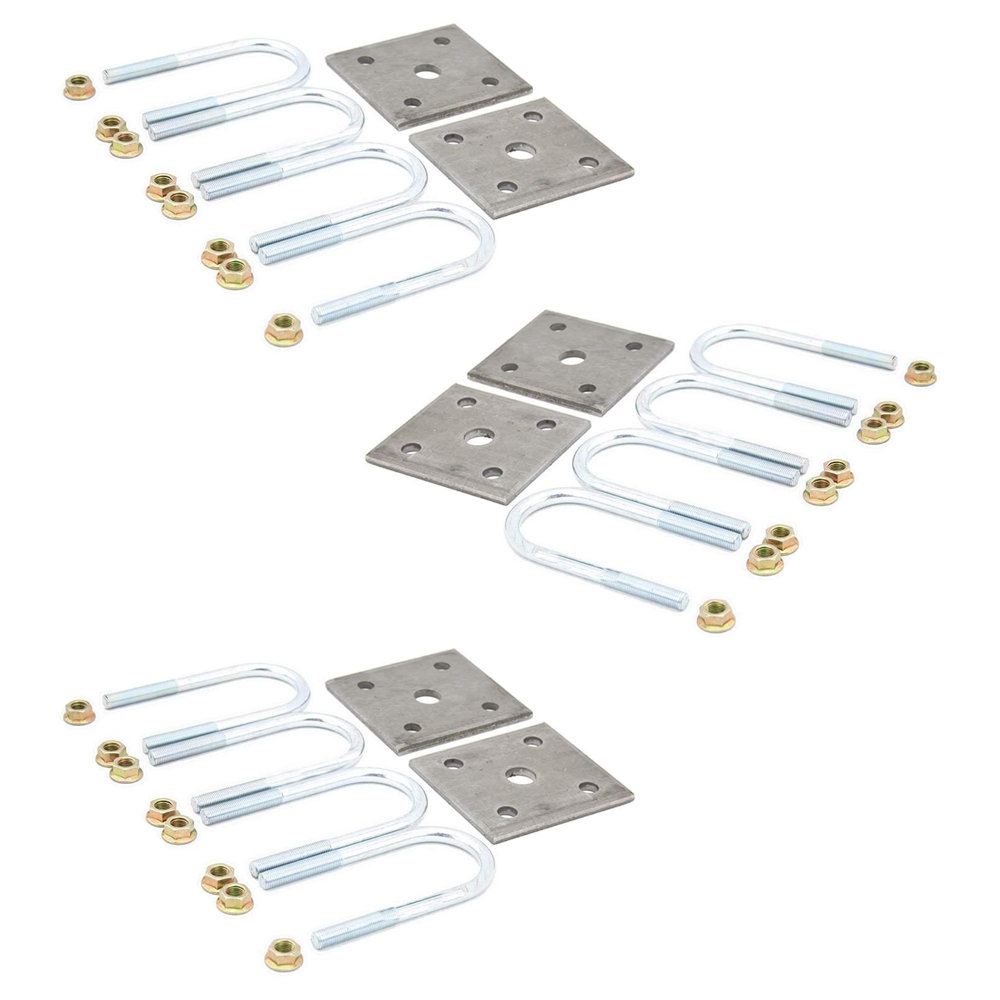

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Exact-match replacement U-bolts, plates, and hardware
  • Helps secure the axle to your leaf springs
  • Check your original equipment for compatibility
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000 lb Rating
  • Length: 4-5/16"; Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" (on-center)
  • Welded to chassis to mount front of axle
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Rating
  • Length: 4-1/2"; Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Secures middle axle position
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Rating
  • Length: 6"; Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"
  • Mounts at the back of the trailer suspension system

For optimal performance, verify compatibility with your original equipment, maintain recommended torque settings, and inspect all suspension components at regular intervals.
