Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 35" Spacing, 1,750-lb Leaf Springs (25-1/2" Unloaded), Long Equalizer, Hangers & Hardware � Dexter, Alko, Rockwell

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 35" Spacing, 1,750-lb Leaf Springs (25-1/2" Unloaded)

Get a complete suspension upgrade for your triple axle trailer with this Lippert kit designed for a 1.75" axle tube, 35" axle spacing, and 1,750-lb leaf springs (25-1/2" unloaded). Featuring long equalizers, heavy-duty hangers, and all required hardware, this bundle delivers smoother rides and dependable support. Compatible with popular axle brands like Dexter, Alko, Rockwell, and Quality Axles.

Bundle Contents:

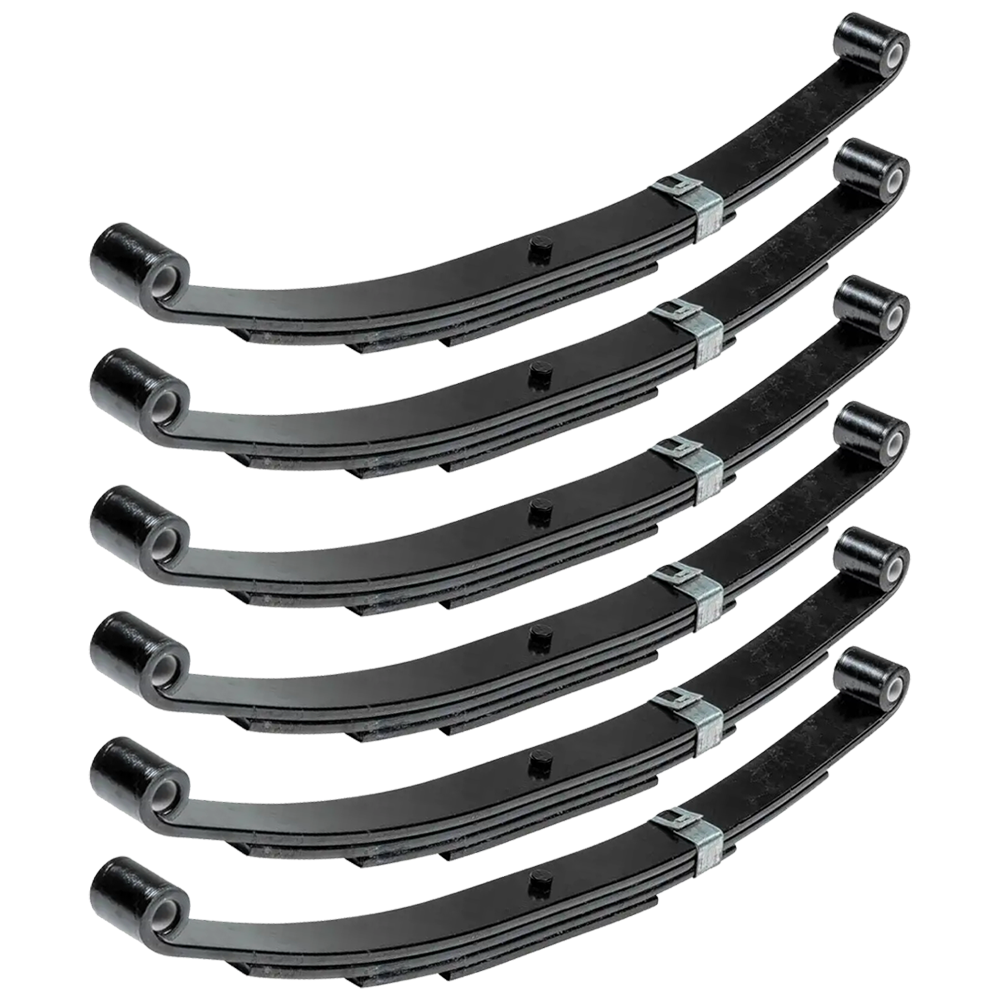

• QTY (6): Lippert Replacement Leaf Spring (1,750 lbs., 26" Loaded)
  • Replacement leaf spring for RV trailers
  • 1,750-lb capacity, 4 leaves, 1-3/4" width
  • 25-1/2" eye-to-eye unloaded, 26" loaded
  • Arch height: 3" (unloaded), 1-1/2" (loaded)
  • Spring eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-042-00

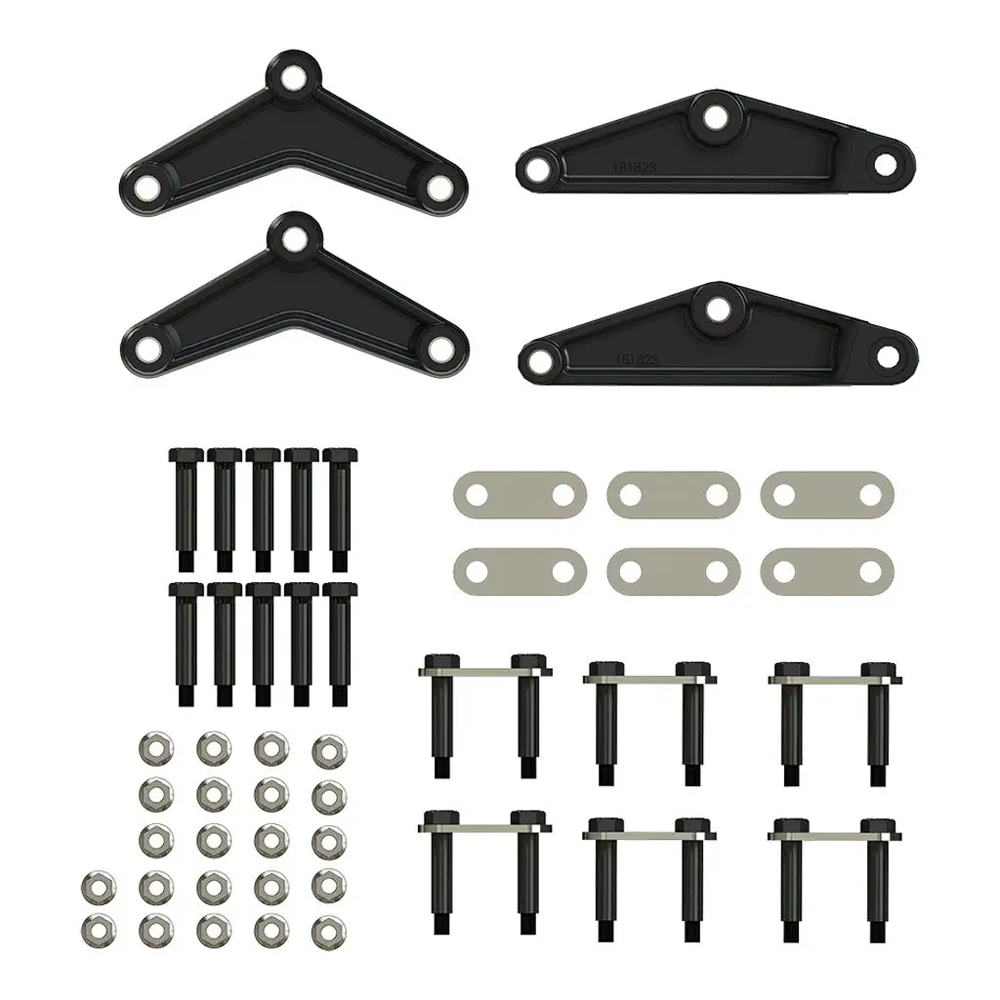

• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit with shackle links and mounting hardware
  • Long equalizers for optimal suspension movement
  • Standard bolts included

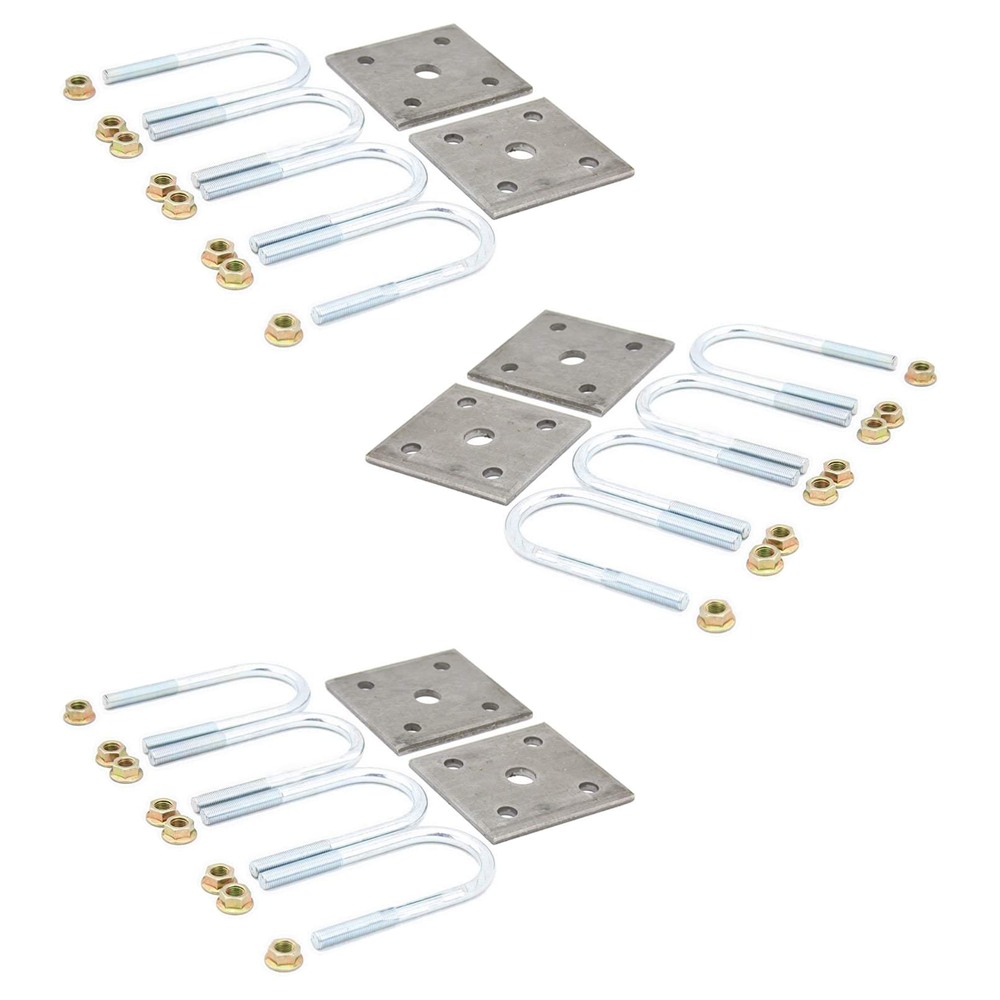

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Replacement axle mounting kit for 1.75" tubes
  • U-bolt design, installs like your original hardware
  • Dexter Compatible Part Number: K71-391-00
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Axle Rating
  • Welded to chassis for mounting axles and axle components
  • Length: 4-5/16", Width: 2-3/16"
  • Distance to hole: 3-9/16" on-center, Hole size: 9/16"
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Rating
  • Welded to chassis for mounting axles and axle components
  • Length: 4-1/2", Width: 3-1/8"
  • Distance to hole: 3-5/16", Hole size: 7/8"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Axle Rating
  • Welded to chassis for mounting axles and axle components
  • Length: 6", Width: 2-1/4"
  • Distance to hole: 4", Hole size: 5/16"
  • Dexter Compatible Part Number: 030-028-00

Before installation, confirm all replacement parts match your original equipment. Perform routine maintenance to ensure safety on the road.
