Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 35" Spacing, 2,000-lb (23-1/8" Unloaded) Leaf Springs, Long Equalizer, Hangers & Hardware � Dexter/Alko Compatible

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 35" Spacing, 2,000-lb Leaf Springs (23-1/8" Unloaded), Long Equalizer, Hangers & Hardware

Upgrade your RV or trailer with this complete triple axle suspension kit from Lippert. Engineered for 1.75" axle tubes and 35" axle spacing, this bundle combines 2,000-lb capacity leaf springs, a long equalizer AP kit, front/center/rear hangers, and all necessary hardware to help provide a smooth, reliable ride. Compatible with Dexter, Alko, Rockwell, Quality Axles, and more!

Bundle Contents:

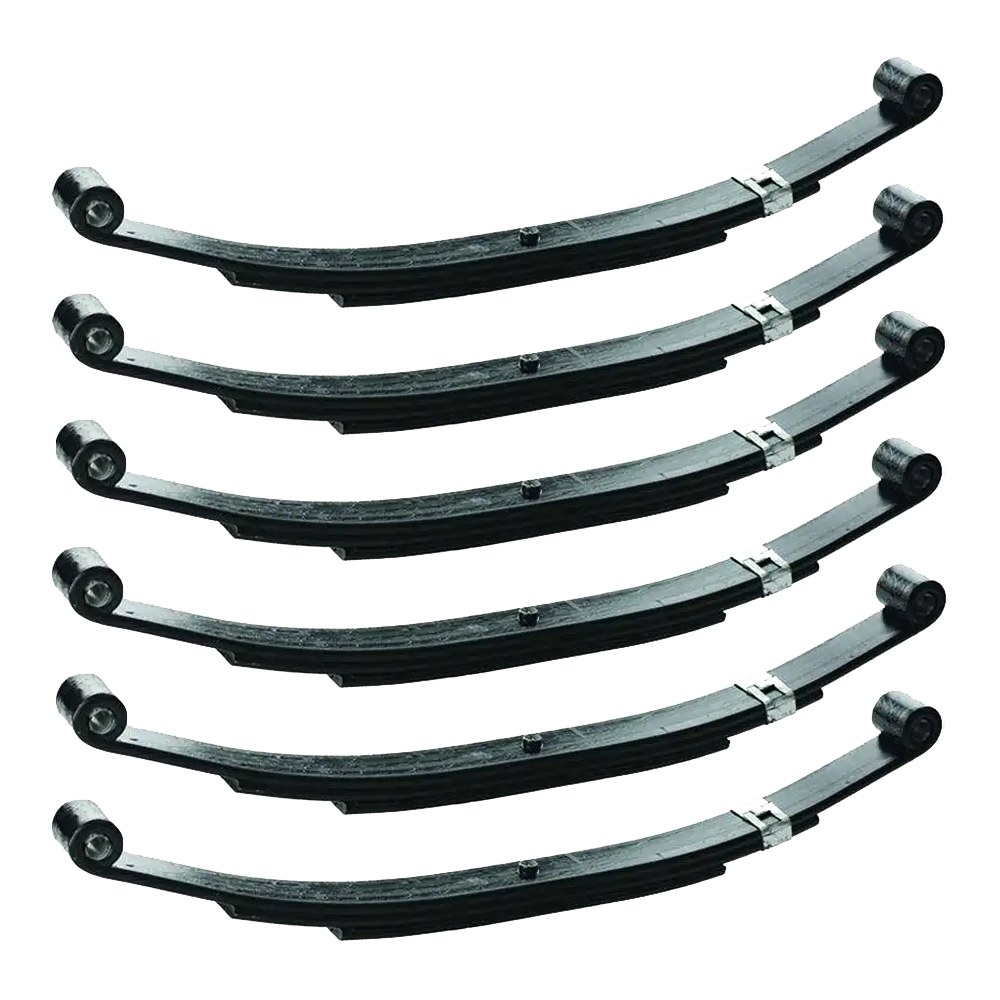

• QTY (6): Replacement Double-Eye Leaf Spring (2,000-lb Capacity)
  • 3 leaves per spring (2,000-lb capacity)
  • 1.75" (1-3/4") width
  • 23-1/8" unloaded eye-to-eye, 24" loaded length
  • 3-1/2" arch height unloaded, 2-1/2" loaded
  • 9/16" spring eye diameter
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, and long equalizers
  • Standard bolts included
  • Installs just like the original factory setup

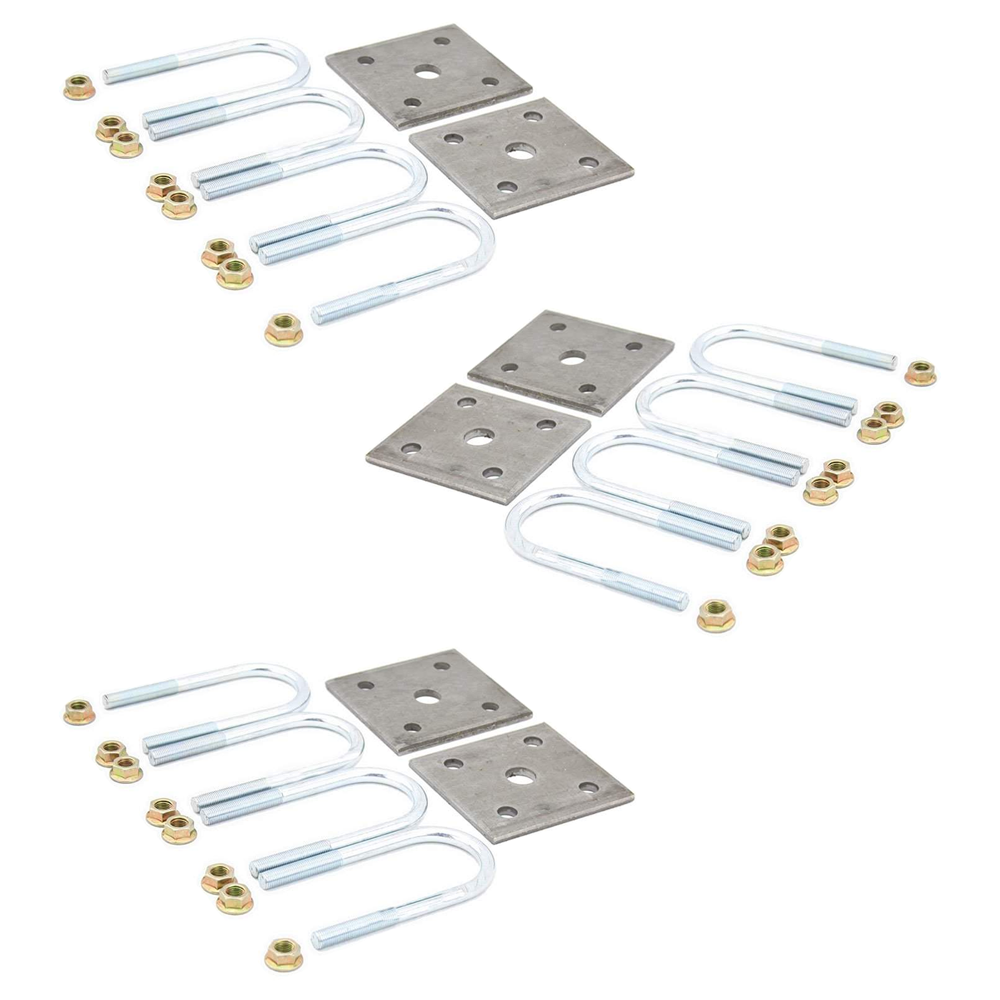

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • U-bolt design tailored for 1.75" axle tubes
  • Exact-match replacement for worn or damaged parts
  • Secures axle firmly to leaf springs
  • Check your existing hardware before purchase
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200–8,000-lb Rating
  • Weld-on hanger for the front axle position
  • Length: 4-5/16", Width: 2-3/16"
  • Distance to hole: 3-9/16" on-center, Hole size: 9/16"
  • Robust design to accommodate heavy loads
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200–8,000-lb Rating
  • Ideal for the middle position in a triple axle configuration
  • Length: 4-1/2", Width: 3-1/8"
  • Distance to hole: 3-5/16", Hole size: 7/8"
  • Ensures proper load distribution across axles
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200–8,000-lb Rating
  • Weld-on hanger for the rear axle
  • Length: 6", Width: 2-1/4"
  • Distance to hole: 4", Hole size: 5/16"
  • Provides a secure rear mounting point

Always reference your original equipment and perform routine maintenance to keep your suspension system operating at peak performance.
