Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 35" Spacing, 2,600 lb (25-1/4" Unloaded) Leaf Springs, Long Equalizer, Hangers & Hardware � Dexter / Alko / Rockwell Compatible

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 35" Spacing, 2,600 lb (25-1/4" Unloaded) Leaf Springs, Long Equalizer, Hangers & Hardware

Upgrade or replace the suspension on your triple axle trailer with this comprehensive Lippert kit, designed to work with Dexter, Alko, Rockwell, and other quality axles. Featuring 1.75" axle tubes, 35" spacing, and leaf springs rated at 2,600 lb (25-1/4" unloaded length), this bundle gives you the parts you need for a dependable ride—complete with long equalizers, hangers, and all necessary hardware.

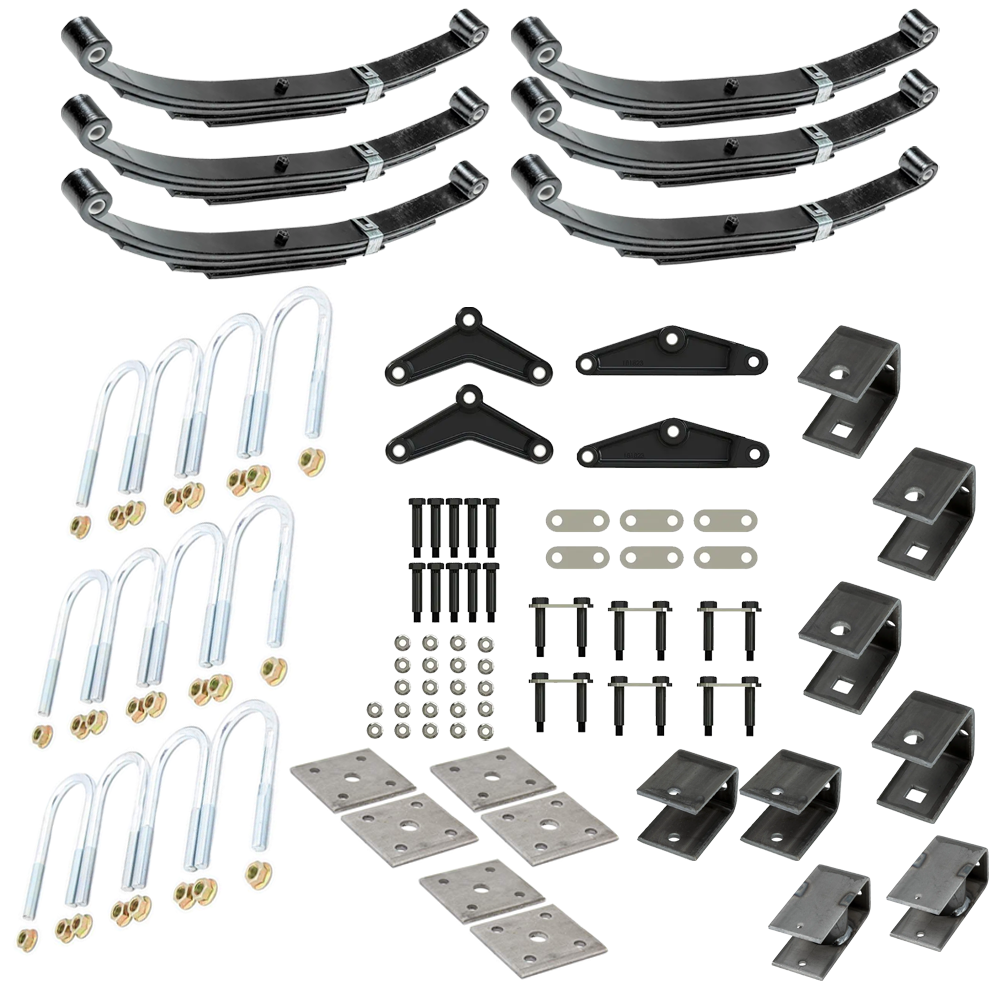

Bundle Contents:

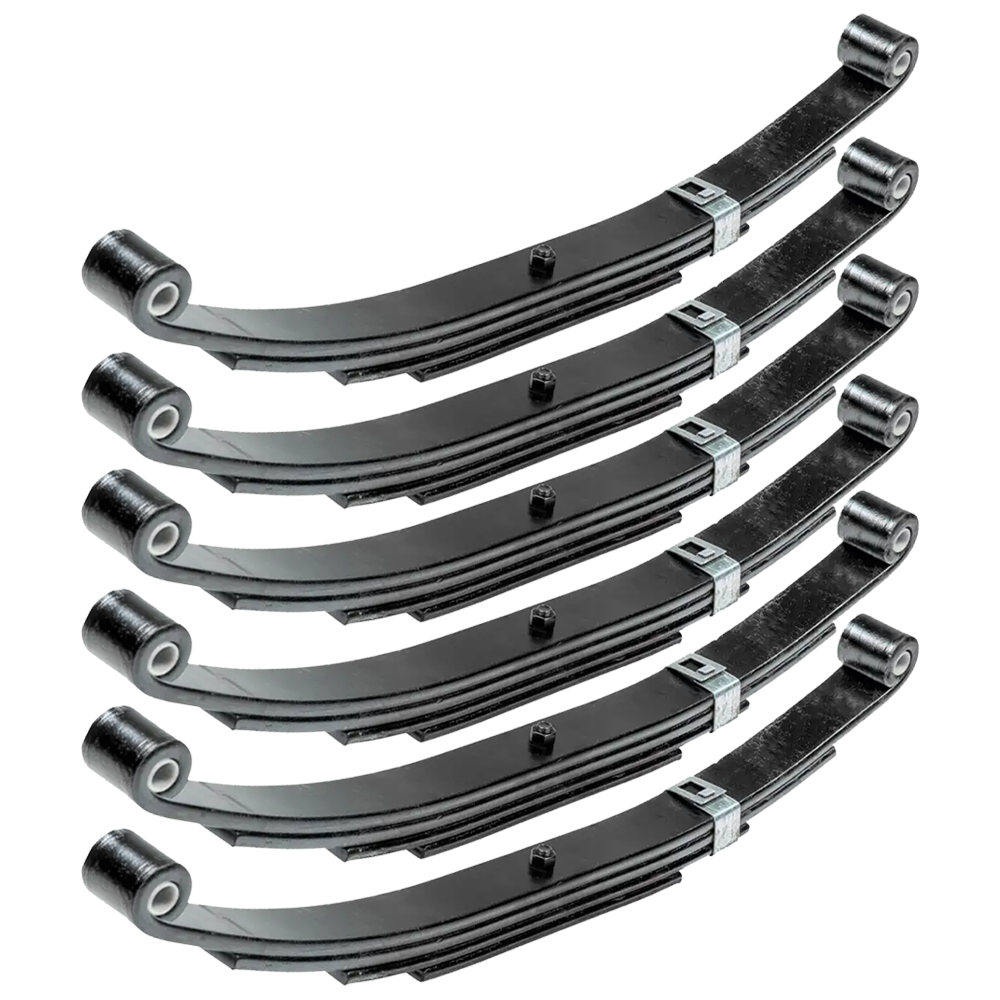

• QTY (6): Replacement Leaf Spring for RV Trailer Suspension (2,600 lbs., 25-1/4" Unloaded)
  • Replacement leaf spring for RV trailer
  • Capacity: 2,600 lbs. (per spring)
  • 4 leaves, 1-3/4" width
  • Unloaded eye-to-eye length: 25-1/4"; Loaded length: 26"
  • Arch height unloaded: 3-1/8"; Arch height loaded: 1-3/4"
  • Spring eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-026-00
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, and equalizers
  • Long equalizers for smoother suspension travel
  • Standard bolts included

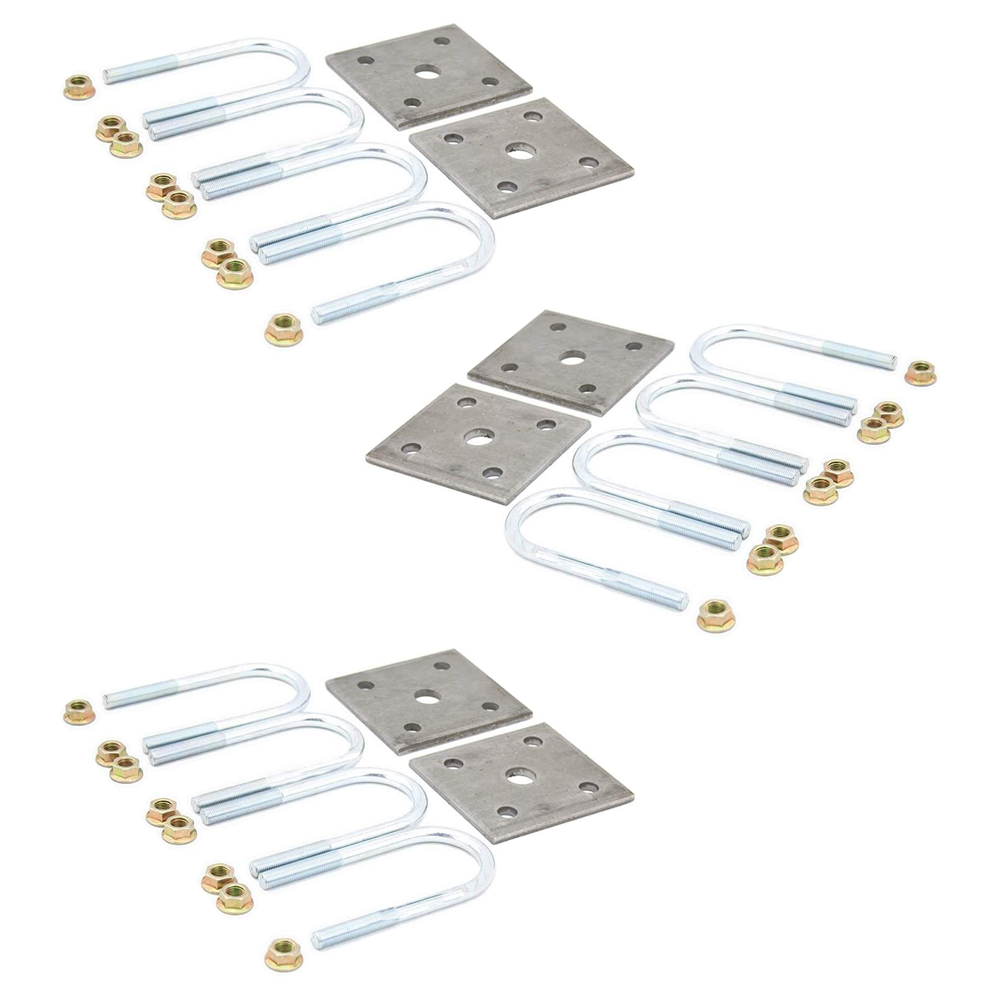

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Replacement axle mounting kit (U-bolts and plates)
  • Specifically for 1.75" axle tubes
  • Installs just like the original equipment
  • Please confirm your existing hardware dimensions before purchasing
  • Dexter Compatible Part Number: K71-391-00
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for axle and suspension component mounting
  • Length: 4-5/16", Width: 2-3/16", Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Axle capacity range: 2,200-8,000 lbs.
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for center axle support
  • Length: 4-1/2", Width: 3-1/8", Hole size: 7/8"
  • Distance to hole: 3-5/16" on-center
  • Axle capacity range: 2,200-8,000 lbs.
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for final axle support
  • Length: 6", Width: 2-1/4", Hole size: 5/16"
  • Distance to hole: 4" on-center
  • Axle capacity range: 2,200-8,000 lbs.
  • Dexter Compatible Part Number: 030-028-00

Always verify that these components match your trailer’s original specs. Regular inspections and maintenance help ensure safe and reliable towing.
