Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 35" Spacing, 20-1/2" Unloaded (1,400 lb) Leaf Springs, Long Equalizer, Hangers & Hardware (Dexter, Alko, Rockwell)

Lippert Triple Axle Suspension Kit – 1.75" Axle Tube, 35" Spacing, 20-1/2" Unloaded (1,400 lb) Leaf Springs with Long Equalizer, Hangers & Hardware

Upgrade your trailer or RV with a complete Lippert Triple Axle Suspension Kit that fits 1.75" axle tubes and 35" spacing. Featuring 20-1/2" unloaded (1,400 lb) leaf springs, long equalizers, and heavy-duty hangers and hardware, this kit is compatible with Dexter, Alko, Rockwell, and Quality Axles. It’s an all-in-one solution to keep your rig riding smoothly and safely on the road.

Bundle Contents:

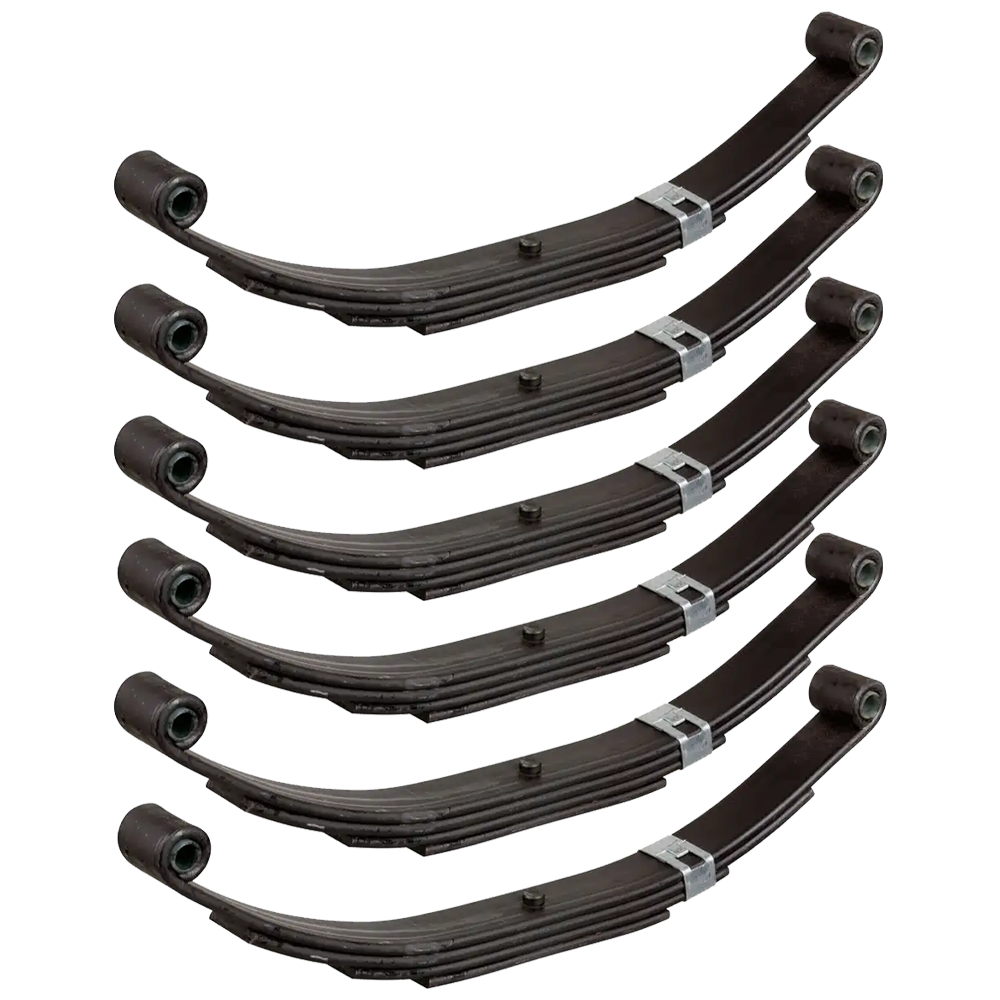

• QTY (6): Replacement Leaf Spring (1,400 lb capacity, 20-1/2" unloaded length)
  • 1,400 lb capacity per spring
  • 4 leaves, 1-3/4" spring width
  • Unloaded eye-to-eye length: 20-1/2"
  • Loaded length: 21"
  • Arch height unloaded: 3-1/2", loaded: 2-3/8"
  • Spring eye diameter: 9/16"
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Includes shackle links, mounting hardware, and equalizers
  • Long equalizer design for smoother towing
  • Installs like your original equipment

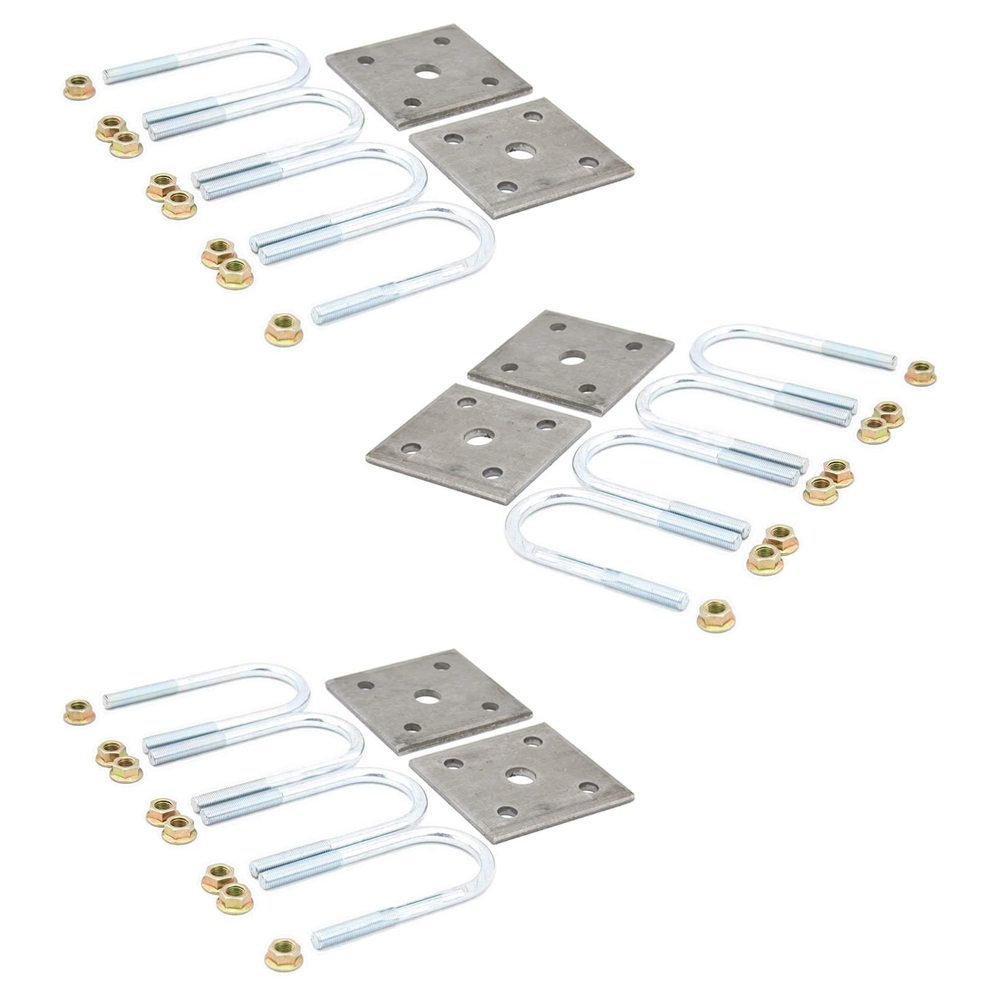

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • U-bolt design sized for 1.75" axle tubes
  • Direct replacement for worn or damaged mounting kits
  • Installs just like your original hardware
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Length: 6"
  • Width: 2-1/4"
  • Distance to hole: 4"
  • Hole size: 5/16"

Always confirm your trailer’s original equipment before installation, and conduct periodic inspections to ensure safe and optimal performance on every trip.
