Lippert Triple Axle Suspension Kit � 1.75" Axle Tube, 35" Spacing, 23-1/8" Unloaded Leaf (1,250 lb), Long Equalizer, Includes Hangers & Hardware � Compatible with Dexter, Alko, Rockwell, Quality Axles

Lippert Triple Axle Suspension Kit – 1.75" Tube, 35" Spacing, 23-1/8" Leaf Springs (1,250 lb)

Upgrade your trailer setup with this comprehensive Lippert triple axle suspension kit. Designed for 1.75" axle tubes and 35" spacing, it features 23-1/8" unloaded leaf springs rated at 1,250 lbs each. Plus, it comes with long equalizers, hangers, and hardware to replace or enhance your suspension. Ideal for Dexter, Alko, Rockwell, and other popular axle brands.

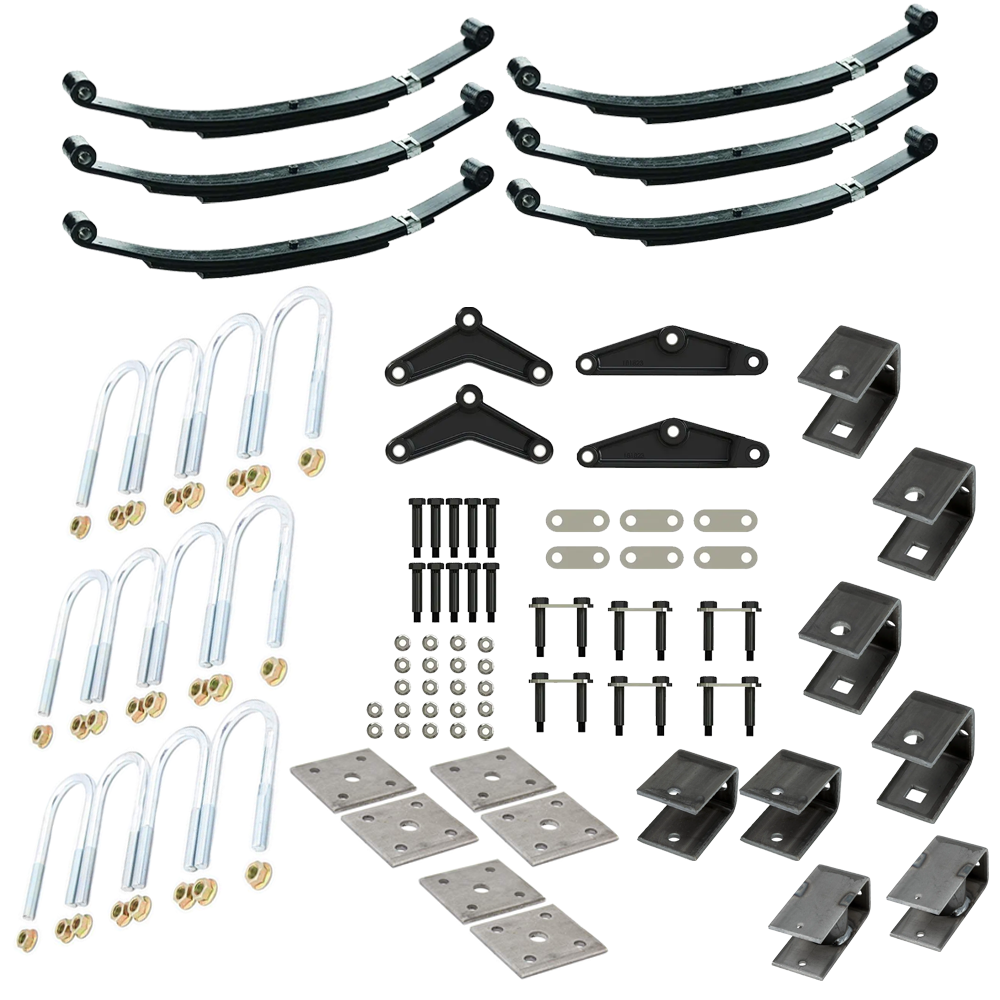

Bundle Contents:

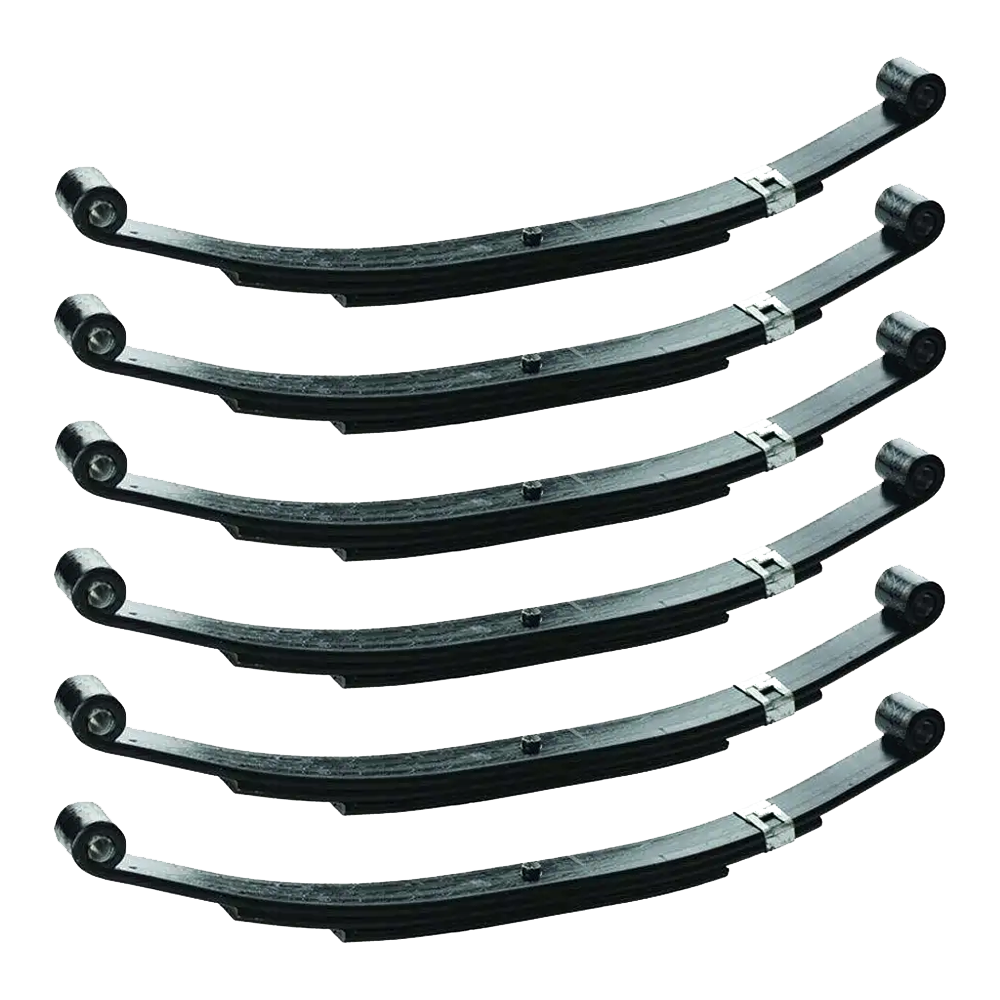

• QTY (6): 23-1/8" Unloaded Leaf Spring (1,250 lb Capacity)
  • 1,250 lb capacity per spring
  • Unloaded eye-to-eye length: 23-1/8"
  • Loaded eye-to-eye length: 24"
  • Arch height unloaded: 3.5"; loaded: 2.5"
  • Width: 1-3/4"
  • 3-leaf spring pack; 9/16" spring eye diameter
  • Consult original equipment to ensure fit
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Direct replacement for existing triple axle setups
  • Installs like original equipment

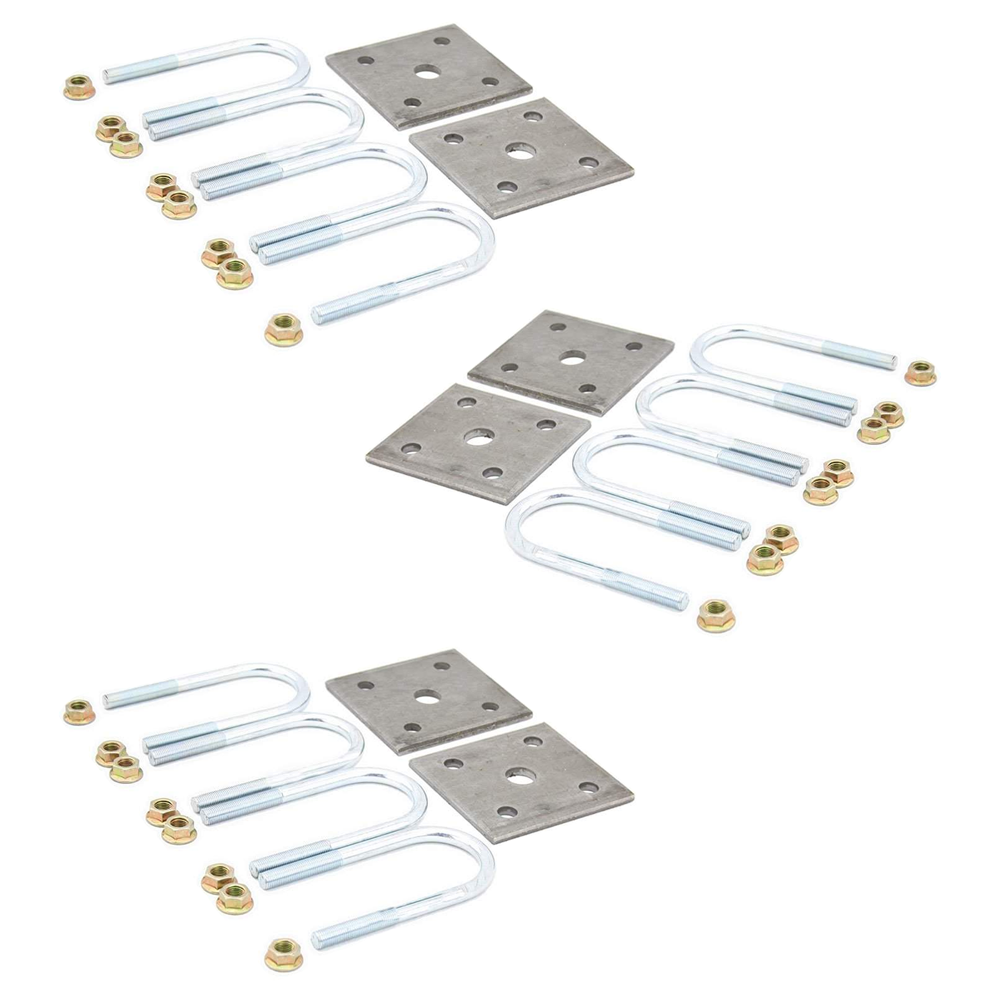

• QTY (3): Axle Mounting Kit – Fits 1.75" Axle Tube
  • U-bolt design for secure axle attachment
  • Exact-match replacement for 1.75" tubes
  • Includes hardware for quick installation
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Welded to chassis for axle mounting
  • Distance to hole: 3-9/16" (on-center)
  • Length: 4-5/16"; Width: 2-3/16"
  • Hole size: 9/16"
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Location: Center
  • To hole: 3-5/16"
  • Length: 4-1/2"; Width: 3-1/8"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Location: Rear; to hole: 4"
  • Length: 6"; Width: 2-1/4"
  • Hole size: 5/16"

Always verify compatibility with your trailer’s original equipment. Regular inspection and maintenance of your trailer’s suspension is recommended for optimal performance and longevity.
