Lippert Triple Axle Suspension Kit � 1.75" Axle Tubes, 33" Spacing, 1,400 lb Leaf Springs (20-1/2" Unloaded), Standard Equalizer, Hangers & Hardware Included � Dexter, Al-Ko, Rockwell Compatible

Lippert Triple Axle Suspension Kit – 1.75" Tubes, 33" Spacing, 1,400 lb Leaf Springs (20-1/2" Unloaded)

Upgrade your trailer’s triple axle suspension with this all-in-one Lippert kit. Engineered with 1.75" axle tubes, 33" axle spacing, and 1,400 lb capacity leaf springs (20-1/2" unloaded length), this setup is perfect for Dexter, Al-Ko, Lippert, Rockwell, and other quality axles. The included hangers and hardware simplify installation, while the standard equalizer design helps ensure smooth and reliable towing performance.

Bundle Contents:

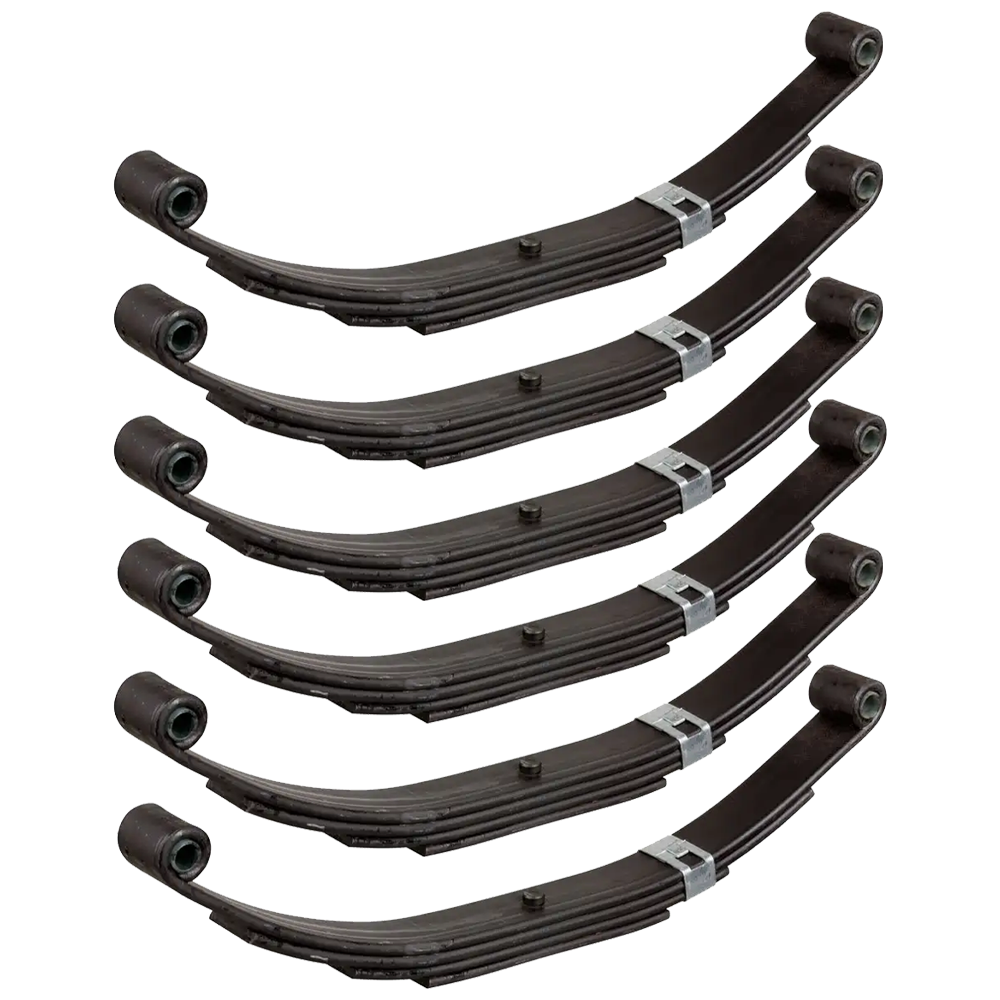

• QTY (6): Replacement Leaf Spring (1,400 lb capacity, 20-1/2" unloaded)
  • 1,400 lb capacity, four-leaf spring
  • 1-3/4" spring width
  • 20-1/2" eye-to-eye unloaded; 21" loaded
  • 3-1/2" arch height unloaded; 2-3/8" loaded
  • 9/16" spring eye diameter

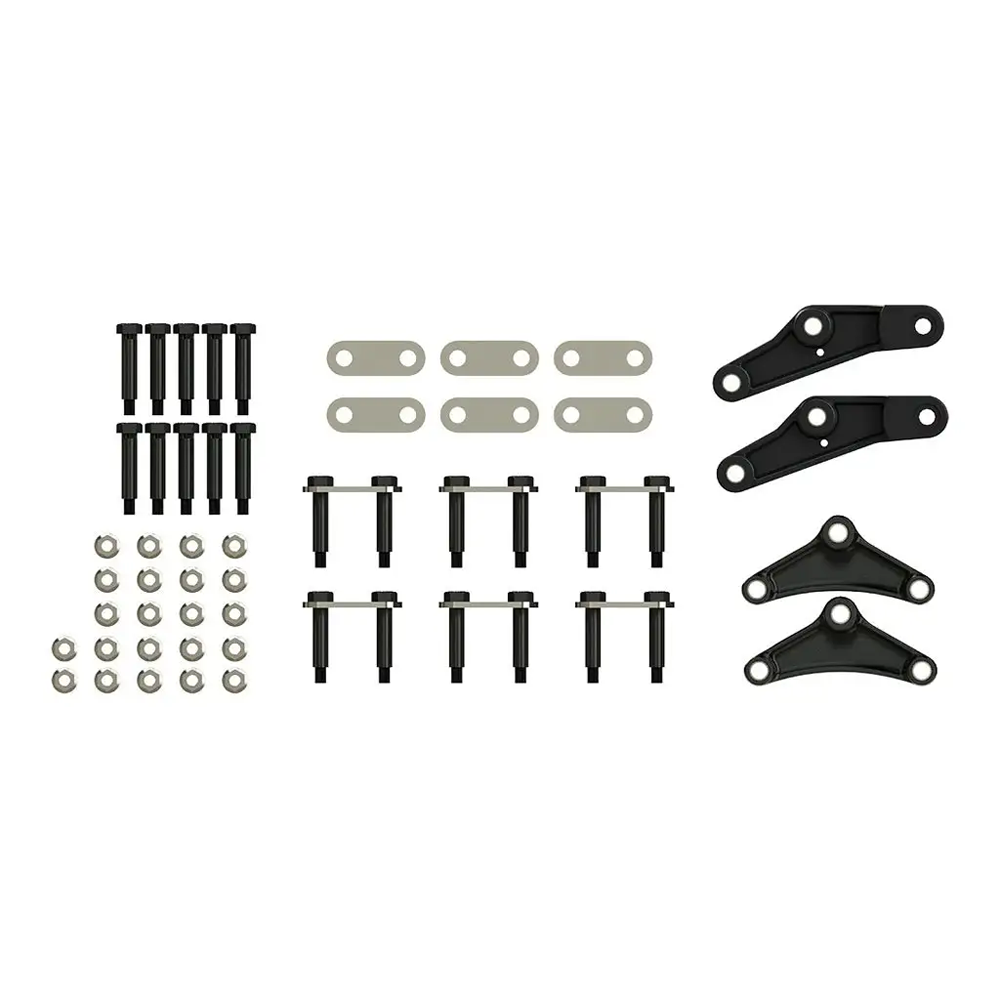

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Includes shackle links, mounting hardware, and standard equalizers
  • Installs just like your original equipment

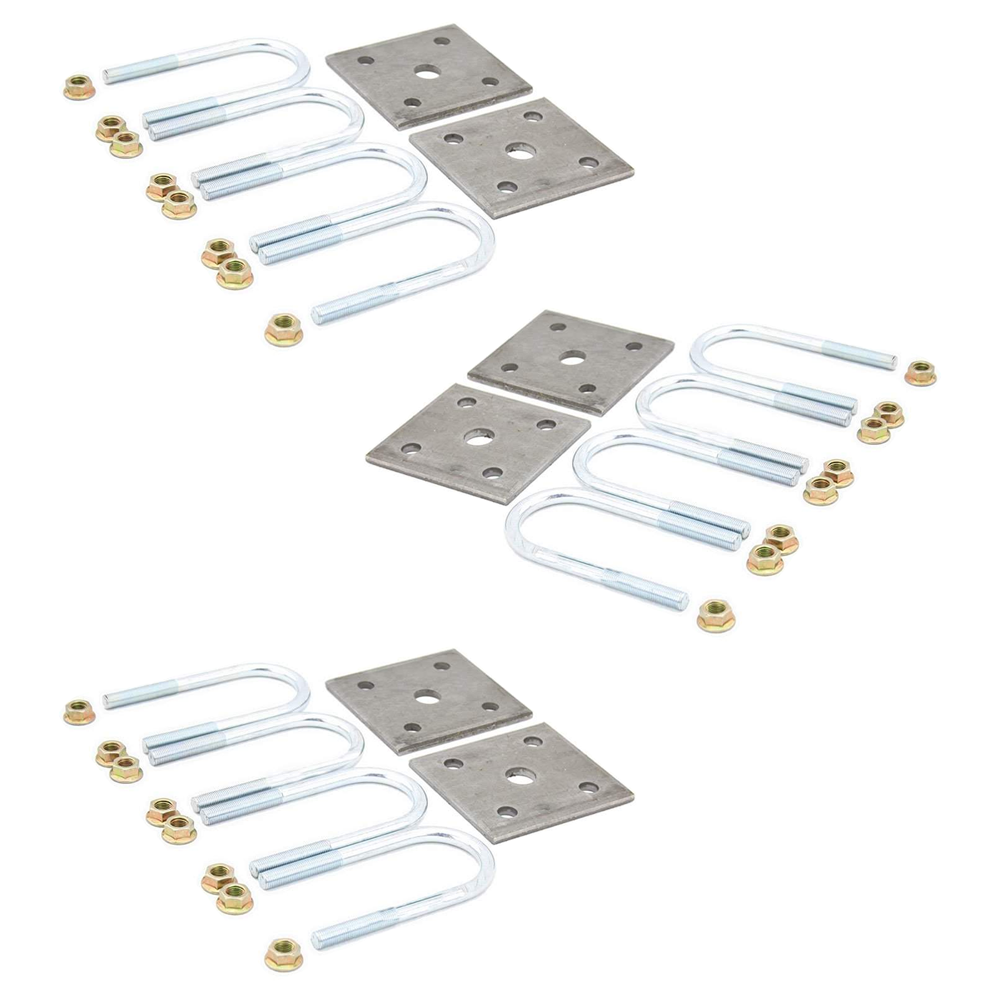

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • U-bolt design for a secure fit
  • Designed for 1.75" axle tubes
  • Ensures proper alignment and mounting
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity range: 2,200 – 8,000 lbs.
  • Distance to hole: 3-9/16" on-center
  • Length: 4-5/16", Width: 2-3/16", Hole size: 9/16"
  • Welded to chassis to allow mounting of axles/components
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity range: 2,200 – 8,000 lbs.
  • Distance to hole: 3-5/16"
  • Length: 4-1/2", Width: 3-1/8", Hole size: 7/8"
  • Secures the center pivot of the suspension system
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity range: 2,200 – 8,000 lbs.
  • Distance to hole: 4"
  • Length: 6", Width: 2-1/4", Hole size: 5/16"
  • Welded at the rear position to secure the axle

To maximize safety and performance, always confirm compatibility with your trailer’s original equipment and follow proper maintenance schedules. Regular inspections can help prevent minor issues from becoming major problems.
