Lippert Triple Axle Suspension Kit (1.75" Tube, 35" Spacing, 2,500 lb 23-1/8" Unloaded Springs, Long Equalizer, Hangers & Hardware) � Dexter, Alko, Rockwell, Quality Axles

Lippert Triple Axle Suspension Kit – Complete Upgrade for Reliable Towing

Get peak performance and peace of mind when hauling with this Lippert Triple Axle Suspension Kit. It’s designed for a 1.75" axle tube diameter, 35" axle spacing, and includes robust 2,500 lb leaf springs (23-1/8" unloaded eye-to-eye), long equalizers, plus all hangers and hardware. Ideal for Dexter, Alko, Rockwell, and Quality Axles, this bundle helps ensure a smoother ride and improved load distribution for your trailer.

Bundle Contents:

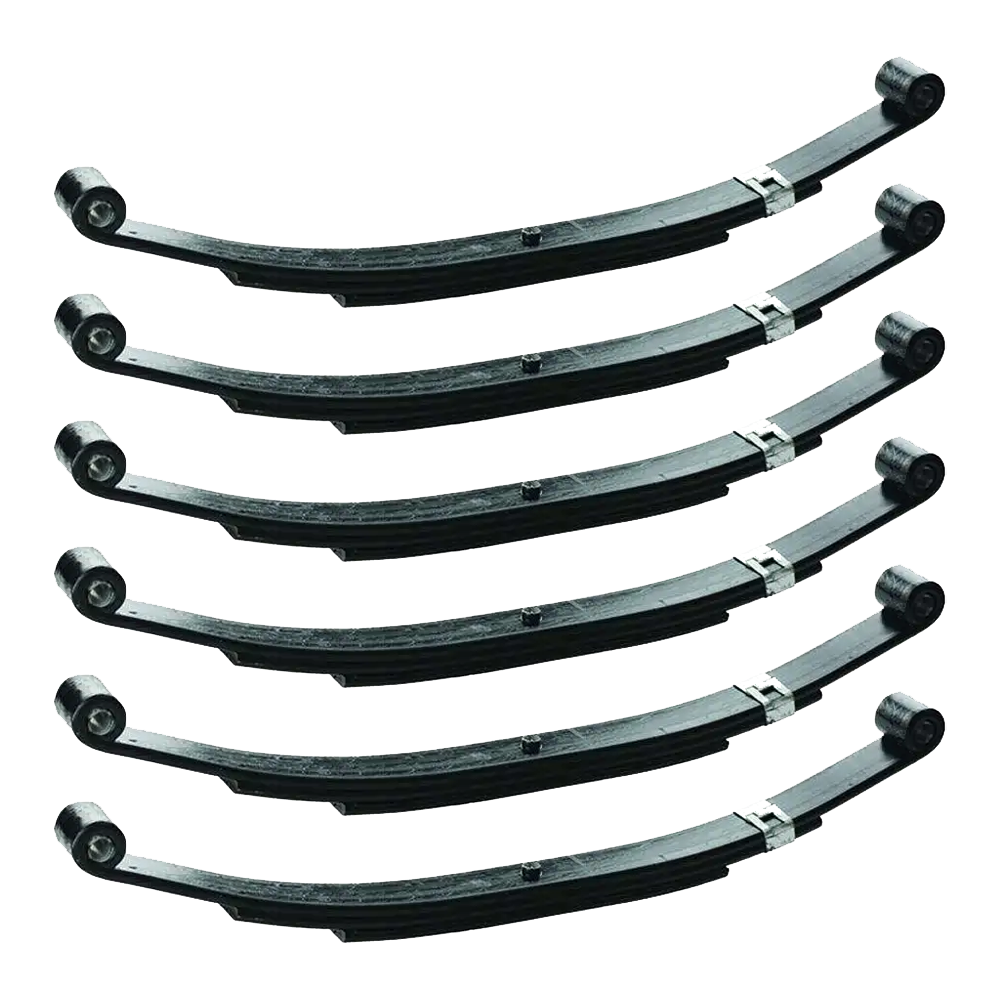

• QTY (6): 24" Leaf Spring Loaded Length – 2,500 lbs.
  • Replacement leaf spring for RV trailers
  • 23-1/8" unloaded eye-to-eye length; 24" loaded length
  • Arch height: 3-1/2" unloaded, 2-1/2" loaded
  • Eye diameter: 9/16"
  • 1-3/4" spring width; 4 leaves
  • Please reference your original equipment label before purchasing
  • Dexter Compatible Part Number: 072-020-00
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, and long equalizers
  • Standard bolts for straightforward installation
  • Installs just like your original equipment

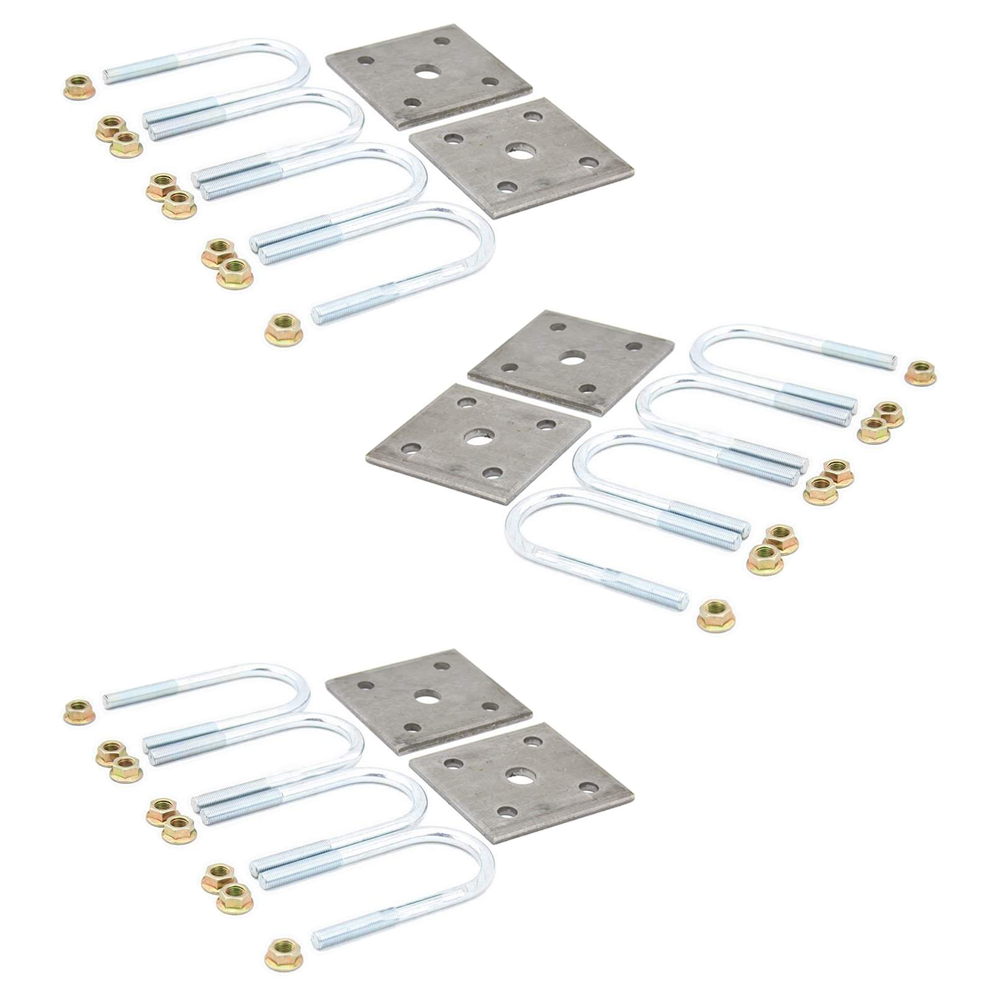

• QTY (3): Axle Mounting Kit – 1.75" Tube
  • Exact-match replacement for RV trailer axle systems
  • 1.75" U-bolt design
  • Installs quickly, same as original hardware
  • Please check existing hardware before purchase
  • Dexter Compatible Part Number: K71-391-00
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Welded to chassis for axle mounting
  • Axle capacity: 2,200 – 8,000 lbs.
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Length: 4-5/16", Width: 2-3/16"
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
  • Length: 4-1/2", Width: 3-1/8"
  • Ideal for center axle placement
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity: 2,200 – 8,000 lbs.
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Length: 6", Width: 2-1/4"
  • Rear location hanger for secure mounting
  • Dexter Compatible Part Number: 030-028-00

Always confirm the correct fitment for your trailer. We recommend referencing the original equipment and performing routine checks on your suspension system for safe towing.
