Lippert Triple Axle Suspension Kit (1,750 lb Leaf Springs � 25-1/2" Unloaded), 3" Axle Tube, 33" Axle Spacing, Standard Equalizer, Includes Hangers & Hardware � Dexter, Alko, Lippert, Rockwell, Quality Axles Compatible

Lippert Triple Axle Suspension Kit – 3" Axle Tube – 33" Axle Spacing – 1,750 lb Leaf Springs (25-1/2" Unloaded) – Standard Equalizer – Hangers & Hardware

This complete triple axle suspension bundle from Lippert is designed for reliability and smoother towing performance. With six 1,750 lb leaf springs (25-1/2" unloaded, 26" loaded) and all the necessary hangers, hardware, and standard equalizers, this kit ensures you’re set for a top-quality installation. Perfect for Dexter, Alko, Lippert, Rockwell, and other quality axle systems.

Bundle Contents:

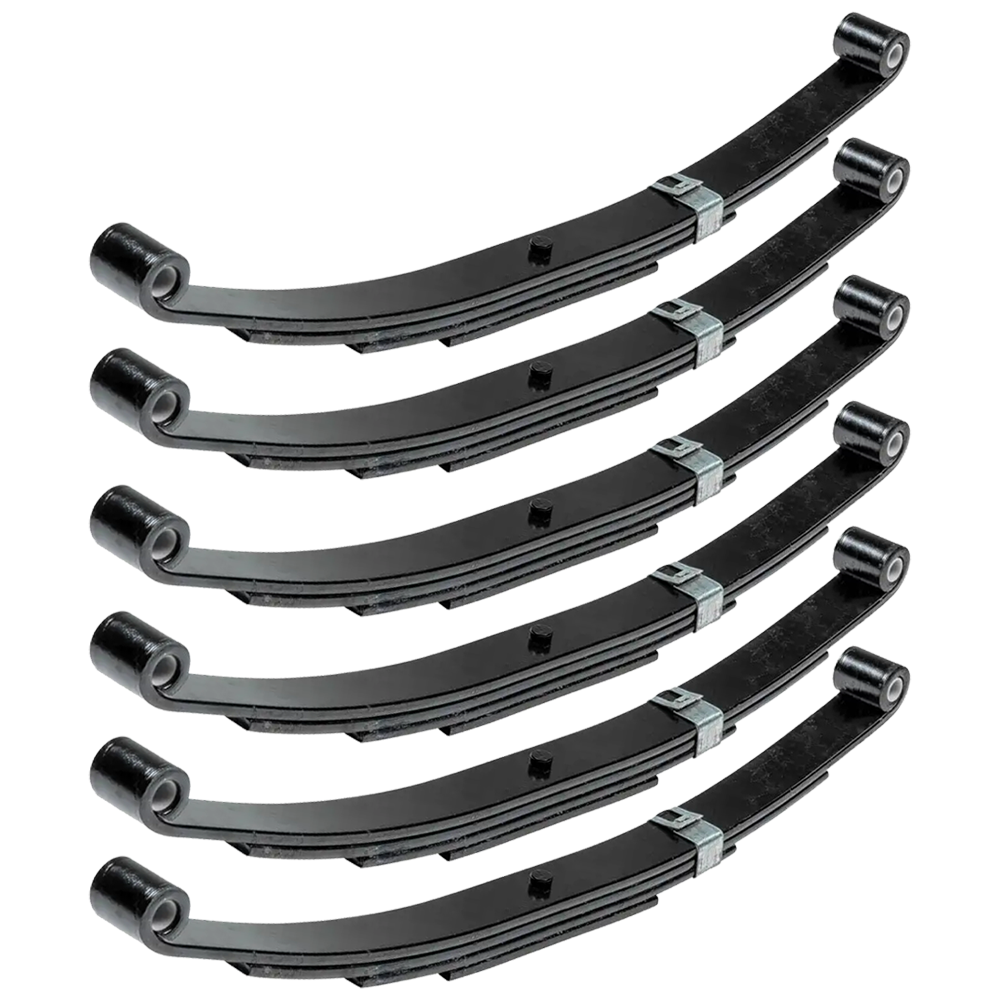

• QTY (6): Lippert Replacement Leaf Spring – 26" Loaded Length, 1,750 lbs.
  • Replacement leaf spring for RV trailer
  • 4 leaves, 1-3/4" width
  • Unloaded eye-to-eye length: 25-1/2"
  • Loaded eye-to-eye length: 26"
  • Arch height (unloaded): 3" • Arch height (loaded): 1-1/2"
  • Spring eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-042-00

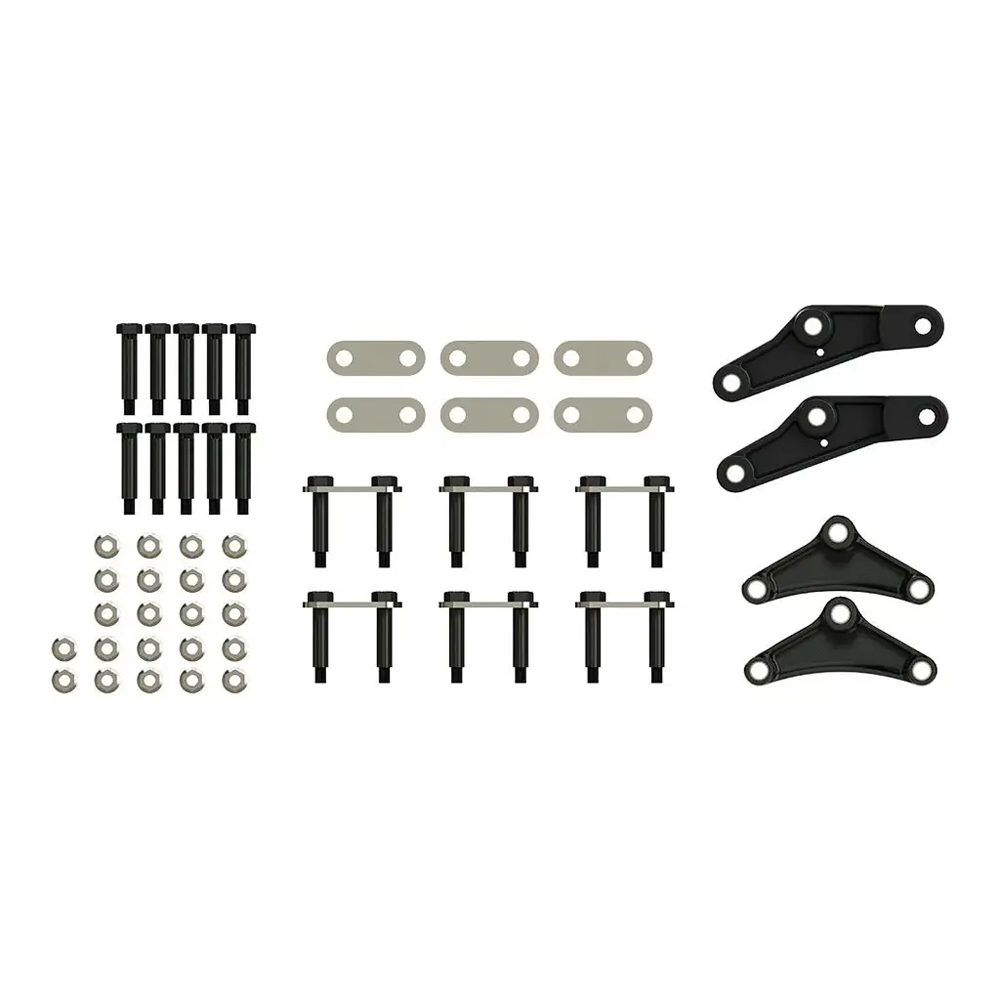

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, and standard equalizers
  • Dexter Compatible Part Number: A/P-335-00

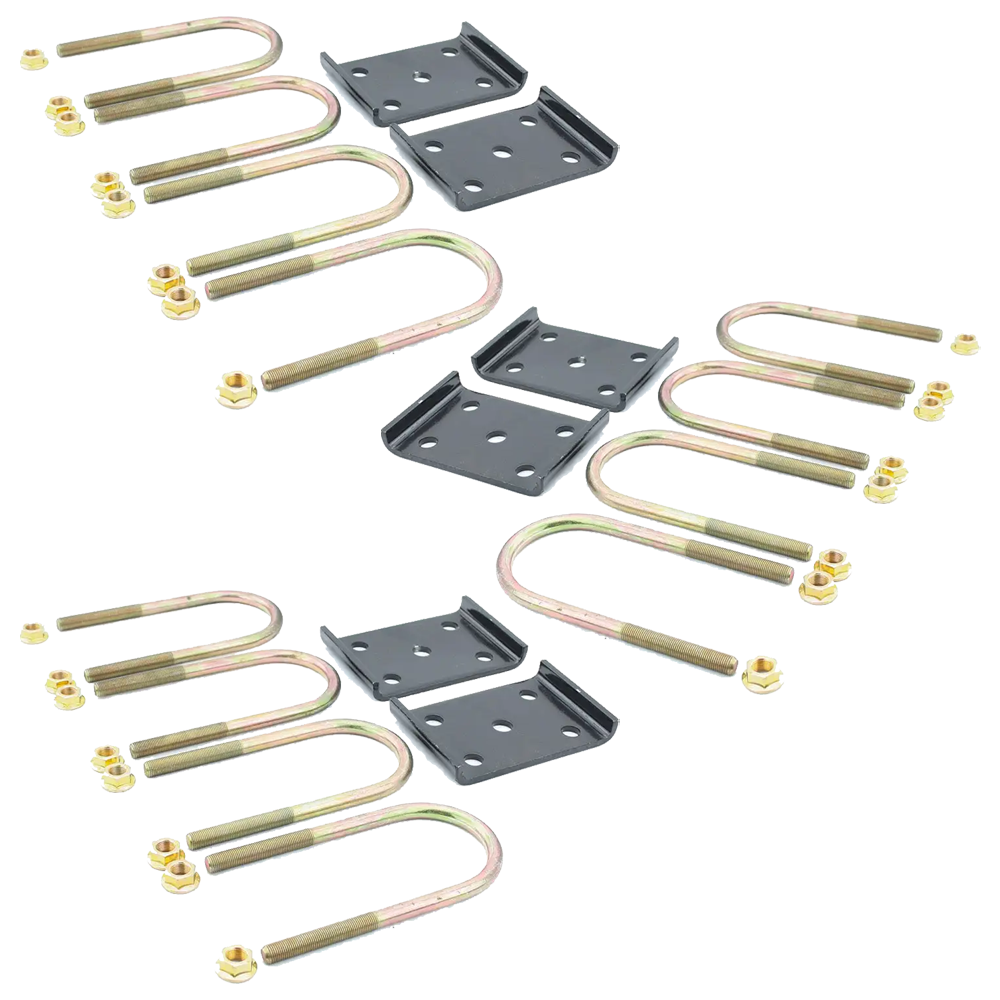

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • Replacement axle mounting kit for 3" axle tubes
  • U-bolt design
  • Please consult your original hardware before purchasing
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis to allow mounting of axles and axle components
  • Length: 4-5/16" • Width: 2-3/16"
  • Distance to hole: 3-9/16" on-center • Hole size: 9/16"
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Axle capacity range: 2,200–8,000 lbs.
  • Length: 4-1/2" • Width: 3-1/8"
  • Distance to hole: 3-5/16" • Hole size: 7/8"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Axle capacity range: 2,200–8,000 lbs.
  • Length: 6" • Width: 2-1/4"
  • Distance to hole: 4" • Hole size: 5/16"
  • Dexter Compatible Part Number: 030-028-00

Always verify compatibility with your trailer’s original equipment, follow routine maintenance practices, and adhere to manufacturer guidelines to keep your trailer operating at its best.
