Lippert Triple Axle Suspension Kit � 2.375" Axle Tube � 33" Axle Spacing � 23-1/8" (1,250 lb) Leaf Springs w/ Standard Equalizer, Hangers & Hardware � Dexter, Alko, Rockwell Compatible

Lippert Triple Axle Suspension Kit – 2.375" Tube, 33" Spacing, 1,250 lb Leaf Springs (23-1/8" Unloaded) w/ Standard Equalizer & Hangers

Upgrade or replace your trailer’s suspension with this complete Lippert triple axle kit. Built for 2.375" axle tubes on 33" centers, these 1,250 lb (each) leaf springs feature an unloaded eye-to-eye length of 23-1/8". Ideal for Lippert, Dexter, Alko, Rockwell, and other quality axles, this kit includes standard equalizers, all necessary hangers, and hardware for a reliable, road-ready setup.

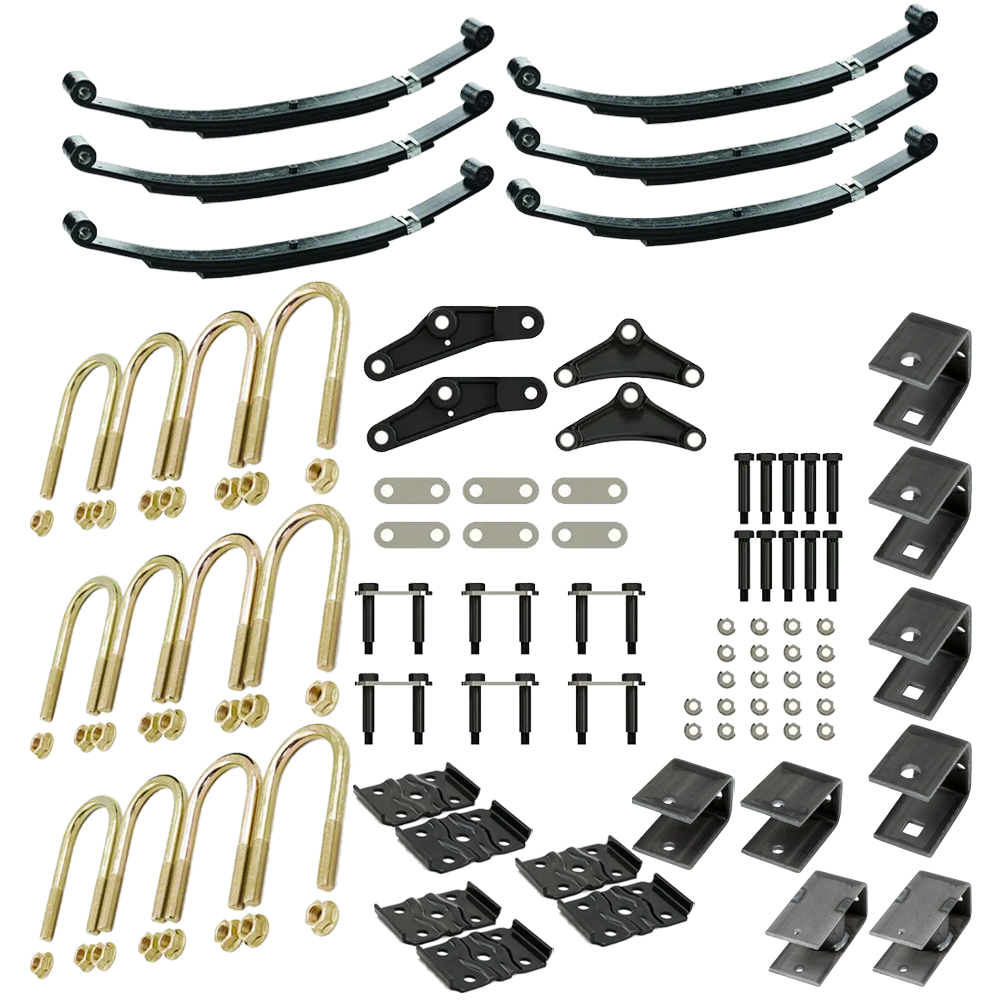

Bundle Contents:

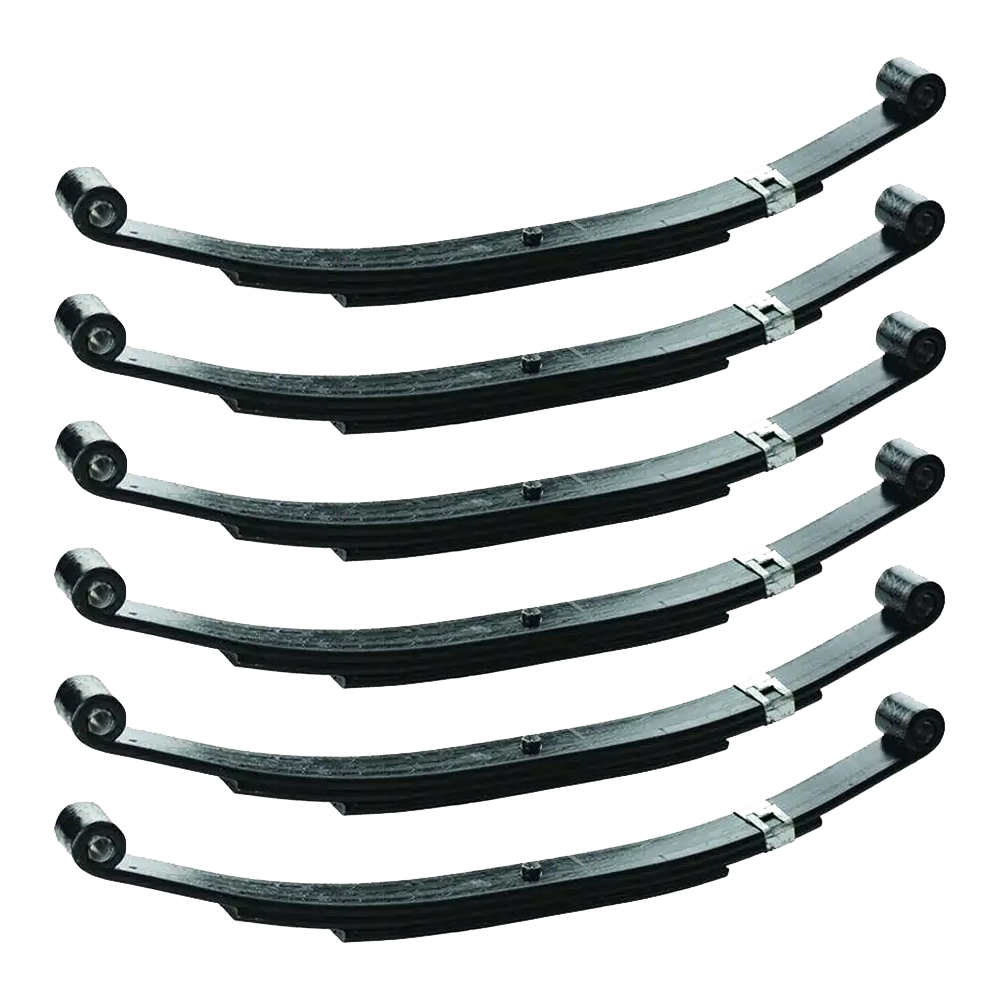

• QTY (6): 1,250 lb Leaf Springs – 23-1/8" Unloaded Length
  • Capacity: 1,250 lbs. each
  • 3-leaf design, 1-3/4" wide
  • 23-1/8" eye-to-eye (unloaded), 24" (loaded)
  • Arch Height: 3-1/2" (unloaded), 2-1/2" (loaded)
  • Spring Eye Diameter: 9/16"

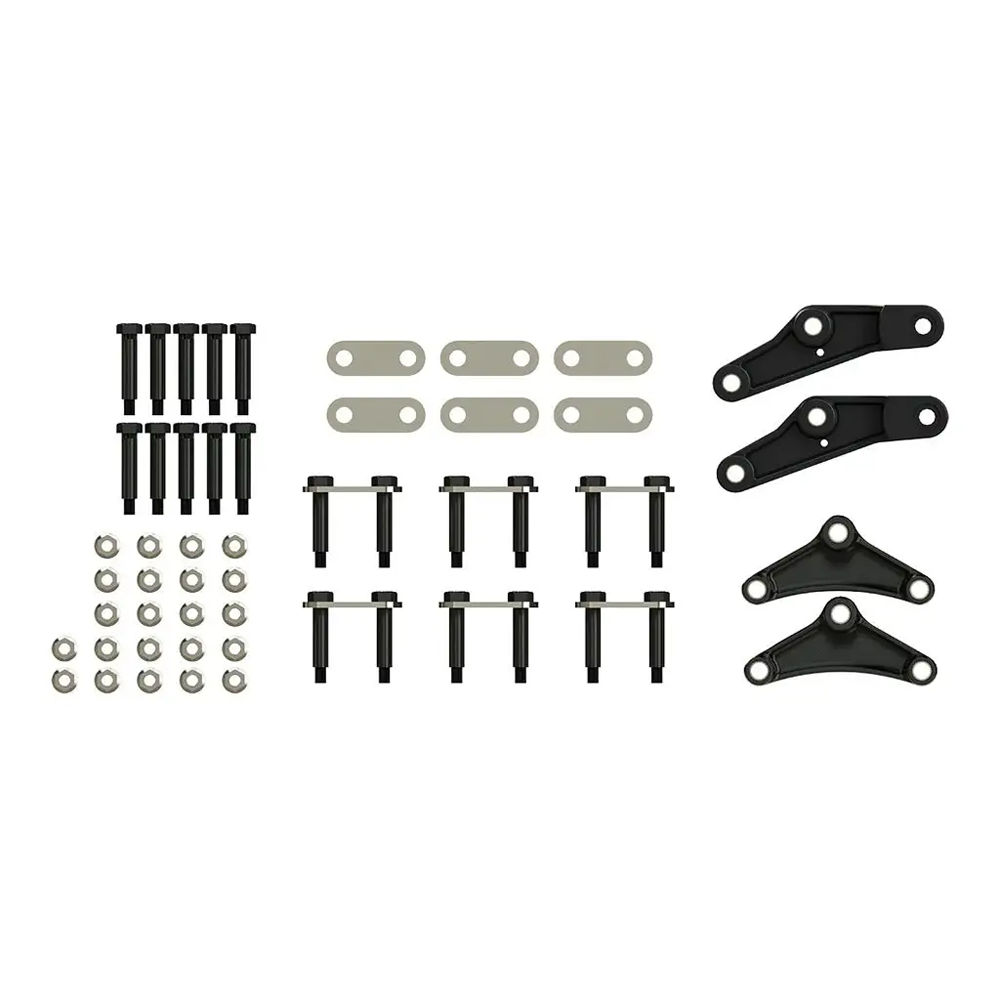

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Connects leaf springs and axles
  • Standard equalizer for balanced load distribution
  • Includes shackle links, mounting hardware, and bolts

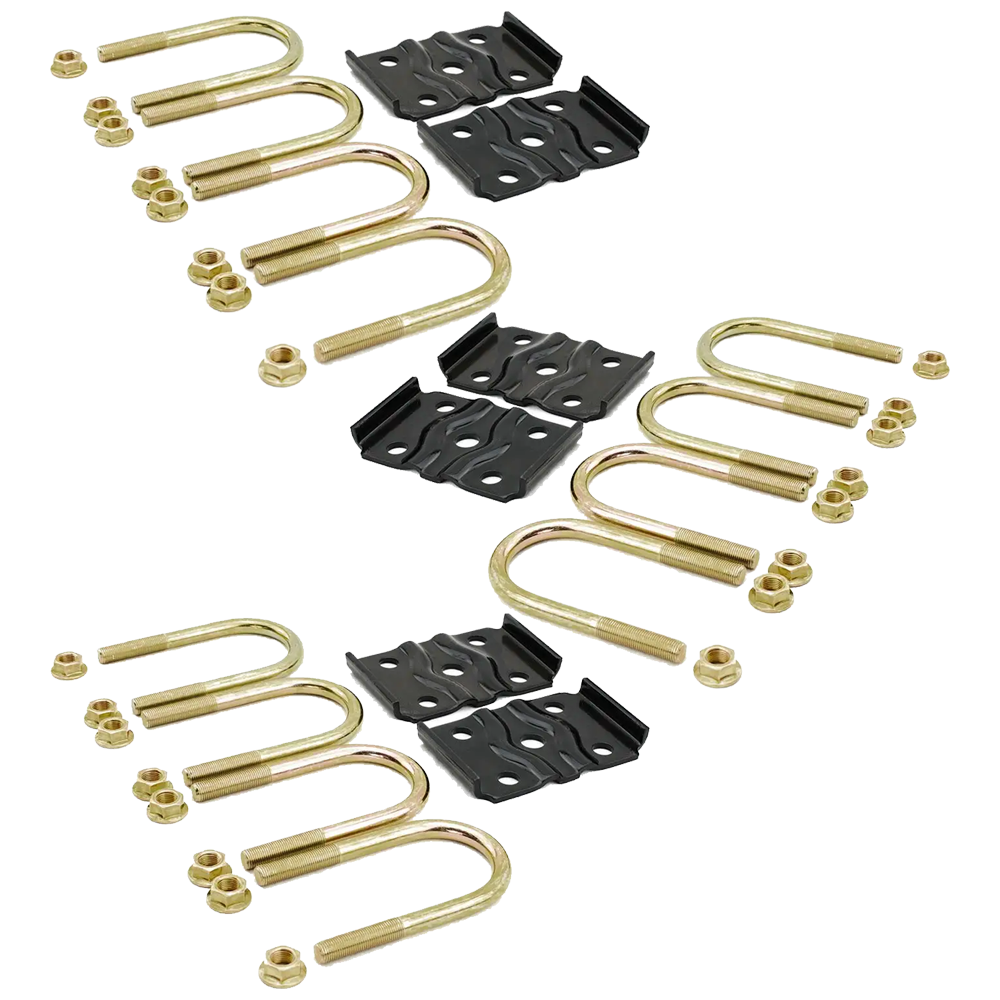

• QTY (3): Lippert Axle Mounting Kit – Fits 2.375" Tube
  • U-bolt design for secure clamping
  • Exact-match component for easy, OEM-like installation
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Welded to chassis for mounting axles and components
  • Supports 2,200–8,000 lb axles
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
  • Supports 2,200–8,000 lb axles
  • Universal design compatible with competitor axles
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Supports 2,200–8,000 lb axles
  • Welded to chassis for proper axle alignment

For best results, confirm compatibility with your trailer’s original specifications. Regularly inspect and maintain your suspension to ensure safe travels and long-lasting performance.
