Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 33" Spacing, 1,000 lb Leaf Springs (20-3/8" Unloaded), Standard Equalizer, Hangers & Hardware � Fits Dexter, Alko, Rockwell

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 33" Spacing, 1,000 lb Leaf Springs (20-3/8" Unloaded), Standard Equalizer

Upgrade or replace your triple axle trailer’s suspension system with this comprehensive Lippert kit. Featuring six 1,000 lb leaf springs (each with 20-3/8" unloaded length), front/center/rear hangers, hardware, and a triple axle AP kit with a standard equalizer, this bundle delivers reliable performance for trailers compatible with Dexter, Alko, Rockwell, and other quality axles. Designed for a 2.375" axle tube and 33" axle spacing, installation is straightforward, helping you get back on the road with confidence.

Bundle Contents:

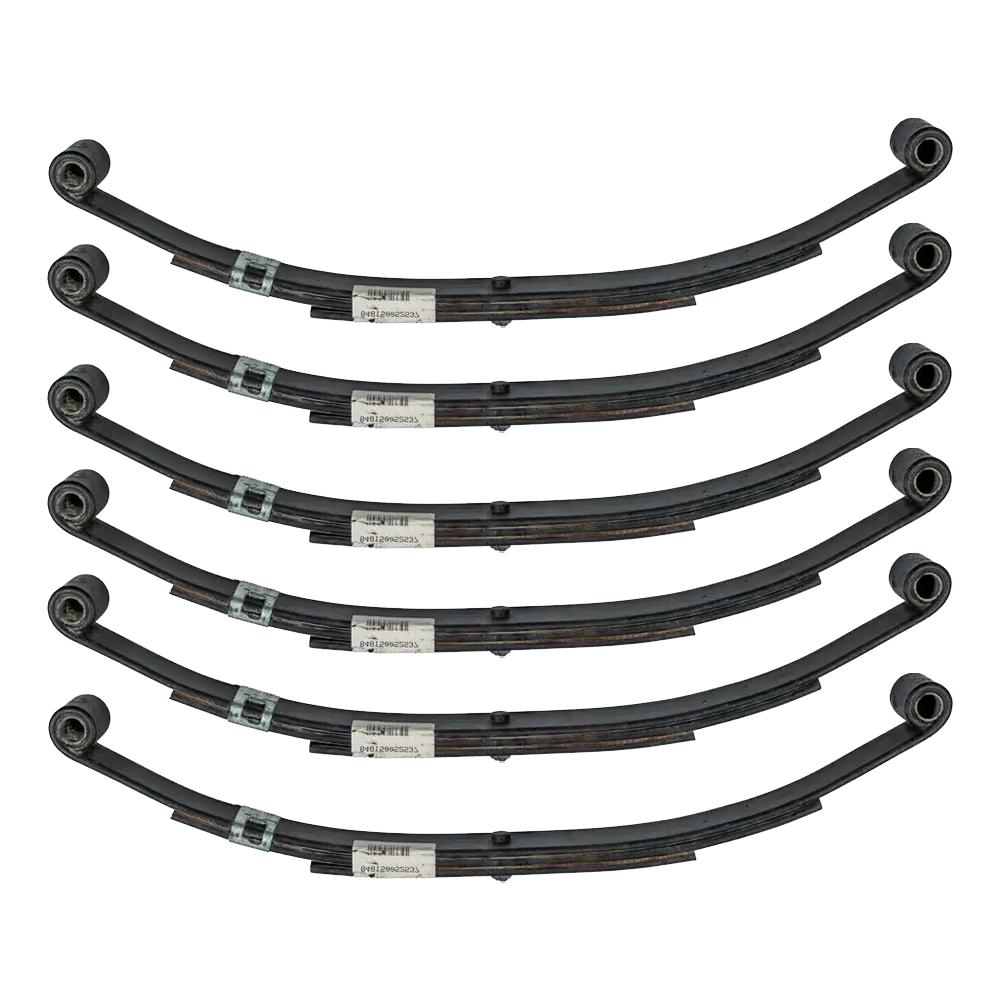

• QTY (6): 1,000 lb Leaf Springs
  • 3 leaves total
  • 1-3/4" spring width
  • 20-3/8" unloaded eye-to-eye length
  • 21" loaded length
  • Arch height unloaded: 2-7/8"; loaded: 2-1/8"
  • Spring eye diameter: 9/16"

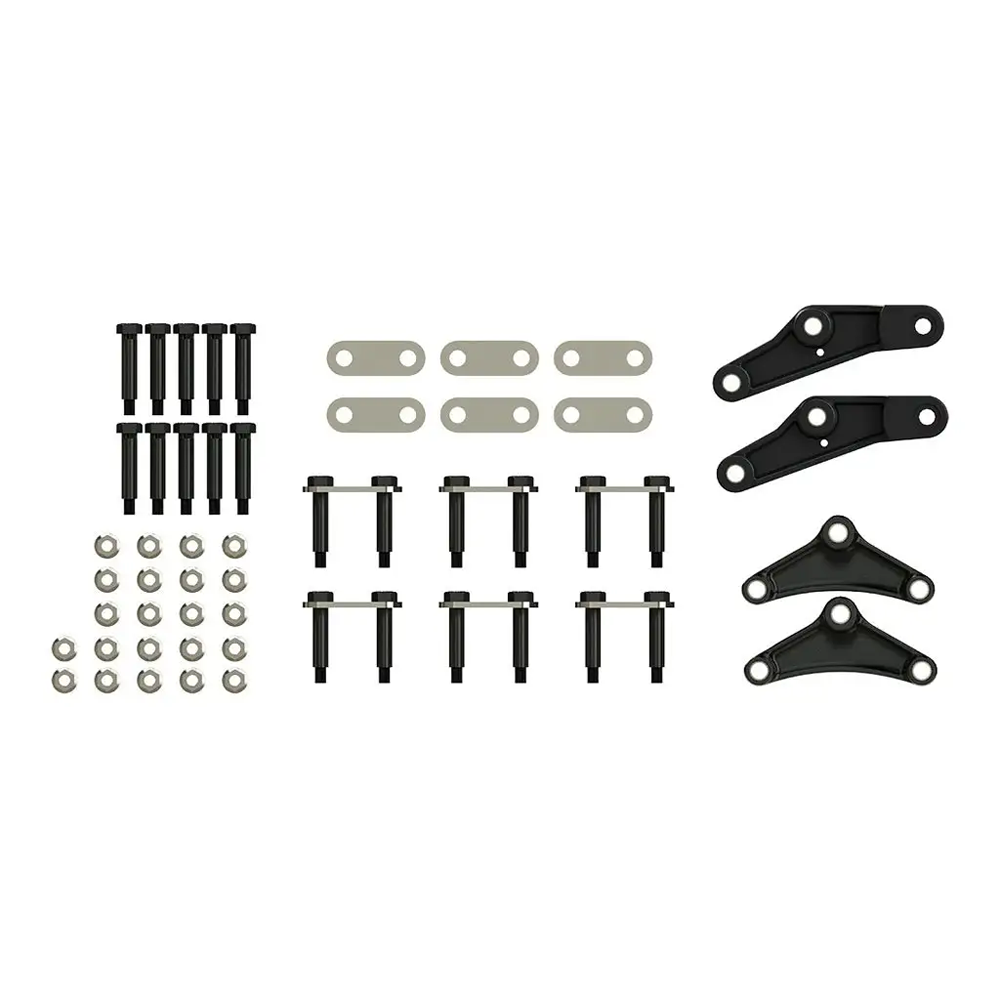

• QTY (1): Triple Axle AP Kit with Standard Equalizer & Bolts
  • Includes shackle links, hardware, and standard equalizers
  • Standard equalizer design for smoother towing
  • Installs like original equipment

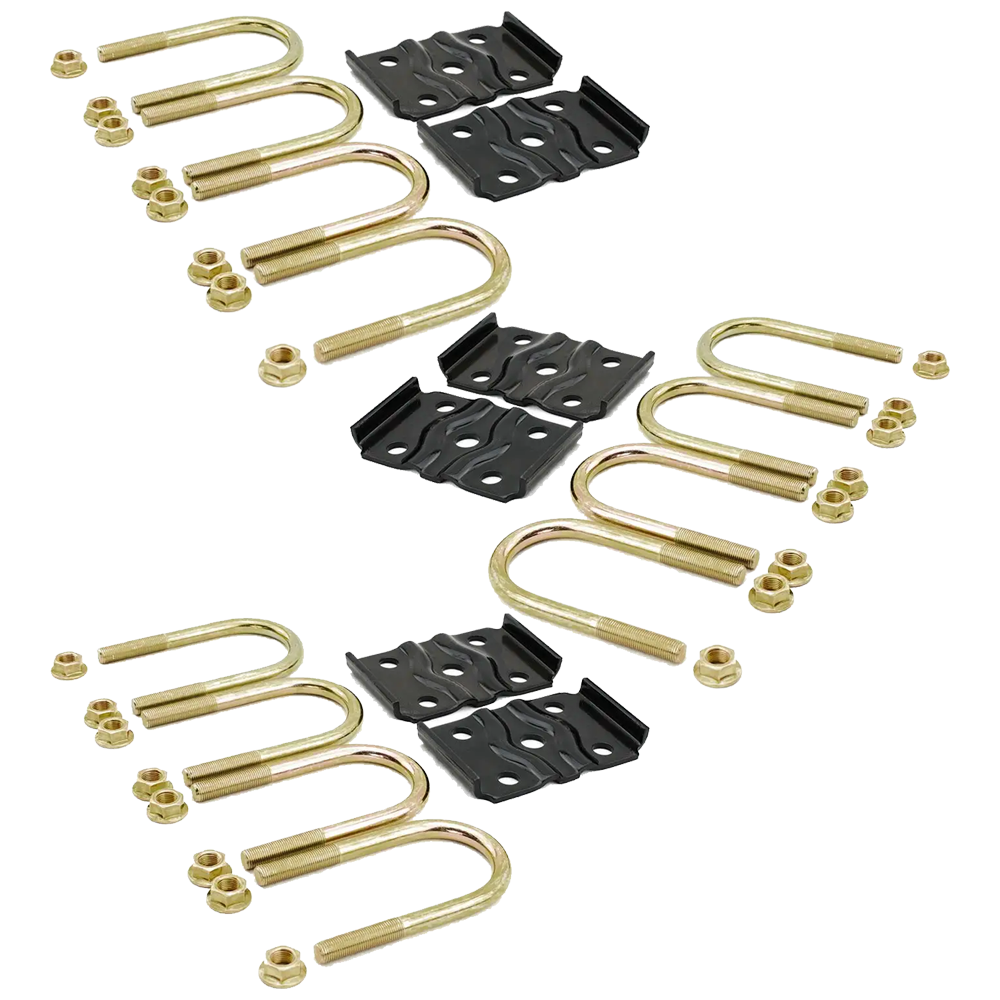

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • For 2.375" diameter axle tubes
  • U-bolt design for secure mounting
  • Reference your original hardware for fit
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Welded to chassis for axle mounting
  • Axle capacity: 2,200 - 8,000 lbs.
  • Length: 4-5/16"; width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity: 2,200 - 8,000 lbs.
  • Length: 4-1/2"; width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16" on-center
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity: 2,200 - 8,000 lbs.
  • Length: 6"; width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4" on-center

Always verify these components match your trailer’s original equipment. Regular inspection and proper installation help ensure safe towing for the long haul.
