Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 33" Spacing, 1,400-lb (20?1/2" Unloaded) Leaf Springs, Standard Equalizer, Hangers & Hardware � Dexter, Alko, Rockwell

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 33" Spacing, 1,400-lb (20‑1/2" Unloaded) Leaf Springs

This comprehensive triple axle suspension kit by Lippert is perfect for RV and trailer owners upgrading or maintaining their towing setup. Engineered for 2.375" axle tubes and 33" axle spacing, it features heavy-duty leaf springs with a 1,400-lb capacity (measured at 20‑1/2" unloaded eye‑to‑eye) for dependable, smoother performance. The kit also includes standard equalizers, hangers, and all necessary hardware. Compatible with Dexter, Alko, Rockwell, and other quality axles, this bundle helps ensure a safe and straightforward installation.

Bundle Contents:

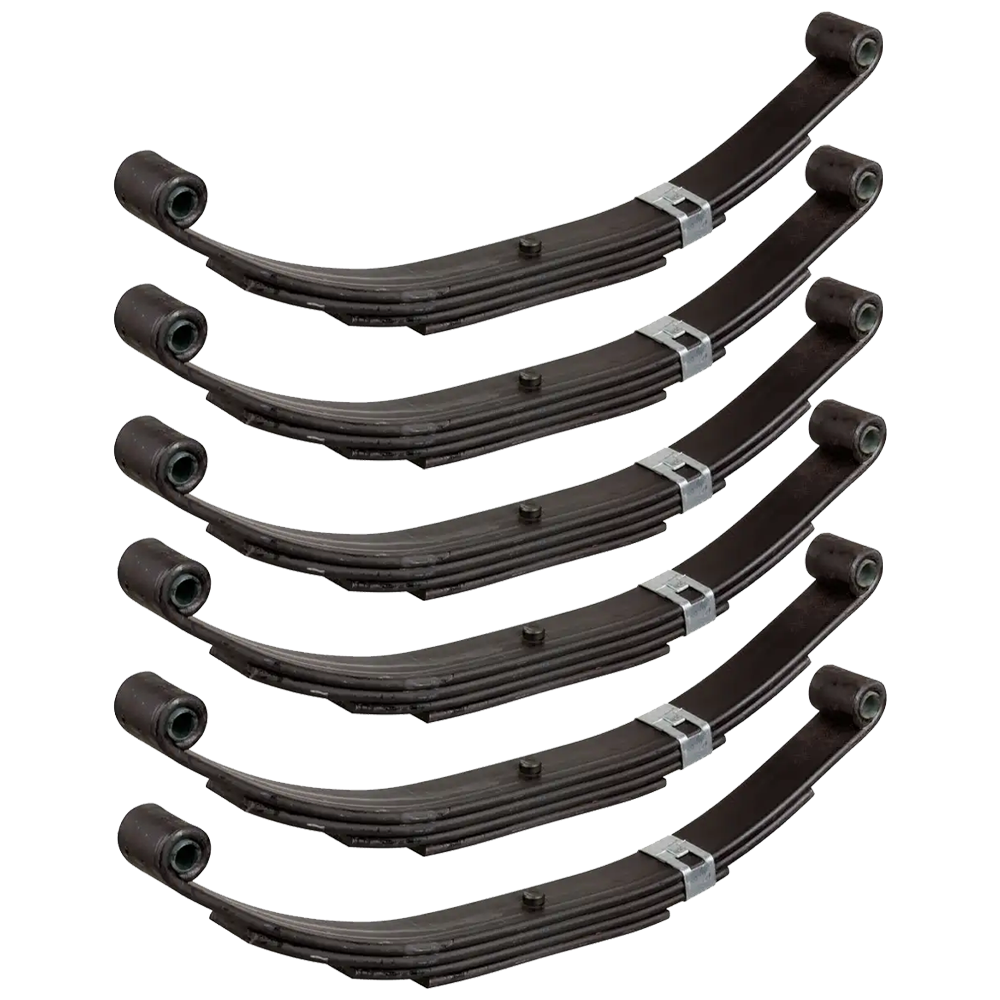

• QTY (6): Replacement Leaf Spring – 1,400-lb Capacity
  • 1‑3/4" width, 4 leaves
  • 20‑1/2" unloaded eye‑to‑eye length, 21" loaded length
  • 3‑1/2" arch height unloaded, 2‑3/8" loaded
  • 9/16" spring eye diameter
  • Exact-match design for improved towing stability

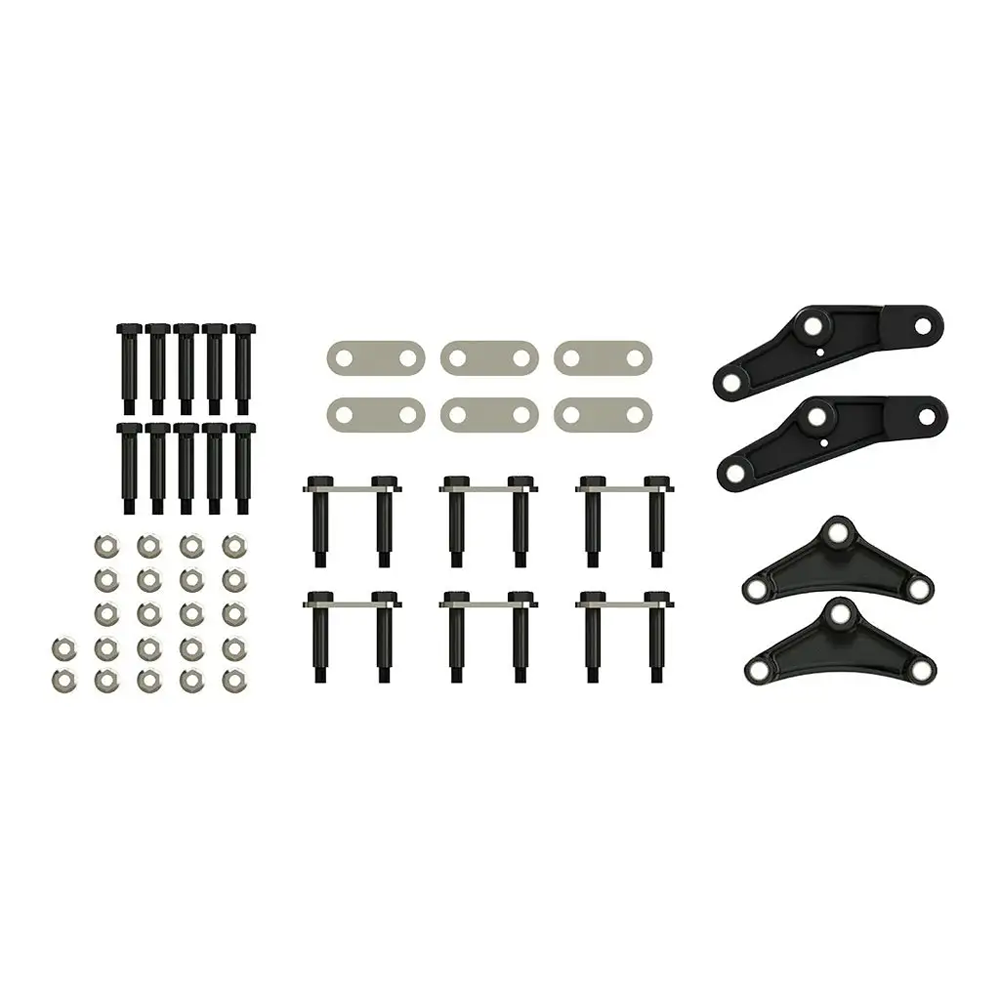

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Hardware
  • Direct replacement for triple axle configurations
  • Features shackle links, equalizers, and essential mounting bolts
  • Installs just like your original equipment

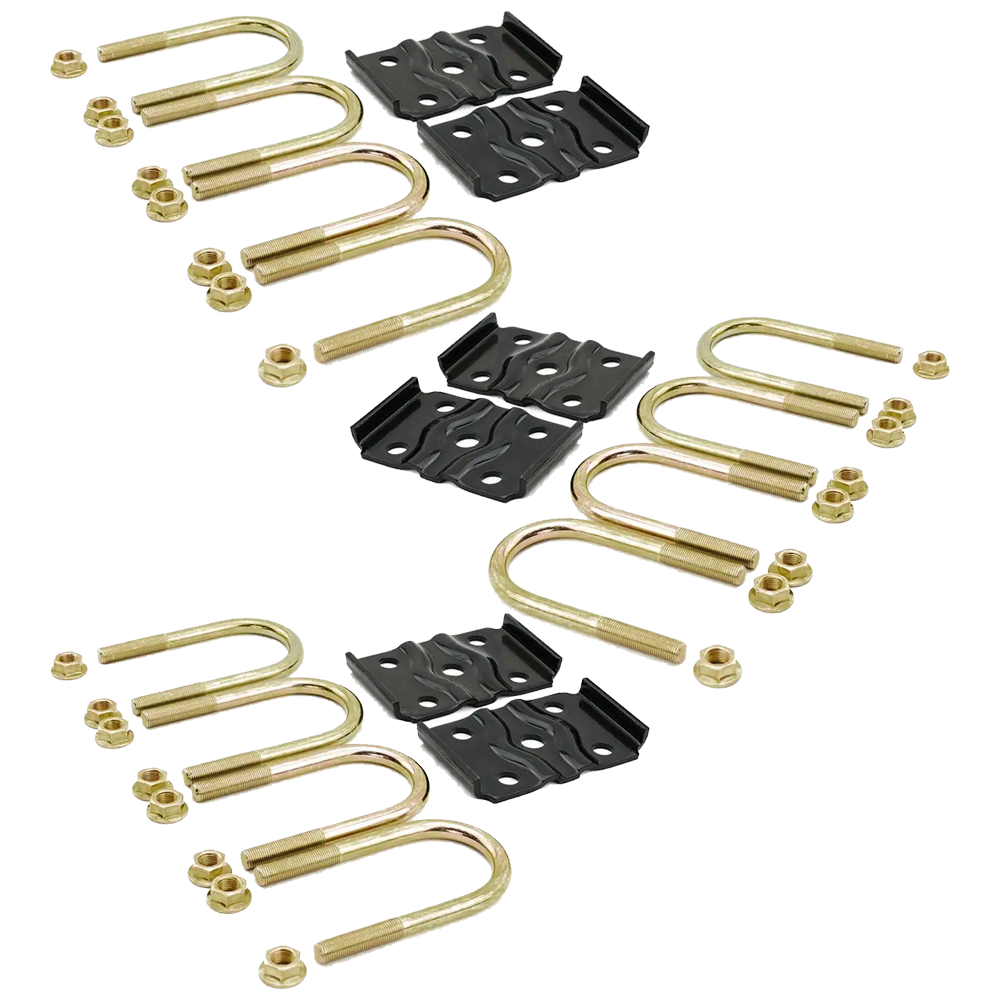

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • Replacement U-bolt kits designed for 2.375" axle tubes
  • Secures axle firmly to your leaf springs
  • Ensures proper alignment and performance
• QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16"
  • Axle capacity range: 2,200‑8,000 lbs.
  • Length: 4‑5/16", Width: 2‑3/16"
  • Hole size: 9/16", Distance to hole: 3‑9/16" on-center
  • Welded to the chassis to allow axle mounting
• QTY (4): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8"
  • Axle capacity range: 2,200‑8,000 lbs.
  • Length: 4‑1/2", Width: 3‑1/8"
  • Hole size: 7/8", Distance to hole: 3‑5/16"
  • Welded to the chassis; supports proper equalizer alignment
• QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4"
  • Axle capacity range: 2,200‑8,000 lbs.
  • Length: 6", Width: 2‑1/4"
  • Hole size: 5/16", Distance to hole: 4"
  • Welded to the chassis for secure, reliable axle mounting

Always verify your original equipment specs and perform routine maintenance on your suspension for the best towing experience. Proper installation of all components is essential for safety and smooth travels.
