Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 33" Spacing, 1,750 lb Springs (23-3/16" Unloaded) w/ Standard Equalizer, Hangers & Hardware � Compatible with Dexter, Al-Ko, Rockwell, Quality Axles

Lippert Triple Axle Suspension Kit – 2.375" Tube, 33" Spacing, 1,750 lb Springs (23-3/16" Unloaded)

Upgrade your triple axle trailer with this comprehensive Lippert suspension kit built to OEM specs. Compatible with Dexter, Al-Ko, Rockwell, and other popular axle brands, it features precision-made leaf springs, a standard equalizer, front/center/rear hangers, plus all the mounting hardware you need. Maintain proper ride height, reduce sway, and enhance overall towing stability with these direct-replacement parts.

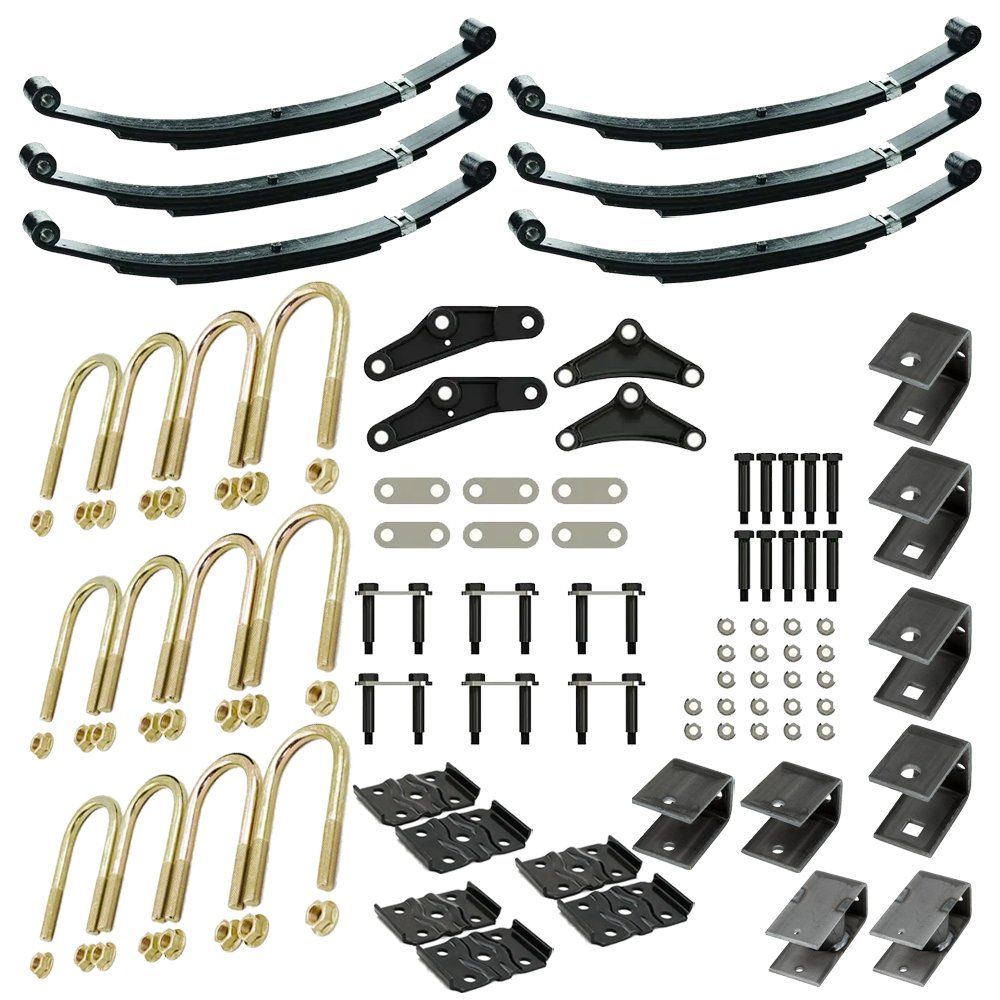

Bundle Contents:

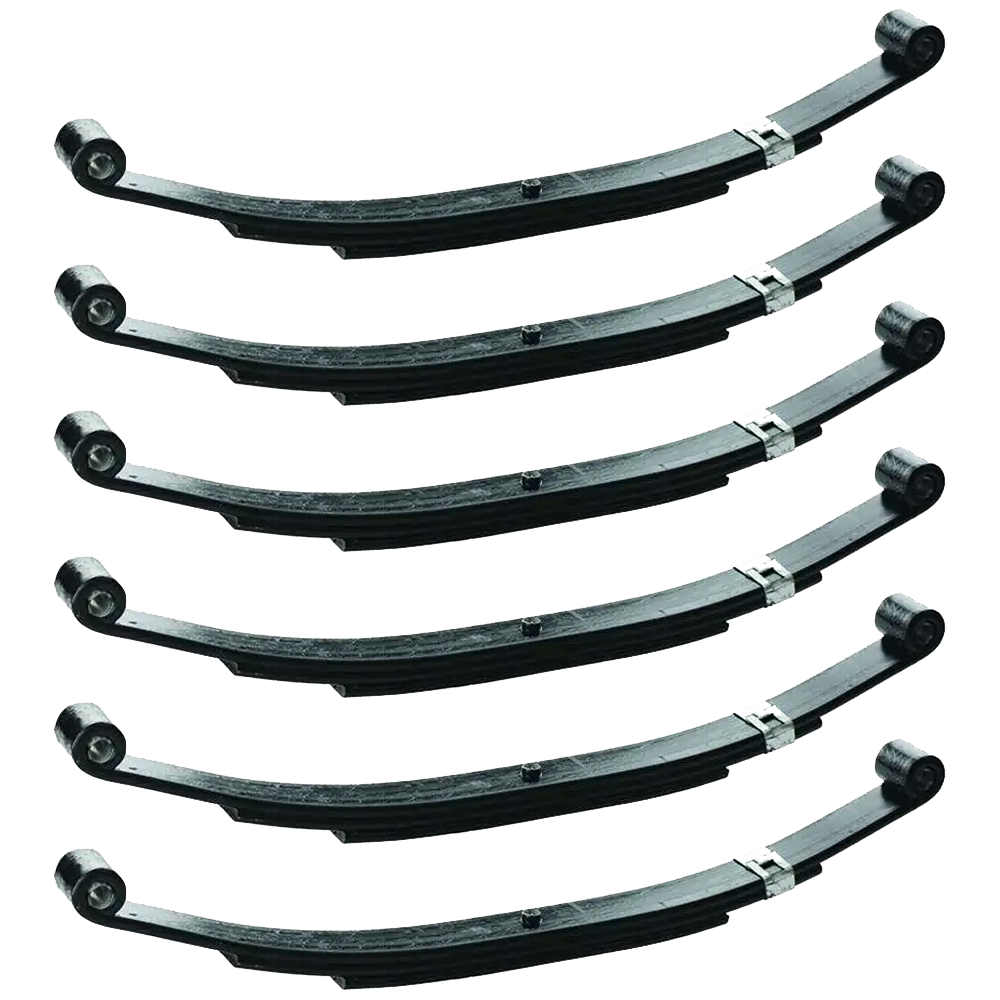

• QTY (6): Replacement Double-Eye Leaf Spring – 1,750 lb Capacity, 23-3/16" Unloaded
  • 1,750 lb capacity, 3 leaves
  • 1-3/4" spring width
  • 23-3/16" unloaded eye-to-eye length, 24" loaded
  • 3.5" arch height unloaded, 2.5" loaded
  • 9/16" spring eye diameter

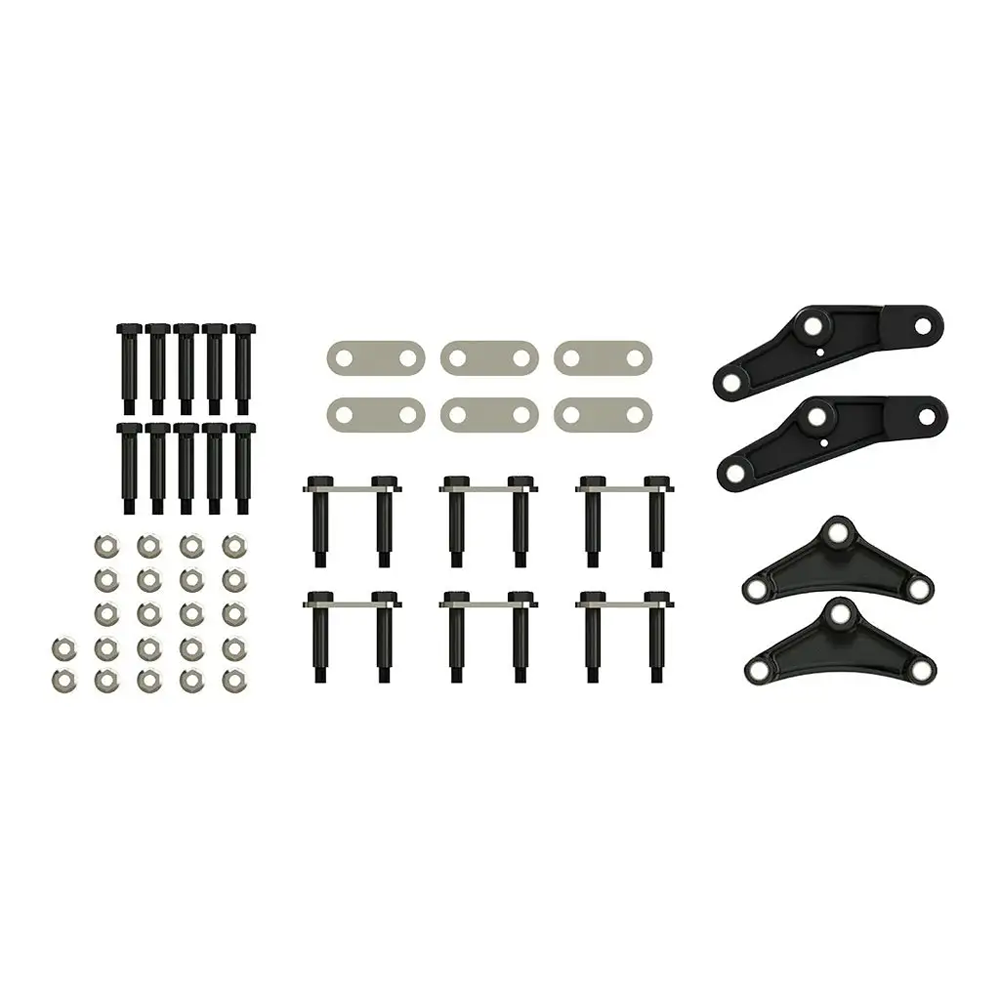

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Includes shackle links, mounting hardware, and standard equalizers
  • Direct replacement for triple axle configurations
  • Ensures proper load distribution across all axles

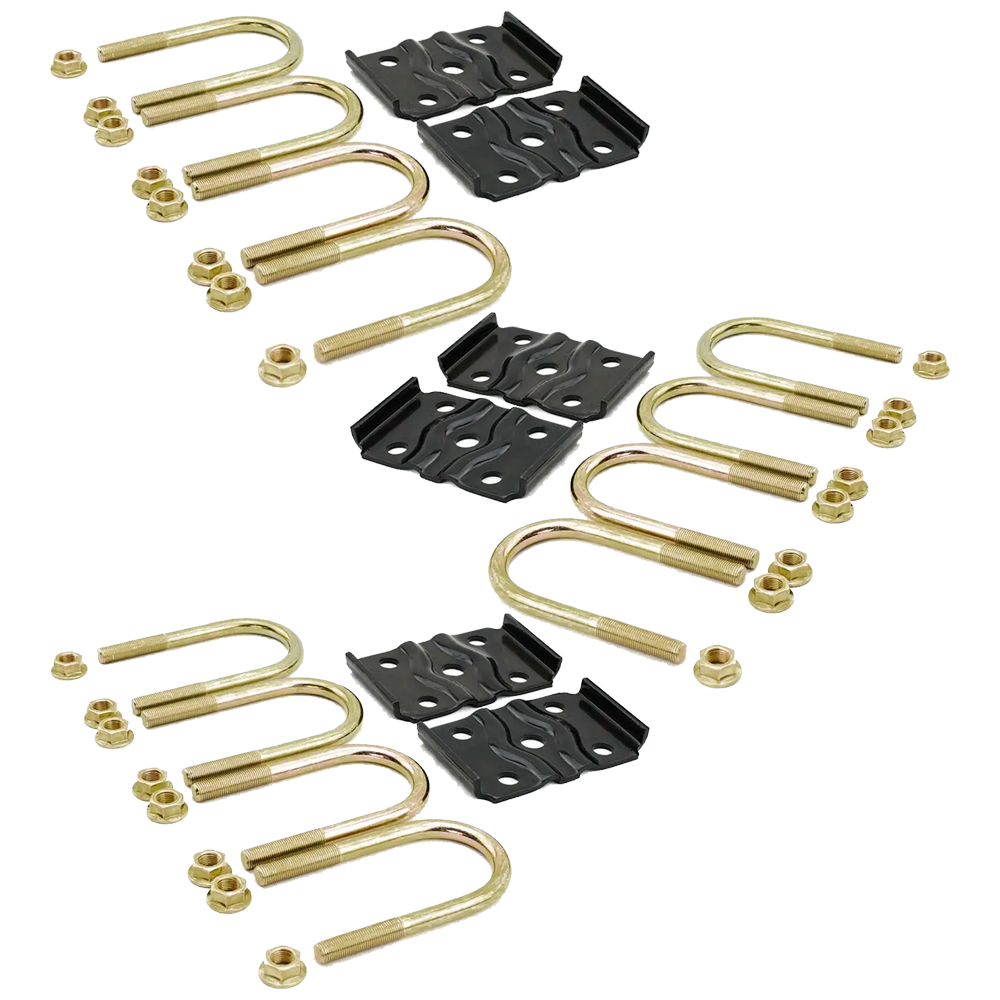

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • U-bolt design for secure attachment
  • Installs just like your original equipment
  • Designed for a 2.375" diameter axle tube
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200–8,000 lb Rating
  • Length: 4-5/16"; Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Welded to chassis to allow mounting of front axle
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200–8,000 lb Rating
  • Length: 4-1/2"; Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Welded to chassis for center axle support
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200–8,000 lb Rating
  • Length: 6"; Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"
  • Welded to chassis for rear axle positioning

Always confirm your original equipment specifications before installing. Routine inspections and proper maintenance of these suspension components help ensure a safer, smoother ride and longer-lasting performance.
